Array gone after upgrading

[Arragon]

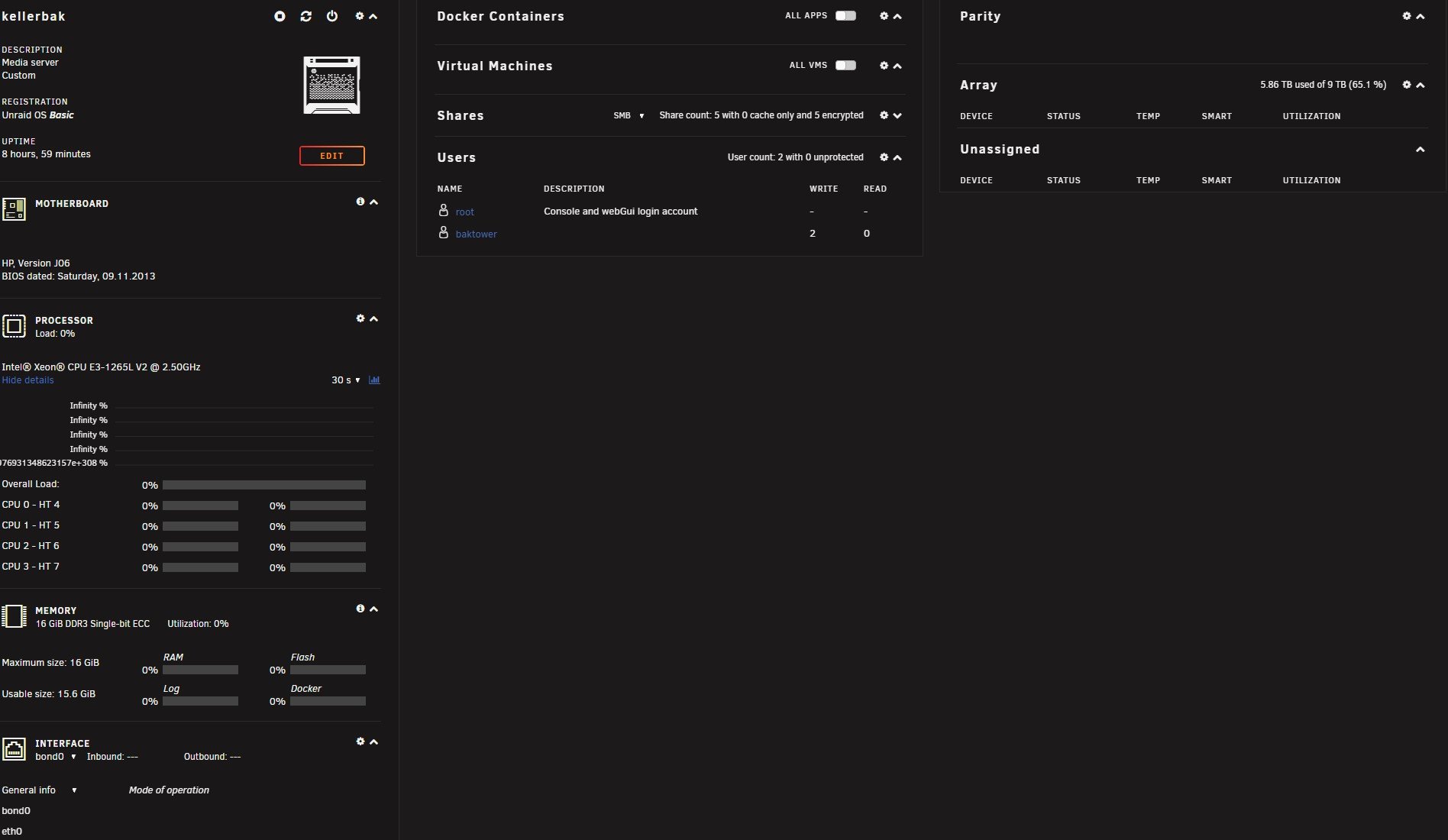

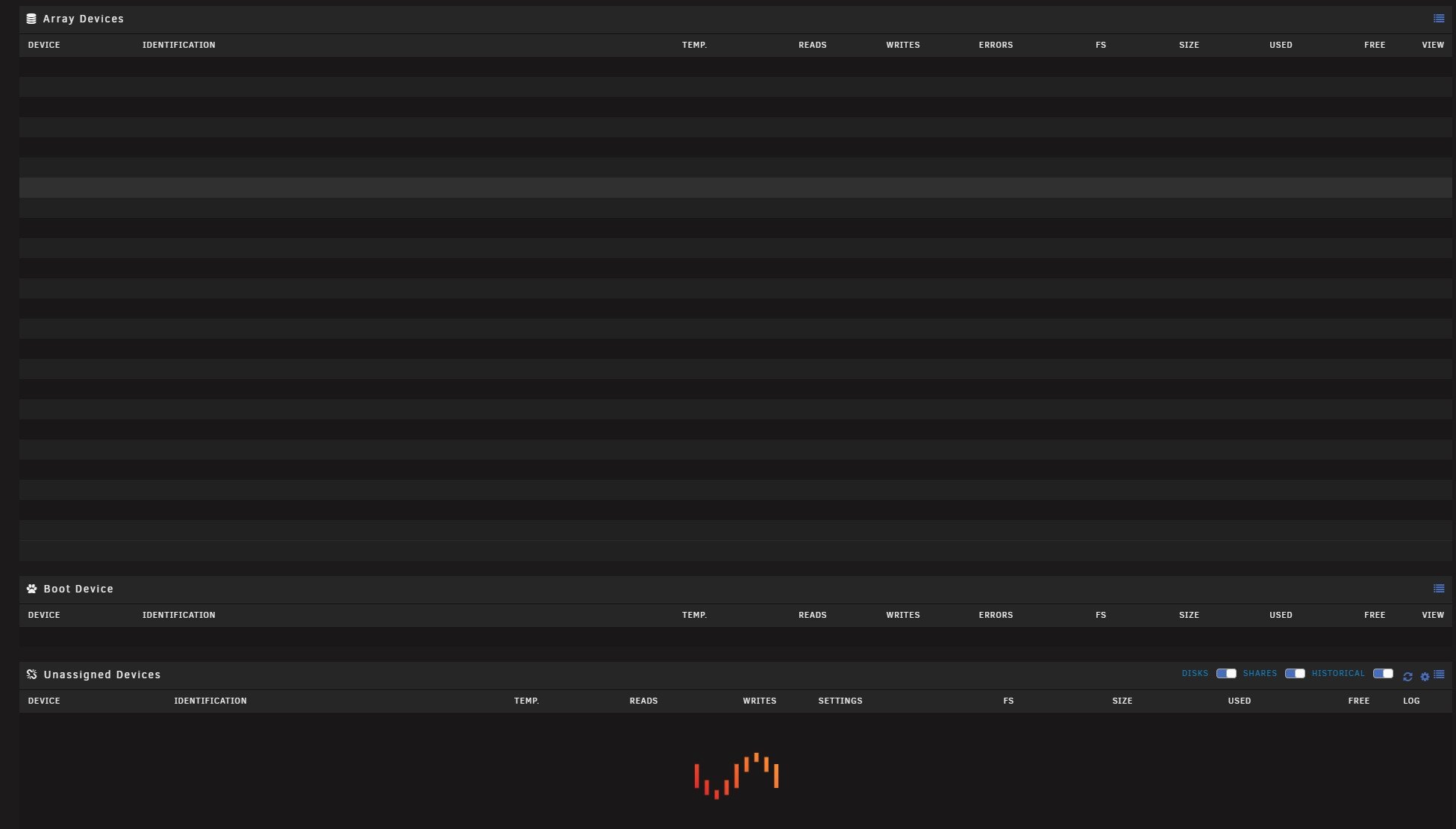

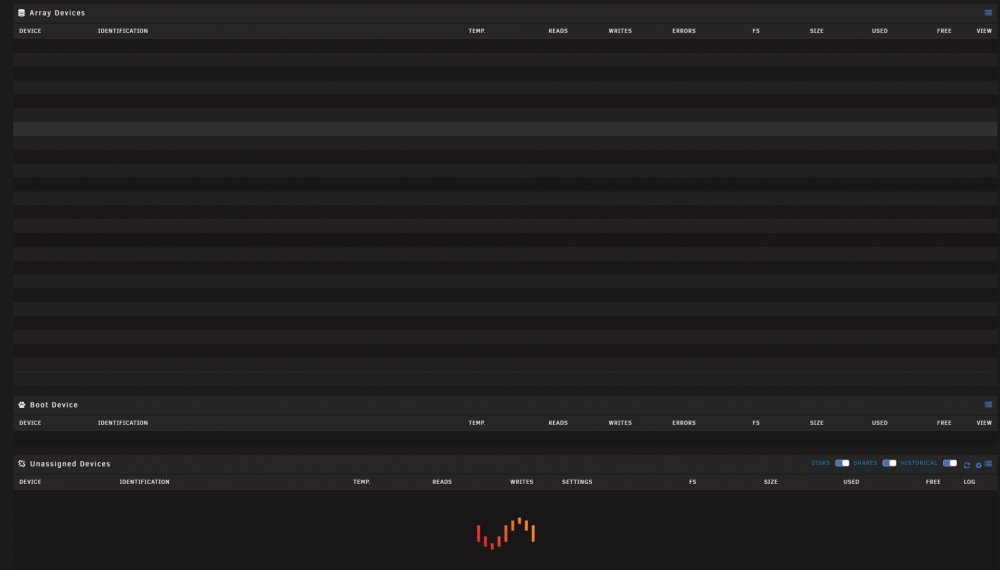

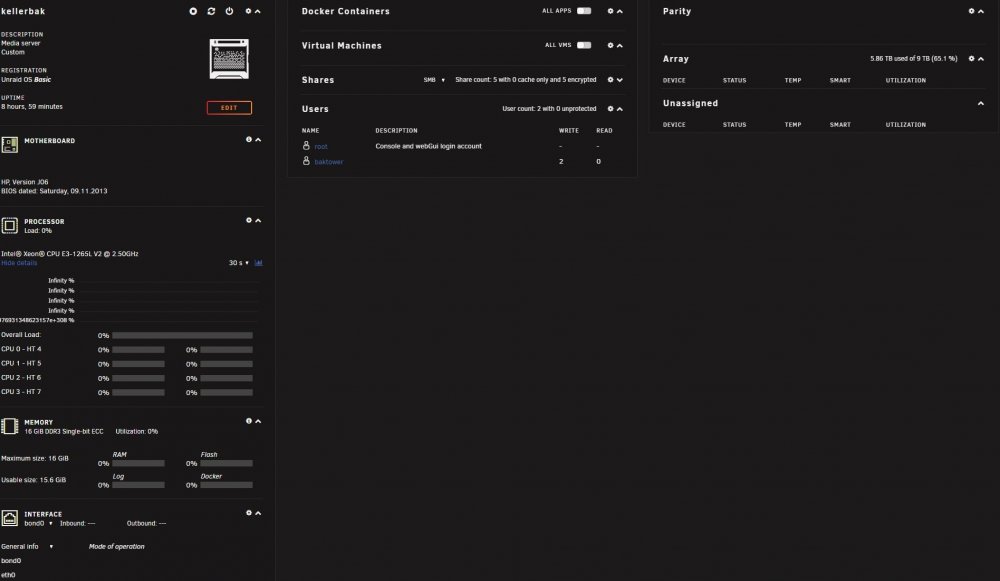

I switched my backup server to 6.10 which seemed to have worked okay until I started the upgrade of the certificate.  Now my whole array and all drives are missing.



[ChatNoir]

Please attach your diagnostics to your next post.

[Arragon]

It just opens a window where a lot of text scrolls by and then it reads like this

[Arragon]

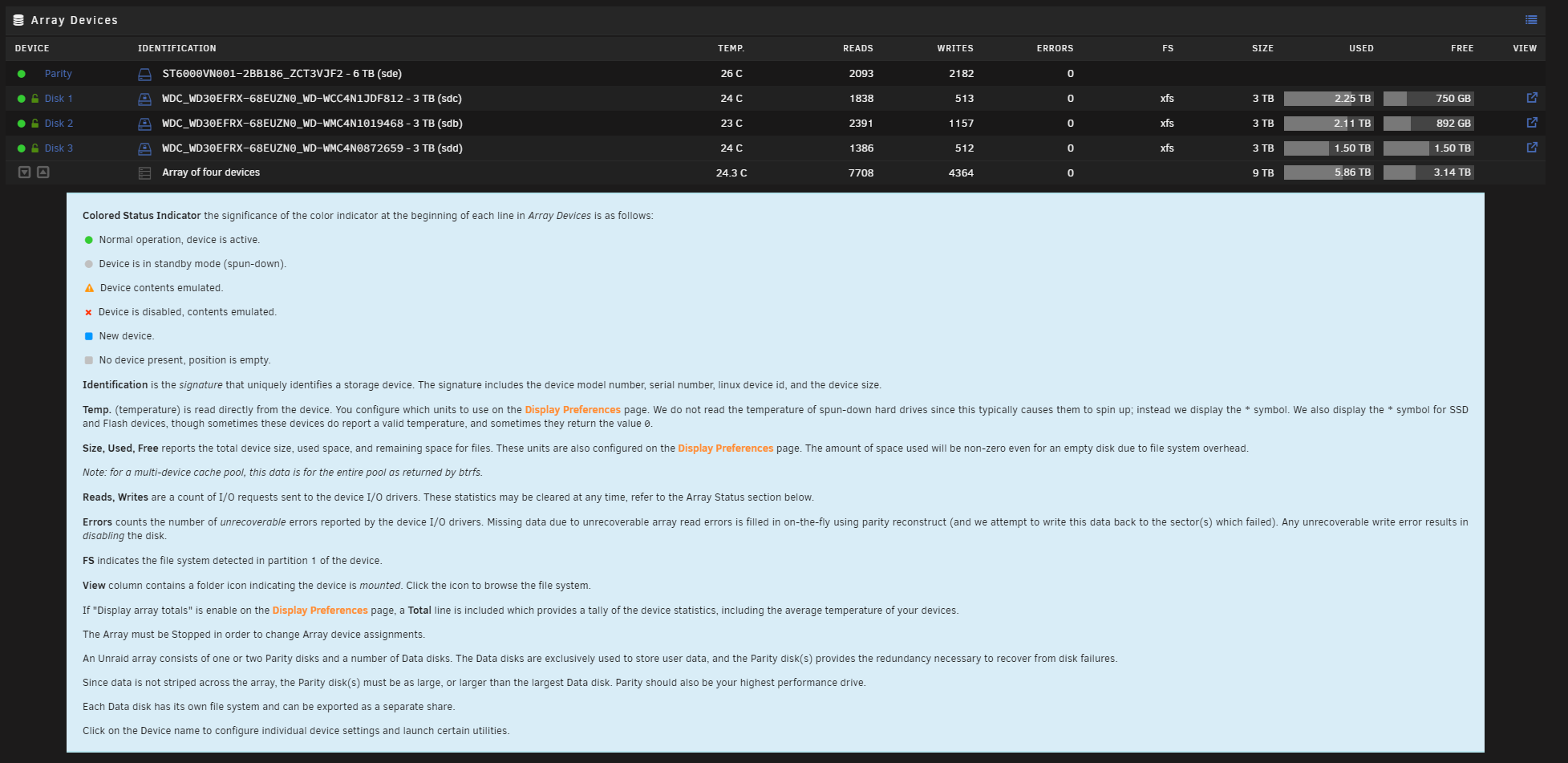

After restarting another time, things look a lot better. I was able to start the array and everything seems okay except there are blue text boxes everywhere and my VMs are gone.  Could attached the diagnostics file this time


kellerbak-diagnostics-20220518-1128.zip

[JorgeB]

Blue text is because you turn on the help, VMs might me missing if the Kingston SSD was your cache device, it's not assigned.





[Arragon]

The SSD was not the cache.  It assigned it to the VM.  Dunno why the VMs gone but it should be easy to recreate it unless you know a better way to restore the settings.

[JorgeB]

Please post new diags after array start to see what's happening with the libvirt.img

[Arragon]

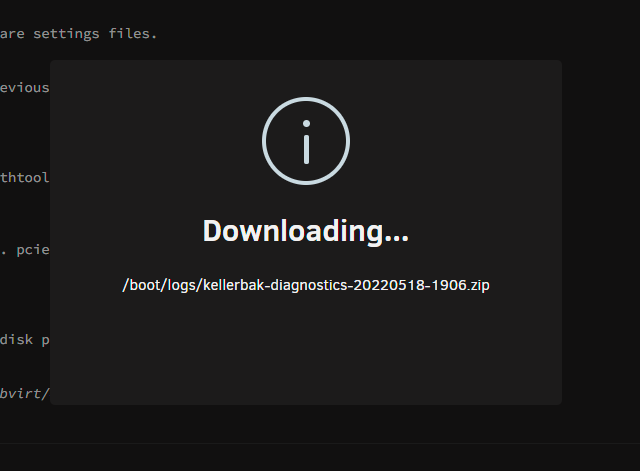

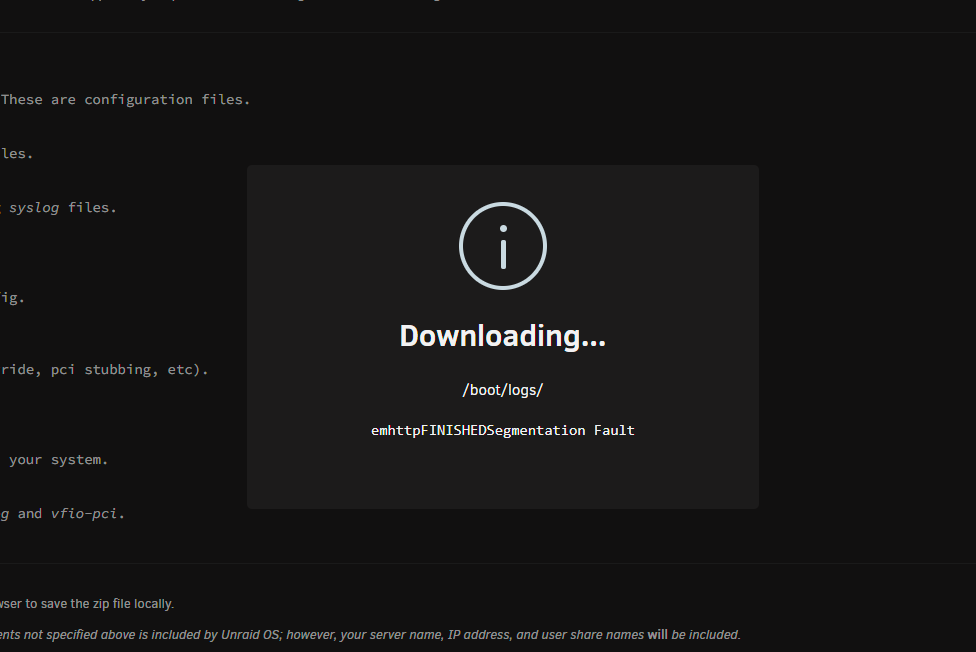

Now it's stuck again on this screen -.-

[JorgeB]

Try typing "diagnostics" in the console, if that also fails copy the syslog to the flash drive:

cp /var/log/syslog /boot/syslog.txt

then attach here.







[Arragon]

OK, here it is

awk: cmd. line:1: (FILENAME=/kellerbak-diagnostics-20220518-1941/logs/syslog.txt FNR=35) warning: Invalid multibyte data detected. There may be a mismatch between your data and your locale

syslog.txt

Edited May 18, 2022 by Arragon

[JorgeB]

libvirt.img is mounting correctly, though it looks like a fairly recent file, see if you have multiple images:



find /mnt -name libvirt.img



[Arragon]

/mnt/user/system/libvirt/libvirt.img
/mnt/user0/system/libvirt/libvirt.img
/mnt/disk1/system/libvirt/libvirt.img



[itimpi]

1 minute ago, Arragon said:

/mnt/user/system/libvirt/libvirt.img
/mnt/user0/system/libvirt/libvirt.img
/mnt/disk1/system/libvirt/libvirt.img



Those are all different views of the same file so it looks if you only have 1 copy and it is physically on disk1.

[Arragon]

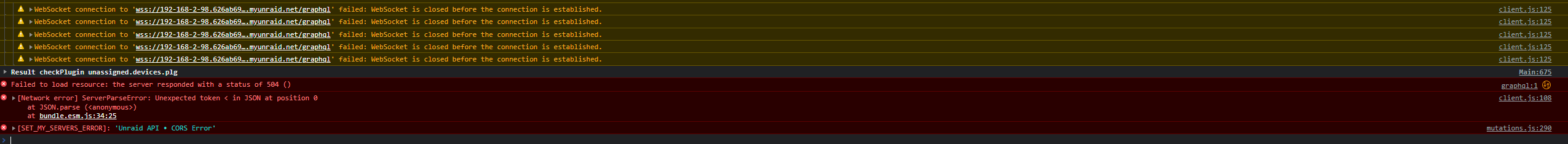

Also getting this error output in UI (the list of disks is empty but then suddenly the drives appear)



Edit: The errors appear in the browser console

Edited May 18, 2022 by Arragon

[JorgeB]

You are having some strange issues, first try booting in safe mode, if that doesn't help I would consider re-creating the flash drive and start with minimal config or re-configure the server.

[Arragon]

Are you sure?  It seems like everything is working now.  The UI glitch is a bit strange but after a while the drives etc appear.  I was also able to recreate the VM without a problem.

[JorgeB]

If it's working let it be.

[itimpi]

2 hours ago, Arragon said:

Are you sure?  It seems like everything is working now.  The UI glitch is a bit strange but after a while the drives etc appear.  I was also able to recreate the VM without a problem.

Make sure that you make a backup of the flash drive with your current working setup in case you later get some unexpected behaviour.

[Arragon]

OK, Thanks for the fast support.
