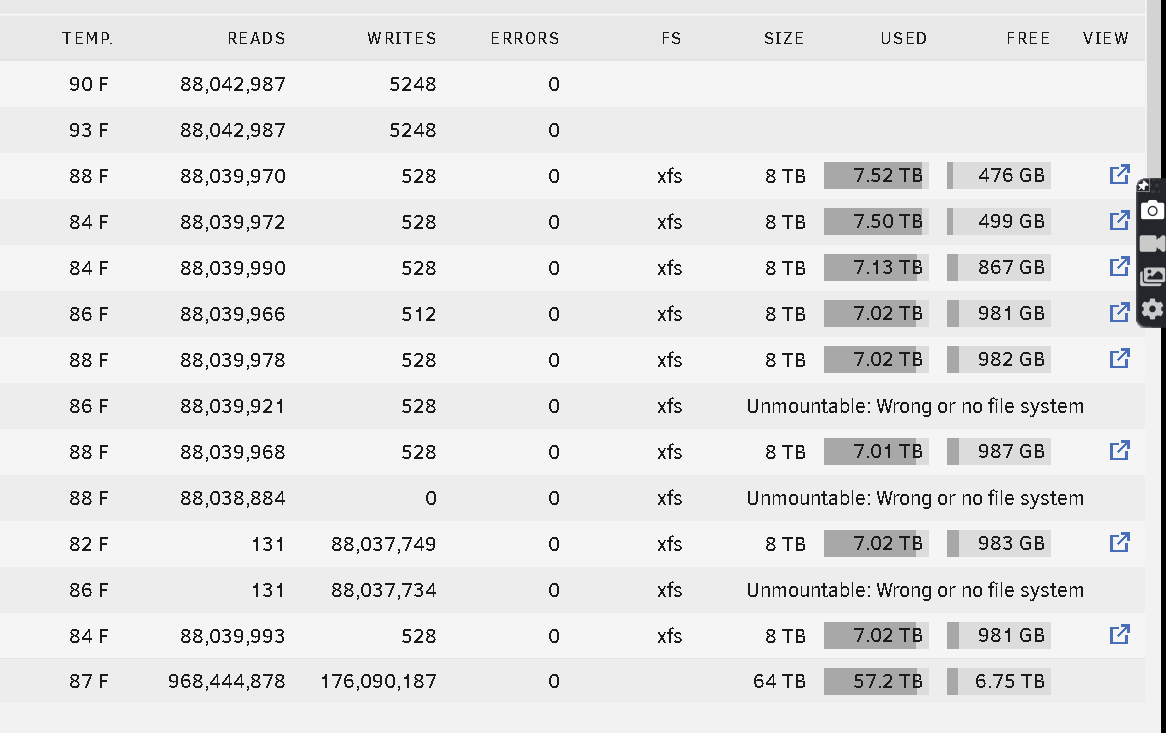

December 10, 20223 yr had a nvme ssd short out on mother board. so i removed it so now i start up computer everything works except for three drives 6 8 10 now i rebuild 6 and 8 thinking its a issue with the power failure then getting a bunch of read errors from all three drives i think hba may have gotten bad cable or shorted out not sure how to figure out which one it is so i plugged those three drives into the mother board and now only drive ten is having issues so i replaced drive 10 but now all three drives are uncountable how should i proceed
December 10, 20223 yr Download the file as explained in the link, then attach the complete zip file to your next post.
December 11, 20223 yr Author thanks didn't realize diagnostics was a link. here is 7zip file i removed mover log. tower-diagnostics-20221210-2230.7z

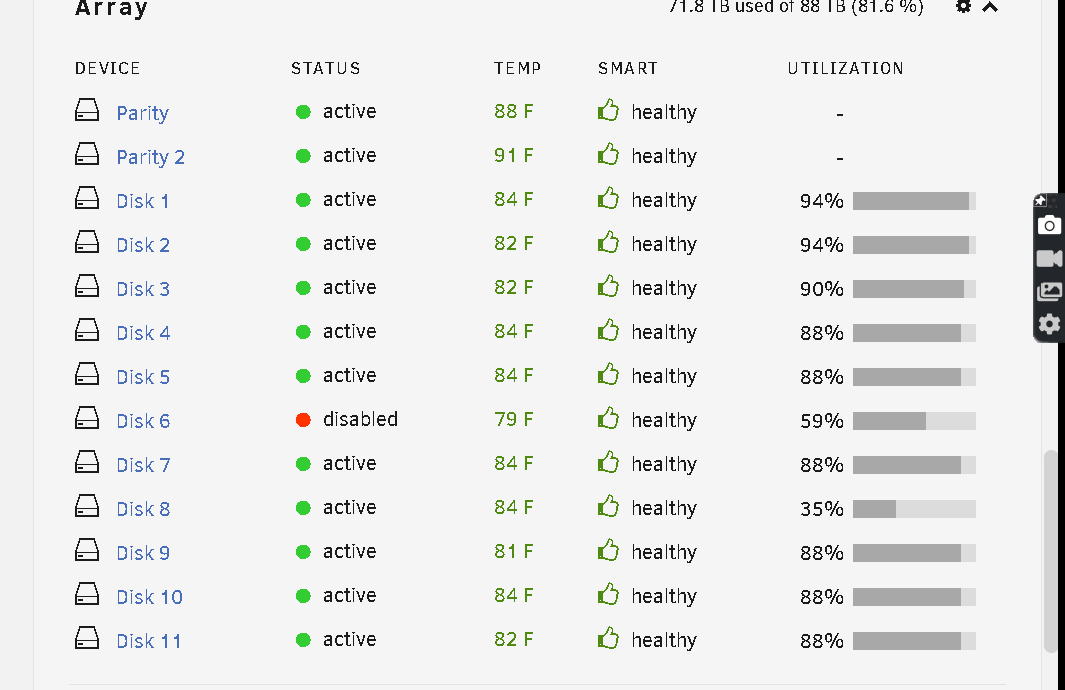

December 12, 20223 yr Author so checked filesystem lost some data not worried about that. and everything was fine then i did party check and now drive 6 is disabled so not sure what changed maybe i have a bad cable or a bad hba card here is smart log for drive 6 thanks for the help tower-smart-20221211-1922.zip
December 13, 20223 yr Looks more like a power/connection issue, check/replace cables and if the emulated disk still mounts and contents look correct you can rebuild on top.
December 20, 20223 yr Author replaced cables still having issues with drive 6 and 8 tower-diagnostics-20221220-0528.zip
December 21, 20223 yr Upgrade both LSI HBAs firmware to latest, since you have 2 you can also swap those this to the other one, to rule out one HBA problems.
December 21, 20223 yr Author Is there a way to do that in unraid. The last time i firmware upgrade on lsi card i bricked it somehow it won't boot anymore is there a utility or bookable software to do it any guides would be helpful as this card is expensive.

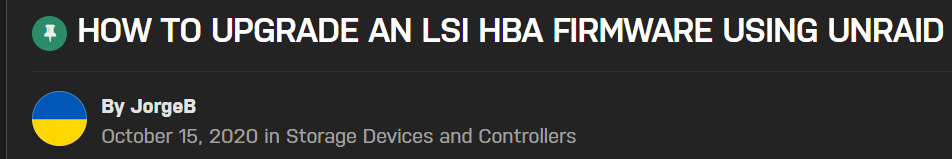

December 22, 20223 yr 7 hours ago, hoflande said: Is there a way to do that in unraid. That's literally the title of the thread linked by JorgeB :
December 23, 20223 yr Author yeah i forgot underline is link cant find the right firmware for my LSI 9300-16i 16-Port and the one i did find isn't new its from 2019
December 23, 20223 yr Author i think it might be a bad batch of sas cables do guys have a high quality brand you can recommend
December 23, 20223 yr 7 hours ago, hoflande said: firmware for my LSI 9300-16i 16-Port and the one i did find isn't new its from 2019 9300-16i is basically two 9300-8i, look for that firmware, you are using 16.00.01.00 and IIRC latest one is 16.00.12.00
December 23, 20223 yr 5 hours ago, hoflande said: do guys have a high quality brand you can recommend Always had good results with Supermicro cables, and they are not very expensive.
January 5, 20233 yr Author ok so i replaced all power and sata cables again and its doing a party check started off at speeds of 190mbps and after 12hours its down to 12mbps is this normal? by the way it would disable multiple drives 2 hours or less in so i believe i had a batch of bad cables. i have not updated sba card because i haven't had enough time to do all research so i don't brick it like before
January 5, 20233 yr Author StartedStop will take the array off-line. Disabled -- Parity operation is running Parity-Check in progress. Pause will pause Parity-Check. Cancel will stop Parity-Check. Current operation started on Wed 04 Jan 2023 06:28:30 PM PST (yesterday) Total size:8 TB Elapsed time:13 hours, 50 minutes Current position:2.76 TB (34.5 %) Estimated speed:35.2 MB/sec Estimated finish:1 day, 17 hours, 21 minutes Sync errors corrected:0 it i guess is fluctuating
