December 29, 20223 yr Hello everyone, the following might sound stupid, but I am kind of stuck here. So for christmas I gifted myself a new 6TB WD Red. What was: 3TB HDD Parity 3TB HDD Data 3TB HDD Data 1TB SSD Cache What I did: Pull all Movies/Series off the array onto the new 6TB set up as btrfs cache pool. Emptied one of the array drives -> new config -> redo array/parity Add that drive to the existing 6TB cache pool.... -> RAID1 fml - As of now I am saving all data from that cache pool to other disks, because once the 3TB is removed from pool, the 6TB is not mountable - After balance btrfs to single mode unraid now tells me those 2 HDDs have 12TB What I would like to have: 3TB Parity 3TB Data 1TB Cache SSD 6+3TB pool without any backup/parity whatsoever (extendeble for future HDDs) What would be even better: the 1TB SSD for downloading/unpacking, then move to 6+3TB pool Any help is greatly appreciated. 🙏 Thank you Edited December 30, 20223 yr by Schmackofatz
December 29, 20223 yr Community Expert Do you mean a pool with 1x6TB HDD + 1x3TB HDD? For different sized disks in a pool with no redundancy, you should use Single mode.
December 29, 20223 yr Author Solution Hey trurl, thanks for your help! Yes, different sized disks, without any security. Just throwing in media files, filling all disk up "high-water" like. Is is possible to use the ssd though? Can the mover (or a cron job maybe) move files from the cache SSD to this new setup? And can there be added new disks in the future?
December 30, 20223 yr Community Expert The mover can only move files to/from the main array and a share associated with a particular pool. It does not move files between pools if that was what you were hoping for
December 30, 20223 yr Author It was. I will find another solution then. However setting as Single Mode was basically what I was asking, so I guess I'll mark this as solved. Thank you both very much and have a great new year 🙂
December 30, 20223 yr Community Expert 5 hours ago, Schmackofatz said: filling all disk up "high-water" like Allocation method doesn't apply to pools. A multi-disk pool appears as a single volume. Do you understand the difference between the array and pools?

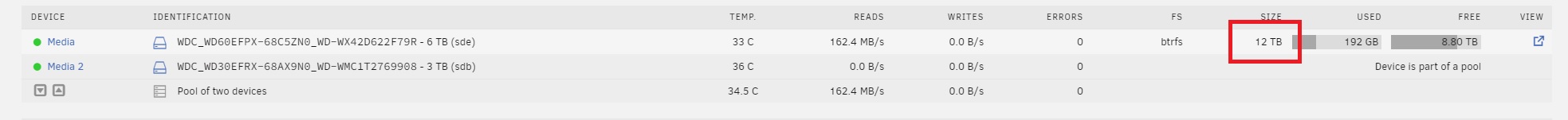

December 30, 20223 yr Author The array is protected by the parity drive, pool isn't. Pool = JBOD? Edit: I also don't get this math Edited December 30, 20223 yr by Schmackofatz
December 30, 20223 yr Community Expert 29 minutes ago, Schmackofatz said: Edit: I also don't get this math That's normal when using different size devices, used/free space will be correct though.
December 30, 20223 yr Community Expert 1 hour ago, Schmackofatz said: Pool = JBOD? No. A pool is a single volume. There is no way to access each disk in a pool individually. So Allocation method doesn't apply.
December 30, 20223 yr Author Then how are files assigned to the physical drives? Are the other drives accessible should one fail?
December 30, 20223 yr Community Expert 5 minutes ago, Schmackofatz said: Then how are files assigned to the physical drives? Based on most free space, it's chunk based (1GiB), not file based. 5 minutes ago, Schmackofatz said: Are the other drives accessible should one fail? Nope.
December 30, 20223 yr Community Expert 11 minutes ago, Schmackofatz said: Are the other drives accessible should one fail? Only if you use one of the btrfs raid modes that provides redundancy
