Cannot access VM's web service

[HackHome]

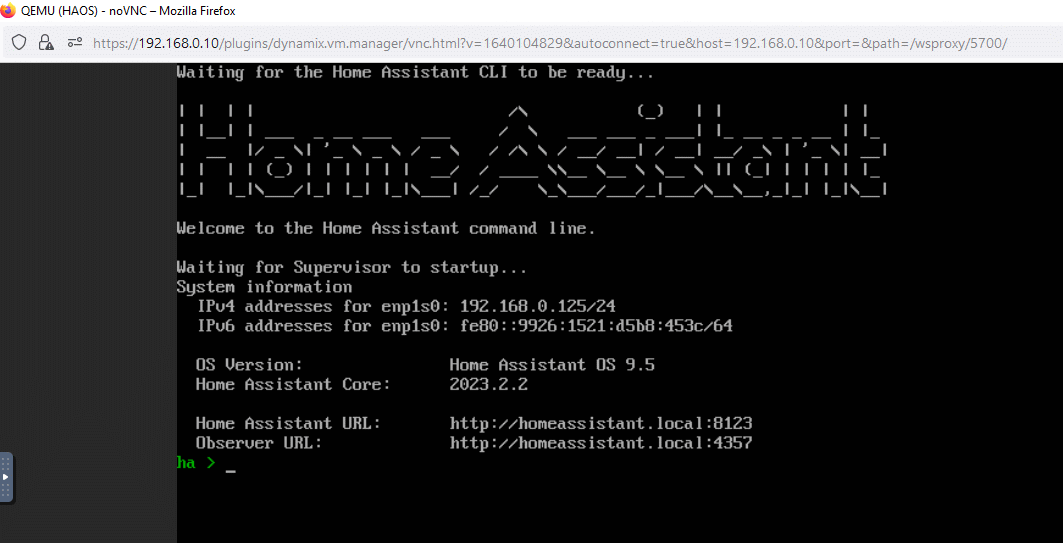

I installed a home assistant VM according to this tutorial. VM starts and upon finished booting process I see this:



However, I cannot access (but ping 192.168.0.125 works) from my LAN computers. BUT i can access the VMs webservice (home assistant web interface) from my unraid server itself. Is there anything I need to configure within unraid so I can reach the service from my LAN computers?

Edited February 5, 2023 by HackHome
typo

[HackHome]

anyone?

[Vr2Io]

On 2/6/2023 at 1:18 AM, HackHome said:

Is there anything I need to configure within unraid

No. Try different browser.



Do you access at LAN PC ?

http://homeassistant.local:8123 or

http://192.168.0.125:8123



Post Unraid network setting page screen capture and diagnostic.

Edited February 7, 2023 by Vr2Io

[HackHome]

I try to access it via http://192.168.0.125:8123 (which should work?)

Pinging the machine works from every pc/vm/container

Accessing the Service from a PC in my LAN => does NOT work
Accessing the Service from a VM running on the same server as homeassistant-vm is running on => does NOT work
Accessing it from a firefox docker container on the same server as homeassistant-vm is running on => DOES work

Same results whatever browser I use.

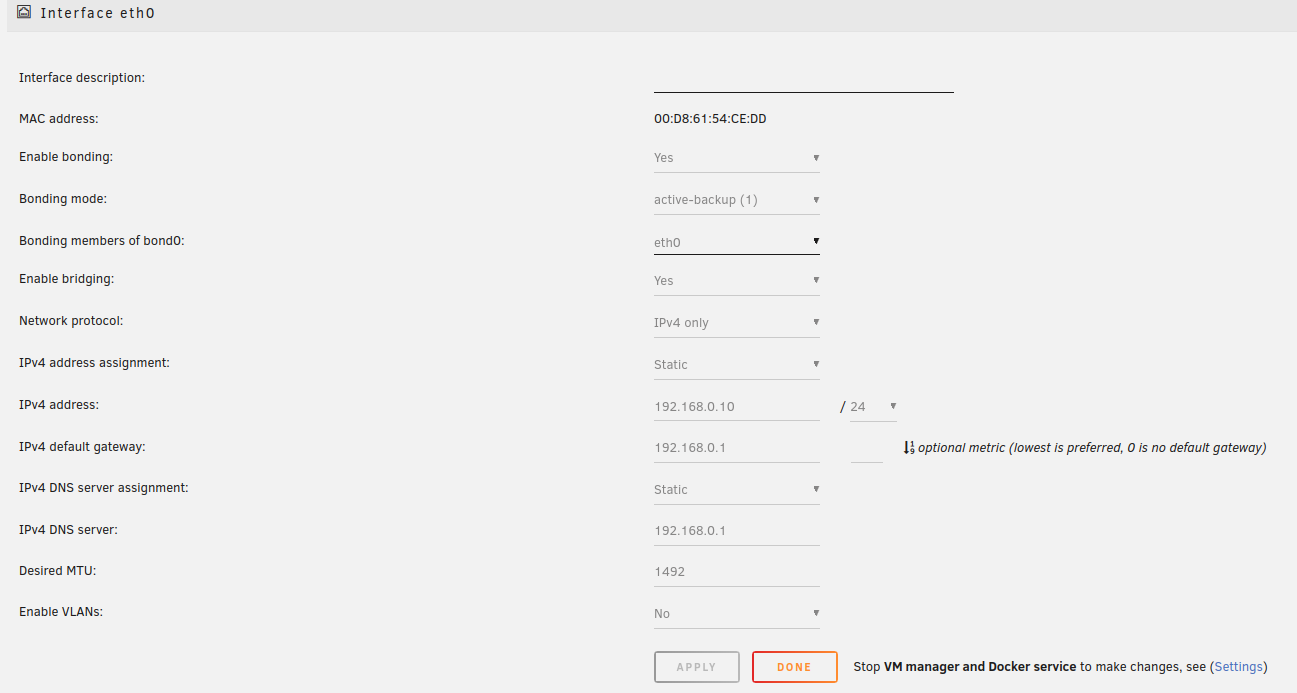

Screenshots of network settings:





Diagnostics zip attached. Thanks for your help

hackup-diagnostics-20230207-1117.zip

Edited February 7, 2023 by HackHome
added information

[Vr2Io]

4 hours ago, HackHome said:

I try to access it via http://192.168.0.125:8123 (which should work?)

This is direct IP accessing.

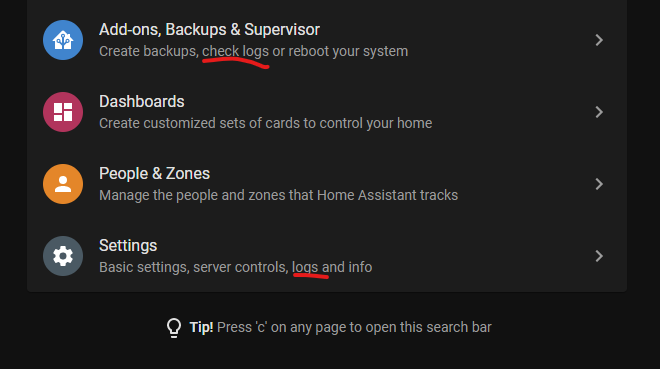

Pls check does any abnormal found on supervisor log and general log after fail access from LAN PC.



[HackHome]

On 2/7/2023 at 4:04 PM, Vr2Io said:

Pls check does any abnormal found on supervisor log and general log after fail access from LAN PC.

Logs are empty.
Today I installed a proxmox instance within a VM. Again, I can ping it but cannot reach from my LAN computer. Can also not reach from another VM.
And - again - I can reach the web interface from a firefox running in a docker container and I can reach the interface when using unraid console.

What am I missing here? Some weirdo routing/firewall stuff?


[HackHome]

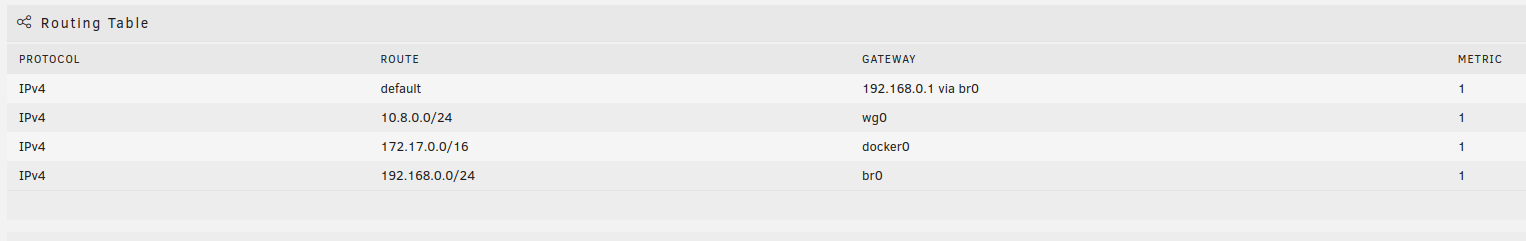

Is there anything wrong with my routing table?

[HackHome]

Changing the Network Model from virtio-net to virtio helped. Now I can Access the VM. Sometimes. Like 50% of the time it still won't serve the Webinterface but Always reacting to pings
