Dear All, I wasn't able to engage the last few months...



I have revisited the setup I have and I discovered that current docker images I am using already manage now the iGPU of AMD Ryzen 9 7900.



There are new settings available in the plex server to choose which GPU to use: iGPU vs an additional one I have installed nvidia Quad.



I tried the last 24h and it worked perfectly.



see some pictures below on the new setup I have.



some posts mentioned that the transcoding can't manage HDR10 content but I found that this is not true. in my case the play is smooth and no bugs.



What I noticed is that unraid still shows the CPU being used higher than with nvidia (around 25%) but you could see that iGPU is being used (bottom of the picture). I run a test with 5/6 streams simultaneously, and all was transcoding from 4K HDR10 to 1080p with no sweat.

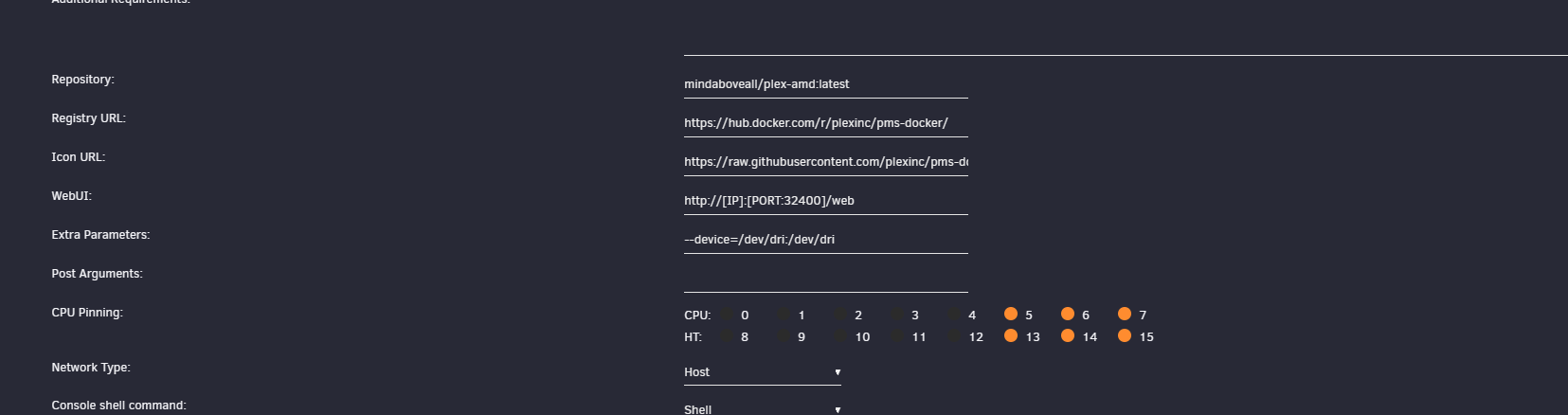

Pic 1: shows the docker setup with /dev/dri

Pic 2: Shows the new settings under transcode in Plex server settings. Rafael is the code name of the iGPU in Ryzen 9 7900

Pic 3: Shows the dashboard while running one transcoding from 4K HDR10 to 1080p

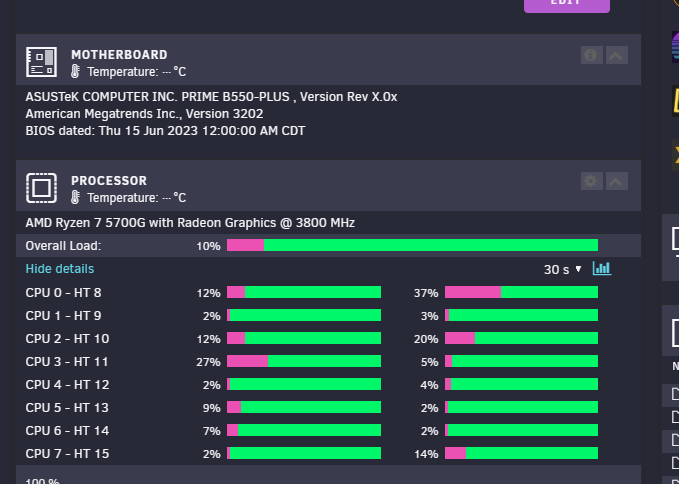

Pic 4: Shows unraid dashboard with realtime CPU usage (higher when using iGPU vs Quadro) I think it's because unraid can't distinguish CPU vs iGPU for Ryzen. and on the bottom of the picture the GPU monitoring using the GBU statistics plugin showing the usage on iGPU.

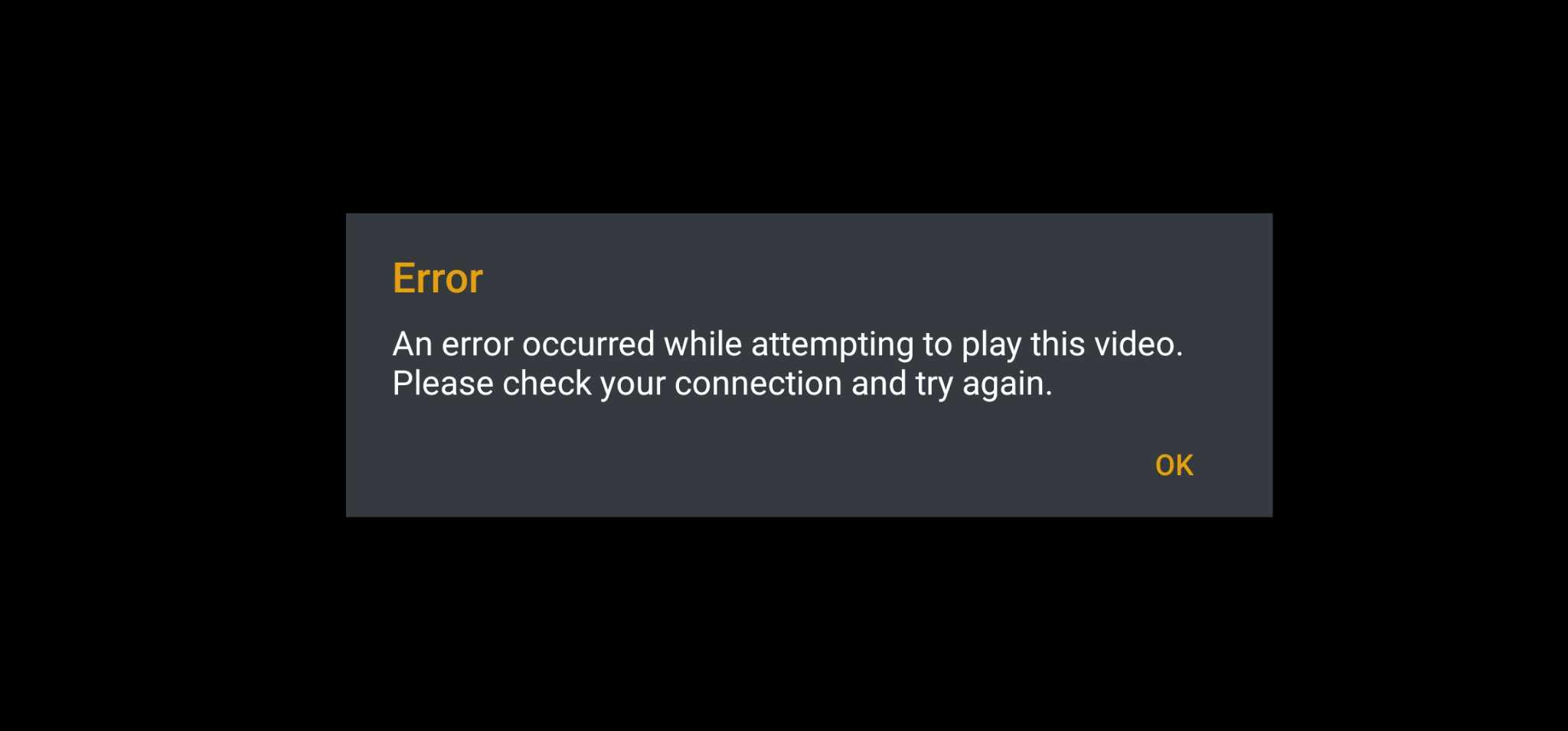

When i try to transcode form mine i get an error.  Here is my setup.

On 5/16/2023 at 10:37 PM, elamine2uk said:

Github: skjnldsv/docker-plex



The repo got updated again! It should be built automatically, so you can pull the latest images frequently, looks perfect!

You don't even need to build it yourself.

Here is a docker-compose example I use on my unraid server:



version: "3.7"

services:
  plex:
    image: ghcr.io/skjnldsv/docker-plex:master
    restart: unless-stopped
    container_name: plex

    ports:
      # Default access
      - target: 32400
        published: 32400
        mode: host

      # Webtools
      # - 33400:33400

      # Plex home theatre control
      # - 3005:3005/tcp

      # gdm discovery
      - 32410:32410/udp
      - 32412:32412/udp
      - 32413:32413/udp
      - 32414:32414/udp

    environment:
      - TZ=Europe/Berlin
      - VERSION=docker

      # Unraid nobody/users
      - PGID=100
      - PUID=99

    devices:
      - /dev/dri:/dev/dri
    volumes:
      - ./config:/config
      - /mnt/user/storage/Series:/tv
      - /mnt/user/storage/Musics:/musics
      - /mnt/user/storage/Movies:/movies
      # Using unraid cache transcode share
      - /mnt/cache/transcode:/transcode



Edited September 9, 20241 yr by Fremulon
