Help! What is going on here?

[rykr]

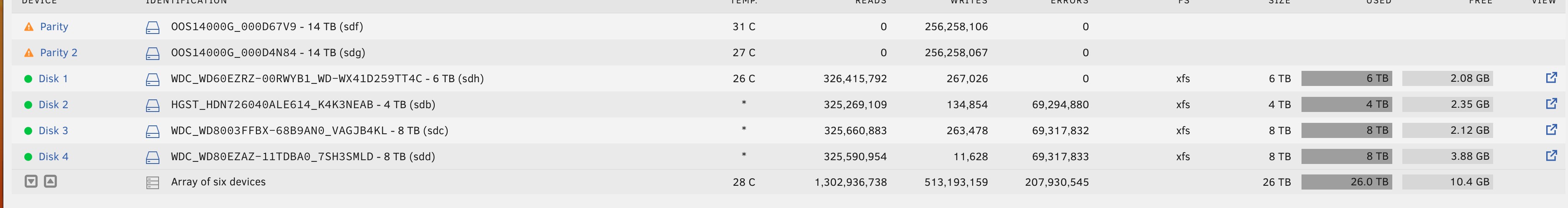

I have a 26TB array that is out of space.  It has dual parity using 2 8TB drives.   I bought 2 14TB drives.  I replaced one of the 8TB  parity drives with one of the 14TB drives and started the array and it started doing a parity re-sync.  It ran ok for a couple of hours and now I'm getting a crazy number of read errors on 3 of the 4 data drives.  What could possibly be going on here?

[rykr]

I've checked smart status on the drives and done short tests.  Drives appear ok?  They also have have fans blowing on them and do not appear to be hot.

[ChatNoir]

Just now, rykr said:

What could possibly be going on here?

please attach your diagnostics, there could be some information in them.

[rykr]

Here ya go.

vault-diagnostics-20230609-1217.zip

[rykr]

lots of line like Jun  9 11:32:18 Vault kernel: md: disk3 read error, sector=2045235784
Jun  9 11:32:18 Vault kernel: md: disk3 read error, sector=2045235792 in the log

[rykr]

Also a lot of stuff like this:



Jun  9 11:31:16 Vault kernel: ata5.00: failed command: READ FPDMA QUEUED
Jun  9 11:31:16 Vault kernel: ata5.00: cmd 60/08:00:80:29:19/00:00:84:02:00/40 tag 0 ncq dma 4096 in
Jun  9 11:31:16 Vault kernel:         res 40/00:01:00:00:00/00:00:00:00:00/00 Emask 0x4 (timeout)
Jun  9 11:31:16 Vault kernel: ata5.00: status: { DRDY }
Jun  9 11:31:16 Vault kernel: ata5.00: failed command: READ FPDMA QUEUED
Jun  9 11:31:16 Vault kernel: ata5.00: cmd 60/08:08:40:77:18/00:00:80:01:00/40 tag 1 ncq dma 4096 in
Jun  9 11:31:16 Vault kernel:         res 40/00:01:00:4f:c2/00:00:00:00:00/00 Emask 0x4 (timeout)
Jun  9 11:31:16 Vault kernel: ata5.00: status: { DRDY }

[JorgeB]

Looks like the fairly common Ryzen onboard SATA controller problem under load, look for a BIOS update, you can also try v6.12-rc7, newer kernel may help, if issues persist best to use an addon controller, or use a different board.

[rykr]

Thanks.  I'll check those

[rykr]

ok, checked BIOS update.  There was one but only from 1 month ago with next to nothing in changelog.  Didn't apply.  Updated to 6.12-rc7 which was very smooth.    I already have a 4 port external card so I moved two of my drives off the APU Sata ports from the board to the card.  Now there is 4 drives connected to the chipset sata ports on the board and 4 drives connected to the external card.  Restarted parity sync.  Fingers crossed.



If this fails, may look at board upgrade.  Any suggestions?  Should I go with one of the dual proc older Xeon boards?
