BTRSF Error/Warning - Main Cache Drive

[gadget069]

I've started getting this error. This is my main chache drive, the crc error count hasn't increased since I built the server months ago. I'm still on 6.11.5



Jul  2 10:06:26 Tortuga kernel: BTRFS error (device sdc1): bdev /dev/sdh1 errs: wr 719861, rd 56099, flush 29483, corrupt 72317, gen 0
Jul  2 10:06:26 Tortuga kernel: BTRFS warning (device sdc1): csum failed root 5 ino 192195 off 8282112 csum 0x8941f998 expected csum 0x95788b85 mirror 1
Jul  2 10:06:26 Tortuga kernel: BTRFS error (device sdc1): bdev /dev/sdh1 errs: wr 719861, rd 56099, flush 29483, corrupt 72318, gen 0
Jul  2 10:06:26 Tortuga kernel: BTRFS warning (device sdc1): csum failed root 5 ino 192195 off 8286208 csum 0x8941f998 expected csum 0x37e66784 mirror 1
Jul  2 10:06:26 Tortuga kernel: BTRFS error (device sdc1): bdev /dev/sdh1 errs: wr 719861, rd 56099, flush 29483, corrupt 72319, gen 0
Jul  2 10:06:26 Tortuga kernel: BTRFS info (device sdc1): read error corrected: ino 192195 off 8273920 (dev /dev/sdh1 sector 730716592)
Jul  2 10:06:26 Tortuga kernel: BTRFS info (device sdc1): read error corrected: ino 192195 off 8269824 (dev /dev/sdh1 sector 730716584)
Jul  2 10:06:26 Tortuga kernel: BTRFS info (device sdc1): read error corrected: ino 192195 off 8278016 (dev /dev/sdh1 sector 730716600)
Jul  2 10:06:26 Tortuga kernel: BTRFS info (device sdc1): read error corrected: ino 192195 off 8282112 (dev /dev/sdh1 sector 730716608)
Jul  2 10:06:26 Tortuga kernel: BTRFS info (device sdc1): read error corrected: ino 192195 off 8286208 (dev /dev/sdh1 sector 730716616)
Jul  2 10:06:26 Tortuga kernel: BTRFS info (device sdc1): read error corrected: ino 192195 off 8265728 (dev /dev/sdh1 sector 730716576)



tortuga-diagnostics-20230702-1010.zip

[gadget069]

Is my cache pool corrupted? I had the Crucial drop out yesterday, bad cable from Amazon.



[gadget069]

More info

SDH is the Crucial "parity" cache drive. It appears I need to take it offline/replace?

root@Tortuga:~# btrfs dev stats /mnt/cache
[/dev/sdc1].write_io_errs    0
[/dev/sdc1].read_io_errs     0
[/dev/sdc1].flush_io_errs    0
[/dev/sdc1].corruption_errs  0
[/dev/sdc1].generation_errs  0
[/dev/sdh1].write_io_errs    719861
[/dev/sdh1].read_io_errs     56099
[/dev/sdh1].flush_io_errs    29483
[/dev/sdh1].corruption_errs  74731
[/dev/sdh1].generation_errs  0
root@Tortuga:~#



Edited July 3, 2023 by gadget069

[JorgeB]

Run a correcting scrub and post the results.

[gadget069]

1 hour ago, JorgeB said:

Run a correcting scrub and post the results.

UUID:             23927474-4d91-49d0-9d5d-f8afb9afe97e
Scrub started:    Mon Jul  3 05:02:07 2023
Status:           finished
Duration:         0:02:59
Total to scrub:   125.55GiB
Rate:             718.24MiB/s
Error summary:    verify=2705 csum=41755
  Corrected:      44460
  Uncorrectable:  0
  Unverified:     0



[JorgeB]

All should be good now, problems were caused by one of the devices dropping offline, recommend taking a look here for better pool monitoring for future issues.

[gadget069]

All should be good now, problems were caused by one of the devices dropping offline, recommend taking a look here for better pool monitoring for future issues.

Thanks, I will today. I plan on a sight motherboard and CPU upgrade and ditching the Amazon cables. Nothing but issues with them. I think 3 or if the 5 were bad.

Sent from my SM-S918U1 using Tapatalk

[gadget069]

2 hours ago, JorgeB said:

All should be good now, problems were caused by one of the devices dropping offline, recommend taking a look here for better pool monitoring for future issues.

It looks like the 2nd cahce drive still has issues. Maybe I have the pool configured wrong?



root@Tortuga:~# btrfs dev stats /mnt/cache
[/dev/sdc1].write_io_errs    0
[/dev/sdc1].read_io_errs     0
[/dev/sdc1].flush_io_errs    0
[/dev/sdc1].corruption_errs  0
[/dev/sdc1].generation_errs  0
[/dev/sdh1].write_io_errs    0
[/dev/sdh1].read_io_errs     0
[/dev/sdh1].flush_io_errs    0
[/dev/sdh1].corruption_errs  86297
[/dev/sdh1].generation_errs  5446
root@Tortuga:~#

[JorgeB]

If you reset the errors it means there are new ones, post new diags.

[gadget069]

12 minutes ago, JorgeB said:

If you reset the errors it means there are new ones, post new diags.

Thanks

tortuga-diagnostics-20230703-0754.zip

[JorgeB]

I'm not seeing any errors after the scrub, did you reset the stats after that?

[gadget069]

15 minutes ago, JorgeB said:

I'm not seeing any errors after the scrub, did you reset the stats after that?

 I did not. But am seeing this in the log just now



Jul  3 09:00:46 Tortuga kernel: BTRFS warning (device sdc1): checksum verify failed on 524376424448 wanted 0xb6800818 found 0xf660d968 level 1
Jul  3 09:00:46 Tortuga kernel: repair_io_failure: 166 callbacks suppressed
Jul  3 09:00:46 Tortuga kernel: BTRFS info (device sdc1): read error corrected: ino 0 off 524376424448 (dev /dev/sdc1 sector 29999776)
Jul  3 09:00:46 Tortuga kernel: BTRFS info (device sdc1): read error corrected: ino 0 off 524376428544 (dev /dev/sdc1 sector 29999784)
Jul  3 09:00:46 Tortuga kernel: BTRFS info (device sdc1): read error corrected: ino 0 off 524376432640 (dev /dev/sdc1 sector 29999792)
Jul  3 09:00:46 Tortuga kernel: BTRFS info (device sdc1): read error corrected: ino 0 off 524376436736 (dev /dev/sdc1 sector 29999800)

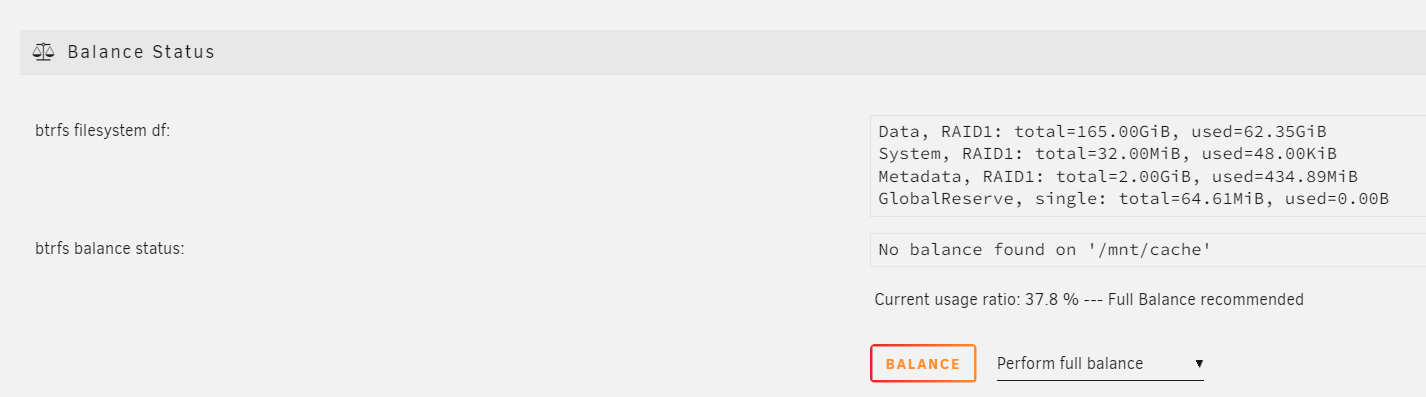

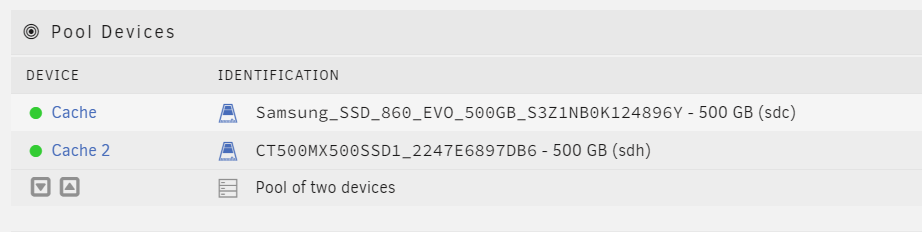

Cache pool settings

[JorgeB]

Reboot to clear the logs then run a new scrub and post new diags.

[gadget069]

1 hour ago, JorgeB said:

Reboot to clear the logs then run a new scrub and post new diags.

Log attached



I'm still seeing this on the second drive

root@Tortuga:~# btrfs dev stats /mnt/cache
[/dev/sdc1].write_io_errs    0
[/dev/sdc1].read_io_errs     0
[/dev/sdc1].flush_io_errs    0
[/dev/sdc1].corruption_errs  0
[/dev/sdc1].generation_errs  0
[/dev/sdh1].write_io_errs    0
[/dev/sdh1].read_io_errs     0
[/dev/sdh1].flush_io_errs    0
[/dev/sdh1].corruption_errs  86297
[/dev/sdh1].generation_errs  5446
root@Tortuga:~#



tortuga-diagnostics-20230703-1148.zip

Edited July 3, 2023 by gadget069

[JorgeB]

Scrub finished without any errors, type

btrfs dev stats -z /mnt/cache

to reset the stats and keep monitoring.

[gadget069]

4 minutes ago, JorgeB said:

Scrub finished without any errors, type

btrfs dev stats -z /mnt/cache

to reset the stats and keep monitoring.

Will do, thanks
