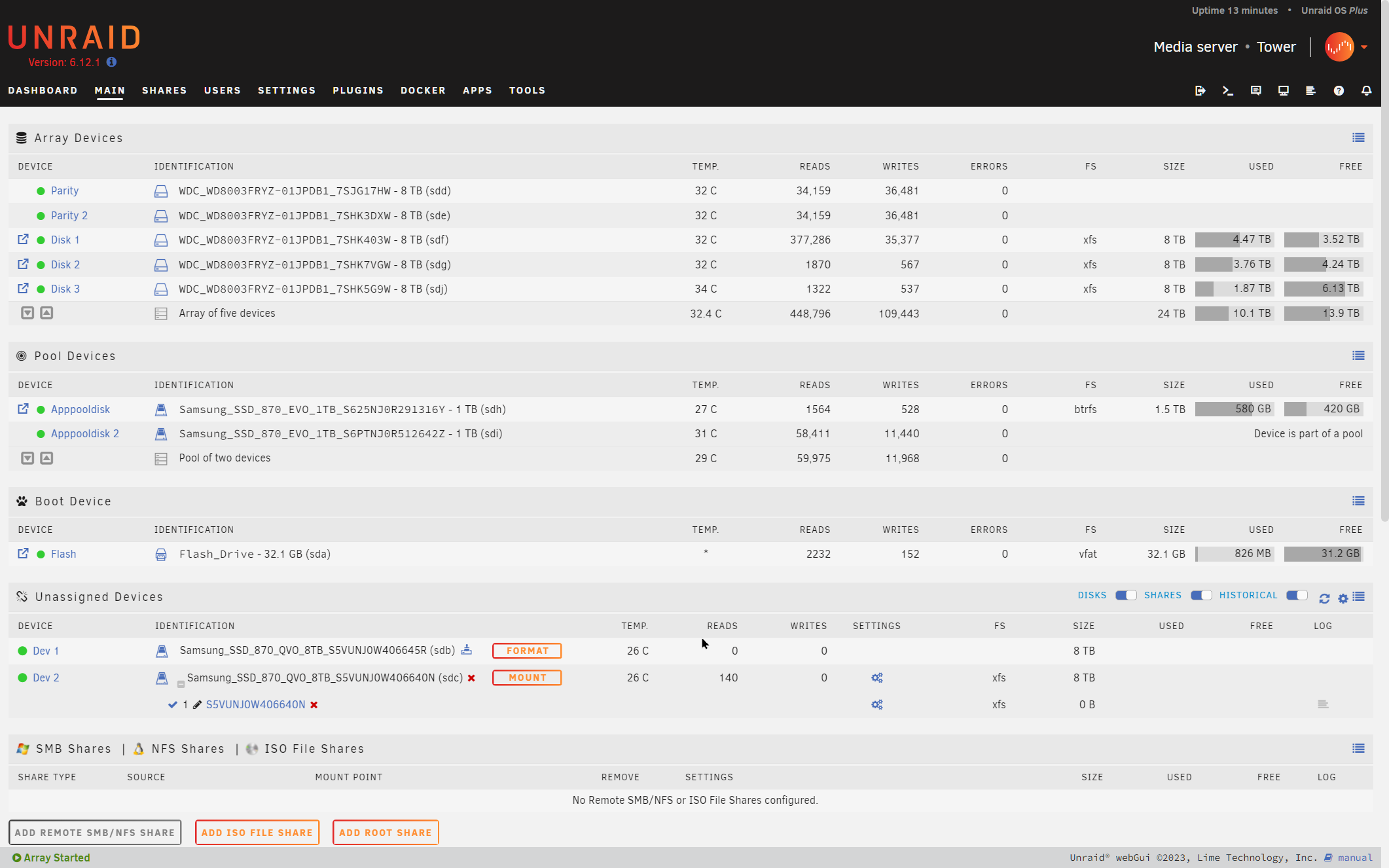

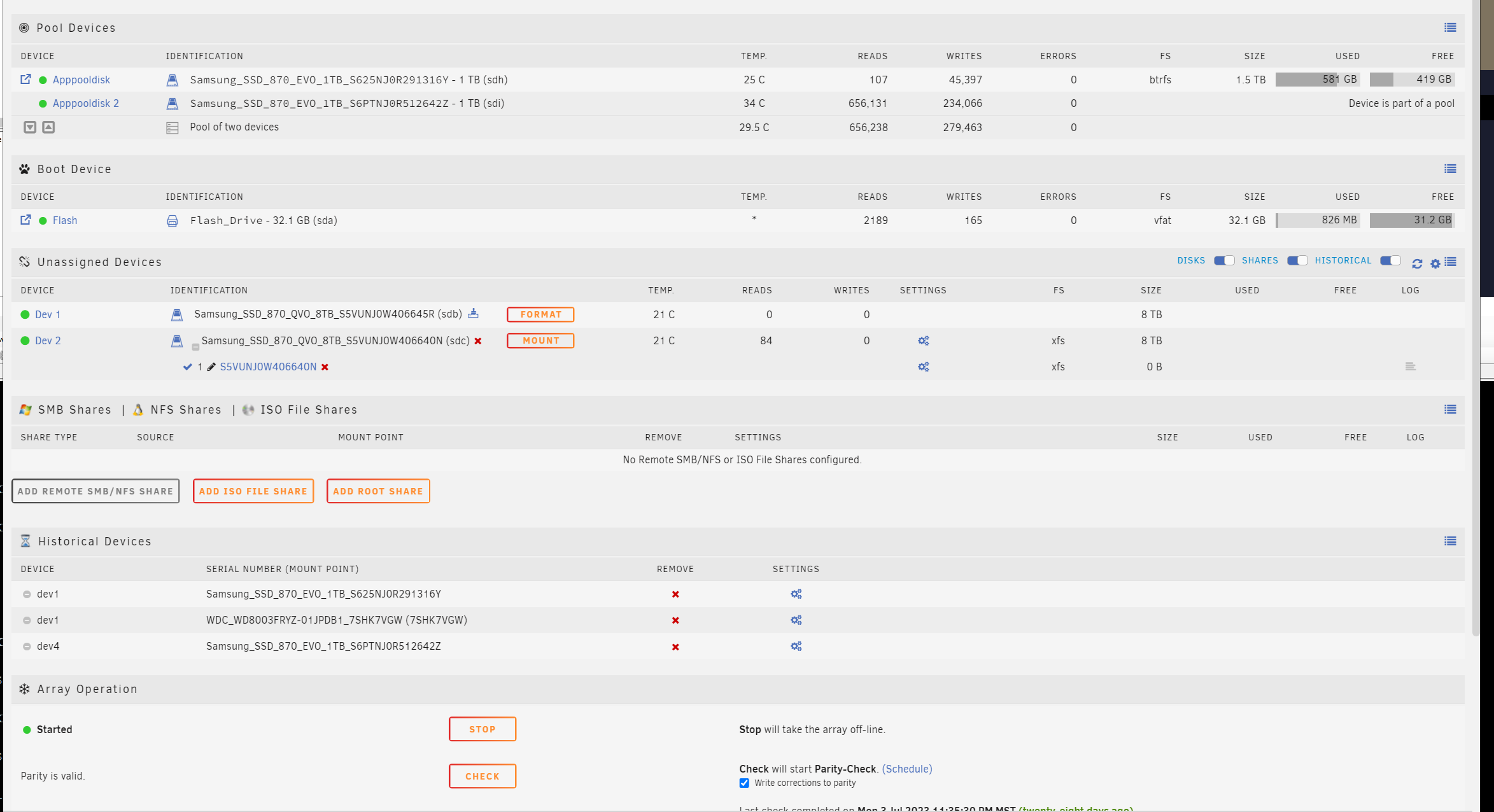

squirtyburger.io Posted July 31, 2023 Share Posted July 31, 2023 Hello, I believe i royally screwed up my migration from 1TB to 8TB cache drives. Apppooldisk Samsung_SSD_870_EVO_1TB_S625NJ0R291316Y - 1 TB (sdh) 26 C 0 0 0 btrfs Unmountable: Unsupported or no file system Apppooldisk 2 Samsung_SSD_870_EVO_1TB_S6PTNJ0R512642Z - 1 TB (sdi) 26 C 0 0 0 Unmountable: Unsupported or no file system Pool of two devices 26 C 0 0 0 Boot Device my steps were all done in the GUI going from this guide. stopped array in ui; replaced sdi with sdb, started array, saw btrfs operation looked okay to me but appeared to complete quickly. stopped the array replaced sdh with sdc started the array now giving errors about unmountable filesystem, panic and stop array, remove sdc with sdh start array see unmounatable errors stop array again replace sdb with sdi start array again see unmountable errors reboot server still unmountable errors and zero partitions. So basically, my array is started with the old 1TB drives and doesn't appear to mount the filsystem or contain any data. Not sure if the actions above wiped out the partitions and my data. Before i proceed to data recovery, I wanted to see if you think there's a way to resolve this? I was looking at the recovery page, however, it doesn't appear to relate to my situation since my partitions are completely gone. tower-diagnostics-20230730-1825.zip Quote Link to comment
JorgeB Posted July 31, 2023 Share Posted July 31, 2023 Post the output of: btrfs fi show sdi and sdh were the original pool devices? Quote Link to comment
squirtyburger.io Posted August 1, 2023 Author Share Posted August 1, 2023 Thanks for the prompt response! yes, sdi/sdh were original, sdb, sdc are new pool devices. My array is currently shutdown since i'm running ddrescue and testdisk, i do not see an output of the command, after i start the array i will run the command again. i've created backups of both disks using ddrescue and was looking at this thread and currently doing a deepsearch of the partitions, i see the primary partition already and hoping that it's possible to repair the partition this way. ddrescue running on sdh Scraping failed blocks... (forwards) ipos: 18390 MB, non-trimmed: 0 B, current rate: 0 B/s opos: 18390 MB, non-scraped: 0 B, average rate: 27851 kB/s non-tried: 0 B, bad-sector: 61167 kB, error rate: 3072 B/s rescued: 1000 GB, bad areas: 9724, run time: 9h 58m 30s pct rescued: 99.99%, read errors: 123690, remaining time: 7d 8h 59m time since last successful read: 10s testdisk deepsearch running on sdi TestDisk 7.1, Data Reco very Utility, July 2019 Christophe GRENIER <grenier@cgsecurity.org> https://www.cgsecurity.org Disk /dev/sdi - 1000 GB / 931 GiB - CHS 121601 255 63 Analyse cylinder 35285/121600: 29% Read error at 33360/1/7 (lba=535928469) Linux 0 32 33 121601 80 63 1953523120 Thanks for looking into this! Quote Link to comment

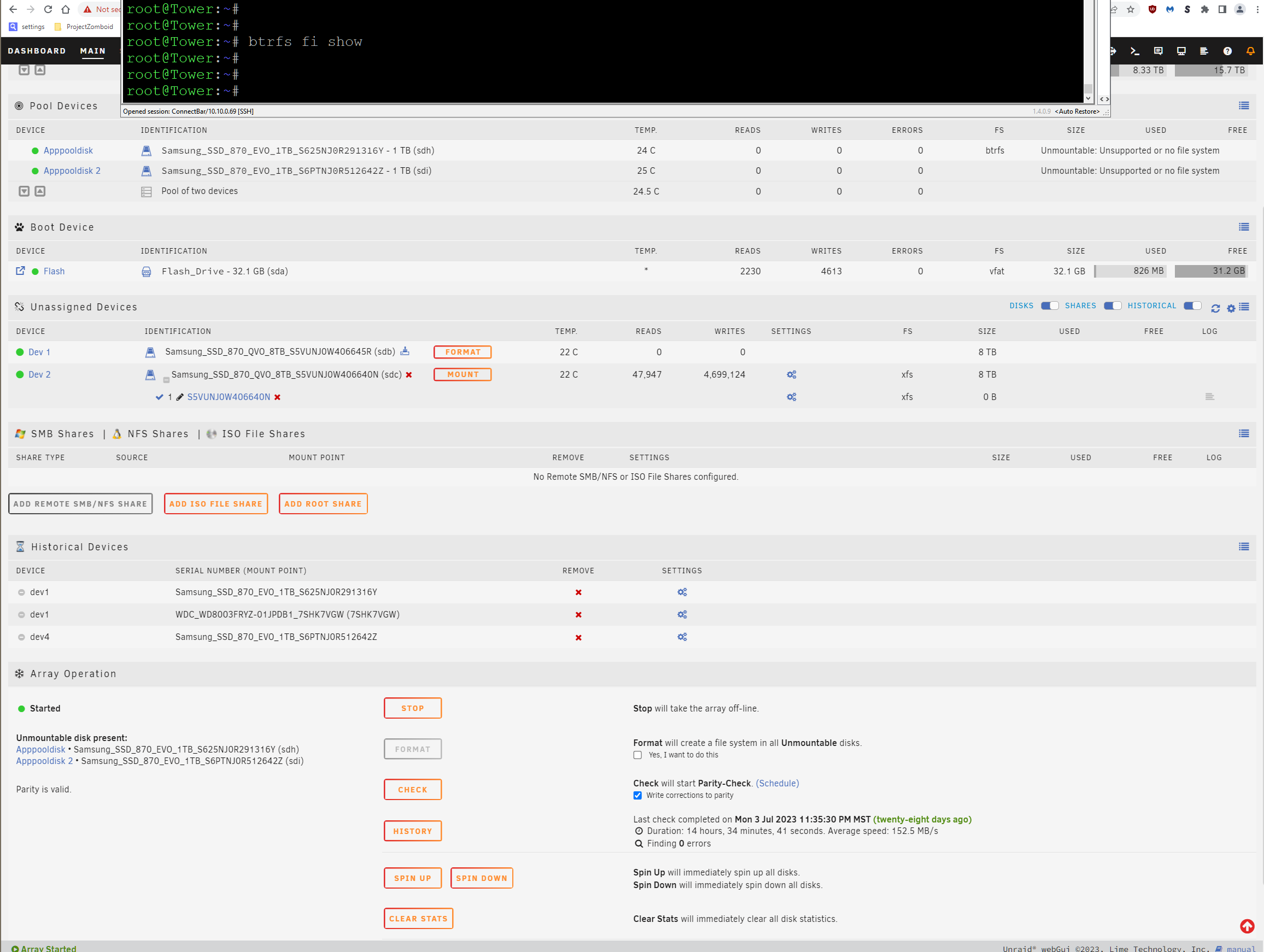

squirtyburger.io Posted August 1, 2023 Author Share Posted August 1, 2023 Here is a screenshot of my disks after the array has been started. TestDisk 7.1, Data Recovery Utility, July 2019 Christophe GRENIER <grenier@cgsecurity.org> https://www.cgsecurity.org Disk /dev/sdi - 1000 GB / 931 GiB - CHS 121601 255 63 Analyse cylinder 105745/121600: 86% Read error at 82729/130/32 (lba=1329049606) Linux 0 32 33 121601 80 63 1953523120 Linux 35941 137 37 37208 116 28 20353024 Linux 61096 208 41 62363 187 32 20353024 Invalid NTFS or exFAT boot 0 D HPFS - NTFS 176135 148 23 301524 101 50 2014371352 HPFS - NTFS 176135 148 23 301524 101 50 2014371352 Linux 102076 82 23 103343 61 14 20353024 Quote Link to comment
squirtyburger.io Posted August 1, 2023 Author Share Posted August 1, 2023 Another update, the testdisk was successful and my filesystem is mounted and i see my files again! At this point, i'm copying over all my cache files to one of my array disks just for extra safety. Afterwards, i will backup the ddrescue images to another raid in my desktop PC and wipe them. I think i'm okay now, however, i'd like to know what thread you would recommend for upgrading my old 1TB SSD's (sdh, sdi) to my 8TB SSD's (sdb, sdc)? This was the latest i could find, do you think this would work for me in my situation? Quote Link to comment
JorgeB Posted August 1, 2023 Share Posted August 1, 2023 The procedure is here but don't use the failing device, even with the ddrescue clone it may fail since there may be checksum errors. Quote Link to comment

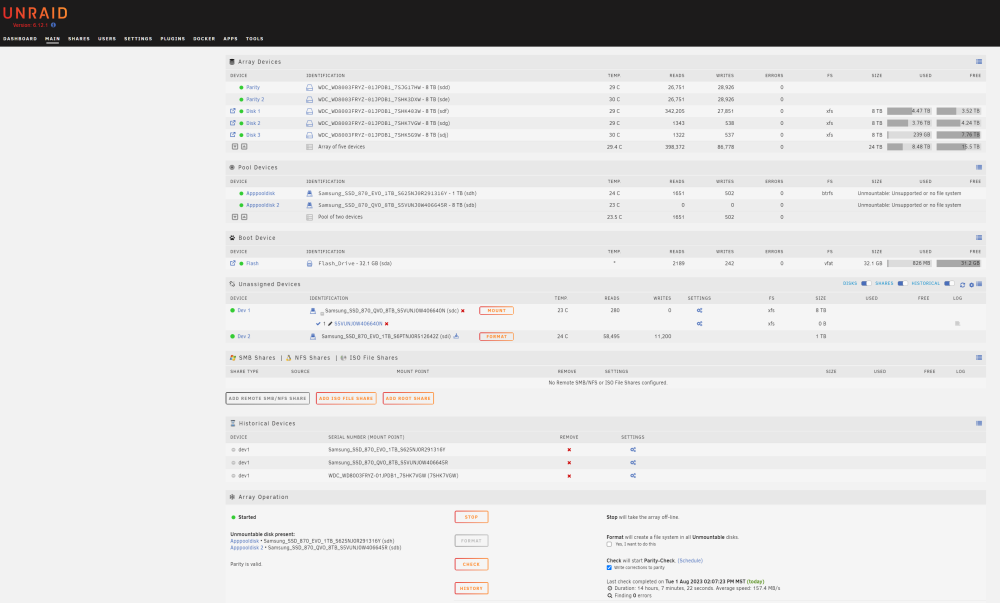

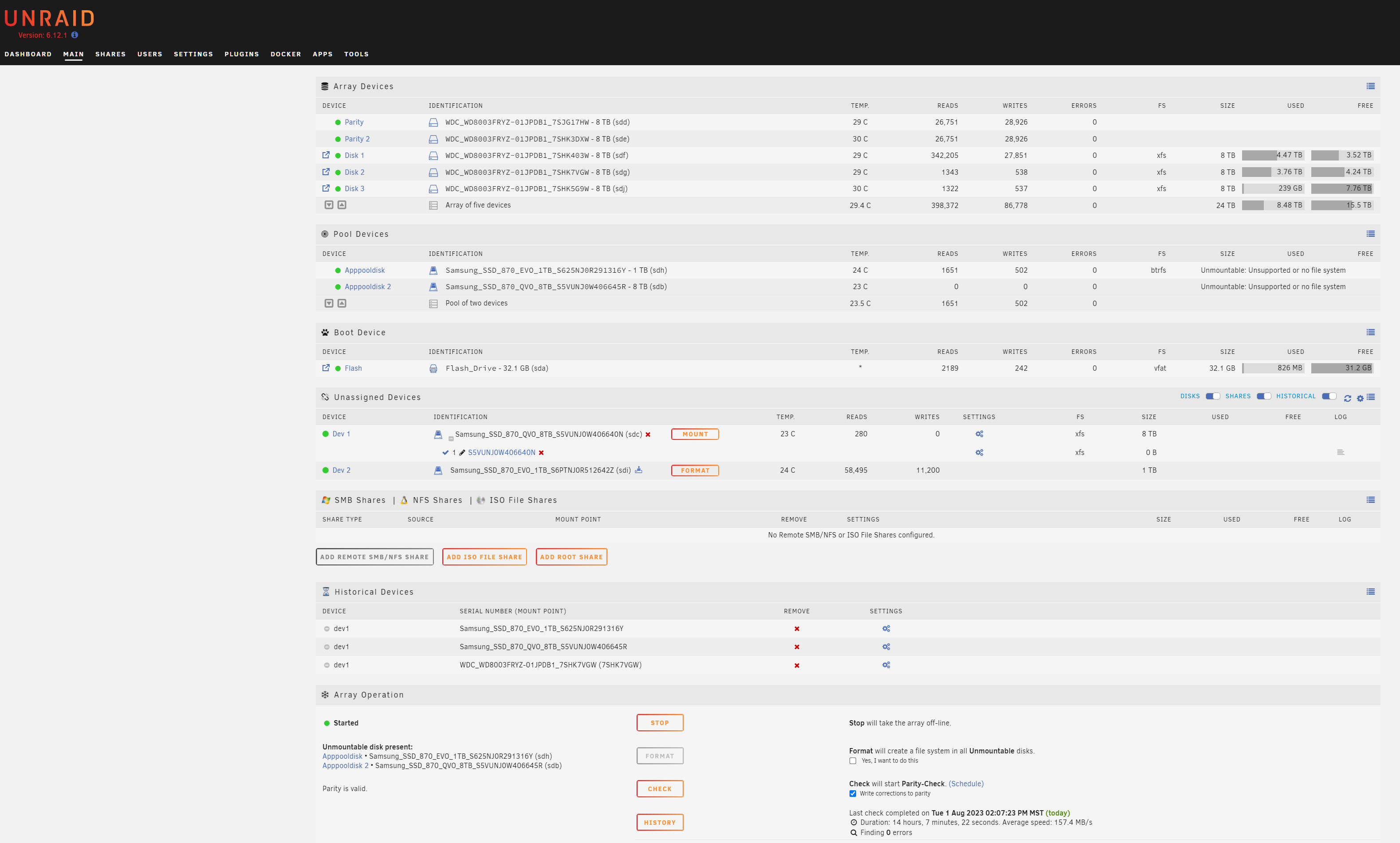

squirtyburger.io Posted August 2, 2023 Author Share Posted August 2, 2023 I am following the prescribed procedure, however, my partitions seem to be deleted again after following these steps; Procedure: stop the array on the main page click on the pool device you want to replace/upgrade and select the new one from the drop down list (any data on the new device will be deleted) start the array a btrfs device replace will begin, wait for pool activity to stop, the stop array button will be inhibited during the operation, this can take some time depending on how much data is on the pool and how fast your devices are. After starting the array, i'm left with unmountable or unsupported or no file system on both drives. Quote Link to comment
squirtyburger.io Posted August 2, 2023 Author Share Posted August 2, 2023 Not sure if this is a display bug, i just noticed that my apps are still running without any issues. Here is the output of btrfs fi show now. root@Tower:~# btrfs fi show Label: none uuid: a00421a0-fcf7-44a7-b7be-4c1f5558b844 Total devices 1 FS bytes used 8.92GiB devid 1 size 20.00GiB used 16.52GiB path /dev/loop2 warning, device 2 is missing warning, device 1 is missing ERROR: cannot read chunk root Label: none uuid: 910ac9e5-2ccb-448f-928d-7e05075ab121 Total devices 3 FS bytes used 539.54GiB devid 3 size 931.51GiB used 51.00GiB path /dev/sdh1 *** Some devices missing Quote Link to comment
squirtyburger.io Posted August 2, 2023 Author Share Posted August 2, 2023 (edited) Found some related logs, also attached diagnostics. root@Tower:~# cat /var/log/syslog | grep BTRFS Aug 1 16:52:30 Tower kernel: BTRFS: device fsid 910ac9e5-2ccb-448f-928d-7e05075ab121 devid 3 transid 953941 /dev/sdh1 scanned by udevd (879) Aug 1 16:52:30 Tower kernel: BTRFS: device fsid 910ac9e5-2ccb-448f-928d-7e05075ab121 devid 2 transid 953941 /dev/sdi1 scanned by udevd (892) Aug 1 16:52:53 Tower kernel: BTRFS info (device sdi1): using crc32c (crc32c-intel) checksum algorithm Aug 1 16:52:53 Tower kernel: BTRFS info (device sdi1): allowing degraded mounts Aug 1 16:52:53 Tower kernel: BTRFS info (device sdi1): using free space tree Aug 1 16:52:53 Tower kernel: BTRFS warning (device sdi1): devid 1 uuid ad06e349-c8bc-4d10-803b-c8057fef3306 is missing Aug 1 16:52:53 Tower kernel: BTRFS warning (device sdi1): devid 1 uuid ad06e349-c8bc-4d10-803b-c8057fef3306 is missing Aug 1 16:52:53 Tower kernel: BTRFS info (device sdi1): bdev /dev/sdi1 errs: wr 0, rd 200, flush 0, corrupt 0, gen 0 Aug 1 16:52:53 Tower kernel: BTRFS info (device sdi1): enabling ssd optimizations Aug 1 16:52:53 Tower kernel: BTRFS info (device sdi1: state M): allowing degraded mounts Aug 1 16:52:53 Tower kernel: BTRFS info (device sdi1: state M): turning on async discard Aug 1 16:52:53 Tower kernel: BTRFS info (device sdi1): relocating block group 1677282246656 flags data|raid1 Aug 1 16:52:55 Tower kernel: BTRFS error (device sdi1): bdev /dev/sdi1 errs: wr 0, rd 201, flush 0, corrupt 0, gen 0 Aug 1 16:52:58 Tower kernel: BTRFS: device fsid a00421a0-fcf7-44a7-b7be-4c1f5558b844 devid 1 transid 812324 /dev/loop2 scanned by mount (6195) Aug 1 16:52:58 Tower kernel: BTRFS info (device loop2): using crc32c (crc32c-intel) checksum algorithm Aug 1 16:52:58 Tower kernel: BTRFS info (device loop2): using free space tree Aug 1 17:02:15 Tower kernel: BTRFS info (device sdh1): using crc32c (crc32c-intel) checksum algorithm Aug 1 17:02:15 Tower kernel: BTRFS info (device sdh1): allowing degraded mounts Aug 1 17:02:15 Tower kernel: BTRFS info (device sdh1): usintower-diagnostics-20230801-1715.zipg free space tree Aug 1 17:02:15 Tower kernel: BTRFS error (device sdh1): failed to read chunk root Aug 1 17:02:15 Tower kernel: BTRFS error (device sdh1): open_ctree failed Aug 1 17:02:16 Tower kernel: BTRFS: device fsid a00421a0-fcf7-44a7-b7be-4c1f5558b844 devid 1 transid 812340 /dev/loop2 scanned by mount (24097) Aug 1 17:02:16 Tower kernel: BTRFS info (device loop2): using crc32c (crc32c-intel) checksum algorithm Aug 1 17:02:16 Tower kernel: BTRFS info (device loop2): using free space tree Edited August 2, 2023 by squirtyburger.io Quote Link to comment
squirtyburger.io Posted August 2, 2023 Author Share Posted August 2, 2023 I was able to restore the partition again with testdisk and the array came back after a reboot, I got a different output from the following command; root@Tower:~# btrfs fi show Label: none uuid: 910ac9e5-2ccb-448f-928d-7e05075ab121 Total devices 3 FS bytes used 539.61GiB devid 1 size 0 used 0 path MISSING devid 2 size 931.51GiB used 549.03GiB path /dev/sdi1 devid 3 size 931.51GiB used 51.00GiB path /dev/sdh1 Label: none uuid: a00421a0-fcf7-44a7-b7be-4c1f5558b844 Total devices 1 FS bytes used 8.93GiB devid 1 size 20.00GiB used 16.52GiB path /dev/loop2 Quote Link to comment
JorgeB Posted August 2, 2023 Share Posted August 2, 2023 It failed because the pool already had a missing device, so without the other one it had two missing devices: Aug 1 17:02:15 Tower emhttpd: warning, device 2 is missing Aug 1 17:02:15 Tower emhttpd: warning, device 1 is missing You'd need to fix that first, before attempting another upgrade, reboot and post new diags after array start with the old pool assigned. Quote Link to comment
squirtyburger.io Posted August 2, 2023 Author Share Posted August 2, 2023 Thanks, uploaded files below. Any steps on how to fix? root@Tower:~# btrfs fi show Label: none uuid: 910ac9e5-2ccb-448f-928d-7e05075ab121 Total devices 3 FS bytes used 539.65GiB devid 1 size 0 used 0 path MISSING devid 2 size 931.51GiB used 548.03GiB path /dev/sdi1 devid 3 size 931.51GiB used 50.00GiB path /dev/sdh1 Label: none uuid: a00421a0-fcf7-44a7-b7be-4c1f5558b844 Total devices 1 FS bytes used 8.92GiB devid 1 size 20.00GiB used 16.52GiB path /dev/loop2 root@Tower:~# cat /var/log/syslog | egrep -i "btrfs|BTRFS" Aug 2 07:41:04 Tower kernel: Btrfs loaded, crc32c=crc32c-generic, zoned=no, fsverity=no Aug 2 07:41:04 Tower kernel: BTRFS: device fsid 910ac9e5-2ccb-448f-928d-7e05075ab121 devid 3 transid 955314 /dev/sdh1 scanned by udevd (898) Aug 2 07:41:04 Tower kernel: BTRFS: device fsid 910ac9e5-2ccb-448f-928d-7e05075ab121 devid 2 transid 955314 /dev/sdi1 scanned by udevd (898) Aug 2 07:41:27 Tower emhttpd: /sbin/btrfs filesystem show 910ac9e5-2ccb-448f-928d-7e05075ab121 2>&1 Aug 2 07:41:27 Tower emhttpd: shcmd (42): mount -t btrfs -o noatime,space_cache=v2,degraded -U 910ac9e5-2ccb-448f-928d-7e05075ab121 /mnt/apppooldisk Aug 2 07:41:27 Tower kernel: BTRFS info (device sdi1): using crc32c (crc32c-intel) checksum algorithm Aug 2 07:41:27 Tower kernel: BTRFS info (device sdi1): allowing degraded mounts Aug 2 07:41:27 Tower kernel: BTRFS info (device sdi1): using free space tree Aug 2 07:41:27 Tower kernel: BTRFS warning (device sdi1): devid 1 uuid ad06e349-c8bc-4d10-803b-c8057fef3306 is missing Aug 2 07:41:27 Tower kernel: BTRFS warning (device sdi1): devid 1 uuid ad06e349-c8bc-4d10-803b-c8057fef3306 is missing Aug 2 07:41:27 Tower kernel: BTRFS info (device sdi1): bdev /dev/sdi1 errs: wr 0, rd 202, flush 0, corrupt 0, gen 0 Aug 2 07:41:27 Tower kernel: BTRFS info (device sdi1): enabling ssd optimizations Aug 2 07:41:27 Tower kernel: BTRFS info (device sdi1: state M): allowing degraded mounts Aug 2 07:41:27 Tower kernel: BTRFS info (device sdi1: state M): turning on async discard Aug 2 07:41:27 Tower emhttpd: shcmd (44): /sbin/btrfs device delete missing /mnt/apppooldisk & Aug 2 07:41:27 Tower kernel: BTRFS info (device sdi1): relocating block group 1677282246656 flags data|raid1 Aug 2 07:41:32 Tower kernel: BTRFS error (device sdi1): bdev /dev/sdi1 errs: wr 0, rd 203, flush 0, corrupt 0, gen 0 Aug 2 07:41:33 Tower kernel: BTRFS: device fsid a00421a0-fcf7-44a7-b7be-4c1f5558b844 devid 1 transid 813895 /dev/loop2 scanned by mount (6187) Aug 2 07:41:33 Tower kernel: BTRFS info (device loop2): using crc32c (crc32c-intel) checksum algorithm Aug 2 07:41:33 Tower kernel: BTRFS info (device loop2): using free space tree tower-diagnostics-20230802-0750.zip Quote Link to comment
Solution JorgeB Posted August 2, 2023 Solution Share Posted August 2, 2023 It's failing to delete the missing device because sdi is failing, you will need to copy anything you can manually then create the new pool with the larger devices and restore the data. Quote Link to comment
squirtyburger.io Posted August 3, 2023 Author Share Posted August 3, 2023 i've copied everything to my array disks, i assume after creating the new pool i can copy over as-is. Can i create a pool with xfs this time? or do you recommend sticking with btrfs? Haven't had an issue up until now, but i've heard xfs is more stable. thanks for your help Jorge!! Quote Link to comment
JorgeB Posted August 3, 2023 Share Posted August 3, 2023 5 hours ago, squirtyburger.io said: Can i create a pool with xfs this time? Multi device pools can only be btrfs or since v6.12 also zfs, zfs is usually more robust. Quote Link to comment
squirtyburger.io Posted August 15, 2023 Author Share Posted August 15, 2023 Thanks again for your help Jorge! 1 Quote Link to comment
