LSI 9500 series 16i tri-mode PCIE 4.0 with Supermicro SAS3-826EL1-N4 backplane Unraid Support?

[enkrypt3d]

HI I ordered this card along with the cables to attach to my SAS expander, will this work for unraid? My motherboard is GIGABYTE MZ32-AR0 Rev 3.0 with an AMD Epyc 7532 128GB RAM and 6x 14TB SATA drives along with a handful of m.2 NVME. The motherboard has many SAS/SATA ports but none of them work directly to SAS expander so I'm hoping this controller will work? Any ideas? Thanks!

[JorgeB]

Should be fine, 9600 series need v6.12.4-rc18 or newer.

[enkrypt3d]

The only issue I have is this Supermicro 826 case has the 2 NVME drives in the rear that has a SFF 8654 to 4x SATA and some odd 8 pin cable... no idea what kind of cable I can use to bring those drives online. ? The LSI has the 74 pin:







Using this cable to connect to the SAS3 expander:



Edited August 24, 2023 by enkrypt3d

[JorgeB]

If you mean a cable to connect the HBA to de two NVMe devices it needs to be a specific Broadcom cable, or it won't work, and it will use one of the HBA ports, the other could be used for HDDs.

[enkrypt3d]

On 8/24/2023 at 10:40 AM, JorgeB said:

If you mean a cable to connect the HBA to de two NVMe devices it needs to be a specific Broadcom cable, or it won't work, and it will use one of the HBA ports, the other could be used for HDDs.



CBL-SFF8643-SATASB-06M L5-00220-00 0.6m ü is the closest thing but I do not see one that has the 74 pin Slimline SAS on the other end. Never seen that 8 pin cable along with the 4 SATA ports... that is the type of cable that came with my chassis.



Also what is IT mode and do I need it?

[JorgeB]

7 hours ago, enkrypt3d said:

CBL-SFF8643-SATASB-06M L5-00220-00 0.6m ü is the closest thing

That's for SATA, I was talking about the cables to connect the NVMe devices.

[enkrypt3d]



This is the rear NVME 2.5" drive slot. it requires a 4 pin molex for power and 2 sata ports and that 8 pin connector. I guess I won't be able to use it with the LSI 9500 16i

[JorgeB]

If that's for NVMe it looks like a custom connection, probably going to be difficult to find an LSI cable for that, and the HP ones will likely be incompatible with Tri-Mode LSI HBAs.

[enkrypt3d]



It appears that the only card that would work for those supermicro cables is this one but it's not worth spending $800 on it. This is the broadcom 9460 RAID card - which I don't even need a raid card with unraid..... so I guess the rear slots will be inop



But for the front SAS3 backplane, which supports NVME u.2/u.3, can I use the same cable above to plug into the white ports or do I only need the one plugged in? Right now I have one 74 pin cable coming from the card to 2 HD Mini SAS 4i SFF-8643's into the SAS3-826EL1-N4 backplane...

[JorgeB]

9 hours ago, enkrypt3d said:

But for the front SAS3 backplane, which supports NVME u.2/u.3, can I use the same cable above to plug into the white ports

What's the conector like on those?

[enkrypt3d]

6 hours ago, JorgeB said:

What's the conector like on those?



So right now i have the 74 pin Slimline SAS to Mini HD SAS going to the backplane which is working. I have both connections to the black connections on the backplane. I'm assuming that is all I need. I don't yet have any U.2  drives as they're pretty expensive. Eventually I will though probably.



[JorgeB]

I don't think that cable can handle SATA/SAS and U.2 drives, do you know the expander model?

[enkrypt3d]

37 minutes ago, JorgeB said:

I don't think that cable can handle SATA/SAS and U.2 drives, do you know the expander model?

SAS3-826EL1-N4

[JorgeB]

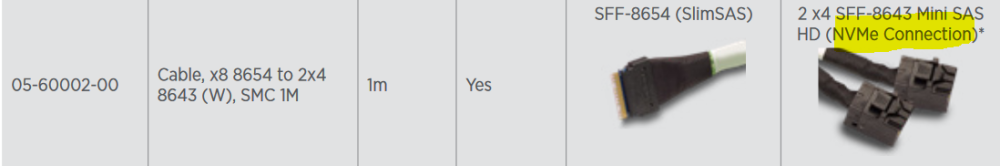

I'm not familiar with that backplane but if I'm understanding correctly it can have 12 SAS/SATA devices or 8 SAS/SATA and 4 U.2 NVMe devices, the 4 NVMe devices need 4 wide connections just for them, the white connectors, and I believe the cable you have won't work, you need a specific NVMe enabled cable, like this one:







[enkrypt3d]

On 8/27/2023 at 11:19 AM, JorgeB said:

I don't think that cable can handle SATA/SAS and U.2 drives, do you know the expander model?

SAS3-826EL1-N4

[enkrypt3d]

I just realized I need a Slimsas cable between the U.2 ports on the motherboard to enable PCIE Slot 7?? I'm not sure if this is needed if I'm using 2x m.2 drives that are on board though.....

[Myriad Studios LDN]

Hello I have the 9400 8i card and I’m looking to expand drives beyond the breakout cables, any advice on what expanders or how to do it

[JorgeB]

Intel or HP SAS3 expanders would be a good option.

[Myriad Studios LDN]

13 minutes ago, JorgeB said:

Intel or HP SAS3 expanders would be a good option.

any particluar models so I can search for some

[JorgeB]

HP 12G SAS3 EXPANDER (761879-001)

Intel® SAS3 Expander RES3TV360

[Myriad Studios LDN]

On 9/21/2023 at 4:31 PM, JorgeB said:

HP 12G SAS3 EXPANDER (761879-001)

Intel® SAS3 Expander RES3TV360

Thank you for this advice I'm going to look into these, I see one of them says it requires x8 slot but I've also heard that some expanders don't need to actually be connected to be physically connected to a pcie slot to work. I dont have any spare pcie slots at the moment and would need to remove my gpu to make space

[JorgeB]

6 minutes ago, Myriad Studios LDN said:

but I've also heard that some expanders don't need to actually be connected to be physically connected to a pcie slot to work

That's correct, but some need the power from a PCIe slot, unless you a USB to PCIe riser for example.

[Myriad Studios LDN]

2 minutes ago, JorgeB said:

That's correct, but some need the power from a PCIe slot, unless you a USB to PCIe riser for example.

Ok so I would just get Intel® SAS3 Expander RES3TV360 and connect it to some other form of power and be good to go mount it safely on the case back panel and be ready to go. Can that also support any nvmes but with the right cables and while I'm at it I have two x1 slots in my motherboard and bought these for them

https://www.amazon.co.uk/gp/product/B08J2PK1HF/ref=ppx_yo_dt_b_asin_title_o08_s00?ie=UTF8&th=1

[JorgeB]

47 minutes ago, Myriad Studios LDN said:

Ok so I would just get Intel® SAS3 Expander RES3TV360 and connect it to some other form of power and be good to go mount it safely on the case back panel and be ready to go.

Correct.



48 minutes ago, Myriad Studios LDN said:

Can that also support any nvmes but with the right cables and while I'm at it I have two x1 slots in my motherboard and bought these for them

Not AFAIK.

[Myriad Studios LDN]

15 minutes ago, JorgeB said:

Correct.



Not AFAIK.

thanks for your help!
