First post here guys, I have been running Unraid for a few months now and it seems stable enough however my VM's no longer run.



Have 2 GPU's in my system;



GTX1660

ARC A380



Setup 2 windows 10VM's - 1 for testing out gaming through parsec on the 1660 and another machine for video transcoding and other basic tasks, minecraft server etc.

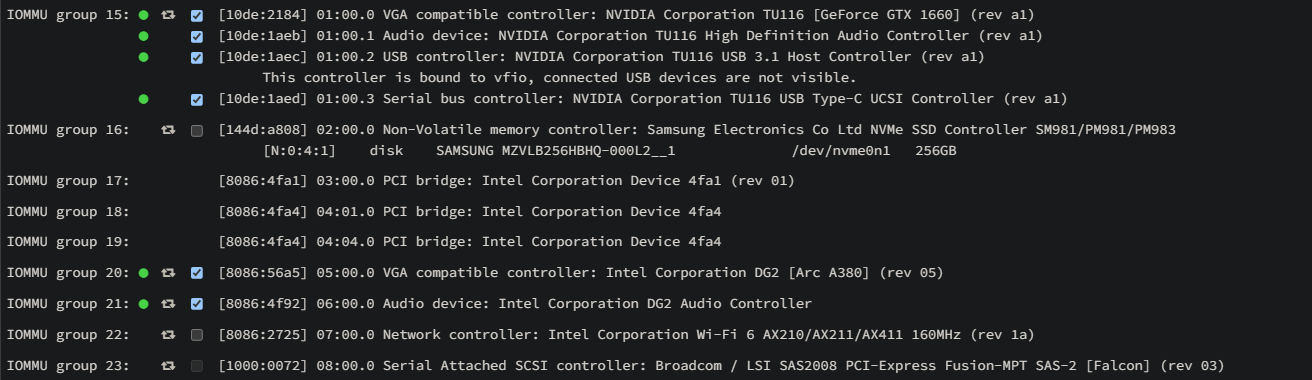

Both were working fine, I had bound both IOMMU groups at boot and had the video drivers installed on each machine for both everything was working fine:





For the last few weeks I have been focused on work on not looked at my system to much until a couple of days ago and noticed I could no longer access either machine, after giving up I then tried making new machines and attaching the old disks to the new machines - didnt work.



Then tried completley new machines and new virtual disks, setup the systems with OVMF and Q35 as before and added a virtual GPU as well as a secondery GPU 1660/Arc respectively, machines booted fine, got my drivers installed, shut them down and removed the virtual GPU leaving only the physical card, start them up again and boom - nothing.



Logs are spitting out the below error for 1 machine:



2023-11-23 11:46:20.174+0000: starting up libvirt version: 8.7.0, qemu version: 7.1.0, kernel: 6.1.49-Unraid, hostname: r3l-unraid
LC_ALL=C \
PATH=/bin:/sbin:/usr/bin:/usr/sbin \
HOME='/var/lib/libvirt/qemu/domain-1-Windows 10 VM' \
XDG_DATA_HOME='/var/lib/libvirt/qemu/domain-1-Windows 10 VM/.local/share' \
XDG_CACHE_HOME='/var/lib/libvirt/qemu/domain-1-Windows 10 VM/.cache' \
XDG_CONFIG_HOME='/var/lib/libvirt/qemu/domain-1-Windows 10 VM/.config' \
/usr/local/sbin/qemu \
-name 'guest=Windows 10 VM,debug-threads=on' \
-S \
-object '{"qom-type":"secret","id":"masterKey0","format":"raw","file":"/var/lib/libvirt/qemu/domain-1-Windows 10 VM/master-key.aes"}' \
-blockdev '{"driver":"file","filename":"/usr/share/qemu/ovmf-x64/OVMF_CODE-pure-efi.fd","node-name":"libvirt-pflash0-storage","auto-read-only":true,"discard":"unmap"}' \
-blockdev '{"node-name":"libvirt-pflash0-format","read-only":true,"driver":"raw","file":"libvirt-pflash0-storage"}' \
-blockdev '{"driver":"file","filename":"/etc/libvirt/qemu/nvram/1203a37a-6bae-8028-b6e8-ab3ff0b6d958_VARS-pure-efi.fd","node-name":"libvirt-pflash1-storage","auto-read-only":true,"discard":"unmap"}' \
-blockdev '{"node-name":"libvirt-pflash1-format","read-only":false,"driver":"raw","file":"libvirt-pflash1-storage"}' \
-machine pc-q35-7.1,usb=off,dump-guest-core=off,mem-merge=off,memory-backend=pc.ram,pflash0=libvirt-pflash0-format,pflash1=libvirt-pflash1-format \
-accel kvm \
-cpu host,migratable=on,hv-time=on,hv-relaxed=on,hv-vapic=on,hv-spinlocks=0x1fff,hv-vendor-id=none,host-cache-info=on,l3-cache=off \
-m 4096 \
-object '{"qom-type":"memory-backend-ram","id":"pc.ram","size":4294967296}' \
-overcommit mem-lock=off \
-smp 4,sockets=1,dies=1,cores=2,threads=2 \
-uuid 1203a37a-6bae-8028-b6e8-ab3ff0b6d958 \
-display none \
-no-user-config \
-nodefaults \
-chardev socket,id=charmonitor,fd=35,server=on,wait=off \
-mon chardev=charmonitor,id=monitor,mode=control \
-rtc base=localtime \
-no-hpet \
-no-shutdown \
-boot strict=on \
-device '{"driver":"pcie-root-port","port":16,"chassis":1,"id":"pci.1","bus":"pcie.0","multifunction":true,"addr":"0x2"}' \
-device '{"driver":"pcie-root-port","port":17,"chassis":2,"id":"pci.2","bus":"pcie.0","addr":"0x2.0x1"}' \
-device '{"driver":"pcie-root-port","port":18,"chassis":3,"id":"pci.3","bus":"pcie.0","addr":"0x2.0x2"}' \
-device '{"driver":"pcie-root-port","port":19,"chassis":4,"id":"pci.4","bus":"pcie.0","addr":"0x2.0x3"}' \
-device '{"driver":"pcie-root-port","port":20,"chassis":5,"id":"pci.5","bus":"pcie.0","addr":"0x2.0x4"}' \
-device '{"driver":"pcie-root-port","port":21,"chassis":6,"id":"pci.6","bus":"pcie.0","addr":"0x2.0x5"}' \
-device '{"driver":"nec-usb-xhci","p2":15,"p3":15,"id":"usb","bus":"pcie.0","addr":"0x7"}' \
-device '{"driver":"virtio-serial-pci","id":"virtio-serial0","bus":"pci.2","addr":"0x0"}' \
-blockdev '{"driver":"file","filename":"/mnt/user/domains/Windows 10 VM/vdisk1.img","node-name":"libvirt-3-storage","cache":{"direct":false,"no-flush":false},"auto-read-only":true,"discard":"unmap"}' \
-blockdev '{"node-name":"libvirt-3-format","read-only":false,"cache":{"direct":false,"no-flush":false},"driver":"raw","file":"libvirt-3-storage"}' \
-device '{"driver":"virtio-blk-pci","bus":"pci.3","addr":"0x0","drive":"libvirt-3-format","id":"virtio-disk2","bootindex":1,"write-cache":"on","serial":"vdisk1"}' \
-blockdev '{"driver":"file","filename":"/mnt/user/isos/en-us_windows_10_consumer_editions_version_22h2_updated_may_2023_x64_dvd_8ae93bf4.iso","node-name":"libvirt-2-storage","auto-read-only":true,"discard":"unmap"}' \
-blockdev '{"node-name":"libvirt-2-format","read-only":true,"driver":"raw","file":"libvirt-2-storage"}' \
-device '{"driver":"ide-cd","bus":"ide.0","drive":"libvirt-2-format","id":"sata0-0-0","bootindex":2}' \
-blockdev '{"driver":"file","filename":"/mnt/user/isos/virtio-win-0.1.229.iso","node-name":"libvirt-1-storage","auto-read-only":true,"discard":"unmap"}' \
-blockdev '{"node-name":"libvirt-1-format","read-only":true,"driver":"raw","file":"libvirt-1-storage"}' \
-device '{"driver":"ide-cd","bus":"ide.1","drive":"libvirt-1-format","id":"sata0-0-1"}' \
-netdev tap,fd=36,id=hostnet0 \
-device '{"driver":"virtio-net","netdev":"hostnet0","id":"net0","mac":"52:54:00:53:f7:24","bus":"pci.1","addr":"0x0"}' \
-chardev pty,id=charserial0 \
-device '{"driver":"isa-serial","chardev":"charserial0","id":"serial0","index":0}' \
-chardev socket,id=charchannel0,fd=34,server=on,wait=off \
-device '{"driver":"virtserialport","bus":"virtio-serial0.0","nr":1,"chardev":"charchannel0","id":"channel0","name":"org.qemu.guest_agent.0"}' \
-device '{"driver":"usb-tablet","id":"input0","bus":"usb.0","port":"1"}' \
-audiodev '{"id":"audio1","driver":"none"}' \
-device '{"driver":"vfio-pci","host":"0000:05:00.0","id":"hostdev0","bus":"pci.4","addr":"0x0"}' \
-device '{"driver":"vfio-pci","host":"0000:06:00.0","id":"hostdev1","bus":"pci.5","addr":"0x0"}' \
-sandbox on,obsolete=deny,elevateprivileges=deny,spawn=deny,resourcecontrol=deny \
-msg timestamp=on
char device redirected to /dev/pts/0 (label charserial0)
2023-11-23T11:46:22.164204Z qemu-system-x86_64: VFIO_MAP_DMA failed: Invalid argument
2023-11-23T11:46:22.164247Z qemu-system-x86_64: vfio_dma_map(0x1474a49f4800, 0x381800000000, 0x200000000, 0x1472a2a00000) = -2 (No such file or directory)
2023-11-23T11:46:23.330126Z qemu-system-x86_64: VFIO_MAP_DMA failed: Invalid argument
2023-11-23T11:46:23.330141Z qemu-system-x86_64: vfio_dma_map(0x1474a49f4800, 0x381800000000, 0x200000000, 0x1472a2a00000) = -22 (Invalid argument)
2023-11-23T11:46:23.361581Z qemu-system-x86_64: VFIO_MAP_DMA failed: Invalid argument
2023-11-23T11:46:23.361594Z qemu-system-x86_64: vfio_dma_map(0x1474a49f4800, 0x381800000000, 0x200000000, 0x1472a2a00000) = -22 (Invalid argument)
2023-11-23T11:46:23.427750Z qemu-system-x86_64: VFIO_MAP_DMA failed: Invalid argument
2023-11-23T11:46:23.427765Z qemu-system-x86_64: vfio_dma_map(0x1474a49f4800, 0x381800000000, 0x200000000, 0x1472a2a00000) = -22 (Invalid argument)
2023-11-23T11:46:23.432079Z qemu-system-x86_64: VFIO_MAP_DMA failed: Invalid argument
2023-11-23T11:46:23.432088Z qemu-system-x86_64: vfio_dma_map(0x1474a49f4800, 0x381800000000, 0x200000000, 0x1472a2a00000) = -22 (Invalid argument)
2023-11-23T11:46:23.438165Z qemu-system-x86_64: VFIO_MAP_DMA failed: Invalid argument
2023-11-23T11:46:23.438178Z qemu-system-x86_64: vfio_dma_map(0x1474a49f4800, 0x381800000000, 0x200000000, 0x1472a2a00000) = -22 (Invalid argument)
2023-11-23T11:46:23.442124Z qemu-system-x86_64: VFIO_MAP_DMA failed: Invalid argument
2023-11-23T11:46:23.442132Z qemu-system-x86_64: vfio_dma_map(0x1474a49f4800, 0x381800000000, 0x200000000, 0x1472a2a00000) = -22 (Invalid argument)
2023-11-23T11:46:28.052087Z qemu-system-x86_64: VFIO_MAP_DMA failed: Invalid argument
2023-11-23T11:46:28.052118Z qemu-system-x86_64: vfio_dma_map(0x1474a49f4800, 0x381800000000, 0x200000000, 0x1472a2a00000) = -22 (Invalid argument)
2023-11-23T11:46:28.057509Z qemu-system-x86_64: VFIO_MAP_DMA failed: Invalid argument
2023-11-23T11:46:28.057524Z qemu-system-x86_64: vfio_dma_map(0x1474a49f4800, 0x381800000000, 0x200000000, 0x1472a2a00000) = -22 (Invalid argument)
2023-11-23T11:46:28.076670Z qemu-system-x86_64: VFIO_MAP_DMA failed: Invalid argument
2023-11-23T11:46:28.076786Z qemu-system-x86_64: vfio_dma_map(0x1474a49f4800, 0x381800000000, 0x200000000, 0x1472a2a00000) = -22 (Invalid argument)
2023-11-23T11:46:28.117593Z qemu-system-x86_64: VFIO_MAP_DMA failed: Invalid argument
2023-11-23T11:46:28.117615Z qemu-system-x86_64: vfio_dma_map(0x1474a49f4800, 0x381800000000, 0x200000000, 0x1472a2a00000) = -22 (Invalid argument)
2023-11-23T11:46:28.135079Z qemu-system-x86_64: VFIO_MAP_DMA failed: Invalid argument
2023-11-23T11:46:28.135103Z qemu-system-x86_64: vfio_dma_map(0x1474a49f4800, 0x381800000000, 0x200000000, 0x1472a2a00000) = -22 (Invalid argument)
2023-11-23T11:46:31.449283Z qemu-system-x86_64: VFIO_MAP_DMA failed: Invalid argument
2023-11-23T11:46:31.449301Z qemu-system-x86_64: vfio_dma_map(0x1474a49f4800, 0x381800000000, 0x200000000, 0x1472a2a00000) = -22 (Invalid argument)



I am now at a loss as to what to try next and hoping you guys could give me some advice,



Aboslutley loving Unraid so far, just seem to have hit a road black now which I cant solve.



Physcially nothing has changed in my system, both cards have HDMI dummy plugs in them if that helps and everything was just working fine until now.



If I have missed any info out just let me know.

Edited November 23, 20232 yr by vindictive-voyeur2295

@vindictive-voyeur2295 Maybe this can help you, it solved my issue.





Seeing this on EVERY thread is rather annoying, even more so when nobody bothers to update whether it worked or not. I am here to sat that on my particular system it doesn't work
