dmanwithers

Seeing this on EVERY thread is rather annoying, even more so when nobody bothers to update whether it worked or not. I am here to sat that on my particular system it doesn't work

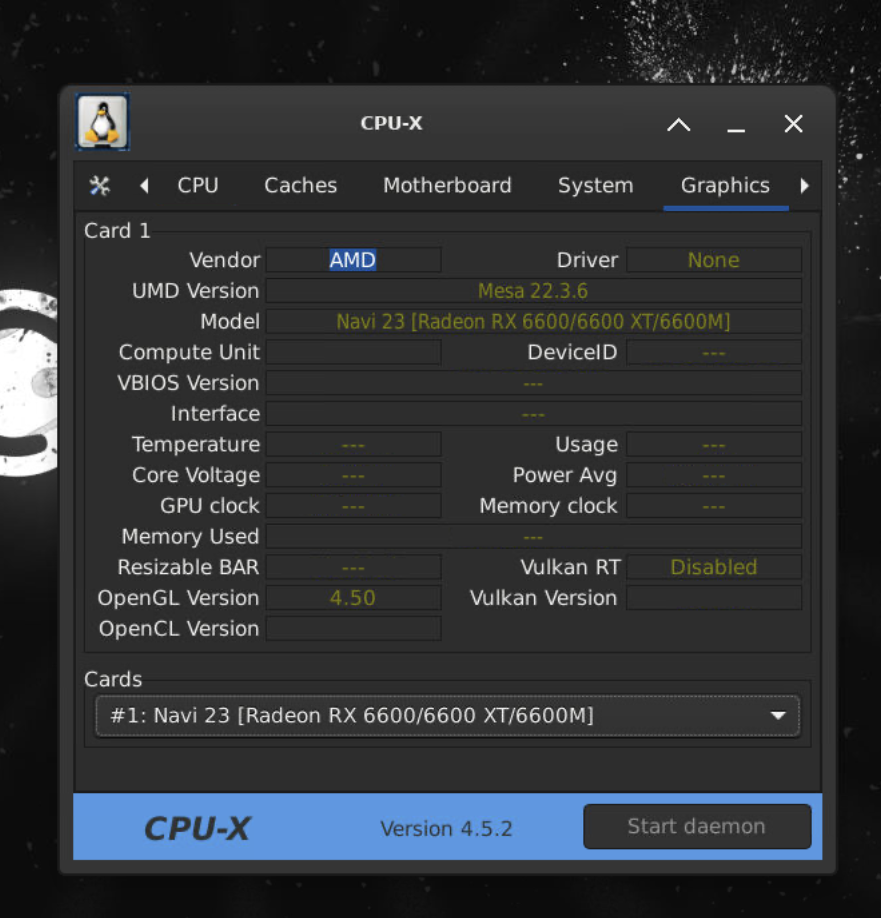

Brand new here. Running on the latest version of UnRAID. Docker works fine. My issue, I've got a system running 4600G and also have a RX 6600 dGPU. It sees both, and shows loaded drivers for the APU, but for the GPU says none. Because of this, the games aren't launching

This syslog is when attempting to boot the VM with the GPU attached still syslog-2.txt

The following is the VM logs when attempting to boot with the GPU attached -tpmdev emulator,id=tpm-tpm0,chardev=chrtpm \ -device '{"driver":"tpm-tis","tpmdev":"tpm-tpm0","id":"tpm0"}' \ -device '{"driver":"usb-tablet","id":"input0","bus":"usb.0","port":"1"}' \ -audiodev '{"id":"audio1","driver":"none"}' \ -vnc 0.0.0.0:0,websocket=5700,audiodev=audio1 \ -k en-us \ -device '{"driver":"qxl-vga","id":"video0","max_outputs":1,"ram_size":67108864,"vram_size":67108864,"vram64_size_mb":0,"vgamem_mb":16,"bus":"pcie.0","addr":"0x1"}' \ -device '{"driver":"vfio-pci","host":"0000:0e:00.0","id":"hostdev0","bus":"pci.3","addr":"0x0","romfile":"/mnt/cache/isos/vfios/243157.rom"}' \ -device '{"driver":"vfio-pci","host":"0000:0e:00.1","id":"hostdev1","bus":"pci.4","addr":"0x0"}' \ -device '{"driver":"vfio-pci","host":"0000:05:00.0","id":"hostdev2","bus":"pci.5","addr":"0x0"}' \ -device '{"driver":"usb-host","hostdevice":"/dev/bus/usb/003/003","id":"hostdev3","bus":"usb.0","port":"2"}' \ -device '{"driver":"usb-host","hostdevice":"/dev/bus/usb/001/002","id":"hostdev4","bus":"usb.0","port":"3"}' \ -sandbox on,obsolete=deny,elevateprivileges=deny,spawn=deny,resourcecontrol=deny \ -msg timestamp=on char device redirected to /dev/pts/0 (label charserial0) qxl_send_events: spice-server bug: guest stopped, ignoring 2024-04-23T23:46:56.566822Z qemu-system-x86_64: terminating on signal 15 from pid 11113 (/usr/sbin/libvirtd) 2024-04-23 23:46:58.567+0000: shutting down, reason=destroyed 2024-04-23 23:47:43.841+0000: Starting external device: TPM Emulator /usr/bin/swtpm socket --ctrl 'type=unixio,path=/run/libvirt/qemu/swtpm/2-Windows 11 fresh-swtpm.sock,mode=0600' --tpmstate dir=/var/lib/libvirt/swtpm/b7221e7a-31f0-8de2-b0ed-20e67fd3f7b6/tpm2,mode=0600 --log 'file=/var/log/swtpm/libvirt/qemu/Windows 11 fresh-swtpm.log' --terminate --tpm2 2024-04-23 23:47:43.873+0000: starting up libvirt version: 8.7.0, qemu version: 7.2.0, kernel: 6.1.79-Unraid, hostname: Tower LC_ALL=C \ PATH=/bin:/sbin:/usr/bin:/usr/sbin \ HOME='/var/lib/libvirt/qemu/domain-2-Windows 11 fresh' \ XDG_DATA_HOME='/var/lib/libvirt/qemu/domain-2-Windows 11 fresh/.local/share' \ XDG_CACHE_HOME='/var/lib/libvirt/qemu/domain-2-Windows 11 fresh/.cache' \ XDG_CONFIG_HOME='/var/lib/libvirt/qemu/domain-2-Windows 11 fresh/.config' \ /usr/local/sbin/qemu \ -name 'guest=Windows 11 fresh,debug-threads=on' \ -S \ -object '{"qom-type":"secret","id":"masterKey0","format":"raw","file":"/var/lib/libvirt/qemu/domain-2-Windows 11 fresh/master-key.aes"}' \ -blockdev '{"driver":"file","filename":"/usr/share/qemu/ovmf-x64/OVMF_CODE-pure-efi-tpm.fd","node-name":"libvirt-pflash0-storage","auto-read-only":true,"discard":"unmap"}' \ -blockdev '{"node-name":"libvirt-pflash0-format","read-only":true,"driver":"raw","file":"libvirt-pflash0-storage"}' \ -blockdev '{"driver":"file","filename":"/etc/libvirt/qemu/nvram/b7221e7a-31f0-8de2-b0ed-20e67fd3f7b6_VARS-pure-efi-tpm.fd","node-name":"libvirt-pflash1-storage","auto-read-only":true,"discard":"unmap"}' \ -blockdev '{"node-name":"libvirt-pflash1-format","read-only":false,"driver":"raw","file":"libvirt-pflash1-storage"}' \ -machine pc-q35-7.2,usb=off,dump-guest-core=off,mem-merge=off,memory-backend=pc.ram,pflash0=libvirt-pflash0-format,pflash1=libvirt-pflash1-format \ -accel kvm \ -cpu host,migratable=on,topoext=on,hv-time=on,hv-relaxed=on,hv-vapic=on,hv-spinlocks=0x1fff,hv-vendor-id=none,kvm=off,host-cache-info=on,l3-cache=off \ -m 8192 \ -object '{"qom-type":"memory-backend-ram","id":"pc.ram","size":8589934592}' \ -overcommit mem-lock=off \ -smp 6,sockets=1,dies=1,cores=3,threads=2 \ -uuid b7221e7a-31f0-8de2-b0ed-20e67fd3f7b6 \ -no-user-config \ -nodefaults \ -chardev socket,id=charmonitor,fd=35,server=on,wait=off \ -mon chardev=charmonitor,id=monitor,mode=control \ -rtc base=localtime \ -no-hpet \ -no-shutdown \ -boot strict=on \ -device '{"driver":"pcie-root-port","port":16,"chassis":1,"id":"pci.1","bus":"pcie.0","multifunction":true,"addr":"0x2"}' \ -device '{"driver":"pcie-root-port","port":17,"chassis":2,"id":"pci.2","bus":"pcie.0","addr":"0x2.0x1"}' \ -device '{"driver":"pcie-root-port","port":18,"chassis":3,"id":"pci.3","bus":"pcie.0","addr":"0x2.0x2"}' \ -device '{"driver":"pcie-root-port","port":19,"chassis":4,"id":"pci.4","bus":"pcie.0","addr":"0x2.0x3"}' \ -device '{"driver":"pcie-root-port","port":20,"chassis":5,"id":"pci.5","bus":"pcie.0","addr":"0x2.0x4"}' \ -device '{"driver":"qemu-xhci","p2":15,"p3":15,"id":"usb","bus":"pcie.0","addr":"0x7"}' \ -device '{"driver":"virtio-serial-pci","id":"virtio-serial0","bus":"pci.2","addr":"0x0"}' \ -blockdev '{"driver":"file","filename":"/mnt/user/isos/Win11_23H2_English_x64v2.iso","node-name":"libvirt-3-storage","auto-read-only":true,"discard":"unmap"}' \ -blockdev '{"node-name":"libvirt-3-format","read-only":true,"driver":"raw","file":"libvirt-3-storage"}' \ -device '{"driver":"ide-cd","bus":"ide.0","drive":"libvirt-3-format","id":"sata0-0-0","bootindex":2}' \ -blockdev '{"driver":"file","filename":"/mnt/user/isos/virtio-win-0.1.225-1.iso","node-name":"libvirt-2-storage","auto-read-only":true,"discard":"unmap"}' \ -blockdev '{"node-name":"libvirt-2-format","read-only":true,"driver":"raw","file":"libvirt-2-storage"}' \ -device '{"driver":"ide-cd","bus":"ide.1","drive":"libvirt-2-format","id":"sata0-0-1"}' \ -blockdev '{"driver":"host_device","filename":"/dev/disk/by-id/ata-Samsung_SSD_870_EVO_1TB_S75BNL0WC18464H","node-name":"libvirt-1-storage","cache":{"direct":false,"no-flush":false},"auto-read-only":true,"discard":"unmap"}' \ -blockdev '{"node-name":"libvirt-1-format","read-only":false,"cache":{"direct":false,"no-flush":false},"driver":"raw","file":"libvirt-1-storage"}' \ -device '{"driver":"ide-hd","bus":"ide.2","drive":"libvirt-1-format","id":"sata0-0-2","bootindex":1,"write-cache":"on","serial":"vdisk1"}' \ -netdev tap,fd=36,id=hostnet0 \ -device '{"driver":"virtio-net","netdev":"hostnet0","id":"net0","mac":"52:54:00:68:6a:5b","bus":"pci.1","addr":"0x0"}' \ -chardev pty,id=charserial0 \ -device '{"driver":"isa-serial","chardev":"charserial0","id":"serial0","index":0}' \ -chardev socket,id=charchannel0,fd=34,server=on,wait=off \ -device '{"driver":"virtserialport","bus":"virtio-serial0.0","nr":1,"chardev":"charchannel0","id":"channel0","name":"org.qemu.guest_agent.0"}' \ -chardev 'socket,id=chrtpm,path=/run/libvirt/qemu/swtpm/2-Windows 11 fresh-swtpm.sock' \ -tpmdev emulator,id=tpm-tpm0,chardev=chrtpm \ -device '{"driver":"tpm-tis","tpmdev":"tpm-tpm0","id":"tpm0"}' \ -device '{"driver":"usb-tablet","id":"input0","bus":"usb.0","port":"1"}' \ -audiodev '{"id":"audio1","driver":"none"}' \ -vnc 0.0.0.0:0,websocket=5700,audiodev=audio1 \ -k en-us \ -device '{"driver":"qxl-vga","id":"video0","max_outputs":1,"ram_size":67108864,"vram_size":67108864,"vram64_size_mb":0,"vgamem_mb":16,"bus":"pcie.0","addr":"0x1"}' \ -device '{"driver":"vfio-pci","host":"0000:0e:00.0","id":"hostdev0","bus":"pci.3","addr":"0x0","romfile":"/mnt/cache/isos/vfios/243157.rom"}' \ -device '{"driver":"vfio-pci","host":"0000:0e:00.1","id":"hostdev1","bus":"pci.4","addr":"0x0"}' \ -device '{"driver":"vfio-pci","host":"0000:05:00.0","id":"hostdev2","bus":"pci.5","addr":"0x0"}' \ -device '{"driver":"usb-host","hostdevice":"/dev/bus/usb/003/003","id":"hostdev3","bus":"usb.0","port":"2"}' \ -device '{"driver":"usb-host","hostdevice":"/dev/bus/usb/001/002","id":"hostdev4","bus":"usb.0","port":"3"}' \ -sandbox on,obsolete=deny,elevateprivileges=deny,spawn=deny,resourcecontrol=deny \ -msg timestamp=on char device redirected to /dev/pts/0 (label charserial0) qxl_send_events: spice-server bug: guest stopped, ignoring

Here is the current log syslog file as well. Not truly seeing any issues. will attempt to get something in the logs with the crash in a few syslog.txt

I'm having some issues. Had a RTX 3050 card I was able to passthrough just fine, but that card is no good. Just got a brand new RX 6600 and am trying to passthrough to Windows 11 VM. The VM has a SSD passed through. I can boot straight to Windows on bare metal and the RX 6600 works just fine, so I know the card is good. The issue I am having is I can give the VM only VNC and everything works fine. Initial setup I can passthrough the card for a few minutes, long enough to install drivers and stress test, sometimes not that much time. The screen will go blank and entire server becomes unresponsive. After a few minutes the server will reboot. At this point, when the VM is started, the first core gets to 100% and no display, including VNC. After about ten minutes the VM will finally boot with no display on GPU but VNC will work. Device Manager then shows error 43, and no drivers will install for it. If I remove the GPU from configs and leave VNC, it boots normal. I have already done VFIO binding, disabled video for UnRAID, booted in UEFI and Legacy mode to no difference. I am attaching the Diagnostic file, but I am not seeing anything that stands out to me, but I am still fresh to UnRAID systems tower-diagnostics-20240423-1948.zip
