ylu Posted April 17 Share Posted April 17 (edited) Unraid 6.12.10无法安装Windows11虚拟机,原因是安装操作系统的时候是需要重启的。但每次重启的时候vnc窗口卡死,重新打开也不行。而断电重启后又会将安装步骤重来进入下一个死循环。。。。整个过程中系统没有明显的报错日志。诊断信息已上传! 总而言之就是虚拟机的vnc窗口在机器reboot的时候就会卡死,而且无法恢复! tower-diagnostics-20240417-1102.zip Edited April 17 by ylu Quote Link to comment
JackieWu Posted April 17 Share Posted April 17 日志里面没看出来什么问题,请将你的 win 虚拟机配置模板和“设置 - 虚拟机设置”截图贴上来。 Quote Link to comment

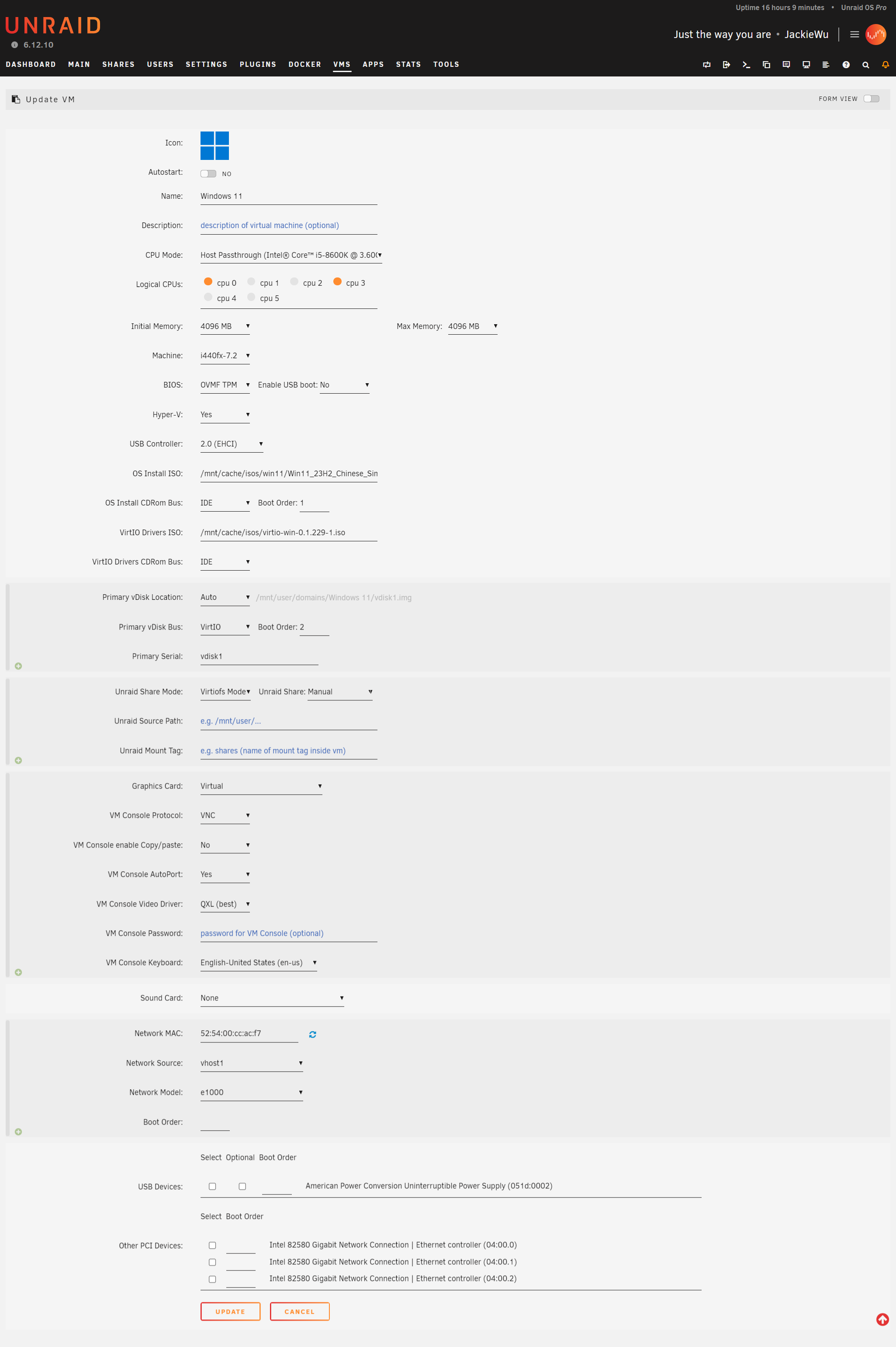

ylu Posted April 17 Author Share Posted April 17 11 minutes ago, JackieWu said: 日志里面没看出来什么问题,请将你的 win 虚拟机配置模板和“设置 - 虚拟机设置”截图贴上来。 <?xml version='1.0' encoding='UTF-8'?> <domain type='kvm'> <name>Windows 11</name> <uuid>f9c31a98-1665-6f48-fbe3-cff11c1d915e</uuid> <metadata> <vmtemplate xmlns="unraid" name="Windows 11" icon="windows11.png" os="windowstpm"/> </metadata> <memory unit='KiB'>8388608</memory> <currentMemory unit='KiB'>8388608</currentMemory> <memoryBacking> <nosharepages/> </memoryBacking> <vcpu placement='static'>2</vcpu> <cputune> <vcpupin vcpu='0' cpuset='0'/> <vcpupin vcpu='1' cpuset='3'/> </cputune> <os> <type arch='x86_64' machine='pc-i440fx-7.2'>hvm</type> <loader readonly='yes' type='pflash'>/usr/share/qemu/ovmf-x64/OVMF_CODE-pure-efi-tpm.fd</loader> <nvram>/etc/libvirt/qemu/nvram/f9c31a98-1665-6f48-fbe3-cff11c1d915e_VARS-pure-efi-tpm.fd</nvram> </os> <features> <acpi/> <apic/> <hyperv mode='custom'> <relaxed state='on'/> <vapic state='on'/> <spinlocks state='on' retries='8191'/> <vendor_id state='on' value='none'/> </hyperv> </features> <cpu mode='host-passthrough' check='none' migratable='on'> <topology sockets='1' dies='1' cores='2' threads='1'/> <cache mode='passthrough'/> </cpu> <clock offset='localtime'> <timer name='hypervclock' present='yes'/> <timer name='hpet' present='no'/> </clock> <on_poweroff>destroy</on_poweroff> <on_reboot>restart</on_reboot> <on_crash>restart</on_crash> <devices> <emulator>/usr/local/sbin/qemu</emulator> <disk type='file' device='disk'> <driver name='qemu' type='raw' cache='writeback'/> <source file='/mnt/user/domains/Windows 11/vdisk1.img'/> <target dev='hdc' bus='virtio'/> <serial>vdisk1</serial> <boot order='1'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x05' function='0x0'/> </disk> <disk type='file' device='cdrom'> <driver name='qemu' type='raw'/> <source file='/mnt/user/isos/Windows.iso'/> <target dev='hda' bus='ide'/> <readonly/> <boot order='2'/> <address type='drive' controller='0' bus='0' target='0' unit='0'/> </disk> <disk type='file' device='cdrom'> <driver name='qemu' type='raw'/> <source file='/mnt/user/isos/virtio-win-0.1.217.iso'/> <target dev='hdb' bus='ide'/> <readonly/> <address type='drive' controller='0' bus='0' target='0' unit='1'/> </disk> <controller type='usb' index='0' model='ich9-ehci1'> <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x7'/> </controller> <controller type='usb' index='0' model='ich9-uhci1'> <master startport='0'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x0' multifunction='on'/> </controller> <controller type='usb' index='0' model='ich9-uhci2'> <master startport='2'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x1'/> </controller> <controller type='usb' index='0' model='ich9-uhci3'> <master startport='4'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x2'/> </controller> <controller type='pci' index='0' model='pci-root'/> <controller type='ide' index='0'> <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x1'/> </controller> <controller type='virtio-serial' index='0'> <address type='pci' domain='0x0000' bus='0x00' slot='0x04' function='0x0'/> </controller> <interface type='bridge'> <mac address='52:54:00:08:12:4e'/> <source bridge='br0'/> <model type='e1000'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x03' function='0x0'/> </interface> <serial type='pty'> <target type='isa-serial' port='0'> <model name='isa-serial'/> </target> </serial> <console type='pty'> <target type='serial' port='0'/> </console> <channel type='unix'> <target type='virtio' name='org.qemu.guest_agent.0'/> <address type='virtio-serial' controller='0' bus='0' port='1'/> </channel> <input type='tablet' bus='usb'> <address type='usb' bus='0' port='1'/> </input> <input type='mouse' bus='ps2'/> <input type='keyboard' bus='ps2'/> <tpm model='tpm-tis'> <backend type='emulator' version='2.0' persistent_state='yes'/> </tpm> <graphics type='vnc' port='-1' autoport='yes' websocket='-1' listen='0.0.0.0' keymap='en-us'> <listen type='address' address='0.0.0.0'/> </graphics> <audio id='1' type='none'/> <video> <model type='qxl' ram='65536' vram='65536' vgamem='16384' heads='1' primary='yes'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x0'/> </video> <memballoon model='virtio'> <address type='pci' domain='0x0000' bus='0x00' slot='0x06' function='0x0'/> </memballoon> </devices> </domain> Quote Link to comment
JackieWu Posted April 17 Share Posted April 17 看起来没什么问题,你换个 win iso 系统安装镜像试试,另外你可以将 iso 镜像的虚拟总线类型由 ide 更改成 sata。 Quote Link to comment
ylu Posted April 17 Author Share Posted April 17 13 hours ago, JackieWu said: 看起来没什么问题,你换个 win iso 系统安装镜像试试,另外你可以将 iso 镜像的虚拟总线类型由 ide 更改成 sata。 问题是出现重启的时候vnc卡死黑屏,并不是总线不兼容找不到硬盘。你们可以用最新版的系统做一个测试啊!我也听别的网友也发现了类似的问题~~但不是每个人都人心思向你们反馈的 Quote Link to comment

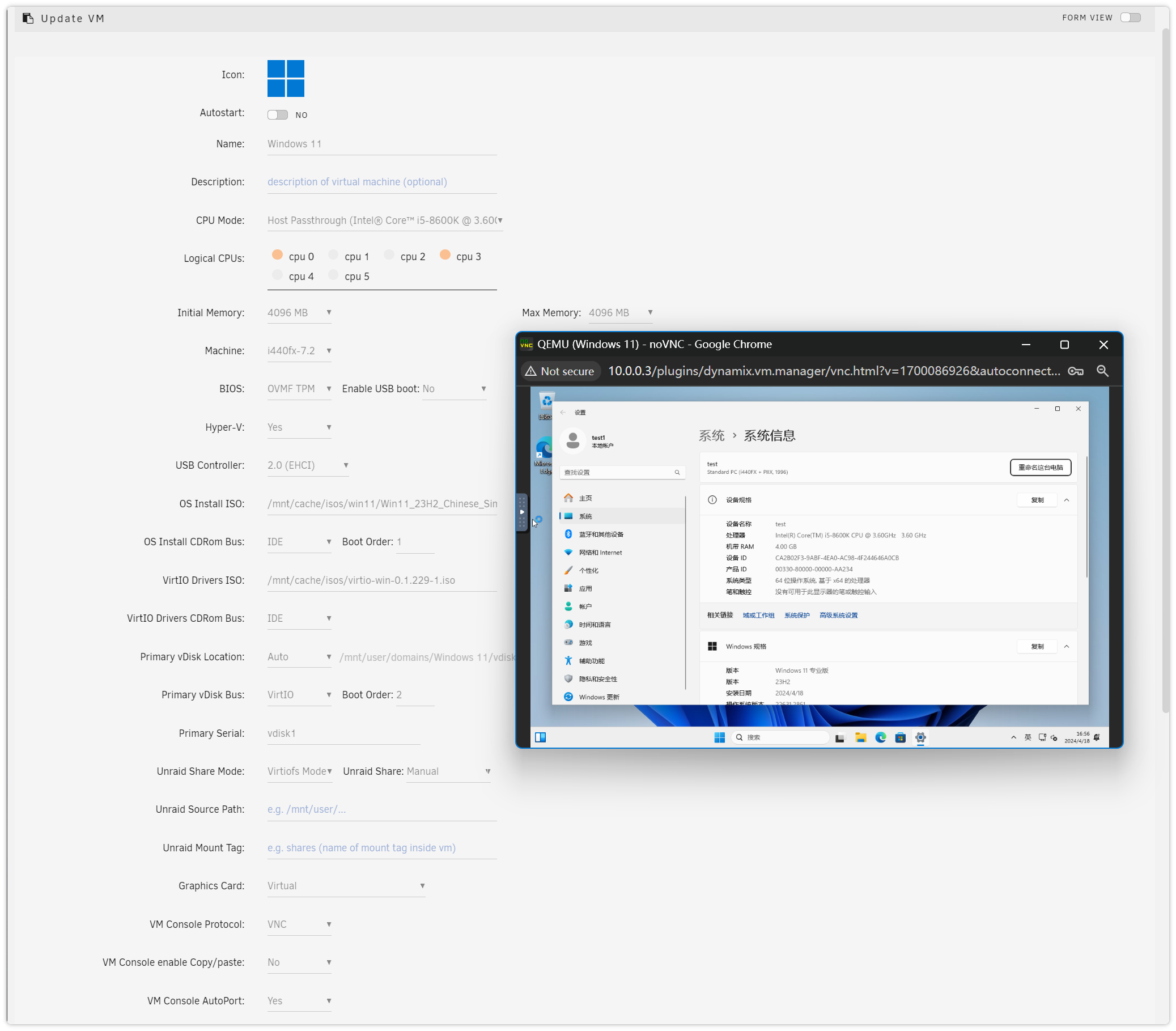

JackieWu Posted April 18 Share Posted April 18 (edited) 我做了测试了,安装 Win10 和 Win11 的时候没出现与你相类似的问题,ISO 安装镜像使用的是微软官方镜像: Quote 问题是出现重启的时候vnc卡死黑屏,并不是总线不兼容找不到硬盘。 之所以建议你尝试换一个 win iso 系统安装镜,是因为我之前在帮别人安装虚拟机的时候出现过因为 win 安装镜像自身的问题导致系统不能正常安装的情况(例如使用其他人精简并封装的 win 安装镜像);而另一个建议你将 iso 镜像的虚拟总线类型由 ide 更改成 sata 也并不是说认为总线不兼容找不到硬盘,而是尽可能的尝试排除可能的因素。 Quote 你们可以用最新版的系统做一个测试啊! 当时看到你的问题的时候,我没有第一时间尝试复现你的问题,是我不严谨了。 但我也解释下为什么我没有第一时间进行测试,因为如果这个问题是 Unraid 自身的 BUG,那么也就意味着所有人在安装 Windows 系统的时候很可能会遇到和你一样的问题(VNC 卡死黑屏)。但是目前 6.12.10 已经出来一段时间了(2024/04/03 发布的 .10 版本),目前除了你进行了反馈之外我还没有在其他的地方发现此类情况(包括 Unraid 官方相关的资讯,当然也有可能是我没了解到的确有这个 BUG)。 如果这个的确是个系统 BUG,那么这个 BUG 还是比较严重的,因为虚拟化本身就是 Unraid 的一个主要的功能,那么理论上来说这时候 Unraid 官方就应该立马去发布 6.12.11 版本来解决这个问题了(紧急发布新版本修复 BUG 的情况之前出现过,两个版本之间就间隔了两三天)。 Quote 我也听别的网友也发现了类似的问题~~但不是每个人都人心思向你们反馈的 给看到这个帖子的网友说明下,平时大家在浏览 Unraid 中文论坛的时候会经常看到我和大鹏老师 @anpple 的回帖,但我们两个都不是官方的开发人员,大鹏老师是中文板块的管理员,我啥也不是,我就一个普通的网友。 所以如果大家需要反馈 BUG ,那么可以到 Unraid 的 BUG REPORTS 板块去发帖子。另外你认识的网友如果也有这种问题,欢迎他们来论坛上面进行反馈,我会协助他们进行处理。 另外,Unraid 官方没有中国地区的客服,你可以参考我之前的一个回复:国内有客服么-我需要更换邮箱 。 最后回到你的问题上,如果你遇到的这个问题只出现在 Windows 虚拟机的安装上,比如说你在安装其他的 Linux 系统时没有出现这个问题,那么我还是再建议你换一个 ISO 安装镜像试试,或者可以尝试更换其他的浏览器测试一下。 Edited April 18 by JackieWu Quote Link to comment
ylu Posted April 19 Author Share Posted April 19 太难过了,你们能不能从我提交和诊断信息中找到vnc在重启时卡死的原因呢? Quote Link to comment
JackieWu Posted April 19 Share Posted April 19 1 minute ago, ylu said: 太难过了,你们能不能从我提交和诊断信息中找到vnc在重启时卡死的原因呢? 你可以在我博客找到我的联系方式,我远程帮你看看 Quote Link to comment
Zachwang Posted April 20 Share Posted April 20 我正在用的就是unraid6.12.10版本安装的win11专业版,一切正常,而且核显直通也是正常的。 Quote Link to comment
llm Posted April 29 Share Posted April 29 应该不是UNRAID这边的原因,我这边win11并直通一块固态和4080玩游戏一切正常,重启也没卡死 Quote Link to comment
llm Posted April 29 Share Posted April 29 你试试在这两个网站上的镜像吧: MSDN系统库-致力于原版windows生态服务 (xitongku.com) https://www.xitongku.com/ 原版软件 (itellyou.cn) https://next.itellyou.cn/Original/ Quote Link to comment
Geronimo Posted July 13 Share Posted July 13 (edited) On 4/19/2024 at 11:00 AM, ylu said: 太难过了,你们能不能从我提交和诊断信息中找到vnc在重启时卡死的原因呢? 我也是Unraid 6.12.10 重新vm装win11 遇到了这个问题, 感觉可能和vm使用的核心有关 我调整了下使用的cpu核心 它又显示画面了 Edited July 14 by Geronimo Quote Link to comment
MiniRailG Posted August 14 Share Posted August 14 6.12.11 遇到了同样的vnc卡死和webui卡死的问题,而且不仅限于windows,ubuntu、archlinux等linux发行版也无法成功安装 Quote Link to comment
