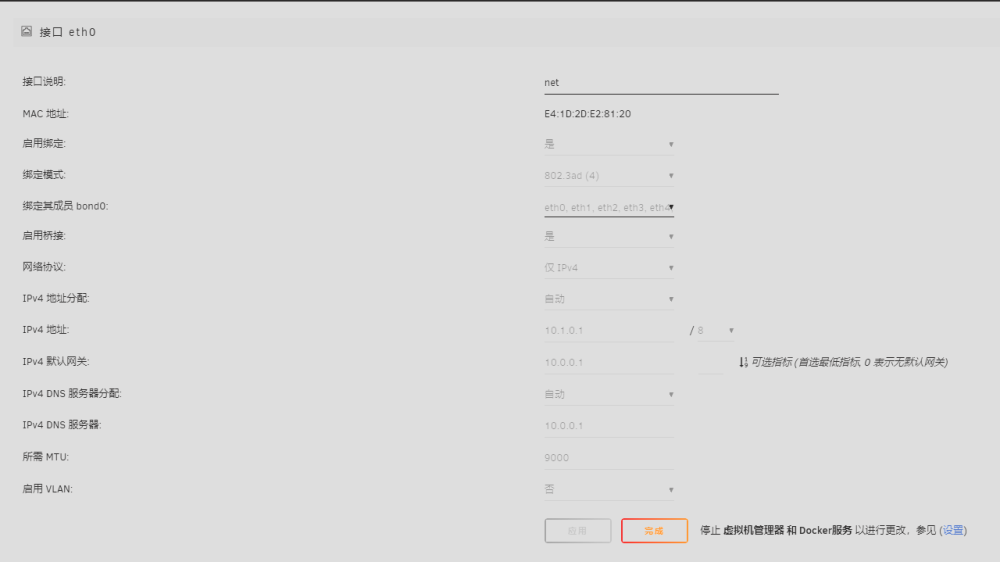

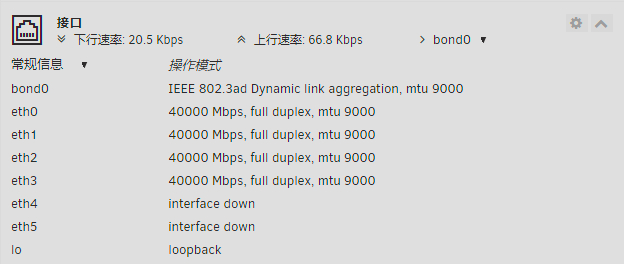

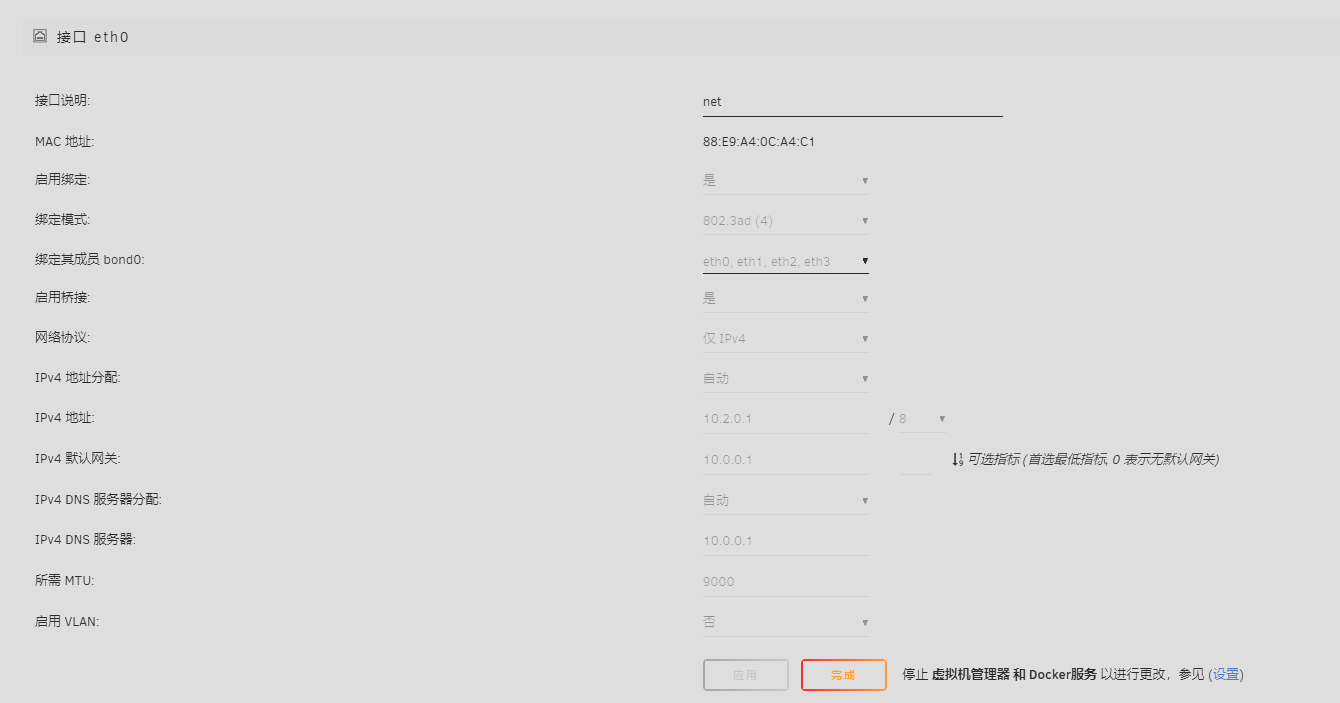

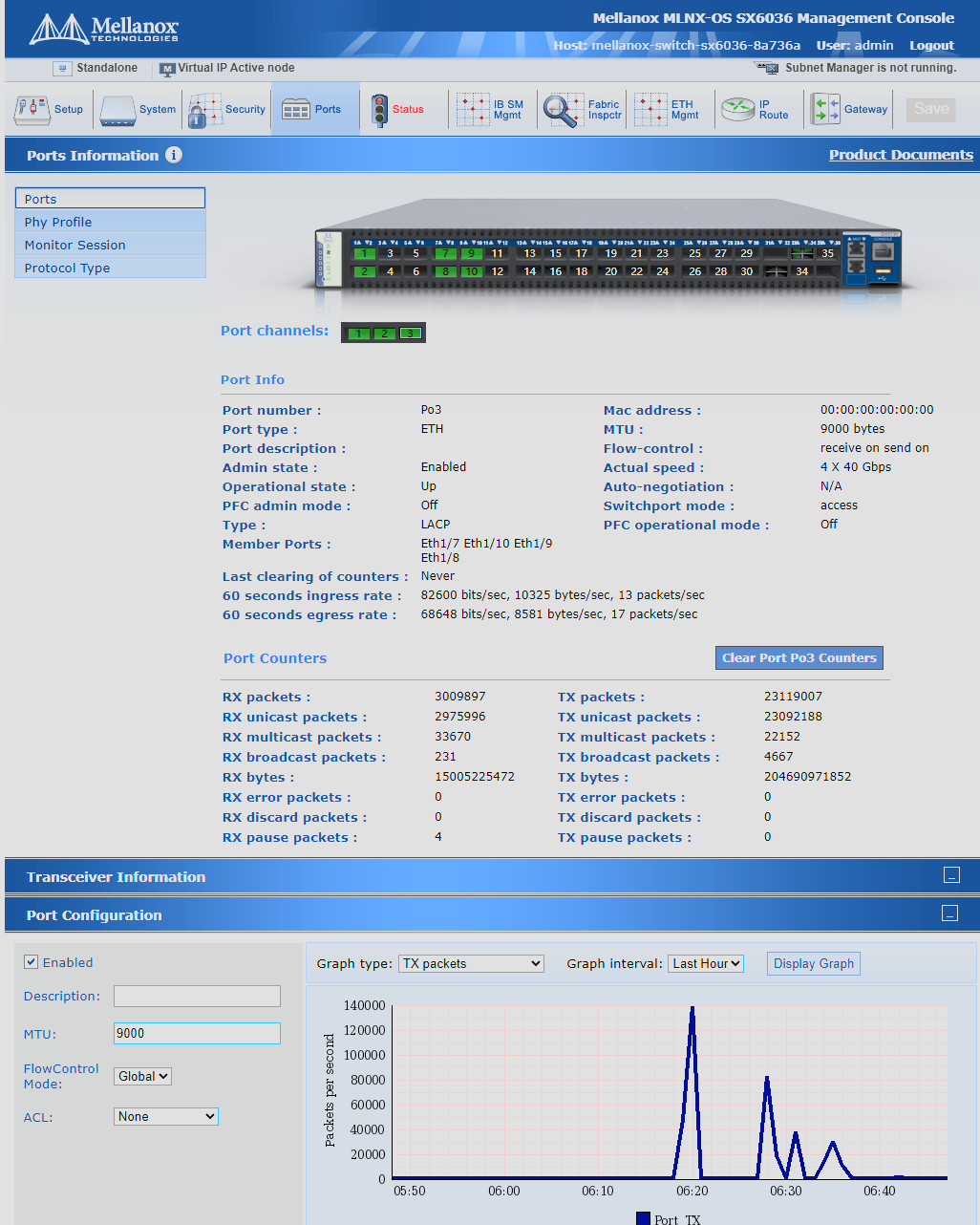

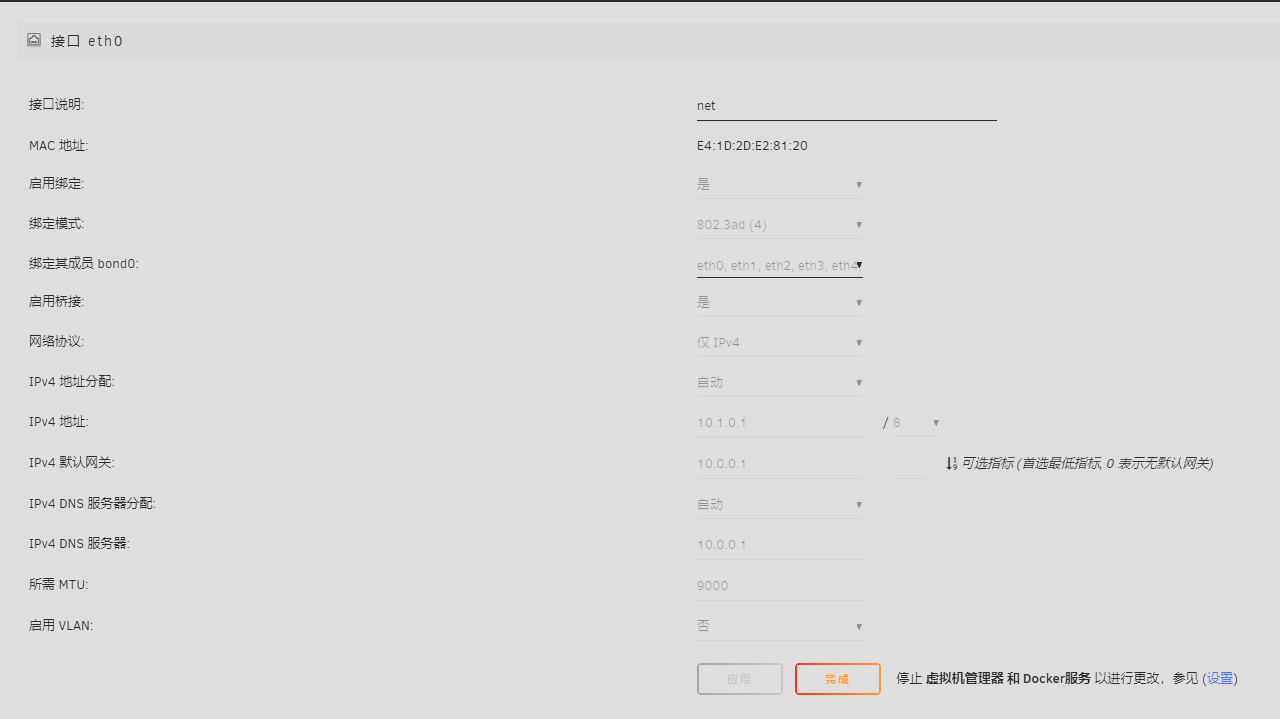

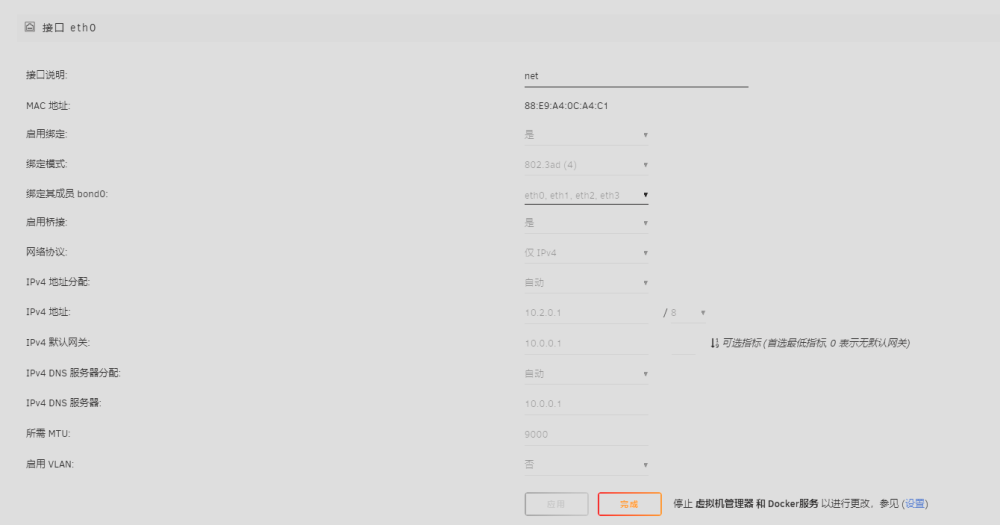

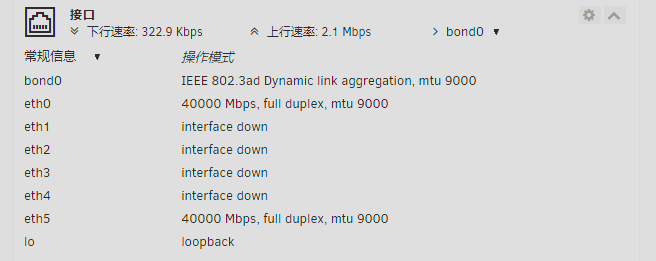

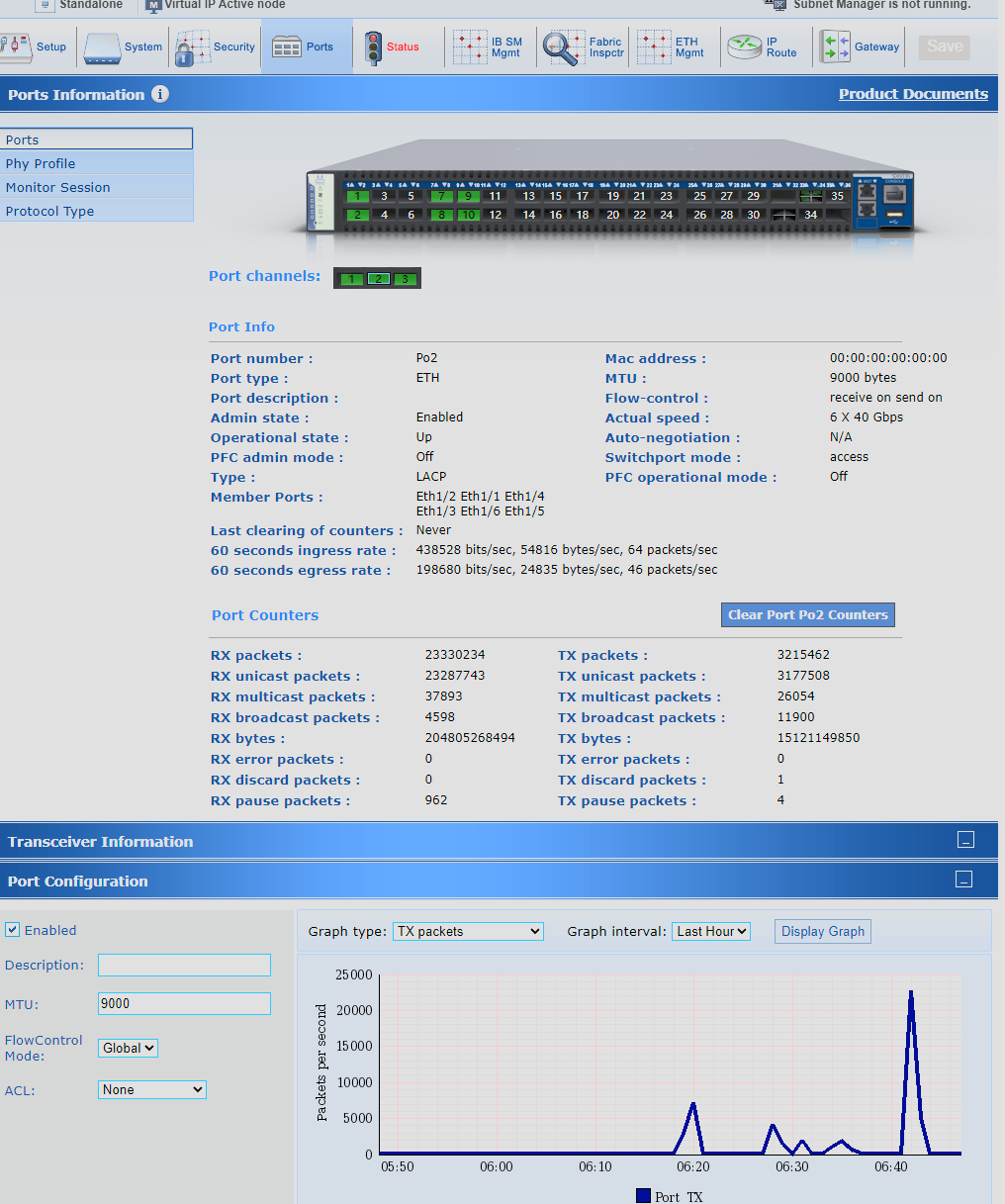

Hello everyone, I have recently established two servers using Unraid, one with 3 314A network cards and the other with 2 flr544+ network cards. I connected them all to Mellanox sx6036. As each network card has two 40G interfaces, I expected to achieve high speed through LACP. When I finished configuring it, I used the built-in iperf3 to measure the speed and found that all interfaces except eth0 had no load, so it could only run around 25G. I hope to get help. This is my configuration picture (the machine equipped with 314A currently only has two ports inserted)





Edited April 27, 20242 yr by jasssssson

Please post the diagnostics for both servers.


This is supplementary information

1. 3x 341A

Log

stream-diagnostics-20240427-1945.zip

2. 2x flr544+

Log

base-diagnostics-20240427-1946.zip

On 4/26/2024 at 3:03 PM, jasssssson said:

I used the built-in iperf3 to measure the speed and found that all interfaces except eth0 had no load

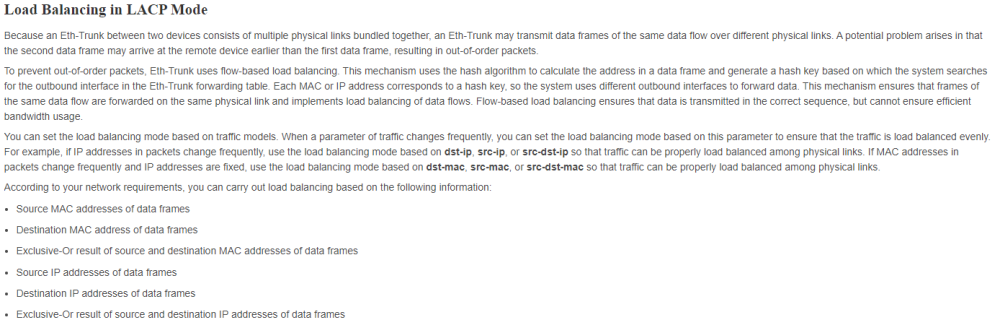

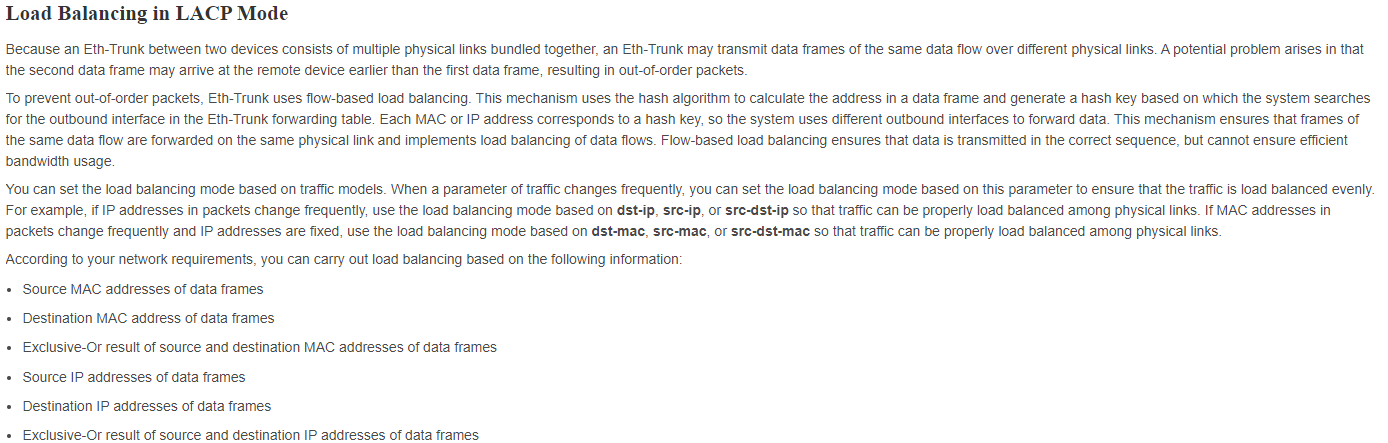

Iperf3 test in multiple session ?  if single session, then traffic will happen in one link only. ( Even multiple session, I am not sure does traffic will balance on different interface, because they are same source-destination mac address )



https://support.huawei.com/enterprise/en/doc/EDOC1100086560





https://www.jannet.hk/etherchannel-pagp-lacp-zh-hant/

Edited April 28, 20242 yr by Vr2Io

Sorry everyone, I currently need to move the equipment to a new studio, so it will take about half a month to try the solution you mentioned. After the move is completed, I will test it one by one. Thank you for your solution

Edited April 28, 20242 yr by jasssssson

15 hours ago, Vr2Io said:

Iperf3 test in multiple session ?

Yeah, keep that in mind, same for SMB transfers, a single transfer will only use one NIC, LACP only helps with multiple transfers.
