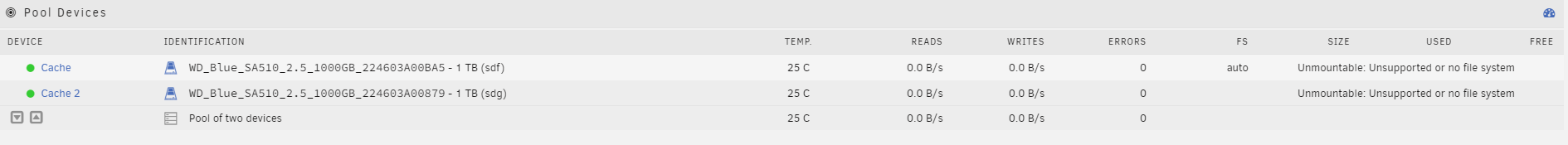

Markus G Posted May 16 Share Posted May 16 (edited) Hello, I have been searching for a solution for my problem for quite some time. My cache pool of two devices will not mount after reboot. The error listed is " Unmountable: Unsupported or no file system". I have tried to run "mount -o rescue=all,ro /dev/sdg1 /temp" with the error given as: "mount: /temp: special device /dev/sdg1 does not exist" If anyone would be able to help me figure out what may be the issue I would appreciate it. tower-diagnostics-20240516-1451.zip Edited May 16 by Markus G Quote Link to comment
Markus G Posted May 16 Author Share Posted May 16 Thank you for the quick response. Label: none uuid: af20d1aa-8c85-4763-bc7b-7e006bd5d28f Total devices 1 FS bytes used 360.00KiB devid 1 size 20.00GiB used 536.00MiB path /dev/loop2 Label: none uuid: 45b84021-bb40-449d-8611-1718beef11d8 Total devices 1 FS bytes used 412.00KiB devid 1 size 1.00GiB used 126.38MiB path /dev/loop3 Quote Link to comment
JorgeB Posted May 16 Share Posted May 16 Are you sure the pool was btrfs? No btrfs filesystem is being detected there, post the output of: blkid and fdisk -l /dev/sdf Quote Link to comment
Markus G Posted May 16 Author Share Posted May 16 I am not sure If it was configured as btrfs. root@server:~# blkid /dev/sda1: LABEL_FATBOOT="UNRAID" LABEL="UNRAID" UUID="70E8-E43D" BLOCK_SIZE="512" TYPE="vfat" PARTUUID="e761811e-01" /dev/loop1: TYPE="squashfs" /dev/sdd1: UUID="7491c33f-9a47-4d86-a433-fefcb05460d1" BLOCK_SIZE="512" TYPE="xfs" PARTUUID="3e0e5162-01b5-47fc-af19-f632aeb002c0" /dev/md2p1: UUID="6a042d73-4288-4ba5-a4bc-60fd80f0d90c" BLOCK_SIZE="512" TYPE="xfs" /dev/sdm1: UUID="1bbe4c36-6991-4bb0-b03f-66cbf2a070b9" BLOCK_SIZE="512" TYPE="xfs" /dev/sdb1: UUID="2d4ca56c-45a5-4bb0-901e-a2c096c99749" BLOCK_SIZE="512" TYPE="xfs" PARTUUID="0ee027fb-3374-4b8a-a4aa-316d63236d20" /dev/md5p1: UUID="23b0cb58-8711-4c9b-aff3-faaa94ee862b" BLOCK_SIZE="4096" TYPE="xfs" /dev/sdk1: UUID="23b0cb58-8711-4c9b-aff3-faaa94ee862b" BLOCK_SIZE="4096" TYPE="xfs" PARTUUID="8c0247df-0ce8-45cc-a7be-f885d42df9e4" /dev/sdi1: UUID="bd9860f6-0012-4c23-babf-a6d6e0c87b1e" BLOCK_SIZE="512" TYPE="xfs" PARTUUID="ead8dadf-665a-427d-8ee9-60f8cf4bc2fe" /dev/md1p1: UUID="2d4ca56c-45a5-4bb0-901e-a2c096c99749" BLOCK_SIZE="512" TYPE="xfs" /dev/md4p1: UUID="661713c1-2803-4a34-afaa-2af863d73d1e" BLOCK_SIZE="512" TYPE="xfs" /dev/loop0: TYPE="squashfs" /dev/sde1: UUID="661713c1-2803-4a34-afaa-2af863d73d1e" BLOCK_SIZE="512" TYPE="xfs" PARTUUID="5ccf249c-997e-4b1a-9edd-080c652f8fb2" /dev/md7p1: UUID="1bbe4c36-6991-4bb0-b03f-66cbf2a070b9" BLOCK_SIZE="512" TYPE="xfs" /dev/sdc1: UUID="6a042d73-4288-4ba5-a4bc-60fd80f0d90c" BLOCK_SIZE="512" TYPE="xfs" PARTUUID="7ed032ea-85a7-4979-8ff0-2d57f9080918" /dev/sdl1: UUID="d058bf79-5bfb-4caf-9a48-2c8e433c9e06" BLOCK_SIZE="4096" TYPE="xfs" PARTUUID="88fae84c-783b-4138-967b-1b1a9c0a8722" /dev/md3p1: UUID="7491c33f-9a47-4d86-a433-fefcb05460d1" BLOCK_SIZE="512" TYPE="xfs" /dev/md6p1: UUID="d058bf79-5bfb-4caf-9a48-2c8e433c9e06" BLOCK_SIZE="4096" TYPE="xfs" /dev/loop2: UUID="af20d1aa-8c85-4763-bc7b-7e006bd5d28f" UUID_SUB="6cb90d2c-09e2-482d-a55f-5c0f1532a256" BLOCK_SIZE="4096" TYPE="btrfs" /dev/loop3: UUID="45b84021-bb40-449d-8611-1718beef11d8" UUID_SUB="549d35e8-87f7-4dd8-a6c9-00e72c67c260" BLOCK_SIZE="4096" TYPE="btrfs" /dev/sdj1: PARTUUID="6c3e04a0-5dce-418e-ae74-47f362c3956f" root@server:~# fdisk -l /dev/sdf Disk /dev/sdf: 931.51 GiB, 1000204886016 bytes, 1953525168 sectors Disk model: WD Blue SA510 2. Units: sectors of 1 * 512 = 512 bytes Sector size (logical/physical): 512 bytes / 512 bytes I/O size (minimum/optimal): 512 bytes / 512 bytes Quote Link to comment
JorgeB Posted May 16 Share Posted May 16 Device doesn't have a partition, something/someone wiped it, type: sfdisk /dev/sdf then type 2048 and hit Enter, post the results of that Quote Link to comment
Markus G Posted May 16 Author Share Posted May 16 root@server:~# sfdisk /dev/sdf Welcome to sfdisk (util-linux 2.38.1). Changes will remain in memory only, until you decide to write them. Be careful before using the write command. Checking that no-one is using this disk right now ... OK Disk /dev/sdf: 931.51 GiB, 1000204886016 bytes, 1953525168 sectors Disk model: WD Blue SA510 2. Units: sectors of 1 * 512 = 512 bytes Sector size (logical/physical): 512 bytes / 512 bytes I/O size (minimum/optimal): 512 bytes / 512 bytes sfdisk is going to create a new 'dos' disk label. Use 'label: <name>' before you define a first partition to override the default. Type 'help' to get more information. >>> 2048 Created a new DOS disklabel with disk identifier 0x9652982f. Created a new partition 1 of type 'Linux' and of size 931.5 GiB. Partition #1 contains a btrfs signature. Do you want to remove the signature? [Y]es/[N]o: I have not selected an option for the Y/N question. Quote Link to comment
JorgeB Posted May 16 Share Posted May 16 Type N and hit Enter to keep the signature, then type write and hit Enter, after that post again output of btrfs fi show Quote Link to comment
Markus G Posted May 16 Author Share Posted May 16 Do you want to remove the signature? [Y]es/[N]o: n /dev/sdf1 : 2048 1953525167 (931.5G) Linux /dev/sdf2: write New situation: Disklabel type: dos Disk identifier: 0x9652982f Device Boot Start End Sectors Size Id Type /dev/sdf1 2048 1953525167 1953523120 931.5G 83 Linux The partition table has been altered. Calling ioctl() to re-read partition table. Syncing disks. root@server:~# btrfs fi show Label: none uuid: af20d1aa-8c85-4763-bc7b-7e006bd5d28f Total devices 1 FS bytes used 360.00KiB devid 1 size 20.00GiB used 536.00MiB path /dev/loop2 Label: none uuid: 45b84021-bb40-449d-8611-1718beef11d8 Total devices 1 FS bytes used 412.00KiB devid 1 size 1.00GiB used 126.38MiB path /dev/loop3 warning, device 3 is missing Label: none uuid: 8ea836b8-5eef-434c-842b-38d7b512bf3f Total devices 2 FS bytes used 153.49GiB devid 4 size 931.51GiB used 157.03GiB path /dev/sdf1 *** Some devices missing Quote Link to comment
JorgeB Posted May 16 Share Posted May 16 Now repeat the sfisk commands for the other pool device, /dev/sdg, but only write the new partition layout if it also finds a btrfs signature, when that's done post again btrfs fi show Quote Link to comment
Markus G Posted May 16 Author Share Posted May 16 Completed as instructed. I did find a btrfs signature on sdg and did write the partition. root@server:~# btrfs fi show Label: none uuid: af20d1aa-8c85-4763-bc7b-7e006bd5d28f Total devices 1 FS bytes used 360.00KiB devid 1 size 20.00GiB used 536.00MiB path /dev/loop2 Label: none uuid: 45b84021-bb40-449d-8611-1718beef11d8 Total devices 1 FS bytes used 412.00KiB devid 1 size 1.00GiB used 126.38MiB path /dev/loop3 Label: none uuid: 8ea836b8-5eef-434c-842b-38d7b512bf3f Total devices 2 FS bytes used 153.49GiB devid 3 size 931.51GiB used 157.03GiB path /dev/sdg1 devid 4 size 931.51GiB used 157.03GiB path /dev/sdf1 Quote Link to comment
Solution JorgeB Posted May 16 Solution Share Posted May 16 Re-start the array, pool should mount now, if it doesn't post new diags. Quote Link to comment
Markus G Posted May 16 Author Share Posted May 16 (edited) You are a legend! The pool has started. As you know, I must now remit my engineering degree to you. Thank you for your help. Edited May 16 by Markus G Quote Link to comment
JorgeB Posted May 16 Share Posted May 16 You're welcome, I assume you have no idea of what happened to the partitions? Just a normal reboot and this happened? Quote Link to comment
Markus G Posted May 16 Author Share Posted May 16 It was odd, plex was flaking out so I rebooted and the drives failed to mount. I'm not sure what happened. Quote Link to comment
