Creating VMs without VNC

ezhik
in Feature Requests

Featured Replies

Feature request:



Ability to create a VM without VNC exposed. In particular this can be accomplished by manually removing the "graphics" section in the XML:



    <graphics type='vnc' port='-1' autoport='yes' websocket='-1' listen='0.0.0.0' keymap='en-us'>
      <listen type='address' address='0.0.0.0'/>
    </graphics>



Can this be included in the user-friendly editor too?

  • Quote

    • Solved by SimonF

    Go to solution
    21 hours ago, ezhik said:

    Feature request:



    Ability to create a VM without VNC exposed. In particular this can be accomplished by manually removing the "graphics" section in the XML:



        <graphics type='vnc' port='-1' autoport='yes' websocket='-1' listen='0.0.0.0' keymap='en-us'>
          <listen type='address' address='0.0.0.0'/>
        </graphics>



    Can this be included in the user-friendly editor too?

    Are you looking for an option for no gpu?

  • Quote

    ? edit xml and delete the vnc lines.

    Delete:


        <input type='tablet' bus='usb'>
      <address type='usb' bus='0' port='1'/>
    </input>
    <input type='mouse' bus='ps2'/>
    <input type='keyboard' bus='ps2'/>
    <graphics type='vnc' port='-1' autoport='yes' websocket='-1' listen='0.0.0.0' keymap='en-us'>
      <listen type='address' address='0.0.0.0'/>
    </graphics>

    ^ no gpu or input would be connected to the virtual machine, and it would be truly headless.

    The reason this is not an option is the issues to install an operating system or confirm first boot.

    Otherwise use virt-manger docker:
    https://forum.level1techs.com/t/no-display-with-virt-manager-qemu-works/168676

    Edited by bmartino1

  • Quote
    • Author

    Right, my request is to have this in a more user friendly option. I can edit XML and I do edit XML for that. If you have user friendly VM manager, you should provide an option to also set the GPU to none.

  • Quote
    On 5/28/2024 at 5:31 AM, ezhik said:

    Right, my request is to have this in a more user friendly option. I can edit XML and I do edit XML for that. If you have user friendly VM manager, you should provide an option to also set the GPU to none.

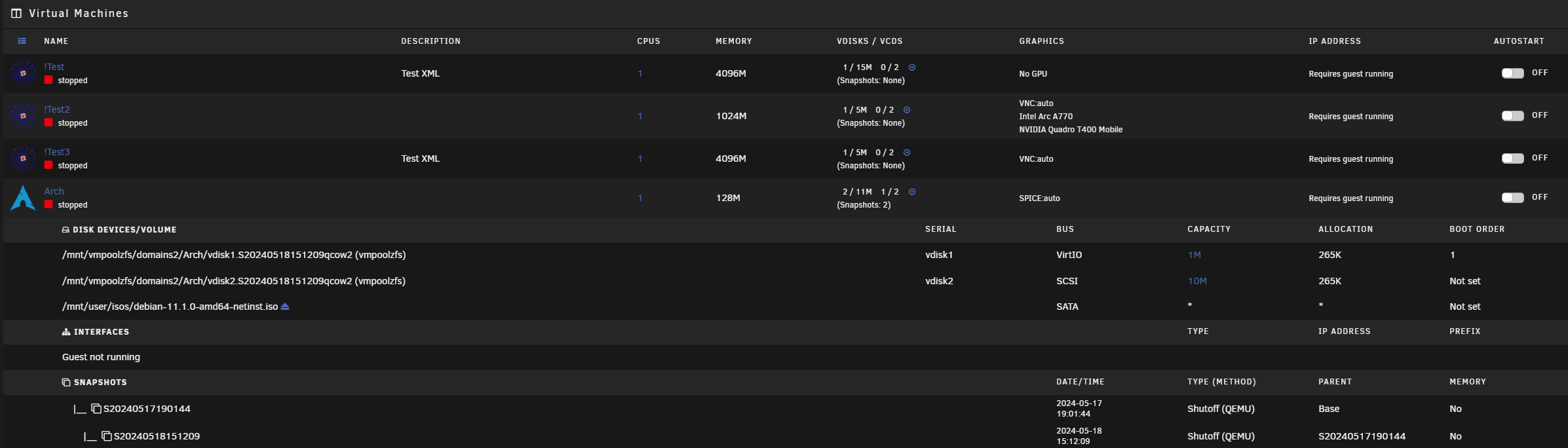

    So you are looking for an option like this.





    <?xml version='1.0' encoding='UTF-8'?>
<domain type='kvm'>
  <name>!Test</name>
  <uuid>95141a59-95b2-b065-23a2-394ac9d395d7</uuid>
  <description>Test XML</description>
  <metadata>
    <vmtemplate xmlns="unraid" name="Windows 10" icon="scientific.png" os="scientific" storage="default" webui="http://[IP]"/>
  </metadata>
  <memory unit='KiB'>4194304</memory>
  <currentMemory unit='KiB'>4194304</currentMemory>
  <memoryBacking>
    <nosharepages/>
    <source type='memfd'/>
    <access mode='shared'/>
  </memoryBacking>
  <vcpu placement='static'>1</vcpu>
  <cputune>
    <vcpupin vcpu='0' cpuset='0'/>
  </cputune>
  <os>
    <type arch='x86_64' machine='pc-q35-8.1'>hvm</type>
    <loader readonly='yes' type='pflash'>/usr/share/qemu/ovmf-x64/OVMF_CODE-pure-efi.fd</loader>
    <nvram>/etc/libvirt/qemu/nvram/95141a59-95b2-b065-23a2-394ac9d395d7_VARS-pure-efi.fd</nvram>
    <boot dev='fd'/>
  </os>
  <features>
    <acpi/>
    <apic/>
  </features>
  <cpu mode='host-passthrough' check='none' migratable='on'>
    <topology sockets='1' dies='1' cores='1' threads='1'/>
    <cache mode='passthrough'/>
  </cpu>
  <clock offset='utc'>
    <timer name='hpet' present='no'/>
    <timer name='hypervclock' present='no'/>
    <timer name='pit' tickpolicy='delay'/>
    <timer name='rtc' tickpolicy='catchup'/>
  </clock>
  <on_poweroff>destroy</on_poweroff>
  <on_reboot>restart</on_reboot>
  <on_crash>restart</on_crash>
  <devices>
    <emulator>/usr/local/sbin/qemu</emulator>
    <disk type='file' device='disk'>
      <driver name='qemu' type='raw' cache='writeback'/>
      <source file='/mnt/user/domains2/!Test/vdisk1.img'/>
      <target dev='hdc' bus='virtio'/>
      <serial>vdisk1</serial>
      <address type='pci' domain='0x0000' bus='0x04' slot='0x00' function='0x0'/>
    </disk>
    <controller type='pci' index='0' model='pcie-root'/>
    <controller type='pci' index='1' model='pcie-root-port'>
      <model name='pcie-root-port'/>
      <target chassis='1' port='0x8'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x0' multifunction='on'/>
    </controller>
    <controller type='pci' index='2' model='pcie-root-port'>
      <model name='pcie-root-port'/>
      <target chassis='2' port='0x9'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x1'/>
    </controller>
    <controller type='pci' index='3' model='pcie-root-port'>
      <model name='pcie-root-port'/>
      <target chassis='3' port='0xa'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x2'/>
    </controller>
    <controller type='pci' index='4' model='pcie-root-port'>
      <model name='pcie-root-port'/>
      <target chassis='4' port='0x13'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x3'/>
    </controller>
    <controller type='pci' index='5' model='pcie-root-port'>
      <model name='pcie-root-port'/>
      <target chassis='5' port='0x14'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x4'/>
    </controller>
    <controller type='pci' index='6' model='pcie-root-port'>
      <model name='pcie-root-port'/>
      <target chassis='6' port='0x15'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x5'/>
    </controller>
    <controller type='pci' index='7' model='pcie-root-port'>
      <model name='pcie-root-port'/>
      <target chassis='7' port='0x16'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x6'/>
    </controller>
    <controller type='pci' index='8' model='pcie-to-pci-bridge'>
      <model name='pcie-pci-bridge'/>
      <address type='pci' domain='0x0000' bus='0x01' slot='0x00' function='0x0'/>
    </controller>
    <controller type='virtio-serial' index='0'>
      <address type='pci' domain='0x0000' bus='0x03' slot='0x00' function='0x0'/>
    </controller>
    <controller type='sata' index='0'>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x1f' function='0x2'/>
    </controller>
    <controller type='usb' index='0' model='ich9-ehci1'>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x7'/>
    </controller>
    <controller type='usb' index='0' model='ich9-uhci1'>
      <master startport='0'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x0' multifunction='on'/>
    </controller>
    <controller type='usb' index='0' model='ich9-uhci2'>
      <master startport='2'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x1'/>
    </controller>
    <controller type='usb' index='0' model='ich9-uhci3'>
      <master startport='4'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x2'/>
    </controller>
    <filesystem type='mount' accessmode='passthrough'>
      <driver type='virtiofs' queue='1024'/>
      <binary path='/usr/libexec/virtiofsd' xattr='on'>
        <cache mode='always'/>
        <sandbox mode='chroot'/>
      </binary>
      <source dir='/mnt/user/@Documents'/>
      <target dir='@Documents'/>
      <address type='pci' domain='0x0000' bus='0x02' slot='0x00' function='0x0'/>
    </filesystem>
    <interface type='bridge'>
      <mac address='52:54:00:62:d9:f3'/>
      <source bridge='br0'/>
      <model type='vmxnet3'/>
      <address type='pci' domain='0x0000' bus='0x08' slot='0x01' function='0x0'/>
    </interface>
    <serial type='pty'>
      <target type='isa-serial' port='0'>
        <model name='isa-serial'/>
      </target>
    </serial>
    <console type='pty'>
      <target type='serial' port='0'/>
    </console>
    <channel type='unix'>
      <target type='virtio' name='org.qemu.guest_agent.0'/>
      <address type='virtio-serial' controller='0' bus='0' port='1'/>
    </channel>
    <input type='evdev'>
      <source dev='/dev/input/by-id/usb-Intel_Corp_Intel_ARC_RGB_Controller-event-kbd' grab='all' grabToggle='ctrl-ctrl' repeat='on'/>
    </input>
    <input type='mouse' bus='ps2'/>
    <input type='keyboard' bus='ps2'/>
    <audio id='1' type='none'/>
    <hostdev mode='subsystem' type='usb' managed='no'>
      <source>
        <vendor id='0x2516'/>
        <product id='0x01b5'/>
      </source>
      <address type='usb' bus='0' port='1'/>
    </hostdev>
    <watchdog model='itco' action='reset'/>
    <memballoon model='virtio'>
      <address type='pci' domain='0x0000' bus='0x05' slot='0x00' function='0x0'/>
    </memballoon>
  </devices>
</domain>



  • Quote
    • Like 1
    • Author
    3 hours ago, SimonF said:

    Can you provide some info on your use case? are the appliances etc?



    These are data sensitive systems and I don't want VNC to be exposed on them. I access them using SSH + TOTP (MFA). I want to add a layer of security by not exposing VNC.





  • Quote
    • Author
    3 hours ago, SimonF said:

    So you are looking for an option like this.





    <?xml version='1.0' encoding='UTF-8'?>
<domain type='kvm'>
  <name>!Test</name>
  <uuid>95141a59-95b2-b065-23a2-394ac9d395d7</uuid>
  <description>Test XML</description>
  <metadata>
    <vmtemplate xmlns="unraid" name="Windows 10" icon="scientific.png" os="scientific" storage="default" webui="http://[IP]"/>
  </metadata>
  <memory unit='KiB'>4194304</memory>
  <currentMemory unit='KiB'>4194304</currentMemory>
  <memoryBacking>
    <nosharepages/>
    <source type='memfd'/>
    <access mode='shared'/>
  </memoryBacking>
  <vcpu placement='static'>1</vcpu>
  <cputune>
    <vcpupin vcpu='0' cpuset='0'/>
  </cputune>
  <os>
    <type arch='x86_64' machine='pc-q35-8.1'>hvm</type>
    <loader readonly='yes' type='pflash'>/usr/share/qemu/ovmf-x64/OVMF_CODE-pure-efi.fd</loader>
    <nvram>/etc/libvirt/qemu/nvram/95141a59-95b2-b065-23a2-394ac9d395d7_VARS-pure-efi.fd</nvram>
    <boot dev='fd'/>
  </os>
  <features>
    <acpi/>
    <apic/>
  </features>
  <cpu mode='host-passthrough' check='none' migratable='on'>
    <topology sockets='1' dies='1' cores='1' threads='1'/>
    <cache mode='passthrough'/>
  </cpu>
  <clock offset='utc'>
    <timer name='hpet' present='no'/>
    <timer name='hypervclock' present='no'/>
    <timer name='pit' tickpolicy='delay'/>
    <timer name='rtc' tickpolicy='catchup'/>
  </clock>
  <on_poweroff>destroy</on_poweroff>
  <on_reboot>restart</on_reboot>
  <on_crash>restart</on_crash>
  <devices>
    <emulator>/usr/local/sbin/qemu</emulator>
    <disk type='file' device='disk'>
      <driver name='qemu' type='raw' cache='writeback'/>
      <source file='/mnt/user/domains2/!Test/vdisk1.img'/>
      <target dev='hdc' bus='virtio'/>
      <serial>vdisk1</serial>
      <address type='pci' domain='0x0000' bus='0x04' slot='0x00' function='0x0'/>
    </disk>
    <controller type='pci' index='0' model='pcie-root'/>
    <controller type='pci' index='1' model='pcie-root-port'>
      <model name='pcie-root-port'/>
      <target chassis='1' port='0x8'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x0' multifunction='on'/>
    </controller>
    <controller type='pci' index='2' model='pcie-root-port'>
      <model name='pcie-root-port'/>
      <target chassis='2' port='0x9'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x1'/>
    </controller>
    <controller type='pci' index='3' model='pcie-root-port'>
      <model name='pcie-root-port'/>
      <target chassis='3' port='0xa'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x2'/>
    </controller>
    <controller type='pci' index='4' model='pcie-root-port'>
      <model name='pcie-root-port'/>
      <target chassis='4' port='0x13'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x3'/>
    </controller>
    <controller type='pci' index='5' model='pcie-root-port'>
      <model name='pcie-root-port'/>
      <target chassis='5' port='0x14'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x4'/>
    </controller>
    <controller type='pci' index='6' model='pcie-root-port'>
      <model name='pcie-root-port'/>
      <target chassis='6' port='0x15'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x5'/>
    </controller>
    <controller type='pci' index='7' model='pcie-root-port'>
      <model name='pcie-root-port'/>
      <target chassis='7' port='0x16'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x6'/>
    </controller>
    <controller type='pci' index='8' model='pcie-to-pci-bridge'>
      <model name='pcie-pci-bridge'/>
      <address type='pci' domain='0x0000' bus='0x01' slot='0x00' function='0x0'/>
    </controller>
    <controller type='virtio-serial' index='0'>
      <address type='pci' domain='0x0000' bus='0x03' slot='0x00' function='0x0'/>
    </controller>
    <controller type='sata' index='0'>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x1f' function='0x2'/>
    </controller>
    <controller type='usb' index='0' model='ich9-ehci1'>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x7'/>
    </controller>
    <controller type='usb' index='0' model='ich9-uhci1'>
      <master startport='0'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x0' multifunction='on'/>
    </controller>
    <controller type='usb' index='0' model='ich9-uhci2'>
      <master startport='2'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x1'/>
    </controller>
    <controller type='usb' index='0' model='ich9-uhci3'>
      <master startport='4'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x2'/>
    </controller>
    <filesystem type='mount' accessmode='passthrough'>
      <driver type='virtiofs' queue='1024'/>
      <binary path='/usr/libexec/virtiofsd' xattr='on'>
        <cache mode='always'/>
        <sandbox mode='chroot'/>
      </binary>
      <source dir='/mnt/user/@Documents'/>
      <target dir='@Documents'/>
      <address type='pci' domain='0x0000' bus='0x02' slot='0x00' function='0x0'/>
    </filesystem>
    <interface type='bridge'>
      <mac address='52:54:00:62:d9:f3'/>
      <source bridge='br0'/>
      <model type='vmxnet3'/>
      <address type='pci' domain='0x0000' bus='0x08' slot='0x01' function='0x0'/>
    </interface>
    <serial type='pty'>
      <target type='isa-serial' port='0'>
        <model name='isa-serial'/>
      </target>
    </serial>
    <console type='pty'>
      <target type='serial' port='0'/>
    </console>
    <channel type='unix'>
      <target type='virtio' name='org.qemu.guest_agent.0'/>
      <address type='virtio-serial' controller='0' bus='0' port='1'/>
    </channel>
    <input type='evdev'>
      <source dev='/dev/input/by-id/usb-Intel_Corp_Intel_ARC_RGB_Controller-event-kbd' grab='all' grabToggle='ctrl-ctrl' repeat='on'/>
    </input>
    <input type='mouse' bus='ps2'/>
    <input type='keyboard' bus='ps2'/>
    <audio id='1' type='none'/>
    <hostdev mode='subsystem' type='usb' managed='no'>
      <source>
        <vendor id='0x2516'/>
        <product id='0x01b5'/>
      </source>
      <address type='usb' bus='0' port='1'/>
    </hostdev>
    <watchdog model='itco' action='reset'/>
    <memballoon model='virtio'>
      <address type='pci' domain='0x0000' bus='0x05' slot='0x00' function='0x0'/>
    </memballoon>
  </devices>
</domain>




    Spot on!



  • Quote
    • Thanks 1
    • Author

    I marked this thread as Answered. How do I know if this patch will be included in the next release?

  • Quote
    • Author
    19 hours ago, SimonF said:

    PR has been merged and will be in next release.



    LEGENDS!

  • Quote
    • 3 weeks later...

    Join the conversation

    You can post now and register later. If you have an account, sign in now to post with your account.
    Note: Your post will require moderator approval before it will be visible.

    Guest
    Reply to this topic...
    Go to topic listing

    Account

    Navigation

    Search

    Search

    Configure browser push notifications
    Chrome (Android)
    1. Tap the lock icon next to the address bar.
    2. Tap Permissions → Notifications.
    3. Adjust your preference.
    Chrome (Desktop)
    1. Click the padlock icon in the address bar.
    2. Select Site settings.
    3. Find Notifications and adjust your preference.
