July 1, 20242 yr I had a BTRFS cache pool with a 12TB disk with data. I installed a new 18TB disk and the goal is to replace the 12TB with new 18TB disk in the cache pool. My first plan was to add the new 18TB in the cache alongside the existing 12TB, move all data from 12TB to 18TB, and then remove 12TB from the cache. So I went ahead and did this: Changed slots from 1 to 2. Added the 18TB in the second slot in the pool. Started the array. The BTRFS rebalance started. While it was taking time, I searched online and found that to swap a BTRFS disk in cache, all I had to do is just change the 12TB to 18TB and the data will be moved to the new disk (this is probably wrong information, I still don't know). So I did the following: Canceled the on-going balance operation Stopped the array. Removed the 12TB from the first slot (the second slot is still the 18TB disk) Tried to start the array, but it said missing devices. Then I removed the second slot (18TB) and changed the number of slots to 1. But after that, whenever I add any of these 1 or 2 devices in any order, it's just not recognizing the full BTRFS partition. In console, `btrfs check /dev/sdf1` gives: Opening filesystem to check... warning, device 1 is missing warning, device 1 is missing warning, device 1 is missing bad tree block 27803648, bytenr mismatch, want=27803648, have=0 Couldn't read chunk tree ERROR: cannot open file system How do I recover from this? insane-homelab-diagnostics-20240701-0831.zip Edited July 1, 20242 yr by rahatzaman Properly formatted the code
July 1, 20242 yr Community Expert 45 minutes ago, rahatzaman said: this is probably wrong information, I still don't know Most likely, do you have a link for that? Post the output of btrfs fi show
July 1, 20242 yr Author 44 minutes ago, JorgeB said: btrfs fi show warning, device 1 is missing warning, device 1 is missing warning, device 1 is missing Couldn't read chunk tree Label: none uuid: ef9c4ff3-1b11-42c0-9ebf-2b21aa4eab75 <-- This is the pool I want to restore Total devices 2 FS bytes used 9.81TiB devid 2 size 16.37TiB used 31.03GiB path /dev/sdf1 *** Some devices missing Label: none uuid: 8a2ed3b1-8c86-4d72-952e-62b4904eaa5a Total devices 1 FS bytes used 231.35GiB devid 1 size 476.94GiB used 283.02GiB path /dev/nvme0n1p1 Edited July 1, 20242 yr by rahatzaman pointed the pool in question
July 1, 20242 yr Community Expert 1 hour ago, rahatzaman said: found that to swap a BTRFS disk in cache, all I had to do is just change the 12TB to 18TB and the data will be moved to the new disk (this is probably wrong information, I still don't know). How could the data be transferred to the new drive if the only one that has it is removed? Probably misunderstood something that was relevant to a setup that already had 2 drives and one was being upgraded.
July 1, 20242 yr Community Expert 21 minutes ago, rahatzaman said: <-- This is the pool I want to restore For the missing device type sfdisk /dev/sdX then type 64 and hit return, don't do anything else, post the results of that. Replace X with correct letter.
July 1, 20242 yr Author 20 minutes ago, JorgeB said: sfdisk /dev/sdX Running `sfdisk /dev/sdf`: Welcome to sfdisk (util-linux 2.38.1). Changes will remain in memory only, until you decide to write them. Be careful before using the write command. Checking that no-one is using this disk right now ... OK Disk /dev/sdf: 16.37 TiB, 18000207937536 bytes, 35156656128 sectors Disk model: ST18000NT001-3LU Units: sectors of 1 * 512 = 512 bytes Sector size (logical/physical): 512 bytes / 4096 bytes I/O size (minimum/optimal): 4096 bytes / 4096 bytes Disklabel type: gpt Disk identifier: 0BE62498-4ACD-4BDC-8C7D-D5C8CA5E109F Old situation: Device Start End Sectors Size Type /dev/sdf1 64 35156656094 35156656031 16.4T Linux filesystem Type 'help' to get more information. >>> 64 Created a new GPT disklabel (GUID: DF1C1DC0-E056-B545-91CA-A2A043C34DA3). Sector 64 already used. Failed to add #1 partition: Numerical result out of range /dev/sdf1:
July 1, 20242 yr Community Expert 50 minutes ago, rahatzaman said: Label: none uuid: ef9c4ff3-1b11-42c0-9ebf-2b21aa4eab75 <-- This is the pool I want to restore Total devices 2 FS bytes used 9.81TiB devid 2 size 16.37TiB used 31.03GiB path /dev/sdf1 *** Some devices missing Isn't sdf the disk that is still there? You need to run it on the other pool disk, the one that is currently missing from that output.

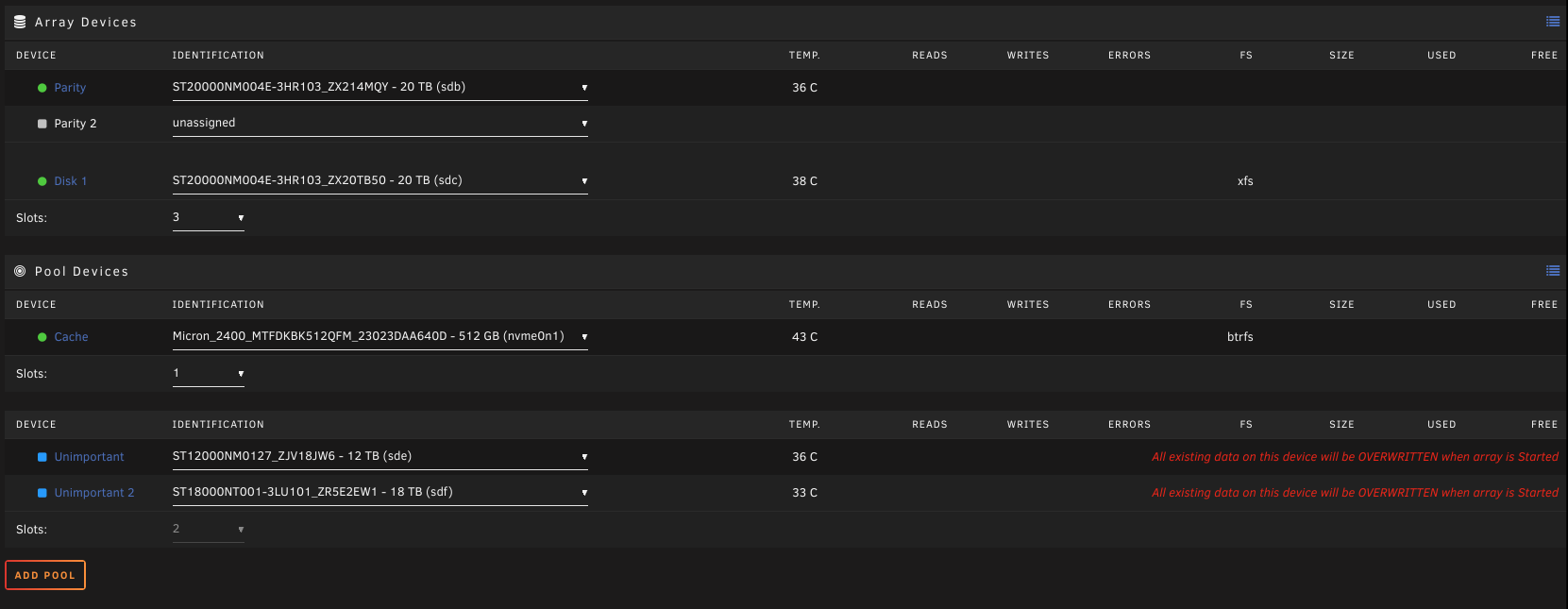

July 1, 20242 yr Author Sorry, but I am not getting on which pool I should run this on. The image above is currently what I have with all the disks. "Unimportant" is the pool in question (the data is important though, so ignore the name). The old disk is the 12TB one. So I should run the sfdisk command on the old disk (sde). Output of `sfdisk /dev/sde`: Welcome to sfdisk (util-linux 2.38.1). Changes will remain in memory only, until you decide to write them. Be careful before using the write command. Checking that no-one is using this disk right now ... OK Disk /dev/sde: 10.91 TiB, 12000138625024 bytes, 23437770752 sectors Disk model: ST12000NM0127 Units: sectors of 1 * 512 = 512 bytes Sector size (logical/physical): 512 bytes / 4096 bytes I/O size (minimum/optimal): 4096 bytes / 4096 bytes sfdisk is going to create a new 'dos' disk label. Use 'label: <name>' before you define a first partition to override the default. Type 'help' to get more information. >>>
July 1, 20242 yr Community Expert 22 minutes ago, Rahat Zaman said: So I should run the sfdisk command on the old disk (sde). Yes, run the rest. 58 minutes ago, JorgeB said: then type 64 and hit return, don't do anything else, post the results of that.
July 1, 20242 yr Author Output of `sfdisk /dev/sde` followed by `64`: Welcome to sfdisk (util-linux 2.38.1). Changes will remain in memory only, until you decide to write them. Be careful before using the write command. Checking that no-one is using this disk right now ... OK Disk /dev/sde: 10.91 TiB, 12000138625024 bytes, 23437770752 sectors Disk model: ST12000NM0127 Units: sectors of 1 * 512 = 512 bytes Sector size (logical/physical): 512 bytes / 4096 bytes I/O size (minimum/optimal): 4096 bytes / 4096 bytes sfdisk is going to create a new 'dos' disk label. Use 'label: <name>' before you define a first partition to override the default. Type 'help' to get more information. >>> 64 The size of this disk is 10.9 TiB (12000138625024 bytes). DOS partition table format cannot be used on drives for volumes larger than 2199023255040 bytes for 512-byte sectors. Use GUID partition table format (GPT). Created a new DOS disklabel with disk identifier 0xb574ec0d. Created a new partition 1 of type 'Linux' and of size 2 TiB. Partition #1 contains a btrfs signature. Do you want to remove the signature? [Y]es/[N]o:
July 1, 20242 yr Community Expert Forgot to change to GPT, Hit CTRL + C to abort, then: echo "label: gpt" | sfdisk /dev/sde then 64 and enter
July 1, 20242 yr Author 1 minute ago, JorgeB said: echo "label: gpt" | sfdisk /dev/sde root@insane-Homelab:~# echo "label: gpt" | sfdisk /dev/sde Checking that no-one is using this disk right now ... OK Disk /dev/sde: 10.91 TiB, 12000138625024 bytes, 23437770752 sectors Disk model: ST12000NM0127 Units: sectors of 1 * 512 = 512 bytes Sector size (logical/physical): 512 bytes / 4096 bytes I/O size (minimum/optimal): 4096 bytes / 4096 bytes >>> Script header accepted. >>> Done. Created a new GPT disklabel (GUID: 4C9C9298-B23E-D844-8355-66D6119E3FB2). New situation: Disklabel type: gpt Disk identifier: 4C9C9298-B23E-D844-8355-66D6119E3FB2 The partition table has been altered. Calling ioctl() to re-read partition table. Syncing disks. Then again I typed `sfdisk /dev/sde` followed by `64`: root@insane-Homelab:~# sfdisk /dev/sde Welcome to sfdisk (util-linux 2.38.1). Changes will remain in memory only, until you decide to write them. Be careful before using the write command. Checking that no-one is using this disk right now ... OK Disk /dev/sde: 10.91 TiB, 12000138625024 bytes, 23437770752 sectors Disk model: ST12000NM0127 Units: sectors of 1 * 512 = 512 bytes Sector size (logical/physical): 512 bytes / 4096 bytes I/O size (minimum/optimal): 4096 bytes / 4096 bytes Disklabel type: gpt Disk identifier: 4C9C9298-B23E-D844-8355-66D6119E3FB2 Old situation: Type 'help' to get more information. >>> 64 Created a new GPT disklabel (GUID: 59B4ACD5-2321-AF4B-8276-7DFB0F360490). Sector 64 already used. Failed to add #1 partition: Numerical result out of range /dev/sde1:
July 1, 20242 yr Author Just now, JorgeB said: fdisk -l /dev/sde root@insane-Homelab:~# fdisk -l /dev/sde Disk /dev/sde: 10.91 TiB, 12000138625024 bytes, 23437770752 sectors Disk model: ST12000NM0127 Units: sectors of 1 * 512 = 512 bytes Sector size (logical/physical): 512 bytes / 4096 bytes I/O size (minimum/optimal): 4096 bytes / 4096 bytes Disklabel type: gpt Disk identifier: 4C9C9298-B23E-D844-8355-66D6119E3FB2
July 1, 20242 yr Community Expert hmm not sure why it's reporting sector 64 in use and there's no partition, try this command instead: sgdisk -o -a 8 -n 1:32K:0 /dev/sde Then output of btrfs fi show
July 1, 20242 yr Author Solution Just now, JorgeB said: sgdisk -o -a 8 -n 1:32K:0 /dev/sde Then output of btrfs fi show Label: none uuid: ef9c4ff3-1b11-42c0-9ebf-2b21aa4eab75 Total devices 2 FS bytes used 9.81TiB devid 1 size 10.91TiB used 10.59TiB path /dev/sde1 devid 2 size 16.37TiB used 31.03GiB path /dev/sdf1 Label: none uuid: 8a2ed3b1-8c86-4d72-952e-62b4904eaa5a Total devices 1 FS bytes used 231.35GiB devid 1 size 476.94GiB used 283.02GiB path /dev/nvme0n1p1
July 1, 20242 yr Community Expert Now unassign both pool devices, start array, stop array, re-assign both pool devices, this warning cannot be there: Start array and the pool should import.
July 1, 20242 yr Author 4 minutes ago, JorgeB said: Start array and the pool should import Awesome! Now, assigning the 2 disks in the right places, there is no red warning. Getting back to the initial goal, How do you suggest I should approach removing the 12TB disk from the pool?
July 1, 20242 yr Author 1 minute ago, JorgeB said: Post current diags to see pool status. insane-homelab-diagnostics-20240701-0831.zip
July 1, 20242 yr Community Expert You would need to do a balance to raid1 first, this will take a few hours, when the balance is done post new diags to confirm all is OK before removing the other device.
July 4, 20242 yr Author Okay, I ran the balance. Here are the diags. Also, I have noticed that the share in that pool is Read-only. insane-homelab-diagnostics-20240704-0858.zip Edited July 4, 20242 yr by Rahat Zaman
July 4, 20242 yr Community Expert Balance failed because there wasn't enough space, were you writing new data to the pool? In any case you will need to free up some space and then try again, free up at least 100GB, you will need to re-start the array or reboot to get the pool read/write, and probably will need to manually cancel the balance, so post new diags after that.
July 18, 20241 yr Author Okay, so I ended up moving all the data from that pool to the array and deleting the cache pool. But the problem now is most of my media files that were in the pool (moved to array) are corrupted. In that pool, I had about 11,175 mkv files, among which only 80 mkv files are healthy (in tdarr). I tried to open them and got errors in mpv. $ mpv Airlift\ \(2016\)\ Bluray-1080p.mkv user_input: user_input: stack traceback: user_input: [C]: at 0x5cabcfb522c0 user_input: [C]: at 0x5cabcfb529a0 user_input: Lua error: /home/insane/.config/mpv/scripts/user-input.lua:541: attempt to call field 'shared_script_property_observe' (a nil value) mpv_thumbnail_script_client_osc: mpv_thumbnail_script_client_osc: stack traceback: mpv_thumbnail_script_client_osc: .../.config/mpv/scripts/mpv_thumbnail_script_client_osc.lua:4232: in function 'visibility_mode' mpv_thumbnail_script_client_osc: .../.config/mpv/scripts/mpv_thumbnail_script_client_osc.lua:4236: in main chunk mpv_thumbnail_script_client_osc: [C]: at 0x5cabcfb522c0 mpv_thumbnail_script_client_osc: [C]: at 0x5cabcfb529a0 mpv_thumbnail_script_client_osc: Lua error: .../.config/mpv/scripts/mpv_thumbnail_script_client_osc.lua:3593: attempt to call field 'shared_script_property_set' (a nil value) mpv_thumbnail_script_server_2: Thumbnail worker registering timed out mpv_thumbnail_script_server_1: Thumbnail worker registering timed out cplayer: Failed to recognize file format. cplayer: Exiting... (Errors when loading file) So is there any way to recover these files? I did not keep any backups. My latest diags are attached. insane-homelab-diagnostics-20240718-1244.zip
