Is my data gone, and how can I get parity working?

[ethxn]

Hello!

I have been struggling with this for a while now, and am finally doing the last resort... actually asking for help.

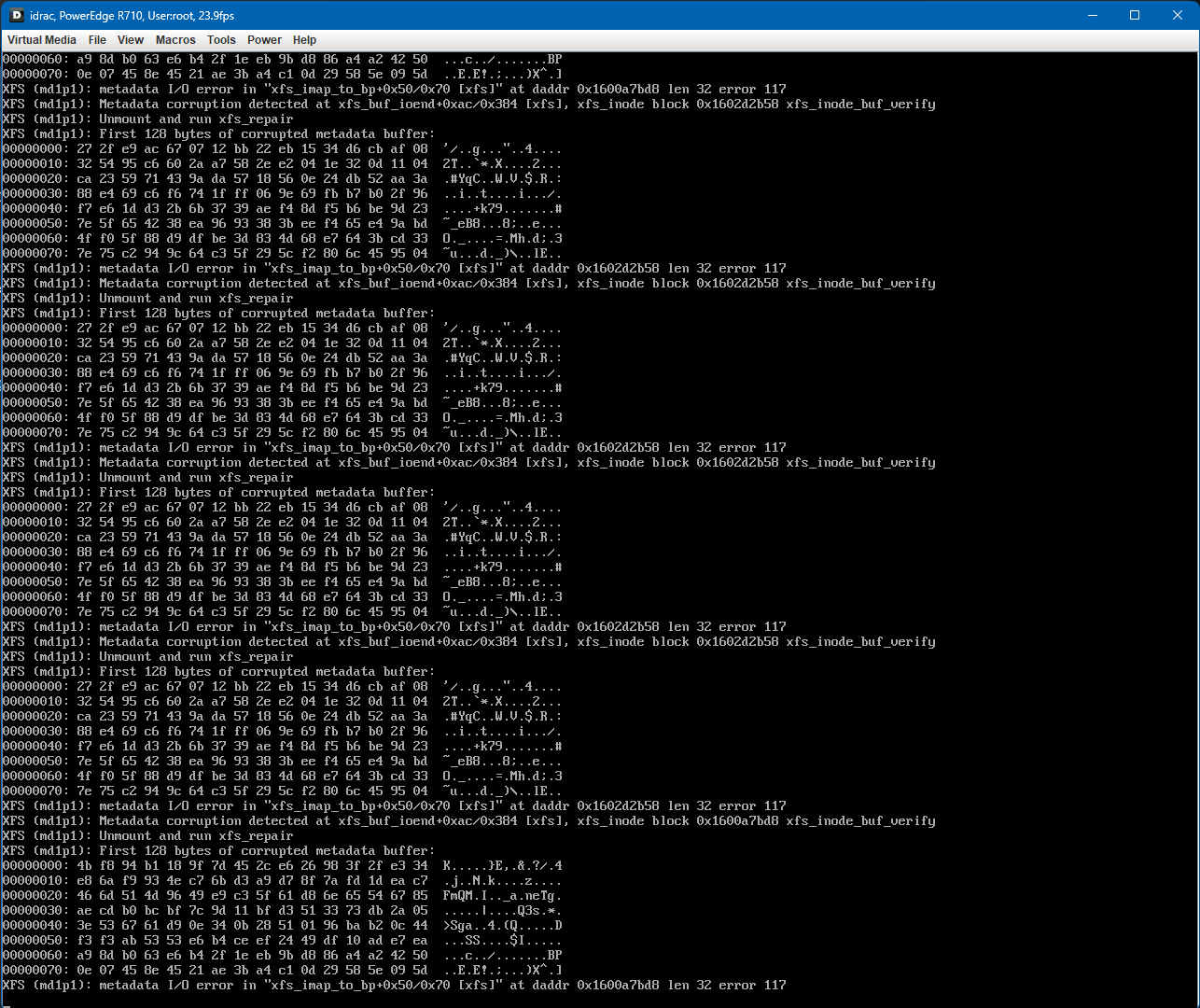

Whenever I try to access the data in a folder I have, I get this in my server's console. The array has been unprotected because I haven't for the life of me been able to get parity working, and every time I try to do a SMART check (I'm probably doing it wrong, would love some direction) it doesn't work.

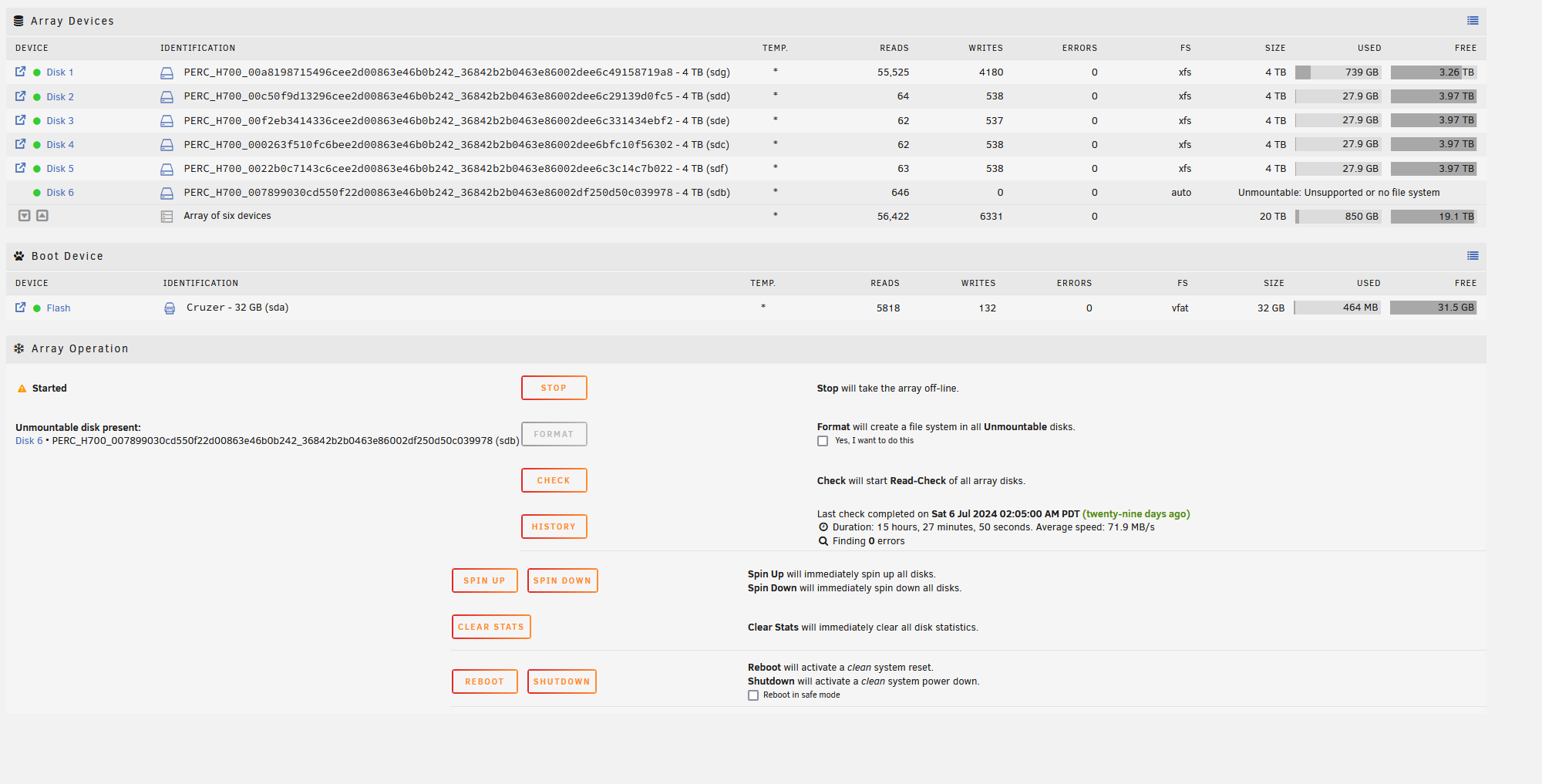

Here is what I'm looking at in my array:




The amount of data that's "used" matches up with what I'm missing. To be honest, I'm very new to NASes and RAID in general. Servers I have a bit of knowhow on, though. Would love some input on this...



If you need me to upload any logs or anything let me know! I want my data back and this thing to be protected

[ethxn]

I should note that before taking this screenshot I moved the parity disk (that was disabled and couldn't be enabled) into the disks, that's why it says unmountable.

[foo_fighter]

Do you have your HBA in IT mode?

[ethxn]

Just now, foo_fighter said:

Do you have your HBA in IT mode?

Not to my knowledge. Whatever firmware came with it is what's installed on it, so I'll see if I can flash the IT mode one onto it!

[ethxn]

I am using a PERC H700, which it doesn't look like can be flashed into IT mode. Only looks like it likes hardware raid configs...

[trurl]

RAID controllers not recommended for many reasons

[ethxn]

6 minutes ago, trurl said:

RAID controllers not recommended for many reasons

I'm starting to see that I'll see if I can get my data off the drives, and if not I'll come back. If I can get my data off I'll close the thread.

[JorgeB]

It may just be a filesystem issue, though like mentioned RAID controllers are not recommend, but check filesystem on disk1, run it without -n

[ethxn]

11 minutes ago, JorgeB said:

It may just be a filesystem issue, though like mentioned RAID controllers are not recommend, but check filesystem on disk1, run it without -n

THANK YOU!! I thought it was all gone because I put all my eggs in one basket... I won't do that again. As for the RAID controller, I'll get a software specific one that can go into IT mode, because I still want to have the server in a rack configuration. Thank you, again.
