OpenVPN Client:32 and 64-bit: Your Private and Secure Path to the Internet

peter_sm
in 6.0 (Unverified)

Featured Replies

my ovpn file as edited by the plugin:

client
ping 5
dev tun
resolv-retry infinite
nobind
;user nobody
;group nobody
persist-key
persist-remote-ip
persist-tun
;http-proxy-retry # retry on connection failures
;http-proxy [proxy server] [proxy port #]
;mute-replay-warnings
ns-cert-type server
verb 3
;mute 20
route-metric 1

proto tcp
ping-exit 90
#show-net-up
#dhcp-renew
#dhcp-release
#route-delay 0 120
#hand-window 180

<ca>
-----BEGIN CERTIFICATE-----
**<snip by me>**
-----END CERTIFICATE-----
</ca>
<cert>
-----BEGIN CERTIFICATE-----
**<snip by me>**
-----END CERTIFICATE-----
</cert>
<key>
-----BEGIN RSA PRIVATE KEY-----
**<snip by me>**
-----END RSA PRIVATE KEY-----
</key>
remote 184.154.4.2 443
auth-user-pass /boot/config/plugins/openvpn/password.txt

status /tmp/openvpn/openvpn-status.log



One other item to also note is the plugin writes the 'auth-user-pass' inline with the "remote 184.154.4.2 443" so it looks like this before I edit it

remote 184.154.4.2 443auth-user-pass /boot/config/plugins/openvpn/password.txt



Using HMA VPN service.  Works great on my ubuntu system using gopenvpn.  You can grab all their ovpn files for TCP and UDP at http://hidemyass.com/vpn-config/vpn-config.zip



One small request would be to have the plugin check/create the '/boot/openvpn' directory at installation and perhaps have some text on the settings page to the effect install the ovpn file there.  The plugin was silk until I had trouble figuring out where to place the ovpn file.  Ended up going through the plugin code to see where it was looking for the file to figure it out.  Also may want to put a check in to detect two interfaces being used, in my case it was 'tun0' and 'tun1' and the plugin was happy yet nothing was going in the tunnel.  Other than those few issues, nice work on the plugin.



Edit: noticed you updated the plugin to 2.7.11, the above was using 2.7.10

  • Replies 546
  • Views 164.7k
  • Created
  • Last Reply
  • Author

my ovpn file as edited by the plugin:





One other item to also note is the plugin writes the 'auth-user-pass' inline with the "remote 184.154.4.2 443" so it looks like this before I edit it

remote 184.154.4.2 443auth-user-pass /boot/config/plugins/openvpn/password.txt





One small request would be to have the plugin check/create the '/boot/openvpn' directory at installation and perhaps have some text on the settings page to the effect install the ovpn file there.



Edit: noticed you updated the plugin to 2.7.11, the above was using 2.7.10



On first page is stated

Unpack your provider certificate/files to /boot/openvpn (create that folder if it's not exist) shall be the ovpn file and all other files (crt, key ......)

But I can add to plugin so this folder creates if not exist, but you should have done that before you install the plugin  ;)



One other item to also note is the plugin writes the 'auth-user-pass' inline with the "remote 184.154.4.2 443" so it looks like this before I edit it

remote 184.154.4.2 443auth-user-pass /boot/config/plugins/openvpn/password.txt



Can you add your original ovpn file to /boot/openvpn, the plugin shall have been fixed to avoid this, please check, if not I need to check this again  ;)

A bit long, but trying to get you the most info...



Upgraded to 2.7.11.  Clicked start and said it was connected, yet the plugin did not update status.  Attached is screenshot - OpenVpnPlugin2711.jpg.  Same behavior it had with 2.7.10 in my case.  If I click start again I go into an incredibly long wait - upwards of 5-10 minutes.  I had to hard reset last night because even a telnet powerdown would not free it up after 20+ minutes.  Below is a snippet of the syslog from 2.7.11.  Last night the line 'Aug 17 11:22:36 Tower avahi-daemon[23050]: Withdrawing workstation service for tun5.' would cycle between tun0 and tun1 for minutes on end.



Pic attachments:

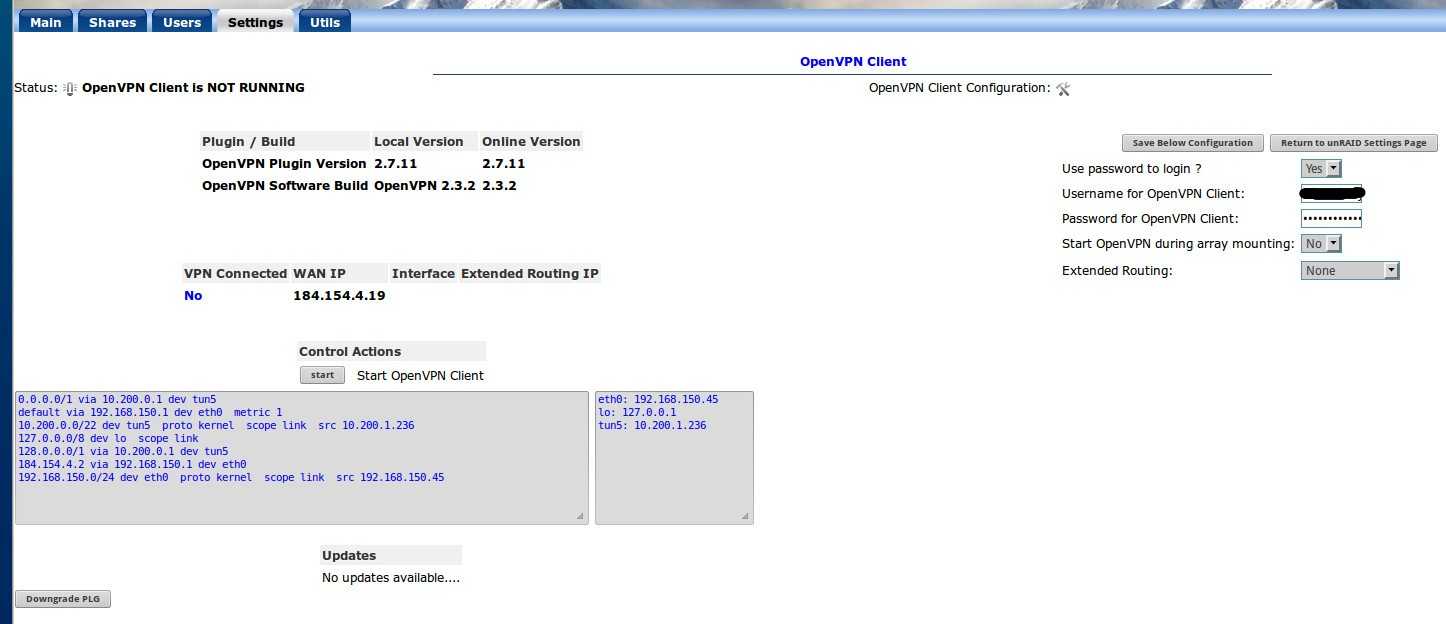

OpenVPNPlugin2711.jpg: First 'start' click - assigned tun5, buy did not connect

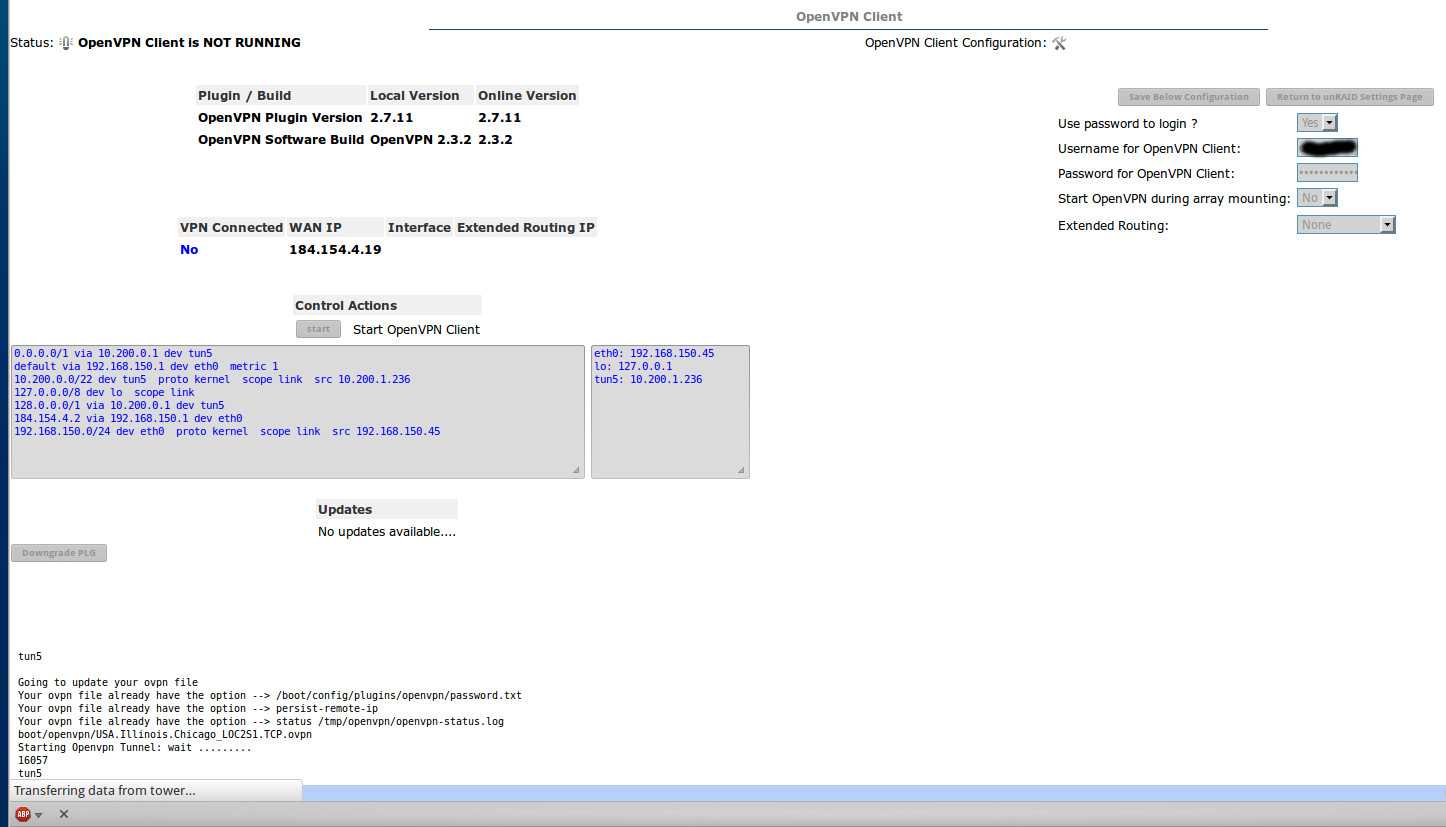

OpenVpnPlugin2711-1.jpg: Second 'start' click - no other changes

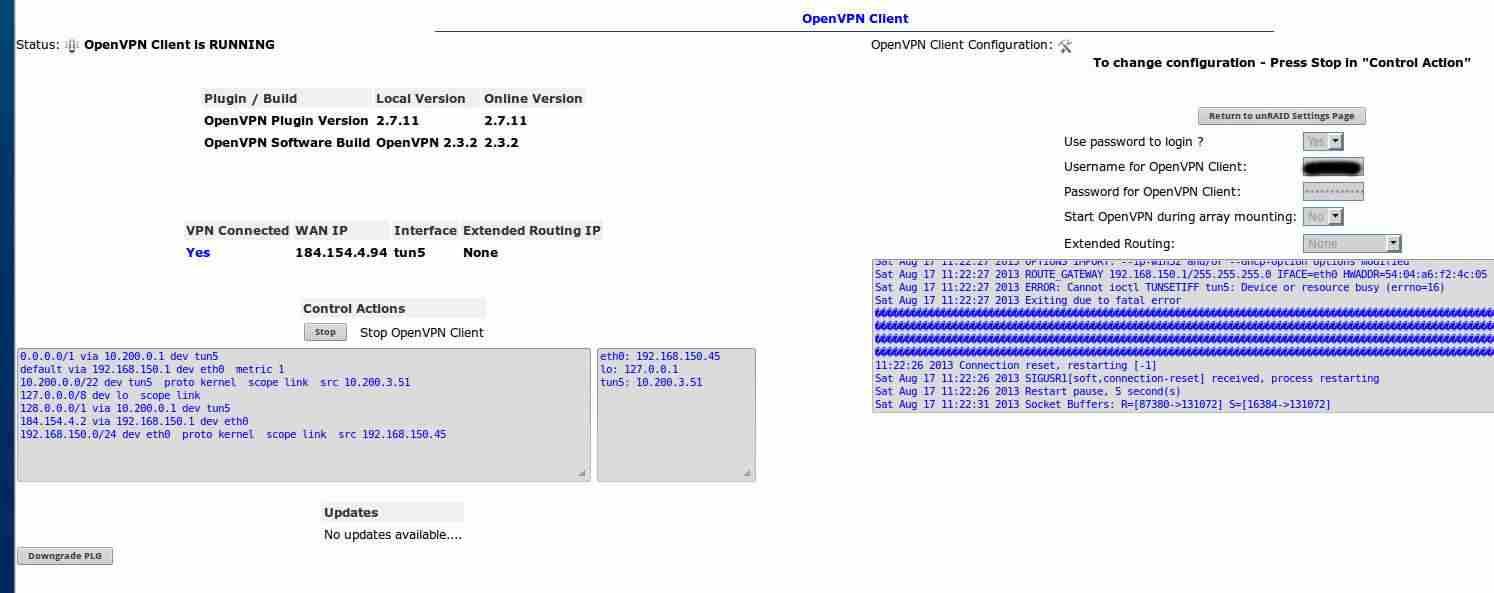

OpenVPNPlugin2711-2.jpg: Results after waiting a few minutes



Aug 17 11:12:38 Tower rc.openvpnclient[7453]: Plugin configuration written
Aug 17 11:12:57 Tower sudo:     root : TTY=unknown ; PWD=/boot/openvpn ; USER=root ; COMMAND=/usr/sbin/openvpn --writepid /var/run/openvpn/openvpn.pid --script-security 3 --mute-replay-warnings --client --config /boot/openvpn/USA.Illinois.Chicago_LOC2S1.TCP.ovpn (Minor Issues)
Aug 17 11:13:02 Tower kernel: tun: Universal TUN/TAP device driver, 1.6 (System)
Aug 17 11:13:02 Tower kernel: tun: (C) 1999-2004 Max Krasnyansky <[email protected]>
Aug 17 11:15:01 Tower ntpd[1088]: Listen normally on 3 tun5 10.200.1.236 UDP 123
Aug 17 11:15:01 Tower ntpd[1088]: 66.228.59.187 interface 192.168.150.45 -> 10.200.1.236
Aug 17 11:15:01 Tower ntpd[1088]: 192.155.88.169 interface 192.168.150.45 -> 10.200.1.236
Aug 17 11:15:01 Tower ntpd[1088]: 69.164.217.193 interface 192.168.150.45 -> 10.200.1.236
Aug 17 11:15:01 Tower ntpd[1088]: new interface(s) found: waking up resolver
Aug 17 11:16:12 Tower mountd[23042]: authenticated mount request from 192.168.150.36:1017 for /mnt/user/Music (/mnt/user/Music)
Aug 17 11:16:12 Tower mountd[23042]: authenticated mount request from 192.168.150.36:695 for /mnt/user/Movies (/mnt/user/Movies)
Aug 17 11:22:22 Tower sudo:     root : TTY=unknown ; PWD=/boot/openvpn ; USER=root ; COMMAND=/usr/sbin/openvpn --writepid /var/run/openvpn/openvpn.pid --script-security 3 --mute-replay-warnings --client --config /boot/openvpn/USA.Illinois.Chicago_LOC2S1.TCP.ovpn (Minor Issues)
Aug 17 11:22:36 Tower avahi-daemon[23050]: Withdrawing workstation service for tun5.
Aug 17 11:25:01 Tower ntpd[1088]: Listen normally on 4 tun5 10.200.3.51 UDP 123
Aug 17 11:25:01 Tower ntpd[1088]: Deleting interface #3 tun5, 10.200.1.236#123, interface stats: received=23, sent=23, dropped=0, active_time=600 secs
Aug 17 11:25:01 Tower ntpd[1088]: 69.164.217.193 interface 10.200.1.236 -> (null)
Aug 17 11:25:01 Tower ntpd[1088]: 192.155.88.169 interface 10.200.1.236 -> (null)
Aug 17 11:25:01 Tower ntpd[1088]: 66.228.59.187 interface 10.200.1.236 -> (null)
Aug 17 11:25:01 Tower ntpd[1088]: new interface(s) found: waking up resolver



This is the openvpn log after it connected:

Sat Aug 17 11:22:22 2013 OpenVPN 2.3.2 i486-slackware-linux-gnu [sSL (OpenSSL)] [LZO] [EPOLL] [eurephia] [MH] [iPv6] built on Jun 22 2013
Sat Aug 17 11:22:22 2013 WARNING: file '/boot/config/plugins/openvpn/password.txt' is group or others accessible
Sat Aug 17 11:22:22 2013 Socket Buffers: R=[87380->131072] S=[16384->131072]
Sat Aug 17 11:22:22 2013 Attempting to establish TCP connection with [AF_INET]184.154.4.2:443 [nonblock]
Sat Aug 17 11:22:23 2013 TCP connection established with [AF_INET]184.154.4.2:443
Sat Aug 17 11:22:23 2013 TCPv4_CLIENT link local: [undef]
Sat Aug 17 11:22:23 2013 TCPv4_CLIENT link remote: [AF_INET]184.154.4.2:443
Sat Aug 17 11:22:23 2013 TLS: Initial packet from [AF_INET]184.154.4.2:443, sid=03221499 dc657805
Sat Aug 17 11:22:23 2013 WARNING: this configuration may cache passwords in memory -- use the auth-nocache option to prevent this
Sat Aug 17 11:22:23 2013 VERIFY OK: depth=1, C=UK, ST=NR, L=Attleborough, O=Hide My Ass! Pro, OU=VPN, CN=vpn.hidemyass.com, [email protected]
Sat Aug 17 11:22:23 2013 VERIFY OK: nsCertType=SERVER
Sat Aug 17 11:22:23 2013 VERIFY OK: depth=0, C=UK, ST=NR, L=Attleborough, O=Hide My Ass! Pro, OU=VPN, CN=server, [email protected]
Sat Aug 17 11:22:25 2013 Data Channel Encrypt: Cipher 'BF-CBC' initialized with 128 bit key
Sat Aug 17 11:22:25 2013 Data Channel Encrypt: Using 160 bit message hash 'SHA1' for HMAC authentication
Sat Aug 17 11:22:25 2013 Data Channel Decrypt: Cipher 'BF-CBC' initialized with 128 bit key
Sat Aug 17 11:22:25 2013 Data Channel Decrypt: Using 160 bit message hash 'SHA1' for HMAC authentication
Sat Aug 17 11:22:25 2013 Control Channel: TLSv1, cipher TLSv1/SSLv3 DHE-RSA-AES256-SHA, 1024 bit RSA
Sat Aug 17 11:22:25 2013 [server] Peer Connection Initiated with [AF_INET]184.154.4.2:443
Sat Aug 17 11:22:27 2013 SENT CONTROL [server]: 'PUSH_REQUEST' (status=1)
Sat Aug 17 11:22:27 2013 PUSH: Received control message: 'PUSH_REPLY,topology subnet,route-gateway 10.200.0.1,dhcp-option DNS 208.67.222.222,dhcp-option DNS 208.67.220.220,redirect-gateway def1,ifconfig 10.200.2.122 255.255.252.0'
Sat Aug 17 11:22:27 2013 OPTIONS IMPORT: --ifconfig/up options modified
Sat Aug 17 11:22:27 2013 OPTIONS IMPORT: route options modified
Sat Aug 17 11:22:27 2013 OPTIONS IMPORT: route-related options modified
Sat Aug 17 11:22:27 2013 OPTIONS IMPORT: --ip-win32 and/or --dhcp-option options modified
Sat Aug 17 11:22:27 2013 ROUTE_GATEWAY 192.168.150.1/255.255.255.0 IFACE=eth0 HWADDR=54:04:a6:f2:4c:05
Sat Aug 17 11:22:27 2013 ERROR: Cannot ioctl TUNSETIFF tun5: Device or resource busy (errno=16)
Sat Aug 17 11:22:27 2013 Exiting due to fatal error
??????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????Sat Aug 17 11:22:26 2013 Connection reset, restarting [-1]
Sat Aug 17 11:22:26 2013 SIGUSR1[soft,connection-reset] received, process restarting
Sat Aug 17 11:22:26 2013 Restart pause, 5 second(s)
Sat Aug 17 11:22:31 2013 Socket Buffers: R=[87380->131072] S=[16384->131072]
Sat Aug 17 11:22:31 2013 TCP/UDP: Preserving recently used remote address: [AF_INET]184.154.4.2:443
Sat Aug 17 11:22:31 2013 Attempting to establish TCP connection with [AF_INET]184.154.4.2:443 [nonblock]
Sat Aug 17 11:22:32 2013 TCP connection established with [AF_INET]184.154.4.2:443
Sat Aug 17 11:22:32 2013 TCPv4_CLIENT link local: [undef]
Sat Aug 17 11:22:32 2013 TCPv4_CLIENT link remote: [AF_INET]184.154.4.2:443
Sat Aug 17 11:22:32 2013 TLS: Initial packet from [AF_INET]184.154.4.2:443, sid=103c880c cd91ceed
Sat Aug 17 11:22:32 2013 VERIFY OK: depth=1, C=UK, ST=NR, L=Attleborough, O=Hide My Ass! Pro, OU=VPN, CN=vpn.hidemyass.com, [email protected]
Sat Aug 17 11:22:32 2013 VERIFY OK: nsCertType=SERVER
Sat Aug 17 11:22:32 2013 VERIFY OK: depth=0, C=UK, ST=NR, L=Attleborough, O=Hide My Ass! Pro, OU=VPN, CN=server, [email protected]
Sat Aug 17 11:22:34 2013 Data Channel Encrypt: Cipher 'BF-CBC' initialized with 128 bit key
Sat Aug 17 11:22:34 2013 Data Channel Encrypt: Using 160 bit message hash 'SHA1' for HMAC authentication
Sat Aug 17 11:22:34 2013 Data Channel Decrypt: Cipher 'BF-CBC' initialized with 128 bit key
Sat Aug 17 11:22:34 2013 Data Channel Decrypt: Using 160 bit message hash 'SHA1' for HMAC authentication
Sat Aug 17 11:22:34 2013 Control Channel: TLSv1, cipher TLSv1/SSLv3 DHE-RSA-AES256-SHA, 1024 bit RSA
Sat Aug 17 11:22:34 2013 [server] Peer Connection Initiated with [AF_INET]184.154.4.2:443
Sat Aug 17 11:22:36 2013 SENT CONTROL [server]: 'PUSH_REQUEST' (status=1)
Sat Aug 17 11:22:36 2013 PUSH: Received control message: 'PUSH_REPLY,topology subnet,route-gateway 10.200.0.1,dhcp-option DNS 208.67.222.222,dhcp-option DNS 208.67.220.220,redirect-gateway def1,ifconfig 10.200.3.51 255.255.252.0'
Sat Aug 17 11:22:36 2013 OPTIONS IMPORT: --ifconfig/up options modified
Sat Aug 17 11:22:36 2013 OPTIONS IMPORT: route options modified
Sat Aug 17 11:22:36 2013 OPTIONS IMPORT: route-related options modified
Sat Aug 17 11:22:36 2013 OPTIONS IMPORT: --ip-win32 and/or --dhcp-option options modified
Sat Aug 17 11:22:36 2013 Preserving previous TUN/TAP instance: tun5
Sat Aug 17 11:22:36 2013 NOTE: Pulled options changed on restart, will need to close and reopen TUN/TAP device.
Sat Aug 17 11:22:36 2013 /usr/sbin/ip route del 184.154.4.2/32
Sat Aug 17 11:22:36 2013 /usr/sbin/ip route del 0.0.0.0/1
Sat Aug 17 11:22:36 2013 /usr/sbin/ip route del 128.0.0.0/1
Sat Aug 17 11:22:36 2013 Closing TUN/TAP interface
Sat Aug 17 11:22:36 2013 /usr/sbin/ip addr del dev tun5 10.200.1.236/22
Sat Aug 17 11:22:37 2013 ROUTE_GATEWAY 192.168.150.1/255.255.255.0 IFACE=eth0 HWADDR=54:04:a6:f2:4c:05
Sat Aug 17 11:22:37 2013 TUN/TAP device tun5 opened
Sat Aug 17 11:22:37 2013 TUN/TAP TX queue length set to 100
Sat Aug 17 11:22:37 2013 do_ifconfig, tt->ipv6=0, tt->did_ifconfig_ipv6_setup=0
Sat Aug 17 11:22:37 2013 /usr/sbin/ip link set dev tun5 up mtu 1500
Sat Aug 17 11:22:37 2013 /usr/sbin/ip addr add dev tun5 10.200.3.51/22 broadcast 10.200.3.255
Sat Aug 17 11:22:37 2013 /usr/sbin/ip route add 184.154.4.2/32 via 192.168.150.1
Sat Aug 17 11:22:37 2013 /usr/sbin/ip route add 0.0.0.0/1 via 10.200.0.1
Sat Aug 17 11:22:37 2013 /usr/sbin/ip route add 128.0.0.0/1 via 10.200.0.1
Sat Aug 17 11:22:37 2013 Initialization Sequence Completed



I replaced the ovpn file with a clean copy as requested.  When I clicked start, the file was written to, was assigned an IP and said was connected, yet the plugin reported not connected and had the option to click start still available.  The below is the ovpn file unaltered by me other than removing the hashes for the keys/certs:

client
ping 5
resolv-retry infinite
nobind
;user nobody
;group nobody
persist-key
persist-remote-ip
persist-tun
;http-proxy-retry # retry on connection failures
;http-proxy [proxy server] [proxy port #]
;mute-replay-warnings
ns-cert-type server
verb 3
;mute 20
route-metric 1

proto tcp
dev tun5
ping-exit 90
#show-net-up
#dhcp-renew
#dhcp-release
#route-delay 0 120
#hand-window 180

<ca>
-----BEGIN CERTIFICATE-----
**<snip by me>**
-----END CERTIFICATE-----
</ca>
<cert>
-----BEGIN CERTIFICATE-----
**<snip by me>**
-----END CERTIFICATE-----
</cert>
<key>
-----BEGIN RSA PRIVATE KEY-----
**<snip by me>**
-----END RSA PRIVATE KEY-----
</key>
remote 184.154.4.2 443auth-user-pass /boot/config/plugins/openvpn/password.txt

status /tmp/openvpn/openvpn-status.log



I could not connect until I broke up the line:

remote 184.154.4.2 443auth-user-pass /boot/config/plugins/openvpn/password.txt

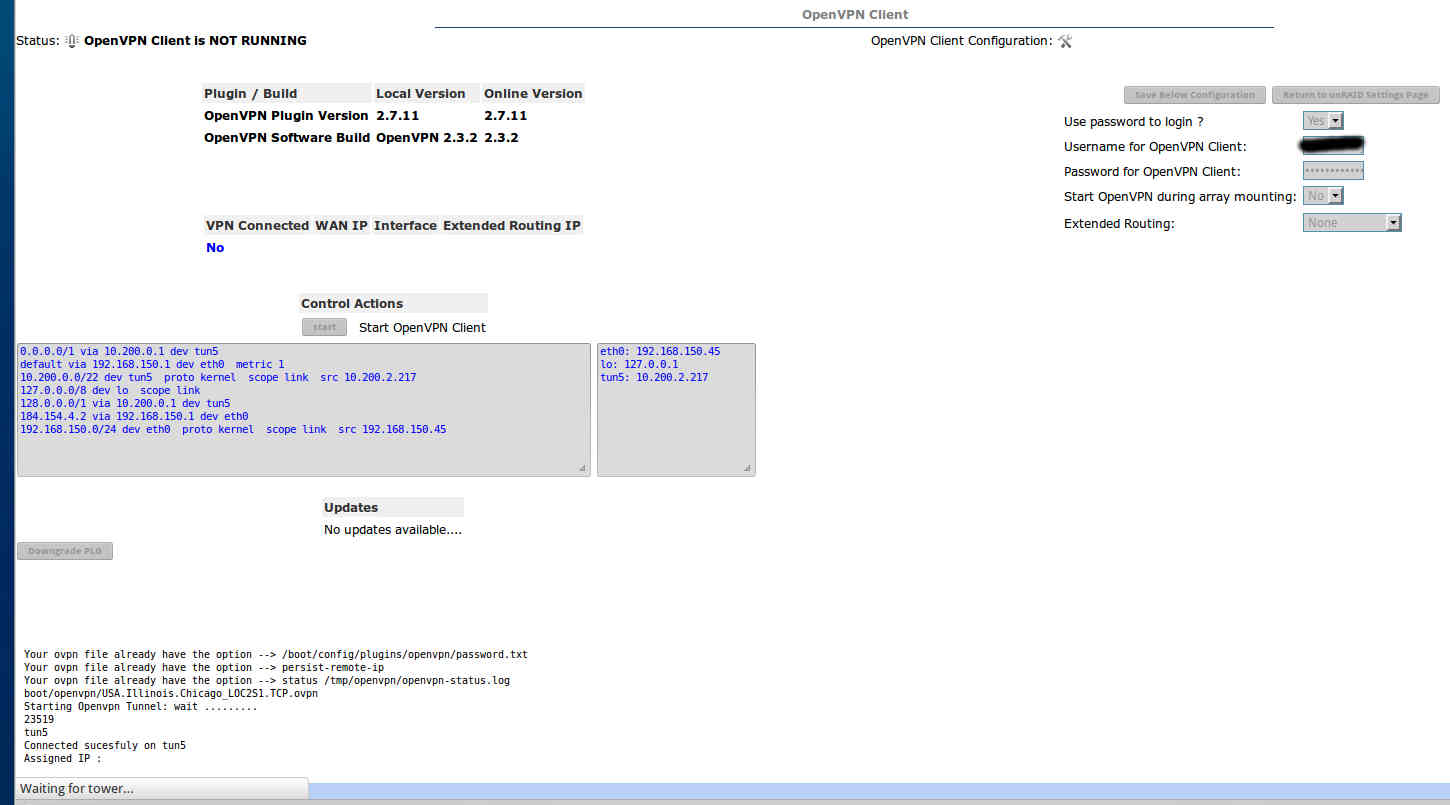

I rebooted the server to see how it works from clean start.  First time clicking 'start' it ran through the connection, said it was connected in the log at the bottom, but the plugin still showed not connected with option of clicking start still enabled.  Tun5 was listed in the interface list.  I clicked start again and has been sitting there for the past 3-4 minutes.  The one line that is cut off by the 'waiting for tower' is ' Logging in to VPN was successful'. (OpenVPNPlugin2711-3.jpg)

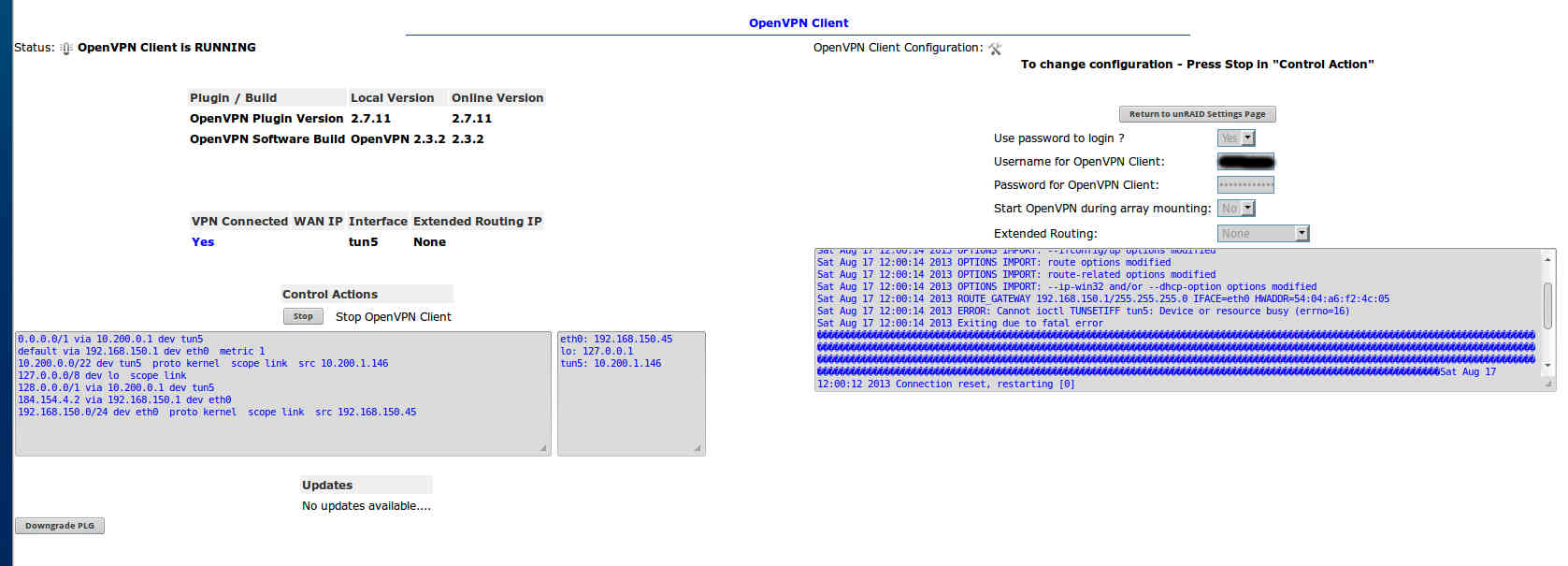

At 4-5 minutes the plugin updated.  'OpenVPNPlugin2711-4.jpg' is the result of that.



Openvpn log after second click of start and 4-5 minute delay:

Sat Aug 17 12:00:01 2013 OpenVPN 2.3.2 i486-slackware-linux-gnu [sSL (OpenSSL)] [LZO] [EPOLL] [eurephia] [MH] [iPv6] built on Jun 22 2013
Sat Aug 17 12:00:01 2013 WARNING: file '/boot/config/plugins/openvpn/password.txt' is group or others accessible
Sat Aug 17 12:00:01 2013 Socket Buffers: R=[87380->131072] S=[16384->131072]
Sat Aug 17 12:00:01 2013 Attempting to establish TCP connection with [AF_INET]184.154.4.2:443 [nonblock]
Sat Aug 17 12:00:02 2013 TCP connection established with [AF_INET]184.154.4.2:443
Sat Aug 17 12:00:02 2013 TCPv4_CLIENT link local: [undef]
Sat Aug 17 12:00:02 2013 TCPv4_CLIENT link remote: [AF_INET]184.154.4.2:443
Sat Aug 17 12:00:02 2013 TLS: Initial packet from [AF_INET]184.154.4.2:443, sid=3ea3bebd 81affbe9
Sat Aug 17 12:00:02 2013 WARNING: this configuration may cache passwords in memory -- use the auth-nocache option to prevent this
Sat Aug 17 12:00:04 2013 VERIFY OK: depth=1, C=UK, ST=NR, L=Attleborough, O=Hide My Ass! Pro, OU=VPN, CN=vpn.hidemyass.com, [email protected]
Sat Aug 17 12:00:04 2013 VERIFY OK: nsCertType=SERVER
Sat Aug 17 12:00:04 2013 VERIFY OK: depth=0, C=UK, ST=NR, L=Attleborough, O=Hide My Ass! Pro, OU=VPN, CN=server, [email protected]
Sat Aug 17 12:00:11 2013 Data Channel Encrypt: Cipher 'BF-CBC' initialized with 128 bit key
Sat Aug 17 12:00:11 2013 Data Channel Encrypt: Using 160 bit message hash 'SHA1' for HMAC authentication
Sat Aug 17 12:00:11 2013 Data Channel Decrypt: Cipher 'BF-CBC' initialized with 128 bit key
Sat Aug 17 12:00:11 2013 Data Channel Decrypt: Using 160 bit message hash 'SHA1' for HMAC authentication
Sat Aug 17 12:00:11 2013 Control Channel: TLSv1, cipher TLSv1/SSLv3 DHE-RSA-AES256-SHA, 1024 bit RSA
Sat Aug 17 12:00:11 2013 [server] Peer Connection Initiated with [AF_INET]184.154.4.2:443
Sat Aug 17 12:00:14 2013 SENT CONTROL [server]: 'PUSH_REQUEST' (status=1)
Sat Aug 17 12:00:14 2013 PUSH: Received control message: 'PUSH_REPLY,topology subnet,route-gateway 10.200.0.1,dhcp-option DNS 208.67.222.222,dhcp-option DNS 208.67.220.220,redirect-gateway def1,ifconfig 10.200.2.232 255.255.252.0'
Sat Aug 17 12:00:14 2013 OPTIONS IMPORT: --ifconfig/up options modified
Sat Aug 17 12:00:14 2013 OPTIONS IMPORT: route options modified
Sat Aug 17 12:00:14 2013 OPTIONS IMPORT: route-related options modified
Sat Aug 17 12:00:14 2013 OPTIONS IMPORT: --ip-win32 and/or --dhcp-option options modified
Sat Aug 17 12:00:14 2013 ROUTE_GATEWAY 192.168.150.1/255.255.255.0 IFACE=eth0 HWADDR=54:04:a6:f2:4c:05
Sat Aug 17 12:00:14 2013 ERROR: Cannot ioctl TUNSETIFF tun5: Device or resource busy (errno=16)
Sat Aug 17 12:00:14 2013 Exiting due to fatal error
??????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????Sat Aug 17 12:00:12 2013 Connection reset, restarting [0]
Sat Aug 17 12:00:12 2013 SIGUSR1[soft,connection-reset] received, process restarting
Sat Aug 17 12:00:12 2013 Restart pause, 5 second(s)
Sat Aug 17 12:00:17 2013 Socket Buffers: R=[87380->131072] S=[16384->131072]
Sat Aug 17 12:00:17 2013 TCP/UDP: Preserving recently used remote address: [AF_INET]184.154.4.2:443
Sat Aug 17 12:00:17 2013 Attempting to establish TCP connection with [AF_INET]184.154.4.2:443 [nonblock]
Sat Aug 17 12:00:18 2013 TCP connection established with [AF_INET]184.154.4.2:443
Sat Aug 17 12:00:18 2013 TCPv4_CLIENT link local: [undef]
Sat Aug 17 12:00:18 2013 TCPv4_CLIENT link remote: [AF_INET]184.154.4.2:443
Sat Aug 17 12:00:18 2013 TLS: Initial packet from [AF_INET]184.154.4.2:443, sid=4443906d 0c733cdc
Sat Aug 17 12:00:21 2013 VERIFY OK: depth=1, C=UK, ST=NR, L=Attleborough, O=Hide My Ass! Pro, OU=VPN, CN=vpn.hidemyass.com, [email protected]
Sat Aug 17 12:00:21 2013 VERIFY OK: nsCertType=SERVER
Sat Aug 17 12:00:21 2013 VERIFY OK: depth=0, C=UK, ST=NR, L=Attleborough, O=Hide My Ass! Pro, OU=VPN, CN=server, [email protected]
Sat Aug 17 12:00:28 2013 Data Channel Encrypt: Cipher 'BF-CBC' initialized with 128 bit key
Sat Aug 17 12:00:28 2013 Data Channel Encrypt: Using 160 bit message hash 'SHA1' for HMAC authentication
Sat Aug 17 12:00:28 2013 Data Channel Decrypt: Cipher 'BF-CBC' initialized with 128 bit key
Sat Aug 17 12:00:28 2013 Data Channel Decrypt: Using 160 bit message hash 'SHA1' for HMAC authentication
Sat Aug 17 12:00:28 2013 Control Channel: TLSv1, cipher TLSv1/SSLv3 DHE-RSA-AES256-SHA, 1024 bit RSA
Sat Aug 17 12:00:28 2013 [server] Peer Connection Initiated with [AF_INET]184.154.4.2:443
Sat Aug 17 12:00:31 2013 SENT CONTROL [server]: 'PUSH_REQUEST' (status=1)
Sat Aug 17 12:00:31 2013 PUSH: Received control message: 'PUSH_REPLY,topology subnet,route-gateway 10.200.0.1,dhcp-option DNS 208.67.222.222,dhcp-option DNS 208.67.220.220,redirect-gateway def1,ifconfig 10.200.1.146 255.255.252.0'
Sat Aug 17 12:00:31 2013 OPTIONS IMPORT: --ifconfig/up options modified
Sat Aug 17 12:00:31 2013 OPTIONS IMPORT: route options modified
Sat Aug 17 12:00:31 2013 OPTIONS IMPORT: route-related options modified
Sat Aug 17 12:00:31 2013 OPTIONS IMPORT: --ip-win32 and/or --dhcp-option options modified
Sat Aug 17 12:00:31 2013 Preserving previous TUN/TAP instance: tun5
Sat Aug 17 12:00:31 2013 NOTE: Pulled options changed on restart, will need to close and reopen TUN/TAP device.
Sat Aug 17 12:00:31 2013 /usr/sbin/ip route del 184.154.4.2/32
Sat Aug 17 12:00:31 2013 /usr/sbin/ip route del 0.0.0.0/1
Sat Aug 17 12:00:31 2013 /usr/sbin/ip route del 128.0.0.0/1
Sat Aug 17 12:00:31 2013 Closing TUN/TAP interface
Sat Aug 17 12:00:31 2013 /usr/sbin/ip addr del dev tun5 10.200.2.217/22
Sat Aug 17 12:00:32 2013 ROUTE_GATEWAY 192.168.150.1/255.255.255.0 IFACE=eth0 HWADDR=54:04:a6:f2:4c:05
Sat Aug 17 12:00:32 2013 TUN/TAP device tun5 opened
Sat Aug 17 12:00:32 2013 TUN/TAP TX queue length set to 100
Sat Aug 17 12:00:32 2013 do_ifconfig, tt->ipv6=0, tt->did_ifconfig_ipv6_setup=0
Sat Aug 17 12:00:32 2013 /usr/sbin/ip link set dev tun5 up mtu 1500
Sat Aug 17 12:00:32 2013 /usr/sbin/ip addr add dev tun5 10.200.1.146/22 broadcast 10.200.3.255
Sat Aug 17 12:00:32 2013 /usr/sbin/ip route add 184.154.4.2/32 via 192.168.150.1
Sat Aug 17 12:00:32 2013 /usr/sbin/ip route add 0.0.0.0/1 via 10.200.0.1
Sat Aug 17 12:00:32 2013 /usr/sbin/ip route add 128.0.0.0/1 via 10.200.0.1
Sat Aug 17 12:00:32 2013 Initialization Sequence Completed



Syslog snippet of the activity:

Aug 17 11:59:39 Tower sudo:     root : TTY=unknown ; PWD=/boot/openvpn ; USER=root ; COMMAND=/usr/sbin/openvpn --writepid /var/run/openvpn/openvpn.pid --script-security 3 --mute-replay-warnings --client --config /boot/openvpn/USA.Illinois.Chicago_LOC2S1.TCP.ovpn (Minor Issues)
Aug 17 11:59:44 Tower kernel: tun: Universal TUN/TAP device driver, 1.6 (System)
Aug 17 11:59:44 Tower kernel: tun: (C) 1999-2004 Max Krasnyansky <[email protected]>
Aug 17 11:59:47 Tower ntpd[1106]: Listen normally on 3 tun5 10.200.2.217 UDP 123
Aug 17 11:59:47 Tower ntpd[1106]: 198.211.101.144 interface 192.168.150.45 -> 10.200.2.217
Aug 17 11:59:47 Tower ntpd[1106]: 50.116.38.157 interface 192.168.150.45 -> 10.200.2.217
Aug 17 11:59:47 Tower ntpd[1106]: 138.236.128.112 interface 192.168.150.45 -> 10.200.2.217
Aug 17 11:59:47 Tower ntpd[1106]: new interface(s) found: waking up resolver
Aug 17 12:00:01 Tower sudo:     root : TTY=unknown ; PWD=/boot/openvpn ; USER=root ; COMMAND=/usr/sbin/openvpn --writepid /var/run/openvpn/openvpn.pid --script-security 3 --mute-replay-warnings --client --config /boot/openvpn/USA.Illinois.Chicago_LOC2S1.TCP.ovpn (Minor Issues)
Aug 17 12:00:31 Tower avahi-daemon[23048]: Withdrawing workstation service for tun5.
Aug 17 12:04:47 Tower ntpd[1106]: Listen normally on 4 tun5 10.200.1.146 UDP 123
Aug 17 12:04:47 Tower ntpd[1106]: Deleting interface #3 tun5, 10.200.2.217#123, interface stats: received=3, sent=3, dropped=12, active_time=300 secs
Aug 17 12:04:47 Tower ntpd[1106]: 138.236.128.112 interface 10.200.2.217 -> (null)
Aug 17 12:04:47 Tower ntpd[1106]: 50.116.38.157 interface 10.200.2.217 -> (null)
Aug 17 12:04:47 Tower ntpd[1106]: 198.211.101.144 interface 10.200.2.217 -> (null)
Aug 17 12:04:47 Tower ntpd[1106]: new interface(s) found: waking up resolver



At this point the VPN is connected and traffic is going in the tunnel, though the WAN IP is not listed in the plugin page as seen in the second screenshot.  Stopping and starting the plugin does not change the results (WAN IP).  Below is the last openvpn log:

Sat Aug 17 12:19:06 2013 OpenVPN 2.3.2 i486-slackware-linux-gnu [sSL (OpenSSL)] [LZO] [EPOLL] [eurephia] [MH] [iPv6] built on Jun 22 2013
Sat Aug 17 12:19:06 2013 WARNING: file '/boot/config/plugins/openvpn/password.txt' is group or others accessible
Sat Aug 17 12:19:06 2013 Socket Buffers: R=[87380->131072] S=[16384->131072]
Sat Aug 17 12:19:06 2013 Attempting to establish TCP connection with [AF_INET]184.154.4.2:443 [nonblock]
Sat Aug 17 12:19:07 2013 TCP connection established with [AF_INET]184.154.4.2:443
Sat Aug 17 12:19:07 2013 TCPv4_CLIENT link local: [undef]
Sat Aug 17 12:19:07 2013 TCPv4_CLIENT link remote: [AF_INET]184.154.4.2:443
Sat Aug 17 12:19:07 2013 TLS: Initial packet from [AF_INET]184.154.4.2:443, sid=85dbecb0 6ded4fba
Sat Aug 17 12:19:07 2013 WARNING: this configuration may cache passwords in memory -- use the auth-nocache option to prevent this
Sat Aug 17 12:19:07 2013 VERIFY OK: depth=1, C=UK, ST=NR, L=Attleborough, O=Hide My Ass! Pro, OU=VPN, CN=vpn.hidemyass.com, [email protected]
Sat Aug 17 12:19:07 2013 VERIFY OK: nsCertType=SERVER
Sat Aug 17 12:19:07 2013 VERIFY OK: depth=0, C=UK, ST=NR, L=Attleborough, O=Hide My Ass! Pro, OU=VPN, CN=server, [email protected]
Sat Aug 17 12:19:09 2013 Data Channel Encrypt: Cipher 'BF-CBC' initialized with 128 bit key
Sat Aug 17 12:19:09 2013 Data Channel Encrypt: Using 160 bit message hash 'SHA1' for HMAC authentication
Sat Aug 17 12:19:09 2013 Data Channel Decrypt: Cipher 'BF-CBC' initialized with 128 bit key
Sat Aug 17 12:19:09 2013 Data Channel Decrypt: Using 160 bit message hash 'SHA1' for HMAC authentication
Sat Aug 17 12:19:09 2013 Control Channel: TLSv1, cipher TLSv1/SSLv3 DHE-RSA-AES256-SHA, 1024 bit RSA
Sat Aug 17 12:19:09 2013 [server] Peer Connection Initiated with [AF_INET]184.154.4.2:443
Sat Aug 17 12:19:11 2013 SENT CONTROL [server]: 'PUSH_REQUEST' (status=1)
Sat Aug 17 12:19:11 2013 PUSH: Received control message: 'PUSH_REPLY,topology subnet,route-gateway 10.200.0.1,dhcp-option DNS 208.67.222.222,dhcp-option DNS 208.67.220.220,redirect-gateway def1,ifconfig 10.200.3.124 255.255.252.0'
Sat Aug 17 12:19:11 2013 OPTIONS IMPORT: --ifconfig/up options modified
Sat Aug 17 12:19:11 2013 OPTIONS IMPORT: route options modified
Sat Aug 17 12:19:11 2013 OPTIONS IMPORT: route-related options modified
Sat Aug 17 12:19:11 2013 OPTIONS IMPORT: --ip-win32 and/or --dhcp-option options modified
Sat Aug 17 12:19:11 2013 ROUTE_GATEWAY 192.168.150.1/255.255.255.0 IFACE=eth0 HWADDR=54:04:a6:f2:4c:05
Sat Aug 17 12:19:11 2013 ERROR: Cannot ioctl TUNSETIFF tun5: Device or resource busy (errno=16)
Sat Aug 17 12:19:11 2013 Exiting due to fatal error



Traffic is still going into the tunnel, however.





  • Author

I have fixed the update of the ovpn  ;D, so the new updates going in to own line, new plugin will be uploaded later.....



going to check your other issue....



what do you see if you type in this command ? with connected and not connected



curl -s curl -s https://www.privateinternetaccess.com/pages/how-it-works/  | grep "IP Address:"

  • Author

for me is the rout looks like this



connected



Wan ip : 178.73.202.156



0.0.0.0/1 via 178.73.202.129 dev tap5
default via 192.168.0.1 dev eth0  metric 1
80.67.8.197 via 192.168.0.1 dev eth0
127.0.0.0/8 dev lo  scope link
128.0.0.0/1 via 178.73.202.129 dev tap5
178.73.202.128/25 dev tap5  proto kernel  scope link  src 178.73.202.156
192.168.0.0/24 dev eth0  proto kernel  scope link  src 192.168.0.171





eth0: 192.168.0.171
lo: 127.0.0.1
tap5: 178.73.202.156





not connected



default via 192.168.0.1 dev eth0  metric 1
127.0.0.0/8 dev lo  scope link
192.168.0.0/24 dev eth0  proto kernel  scope link  src 192.168.0.171

The curl command returned nothing, though curl by itself worked which means it is in the path.  Using Putty with telnet.  With OpenVPN connected and not connected all traffic was still going through the active tunnel.  Yep - with the plugin stopped the tunnel was still active.  I rebooted the server and tried the curl command again with the same result - no output.  I removed he grep portion and got a few lines of header info from the web site, but no IP.  I definitely did not get full output though (without the pipe to grep) compared to running the same command on my xubuntu system.  Subsequent tries with grep or no grep produced nothing.  As a sanity check, I tried it on my xubuntu system with VPN disconnected and connected and the command works fine and shows different IP for connected/disconnected.



I rebooted the server again and tried the curl command again before starting openvpn and had same result no output with or without the pipe to grep.  Did tracepath and it works - goes through my ISP.  Started the VPN and curl command still not work, tracepath showed it went through the tunnel, but same issue on the plugin page - no WAN IP.  Stopped the VPN and this time tun5 was removed and a tracepath showed the tunnel was disconnected and traffic was going through my ISP again.  Curl command still reports nothing  - no output.



I have only installed the plugin and the ovpn file - have not done anything else with openvpn.  I have Sabnzbd, Sickbeard, Couchpotato, Headphones (all four influencer unplugged), Subsonic, Plex (though not enabled), unMENU, and cache_dirs plugin installed on 5.0rc16c.  No active downloads or processing.  Let me know what else you need.

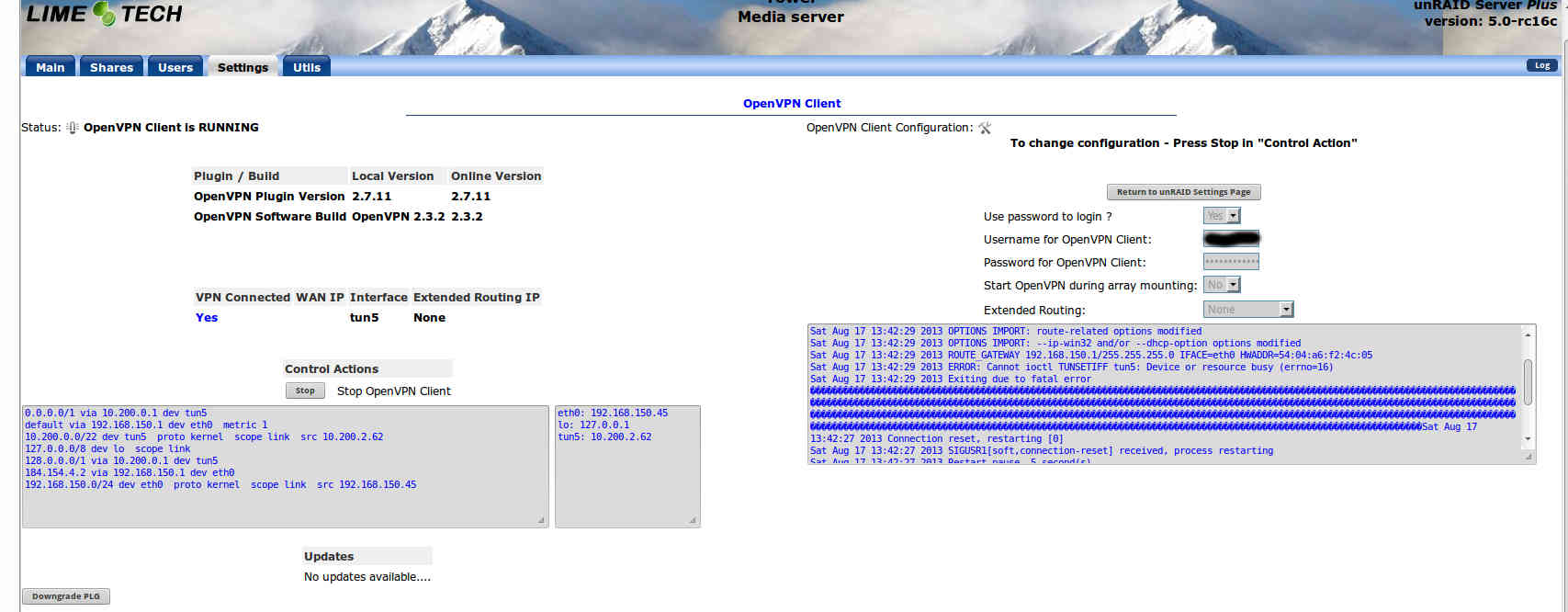

Output from plugin page when VPN connected:

0.0.0.0/1 via 10.200.0.1 dev tun5
default via 192.168.150.1 dev eth0  metric 1
10.200.0.0/22 dev tun5  proto kernel  scope link  src 10.200.2.62
127.0.0.0/8 dev lo  scope link
128.0.0.0/1 via 10.200.0.1 dev tun5
184.154.4.2 via 192.168.150.1 dev eth0
192.168.150.0/24 dev eth0  proto kernel  scope link  src 192.168.150.45



eth0: 192.168.150.45
lo: 127.0.0.1
tun5: 10.200.2.62



Sat Aug 17 13:42:24 2013 OpenVPN 2.3.2 i486-slackware-linux-gnu [sSL (OpenSSL)] [LZO] [EPOLL] [eurephia] [MH] [iPv6] built on Jun 22 2013
Sat Aug 17 13:42:24 2013 WARNING: file '/boot/config/plugins/openvpn/password.txt' is group or others accessible
Sat Aug 17 13:42:24 2013 Socket Buffers: R=[87380->131072] S=[16384->131072]
Sat Aug 17 13:42:24 2013 Attempting to establish TCP connection with [AF_INET]184.154.4.2:443 [nonblock]
Sat Aug 17 13:42:25 2013 TCP connection established with [AF_INET]184.154.4.2:443
Sat Aug 17 13:42:25 2013 TCPv4_CLIENT link local: [undef]
Sat Aug 17 13:42:25 2013 TCPv4_CLIENT link remote: [AF_INET]184.154.4.2:443
Sat Aug 17 13:42:25 2013 TLS: Initial packet from [AF_INET]184.154.4.2:443, sid=8da5b280 dc58f5d4
Sat Aug 17 13:42:25 2013 WARNING: this configuration may cache passwords in memory -- use the auth-nocache option to prevent this
Sat Aug 17 13:42:25 2013 VERIFY OK: depth=1, C=UK, ST=NR, L=Attleborough, O=Hide My Ass! Pro, OU=VPN, CN=vpn.hidemyass.com, [email protected]
Sat Aug 17 13:42:25 2013 VERIFY OK: nsCertType=SERVER
Sat Aug 17 13:42:25 2013 VERIFY OK: depth=0, C=UK, ST=NR, L=Attleborough, O=Hide My Ass! Pro, OU=VPN, CN=server, [email protected]
Sat Aug 17 13:42:27 2013 Data Channel Encrypt: Cipher 'BF-CBC' initialized with 128 bit key
Sat Aug 17 13:42:27 2013 Data Channel Encrypt: Using 160 bit message hash 'SHA1' for HMAC authentication
Sat Aug 17 13:42:27 2013 Data Channel Decrypt: Cipher 'BF-CBC' initialized with 128 bit key
Sat Aug 17 13:42:27 2013 Data Channel Decrypt: Using 160 bit message hash 'SHA1' for HMAC authentication
Sat Aug 17 13:42:27 2013 Control Channel: TLSv1, cipher TLSv1/SSLv3 DHE-RSA-AES256-SHA, 1024 bit RSA
Sat Aug 17 13:42:27 2013 [server] Peer Connection Initiated with [AF_INET]184.154.4.2:443
Sat Aug 17 13:42:29 2013 SENT CONTROL [server]: 'PUSH_REQUEST' (status=1)
Sat Aug 17 13:42:29 2013 PUSH: Received control message: 'PUSH_REPLY,topology subnet,route-gateway 10.200.0.1,dhcp-option DNS 208.67.222.222,dhcp-option DNS 208.67.220.220,redirect-gateway def1,ifconfig 10.200.1.230 255.255.252.0'
Sat Aug 17 13:42:29 2013 OPTIONS IMPORT: --ifconfig/up options modified
Sat Aug 17 13:42:29 2013 OPTIONS IMPORT: route options modified
Sat Aug 17 13:42:29 2013 OPTIONS IMPORT: route-related options modified
Sat Aug 17 13:42:29 2013 OPTIONS IMPORT: --ip-win32 and/or --dhcp-option options modified
Sat Aug 17 13:42:29 2013 ROUTE_GATEWAY 192.168.150.1/255.255.255.0 IFACE=eth0 HWADDR=54:04:a6:f2:4c:05
Sat Aug 17 13:42:29 2013 ERROR: Cannot ioctl TUNSETIFF tun5: Device or resource busy (errno=16)
Sat Aug 17 13:42:29 2013 Exiting due to fatal error
??????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????Sat Aug 17 13:42:27 2013 Connection reset, restarting [0]
Sat Aug 17 13:42:27 2013 SIGUSR1[soft,connection-reset] received, process restarting
Sat Aug 17 13:42:27 2013 Restart pause, 5 second(s)
Sat Aug 17 13:42:32 2013 Socket Buffers: R=[87380->131072] S=[16384->131072]
Sat Aug 17 13:42:32 2013 TCP/UDP: Preserving recently used remote address: [AF_INET]184.154.4.2:443
Sat Aug 17 13:42:32 2013 Attempting to establish TCP connection with [AF_INET]184.154.4.2:443 [nonblock]
Sat Aug 17 13:42:33 2013 TCP connection established with [AF_INET]184.154.4.2:443
Sat Aug 17 13:42:33 2013 TCPv4_CLIENT link local: [undef]
Sat Aug 17 13:42:33 2013 TCPv4_CLIENT link remote: [AF_INET]184.154.4.2:443
Sat Aug 17 13:42:33 2013 TLS: Initial packet from [AF_INET]184.154.4.2:443, sid=2a3099c8 80fe52d6
Sat Aug 17 13:42:34 2013 VERIFY OK: depth=1, C=UK, ST=NR, L=Attleborough, O=Hide My Ass! Pro, OU=VPN, CN=vpn.hidemyass.com, [email protected]
Sat Aug 17 13:42:34 2013 VERIFY OK: nsCertType=SERVER
Sat Aug 17 13:42:34 2013 VERIFY OK: depth=0, C=UK, ST=NR, L=Attleborough, O=Hide My Ass! Pro, OU=VPN, CN=server, [email protected]
Sat Aug 17 13:42:35 2013 Data Channel Encrypt: Cipher 'BF-CBC' initialized with 128 bit key
Sat Aug 17 13:42:35 2013 Data Channel Encrypt: Using 160 bit message hash 'SHA1' for HMAC authentication
Sat Aug 17 13:42:35 2013 Data Channel Decrypt: Cipher 'BF-CBC' initialized with 128 bit key
Sat Aug 17 13:42:35 2013 Data Channel Decrypt: Using 160 bit message hash 'SHA1' for HMAC authentication
Sat Aug 17 13:42:35 2013 Control Channel: TLSv1, cipher TLSv1/SSLv3 DHE-RSA-AES256-SHA, 1024 bit RSA
Sat Aug 17 13:42:35 2013 [server] Peer Connection Initiated with [AF_INET]184.154.4.2:443
Sat Aug 17 13:42:37 2013 SENT CONTROL [server]: 'PUSH_REQUEST' (status=1)
Sat Aug 17 13:42:37 2013 PUSH: Received control message: 'PUSH_REPLY,topology subnet,route-gateway 10.200.0.1,dhcp-option DNS 208.67.222.222,dhcp-option DNS 208.67.220.220,redirect-gateway def1,ifconfig 10.200.2.62 255.255.252.0'
Sat Aug 17 13:42:37 2013 OPTIONS IMPORT: --ifconfig/up options modified
Sat Aug 17 13:42:37 2013 OPTIONS IMPORT: route options modified
Sat Aug 17 13:42:37 2013 OPTIONS IMPORT: route-related options modified
Sat Aug 17 13:42:37 2013 OPTIONS IMPORT: --ip-win32 and/or --dhcp-option options modified
Sat Aug 17 13:42:37 2013 Preserving previous TUN/TAP instance: tun5
Sat Aug 17 13:42:37 2013 NOTE: Pulled options changed on restart, will need to close and reopen TUN/TAP device.
Sat Aug 17 13:42:37 2013 /usr/sbin/ip route del 184.154.4.2/32
Sat Aug 17 13:42:37 2013 /usr/sbin/ip route del 0.0.0.0/1
Sat Aug 17 13:42:37 2013 /usr/sbin/ip route del 128.0.0.0/1
Sat Aug 17 13:42:37 2013 Closing TUN/TAP interface
Sat Aug 17 13:42:37 2013 /usr/sbin/ip addr del dev tun5 10.200.1.188/22
Sat Aug 17 13:42:38 2013 ROUTE_GATEWAY 192.168.150.1/255.255.255.0 IFACE=eth0 HWADDR=54:04:a6:f2:4c:05
Sat Aug 17 13:42:38 2013 TUN/TAP device tun5 opened
Sat Aug 17 13:42:38 2013 TUN/TAP TX queue length set to 100
Sat Aug 17 13:42:38 2013 do_ifconfig, tt->ipv6=0, tt->did_ifconfig_ipv6_setup=0
Sat Aug 17 13:42:38 2013 /usr/sbin/ip link set dev tun5 up mtu 1500
Sat Aug 17 13:42:38 2013 /usr/sbin/ip addr add dev tun5 10.200.2.62/22 broadcast 10.200.3.255
Sat Aug 17 13:42:38 2013 /usr/sbin/ip route add 184.154.4.2/32 via 192.168.150.1
Sat Aug 17 13:42:38 2013 /usr/sbin/ip route add 0.0.0.0/1 via 10.200.0.1
Sat Aug 17 13:42:38 2013 /usr/sbin/ip route add 128.0.0.0/1 via 10.200.0.1
Sat Aug 17 13:42:38 2013 Initialization Sequence Completed



Syslog snippet:

Aug 17 13:23:31 Tower sudo:     root : TTY=unknown ; PWD=/boot/openvpn ; USER=root ; COMMAND=/usr/sbin/openvpn --writepid /var/run/openvpn/openvpn.pid --script-security 3 --mute-replay-warnings --client --config /boot/openvpn/USA.Illinois.Chicago_LOC2S1.TCP.ovpn
Aug 17 13:23:36 Tower kernel: tun: Universal TUN/TAP device driver, 1.6
Aug 17 13:23:36 Tower kernel: tun: (C) 1999-2004 Max Krasnyansky
Aug 17 13:24:11 Tower avahi-daemon[23053]: Withdrawing workstation service for tun5.
Aug 17 13:42:09 Tower sudo:     root : TTY=unknown ; PWD=/boot/openvpn ; USER=root ; COMMAND=/usr/sbin/openvpn --writepid /var/run/openvpn/openvpn.pid --script-security 3 --mute-replay-warnings --client --config /boot/openvpn/USA.Illinois.Chicago_LOC2S1.TCP.ovpn
Aug 17 13:42:24 Tower sudo:     root : TTY=unknown ; PWD=/boot/openvpn ; USER=root ; COMMAND=/usr/sbin/openvpn --writepid /var/run/openvpn/openvpn.pid --script-security 3 --mute-replay-warnings --client --config /boot/openvpn/USA.Illinois.Chicago_LOC2S1.TCP.ovpn
Aug 17 13:42:37 Tower avahi-daemon[23053]: Withdrawing workstation service for tun5.
Aug 17 13:46:46 Tower ntpd[1090]: Listen normally on 3 tun5 10.200.2.62 UDP 123
Aug 17 13:46:46 Tower ntpd[1090]: 108.61.73.244 interface 192.168.150.45 -> 10.200.2.62
Aug 17 13:46:46 Tower ntpd[1090]: 148.240.19.26 interface 192.168.150.45 -> 10.200.2.62
Aug 17 13:46:46 Tower ntpd[1090]: 69.50.219.51 interface 192.168.150.45 -> 10.200.2.62
Aug 17 13:46:46 Tower ntpd[1090]: new interface(s) found: waking up resolver



After a reboot, I have to click 'start' two times to get a connection.  The first time through I get 'tun5' to appear, but no connection and the second time around I get a connection but no WAN IP reported.  VPN is up, however.  Screenshot attached.


  • Author

It looks like you don't get any info from

https://www.privateinternetaccess.com/pages/hide-my-ip/



Hovewer there are a change in the new version for this, it's now use

http://my-ip-address.com/



//Peter

It looks like you don't get any info from

https://www.privateinternetaccess.com/pages/hide-my-ip/



Hovewer there are a change in the new version for this, it's now use

http://my-ip-address.com/



//Peter



Yep, I disabled the silent switch and saw that I had to use the '-k' switch because curl reports the certificate for that site being invalid or something to that effect.  I changed it in the plugin to:

curl -s http://geoip.hidemyass.com/ip/



Seems to work on reporting WAN IP.  Still trying to figure out why it always takes two attempts to start up the VPN and why the stop does not always kill the openvpn process.  Also fixed the problem with writing the auth-user... thing where it writes it to the end of an existing line.  The '\n' was at the end of the line instead of the beginning:

echo -e "\nauth-user-pass /boot/config/plugins/openvpn/password.txt" >> /boot/openvpn/$ovpn





  • Author

Can you see if latest version are OK ?



Try with original ovpn file

The reason I could not stop the VPN (plugin reports it stopped, but VPN was still active) was because the PID changed from the time the plugin wrote the pid file to the time it was called to kill it by reading the pid file.  I changed the plugin kill command to this:

killall -HUP openvpn

Seems to work every time.  Still trying to figure out why it takes two attempts to start the VPN.



Can you see if latest version are OK ?



Try with original ovpn file



Tried 2.7.12:



* WAN IP works because it is not using that https://privateinternet whatever address that curl reports as having invalid certificate.

* writing the auth-user... line to the ovpn file works because you have the extra echo line to add \n.  Look at previous post to use only one echo to correct (move the \n to the begining of string instead of the end, same for both writes).

  • Author

See new version (2.7.13) , it shall be OK to connect the first time after a reboot.



//Peter

  • Author

version (2.7.14) Minor WEB UI changing, moved update button top of right side

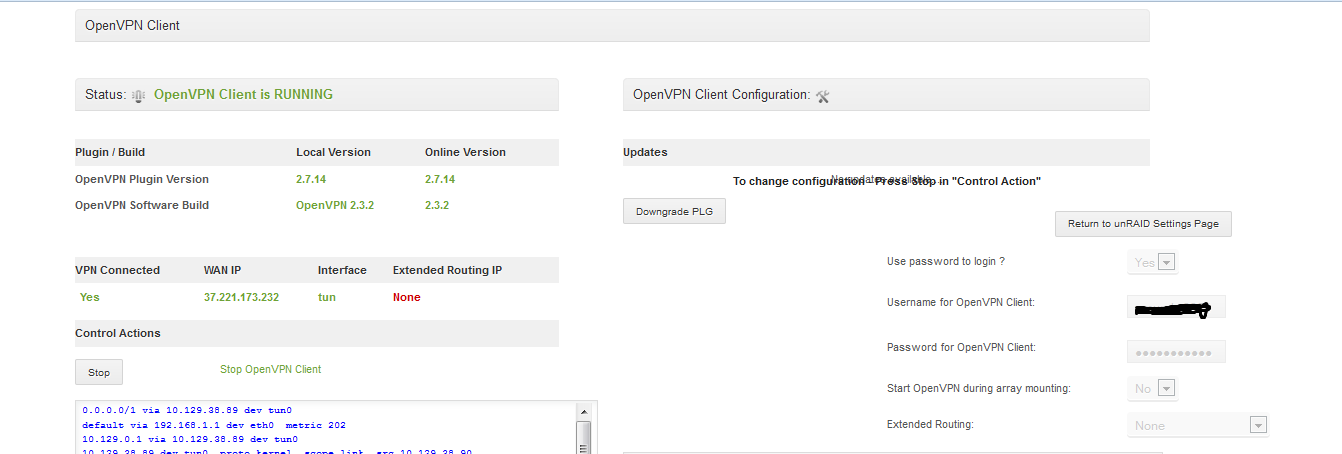

after the new update the UI is a little messed up the words are overlapping under the updates section. I have tried clearing the cache but still is the same thing.


version (2.7.14) Minor WEB UI changing, moved update button top of right side



peter_sm:

As I mentioned in my PM, I'd like you to take a look at the attached plugin-in.  Some screen shots are attached.  Fixed the stuff that we have been exchanging posts on for the past couple days and added another feature to show current host and location.  I don't use the extended routing or simple features so those hooks are not tested.  Fixed the writing of the ovpn file by relocating the '\n', fixed the connection issues requiring two clicks to start it by incorporating the longer sleep times you implemented and also did some reordering in the connection process, and fixed the stop issue by ignoring the pid file captured at start and going more direct since openvpn can restart on it's own and change pid.



o2k9.jpg  pgyc.jpg  z93g.jpg

  • The left picture is disconnected status showing the host is my local Internet provider.
  • The center picture is connected to a Chicago VPN server  (no errors in the openVPN log)
  • The right picture is connected to a Belgium VPM server.

version (2.7.14) Minor WEB UI changing, moved update button top of right side



As I mentioned in my PM, I'd like you to take a look at the attached plugin-in.  Some screen shots are attached.  Fixed the stuff that we have been exchanging posts on for the past couple days and added another feature to show current host and location.  I don't use the extended routing or simple features so those hooks are not tested.  Fixed the writing of the ovpn file by relocating the '\n', fixed the connection issues requiring two clicks to start it by incorporating the longer sleep times you implemented and also did some reordering in the connection process, and fixed the stop issue by ignoring the pid file captured at start and going more direct since openvpn can restart on it's own and change pid.





I really like the addition of the Current Host and location that you made. Very helpful. When you are changing your Hosts and locations are you just putting a different .ovpn file in you openvpn folder?

version (2.7.14) Minor WEB UI changing, moved update button top of right side



As I mentioned in my PM, I'd like you to take a look at the attached plugin-in.  Some screen shots are attached.  Fixed the stuff that we have been exchanging posts on for the past couple days and added another feature to show current host and location.  I don't use the extended routing or simple features so those hooks are not tested.  Fixed the writing of the ovpn file by relocating the '\n', fixed the connection issues requiring two clicks to start it by incorporating the longer sleep times you implemented and also did some reordering in the connection process, and fixed the stop issue by ignoring the pid file captured at start and going more direct since openvpn can restart on it's own and change pid.





I really like the addition of the Current Host and location that you made. Very helpful. When you are changing your Hosts and locations are you just putting a different .ovpn file in you openvpn folder?



Correct - just a different ovpn file for a different VPN server available from my VPN provider.  The host location and flag display is determined through a curl http query that way you know for sure if the VPN is connected or not and who you are connected to.

Thats perfect. It would be great if there was a drop down that had all of the ovpn files an we could just select one from the UI.

  • Author

Thats perfect. It would be great if there was a drop down that had all of the ovpn files an we could just select one from the UI.



I'm working om this right now. but are busy at work, so this comes in second priority, or third.



//Peter

  • Author

version (2.7.14) Minor WEB UI changing, moved update button top of right side



peter_sm:

As I mentioned in my PM, I'd like you to take a look at the attached plugin-in.  Some screen shots are attached.  Fixed the stuff that we have been exchanging posts on for the past couple days and added another feature to show current host and location.  I don't use the extended routing or simple features so those hooks are not tested.  Fixed the writing of the ovpn file by relocating the '\n', fixed the connection issues requiring two clicks to start it by incorporating the longer sleep times you implemented and also did some reordering in the connection process, and fixed the stop issue by ignoring the pid file captured at start and going more direct since openvpn can restart on it's own and change pid.



o2k9.jpg  pgyc.jpg  z93g.jpg

  • The left picture is disconnected status showing the host is my local Internet provider.
  • The center picture is connected to a Chicago VPN server  (no errors in the openVPN log)
  • The right picture is connected to a Belgium VPM server.



Thanks for the updates, I will take a look and implement this on the GIT, so you can remove the attached file now, and I will update this during the week.



Thanks for your help. further discussion I like to take over PM, so we not cover this thread with our discussions.





//Peter

I'm working om this right now. but are busy at work, so this comes in second priority, or third.



//Peter



Wow that's awesome. I completely understand, Thank you for all the great work you have done so far.

I have SABnzbd set up to send me a notification email when a downloading completes. Now that i have started running a vpn SAB is unable to connect to the mail server. How would i go about allowing this email to still happen. Would i create a bypassed.txt file the enter the ip address for gmail? Thank you in advance

I have SABnzbd set up to send me a notification email when a downloading completes. Now that i have started running a vpn SAB is unable to connect to the mail server. How would i go about allowing this email to still happen. Would i create a bypassed.txt file the enter the ip address for gmail? Thank you in advance



Does SAB report anything in its logs for the email not being sent?



Archived

This topic is now archived and is closed to further replies.

Go to topic listing

Account

Navigation

Search

Search

Configure browser push notifications
Chrome (Android)
  1. Tap the lock icon next to the address bar.
  2. Tap Permissions → Notifications.
  3. Adjust your preference.
Chrome (Desktop)
  1. Click the padlock icon in the address bar.
  2. Select Site settings.
  3. Find Notifications and adjust your preference.
