rockytt Posted March 6, 2013 Share Posted March 6, 2013 (Running 4.7) Had a couple of smaller disks in my array (500gb) and went to swap one out for a 2tb that I just picked up. Had just run a parity check and it showed no errors, so I pulled the baby drive and popped in the larger one. 30 hours later, parity drive shows a couple thousand errors - so the array was extremely unhappy to say the least. Syslog shows a bunch of "Tower kernel: handle_stripe read error: 21009472/0, count: 1 Mar 5 18:07:48 Tower kernel: md: disk0 read error" lines and SMART shows several "Pre-Fail" and "Old_age" warnings" that I assume are for disk 0 Gotta be the parity drive-yes? Problem is, I can't just pop in the baby drive and replace the parity drive with a new one as I get a "replacement disk is too small" in reference to the 500gb drive. I'm sure there's a command or two that will allow me to do this, but I want to make sure before I hit one of those "I'm sure I want to do this-no really, I'm REALLY sure I want to do this" check boxes... Anyway - thanks for the help on this! Link to comment
rockytt Posted March 6, 2013 Author Share Posted March 6, 2013 One thought I had was to replace the parity drive and put the baby (500gb) drive back in its slot. That would allow parity to be rebuilt on a new disk and then I could go back and swap the baby drive for a 2tb one. No love - 2 red balls (Too many wrong and/or missing disks!) on the two drives Any thoughts? Ideas? I'd swap out both drives at the same time and then just copy the data from the baby drive back onto the array at a later date - but I'd imagine I'd keep getting the same error as above... Link to comment
trurl Posted March 6, 2013 Share Posted March 6, 2013 (Running 4.7) ...Had just run a parity check and it showed no errors, so I pulled the baby drive and popped in the larger one. 30 hours later, parity drive shows a couple thousand errors - so the array was extremely unhappy to say the least... There are a few steps left out between these 2 sentences. Could you fill in the details a little? Link to comment
rockytt Posted March 6, 2013 Author Share Posted March 6, 2013 There are a few steps left out between these 2 sentences. Could you fill in the details a little? Well, just wanted to update the size of the array by getting rid of the "baby". Removed the 500gb disk and replaced it with a 2tb. Fired up the array and it automatically formatted the drive and began restoring the data. After it "finished" 30 hours later, there were several thousand hours in the syslog-(as listed in the first post) I don't think I left out any steps-as that's all I did. (Just to update this again - popped in a new parity drive and it won't accept that either as it's looking for the old one... Red dot on the new parity drive and orange on the other new drive) Link to comment
dgaschk Posted March 7, 2013 Share Posted March 7, 2013 Post a screenshot of unRAID main and a syslog. Link to comment
rockytt Posted March 7, 2013 Author Share Posted March 7, 2013 Here's 1/2 the Syslog - Hope it helps - thanks! syslog.txt Link to comment

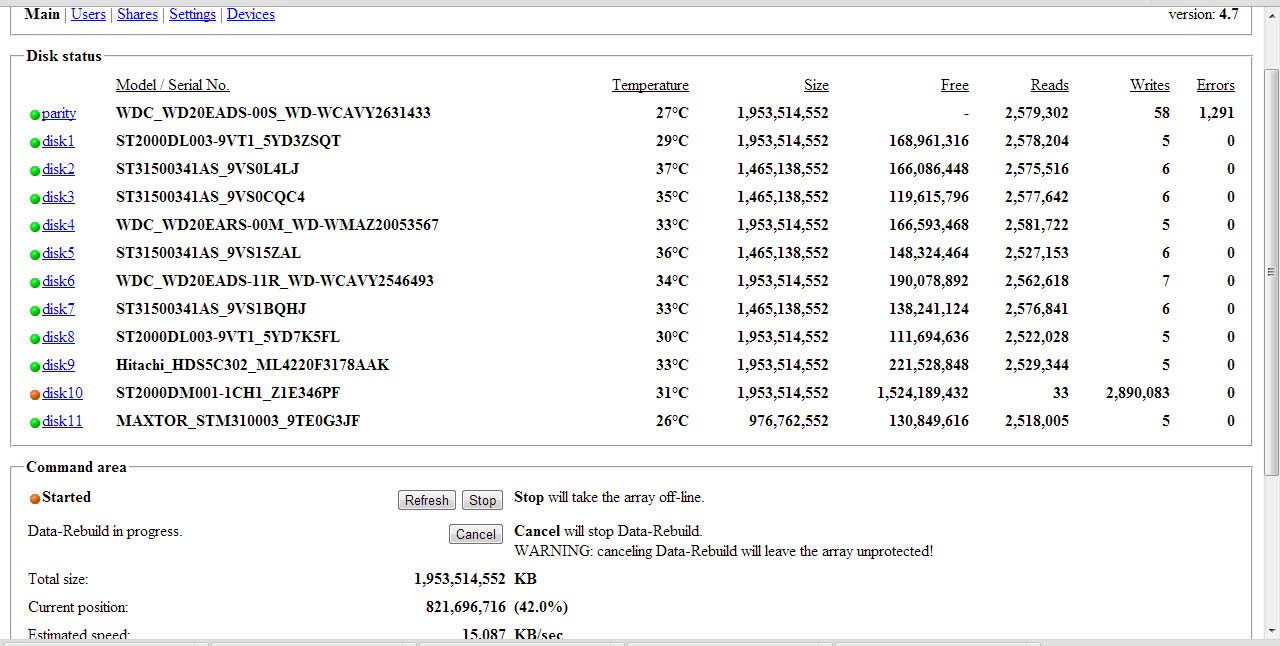

rockytt Posted March 7, 2013 Author Share Posted March 7, 2013 And here's a screenshot- Link to comment
dgaschk Posted March 7, 2013 Share Posted March 7, 2013 Do you have the original working disk10? If so, replace the original disk10 and the select Utils->New Config. Post a SMART report for the parity drive. Link to comment
rockytt Posted March 7, 2013 Author Share Posted March 7, 2013 Not to be dense - but I don't see that function (Utils->New Config) on 4.7 But yes, I do have the disk Link to comment
rockytt Posted March 7, 2013 Author Share Posted March 7, 2013 Do you mean run "initconfig" from the command console? Link to comment
rockytt Posted March 7, 2013 Author Share Posted March 7, 2013 Couldn't add the old disk (error msg - disk too small) but here's a SMART report from the parity drive: smartctl 5.39.1 2010-01-28 r3054 [i486-slackware-linux-gnu] (local build) Copyright © 2002-10 by Bruce Allen, http://smartmontools.sourceforge.net === START OF INFORMATION SECTION === Model Family: Western Digital Caviar Green family Device Model: WDC WD20EADS-00S2B0 Serial Number: WD-WCAVY2631433 Firmware Version: 01.00A01 User Capacity: 2,000,398,934,016 bytes Device is: In smartctl database [for details use: -P show] ATA Version is: 8 ATA Standard is: Exact ATA specification draft version not indicated Local Time is: Thu Mar 7 09:15:59 2013 PST SMART support is: Available - device has SMART capability. SMART support is: Enabled === START OF READ SMART DATA SECTION === SMART overall-health self-assessment test result: PASSED General SMART Values: Offline data collection status: (0x84) Offline data collection activity was suspended by an interrupting command from host. Auto Offline Data Collection: Enabled. Self-test execution status: ( 0) The previous self-test routine completed without error or no self-test has ever been run. Total time to complete Offline data collection: (41160) seconds. Offline data collection capabilities: (0x7b) SMART execute Offline immediate. Auto Offline data collection on/off support. Suspend Offline collection upon new command. Offline surface scan supported. Self-test supported. Conveyance Self-test supported. Selective Self-test supported. SMART capabilities: (0x0003) Saves SMART data before entering power-saving mode. Supports SMART auto save timer. Error logging capability: (0x01) Error logging supported. General Purpose Logging supported. Short self-test routine recommended polling time: ( 2) minutes. Extended self-test routine recommended polling time: ( 255) minutes. Conveyance self-test routine recommended polling time: ( 5) minutes. SCT capabilities: (0x303f) SCT Status supported. SCT Feature Control supported. SCT Data Table supported. SMART Attributes Data Structure revision number: 16 Vendor Specific SMART Attributes with Thresholds: ID# ATTRIBUTE_NAME FLAG VALUE WORST THRESH TYPE UPDATED WHEN_FAILED RAW_VALUE 1 Raw_Read_Error_Rate 0x002f 200 200 051 Pre-fail Always - 0 3 Spin_Up_Time 0x0027 148 144 021 Pre-fail Always - 9583 4 Start_Stop_Count 0x0032 099 099 000 Old_age Always - 1600 5 Reallocated_Sector_Ct 0x0033 200 200 140 Pre-fail Always - 0 7 Seek_Error_Rate 0x002e 100 253 000 Old_age Always - 0 9 Power_On_Hours 0x0032 071 071 000 Old_age Always - 21478 10 Spin_Retry_Count 0x0032 100 100 000 Old_age Always - 0 11 Calibration_Retry_Count 0x0032 100 100 000 Old_age Always - 0 12 Power_Cycle_Count 0x0032 100 100 000 Old_age Always - 235 192 Power-Off_Retract_Count 0x0032 200 200 000 Old_age Always - 75 193 Load_Cycle_Count 0x0032 195 195 000 Old_age Always - 16918 194 Temperature_Celsius 0x0022 127 095 000 Old_age Always - 25 196 Reallocated_Event_Count 0x0032 200 200 000 Old_age Always - 0 197 Current_Pending_Sector 0x0032 199 199 000 Old_age Always - 450 198 Offline_Uncorrectable 0x0030 200 200 000 Old_age Offline - 207 199 UDMA_CRC_Error_Count 0x0032 200 200 000 Old_age Always - 0 200 Multi_Zone_Error_Rate 0x0008 192 190 000 Old_age Offline - 1732 SMART Error Log Version: 1 No Errors Logged SMART Self-test log structure revision number 1 No self-tests have been logged. [To run self-tests, use: smartctl -t] SMART Selective self-test log data structure revision number 1 SPAN MIN_LBA MAX_LBA CURRENT_TEST_STATUS 1 0 0 Not_testing 2 0 0 Not_testing 3 0 0 Not_testing 4 0 0 Not_testing 5 0 0 Not_testing Selective self-test flags (0x0): After scanning selected spans, do NOT read-scan remainder of disk. If Selective self-test is pending on power-up, resume after 0 minute delay. Link to comment
Joe L. Posted March 7, 2013 Share Posted March 7, 2013 Do you mean run "initconfig" from the command console? That is the equivalent on the 4.7 release. Link to comment
rockytt Posted March 8, 2013 Author Share Posted March 8, 2013 thanks Joe - I think that did the trick. Popped in the original baby data drive, a new parity drive, reconfigured the array (initconfig) and am happily sitting at 63% with the new Parity-Sync. Once this finishes sometime tonight, I'll upgrade the little data drive, rebuild the data there and be a very happy camper Thanks again! Link to comment
