Hi all,



Sorry if there is a guide for this - please point me to it.



After a long time I have a drive with some errors on it.



It's a WD Green 5400 rpm 3Tb drive - says it has 56 errors - see attached.

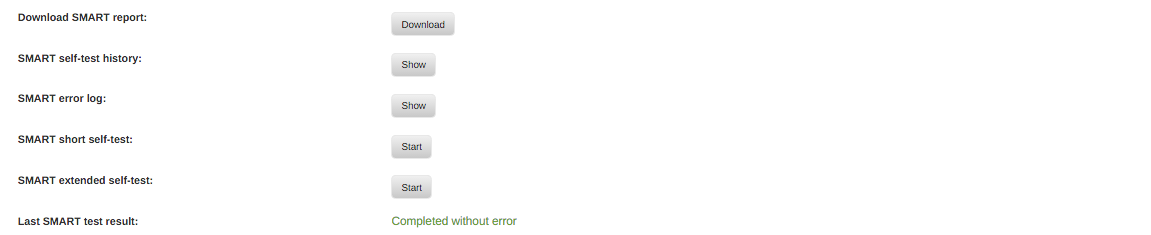

The SMART report says it passes. Report attached.



What do I need to do now to fix this.



Thank you.

WDC_WD30EZRX-00D8PB0_WD-WCC4N5HKE4S0-20160403-0904.txt

Perform a SMART Test, dont just view smart data. The smart test last ran on that drive at 2282 hours, but the drive has now been on for more than 4197 hours, which was over 80 days ago if you dont power cycle your system.



Also, typically when a user has errors it is customary to post a full Diagnostics file, if you're running version 6 or higher.

Thanks Brit. Extended SMART scan attached.

WDC_WD30EZRX-00D8PB0_WD-WCC4N5HKE4S0-20160403-1037.txt

Tried to attach diagnostic - says its too big...? file is ziped.



The syslog is large at 1.9Mb (uncompressed)



Majority of the entries seems to be:



Apr  2 01:40:19 XXXXXXX kernel: hid-generic 0003:0461:4E22.02DF: input,hidraw0: USB HID v1.11 Mouse [PixArt USB Optical Mouse] on usb-0000:00:14.0-13/input0

Apr  2 01:41:19 XXXXXXX kernel: usb 1-13: USB disconnect, device number 111

Apr  2 01:41:21 XXXXXXX kernel: usb 1-13: new low-speed USB device number 112 using xhci_hcd

Apr  2 01:41:21 XXXXXXX kernel: usb 1-13: ep 0x81 - rounding interval to 64 microframes, ep desc says 80 microframes

Apr  2 01:41:21 XXXXXXX kernel: input: PixArt USB Optical Mouse as /devices/pci0000:00/0000:00:14.0/usb1/1-13/1-13:1.0/0003:0461:4E22.02E0/input/input741





I did just upgrade the Motherboard + memory + cpu.





This bit from the syslog seems relevant



Apr  2 03:47:58 theoracle kernel: ata7.00: exception Emask 0x0 SAct 0x0 SErr 0x0 action 0x0

Apr  2 03:47:58 theoracle kernel: ata7.00: irq_stat 0x40000001

Apr  2 03:47:58 theoracle kernel: ata7.00: failed command: READ DMA EXT

Apr  2 03:47:58 theoracle kernel: ata7.00: cmd 25/00:40:e8:67:30/00:05:45:01:00/e0 tag 3 dma 688128 in

Apr  2 03:47:58 theoracle kernel:        res 51/40:bf:68:6b:30/00:01:45:01:00/e0 Emask 0x9 (media error)

Apr  2 03:47:58 theoracle kernel: ata7.00: status: { DRDY ERR }

Apr  2 03:47:58 theoracle kernel: ata7.00: error: { UNC }

Apr  2 03:47:58 theoracle kernel: ata7.00: configured for UDMA/133

Apr  2 03:47:58 theoracle kernel: sd 8:0:0:0: [sdh] tag#3 UNKNOWN(0x2003) Result: hostbyte=0x00 driverbyte=0x08

Apr  2 03:47:58 theoracle kernel: sd 8:0:0:0: [sdh] tag#3 Sense Key : 0x3 [current] [descriptor]

Apr  2 03:47:58 theoracle kernel: sd 8:0:0:0: [sdh] tag#3 ASC=0x11 ASCQ=0x4

Apr  2 03:47:58 theoracle kernel: sd 8:0:0:0: [sdh] tag#3 CDB: opcode=0x88 88 00 00 00 00 01 45 30 67 e8 00 00 05 40 00 00

Apr  2 03:47:58 theoracle kernel: blk_update_request: I/O error, dev sdh, sector 5455768424

Apr  2 03:47:58 theoracle kernel: ata7: EH complete

Apr  2 03:47:58 theoracle kernel: md: disk14 read error, sector=5455768360

Apr  2 03:47:58 theoracle kernel: md: disk14 read error, sector=5455768368

Apr  2 03:47:58 theoracle kernel: md: disk14 read error, sector=5455768376

Apr  2 03:47:58 theoracle kernel: md: disk14 read error, sector=5455768384

Apr  2 03:47:58 theoracle kernel: md: disk14 read error, sector=5455768392

Apr  2 03:47:58 theoracle kernel: md: disk14 read error, sector=5455768400

Apr  2 03:47:58 theoracle kernel: md: disk14 read error, sector=5455768408

Apr  2 03:47:58 theoracle kernel: md: disk14 read error, sector=5455768416

Apr  2 03:47:58 theoracle kernel: md: disk14 read error, sector=5455768424

Apr  2 03:47:58 theoracle kernel: md: disk14 read error, sector=5455768432

Apr  2 03:47:58 theoracle kernel: md: disk14 read error, sector=5455768440

Apr  2 03:47:58 theoracle kernel: md: disk14 read error, sector=5455768448

Apr  2 03:47:58 theoracle kernel: md: disk14 read error, sector=5455768456

Apr  2 03:47:58 theoracle kernel: md: disk14 read error, sector=5455768464

Apr  2 03:47:58 theoracle kernel: md: disk14 read error, sector=5455768472

Apr  2 03:47:58 theoracle kernel: md: disk14 read error, sector=5455768480

Apr  2 03:47:58 theoracle kernel: md: disk14 read error, sector=5455768488

Apr  2 03:47:58 theoracle kernel: md: disk14 read error, sector=5455768496

Apr  2 03:47:58 theoracle kernel: md: disk14 read error, sector=5455768504

Apr  2 03:47:58 theoracle kernel: md: disk14 read error, sector=5455768512

Apr  2 03:47:58 theoracle kernel: md: disk14 read error, sector=5455768520

Apr  2 03:47:58 theoracle kernel: md: disk14 read error, sector=5455768528

Apr  2 03:47:58 theoracle kernel: md: disk14 read error, sector=5455768536

Apr  2 03:47:58 theoracle kernel: md: disk14 read error, sector=5455768544

Apr  2 03:47:58 theoracle kernel: md: disk14 read error, sector=5455768552

Apr  2 03:47:58 theoracle kernel: md: disk14 read error, sector=5455768560

Apr  2 03:47:58 theoracle kernel: md: disk14 read error, sector=5455768568

Apr  2 03:47:58 theoracle kernel: md: disk14 read error, sector=5455768576

Apr  2 03:47:58 theoracle kernel: md: disk14 read error, sector=5455768584

Apr  2 03:47:58 theoracle kernel: md: disk14 read error, sector=5455768592

Apr  2 03:47:58 theoracle kernel: md: disk14 read error, sector=5455768600

Apr  2 03:47:58 theoracle kernel: md: disk14 read error, sector=5455768608

Apr  2 03:47:58 theoracle kernel: md: disk14 read error, sector=5455768616

Apr  2 03:47:58 theoracle kernel: md: disk14 read error, sector=5455768624

Apr  2 03:47:58 theoracle kernel: md: disk14 read error, sector=5455768632

Apr  2 03:47:58 theoracle kernel: md: disk14 read error, sector=5455768640

Apr  2 03:47:58 theoracle kernel: md: disk14 read error, sector=5455768648

Apr  2 03:47:58 theoracle kernel: md: disk14 read error, sector=5455768656

Apr  2 03:47:58 theoracle kernel: md: disk14 read error, sector=5455768664

Apr  2 03:47:58 theoracle kernel: md: disk14 read error, sector=5455768672

Apr  2 03:47:58 theoracle kernel: md: disk14 read error, sector=5455768680

Apr  2 03:47:58 theoracle kernel: md: disk14 read error, sector=5455768688

Apr  2 03:47:58 theoracle kernel: md: disk14 read error, sector=5455768696

Apr  2 03:47:58 theoracle kernel: md: disk14 read error, sector=5455768704

Apr  2 03:47:58 theoracle kernel: md: disk14 read error, sector=5455768712

Apr  2 03:47:58 theoracle kernel: md: disk14 read error, sector=5455768720

Apr  2 03:47:58 theoracle kernel: md: disk14 read error, sector=5455768728

Apr  2 03:47:58 theoracle kernel: md: disk14 read error, sector=5455768736

Apr  2 03:47:58 theoracle kernel: md: disk14 read error, sector=5455768744

Apr  2 03:47:58 theoracle kernel: md: disk14 read error, sector=5455768752

Apr  2 03:47:58 theoracle kernel: md: disk14 read error, sector=5455768760

Apr  2 03:47:58 theoracle kernel: md: disk14 read error, sector=5455768768

Apr  2 03:47:58 theoracle kernel: md: disk14 read error, sector=5455768776

Apr  2 03:47:58 theoracle kernel: md: disk14 read error, sector=5455768784

Apr  2 03:47:58 theoracle kernel: md: disk14 read error, sector=5455768792

Apr  2 03:47:58 theoracle kernel: md: disk14 read error, sector=5455768800

Apr  2 03:48:56 theoracle kernel: usb 1-13: USB disconnect, device number 110

Apr  2 03:48:57 theoracle kernel: usb 1-13: new low-speed USB device number 111 using xhci_hcd

Apr  2 03:48:57 theoracle kernel: usb 1-13: ep 0x81 - rounding interval to 64 microframes, ep desc says 80 microframes

Apr  2 03:48:57 theoracle kernel: input: PixArt USB Optical Mouse as /devices/pci0000:00/0000:00:14.0/usb1/1-13/1-13:1.0/0003:0461:4E22.035C/input/input865

Disk passed extended SMART test and looks healthy, check/replace cables and keep an eye on it.

Thanks  johnnie.black.



any idea what that USB error is about?

Not really, but it doesn't look serious, mouse disconnecting/losing connection?
