EVGA Geforce GTX 950 GPU Passthrough Issue

[mafoster]

Hi there,



First time poster and new to UNRAID.



I have installed a EVGA Geforce GTX 950 in my server and seem to have the Windows 10 server running but no display is showing up. Here is my setup:



- UNRAID 6.2 RC2 (had the same issue with 6.1.9)

- SuperMicro X11SAE-M which has all virtualization enabled to my knowledge and UNRAID

- Intel i5 6400 2.7GHZ

- 16GB ECC Kingston 2133mhz RAM

- EVGA Geforce GTX 950

- 1 x 256GB SSD

- 3x 3TB, 2x4TB Array

- 6TB parity

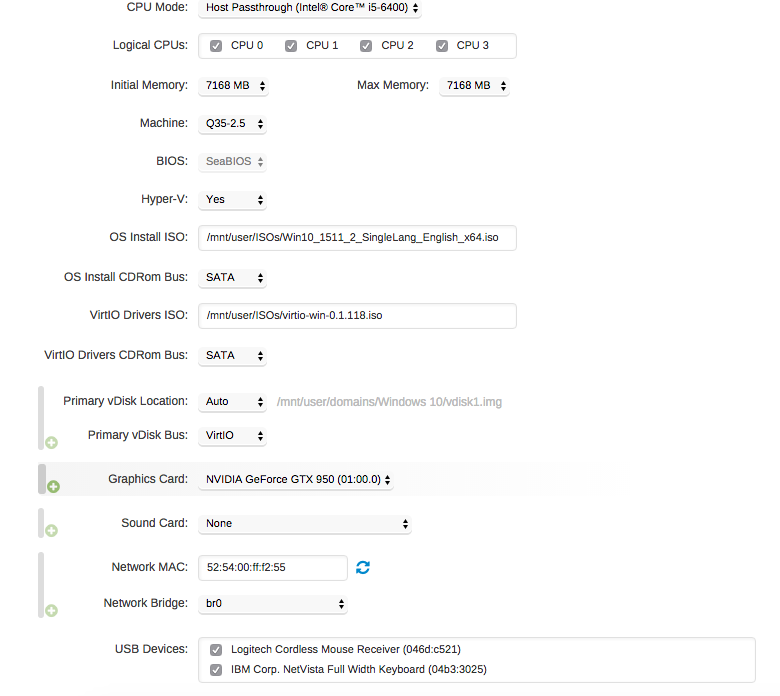

Attached is my current VM configuration. I have tried with both BIOS types and both Q35-2.5 and i440fx-1.4 and both do not work.



I hear the GPU starting up when I launch the VM and the screen goes from the typical prompt screen to full black.



Any help would be much appreciated. I am wondering if its the card that isn't compatible or if I am doing anything wrong.



Here is my XML:

<domain type='kvm' id='2'>

  <name>Windows 10</name>



  <metadata>

    <vmtemplate xmlns="unraid" name="Windows 10" icon="windows.png" os="windows10"/>

  </metadata>

  <memory unit='KiB'>7340032</memory>

  <currentMemory unit='KiB'>7340032</currentMemory>

  <memoryBacking>

    <nosharepages/>

    <locked/>

  </memoryBacking>

  <vcpu placement='static'>4</vcpu>

  <cputune>

    <vcpupin vcpu='0' cpuset='0'/>

    <vcpupin vcpu='1' cpuset='1'/>

    <vcpupin vcpu='2' cpuset='2'/>

    <vcpupin vcpu='3' cpuset='3'/>

  </cputune>

  <resource>

    <partition>/machine</partition>

  </resource>

  <os>

    <type arch='x86_64' machine='pc-q35-2.5'>hvm</type>

  </os>

  <features>

    <acpi/>

    <apic/>

    <hyperv>

      <relaxed state='on'/>

      <vapic state='on'/>

      <spinlocks state='on' retries='8191'/>

      <vendor id='none'/>

    </hyperv>

  </features>

  <cpu mode='host-passthrough'>

    <topology sockets='1' cores='4' threads='1'/>

  </cpu>

  <clock offset='localtime'>

    <timer name='hypervclock' present='yes'/>

    <timer name='hpet' present='no'/>

  </clock>

  <on_poweroff>destroy</on_poweroff>

  <on_reboot>restart</on_reboot>

  <on_crash>restart</on_crash>

  <devices>

    <emulator>/usr/local/sbin/qemu</emulator>

    <disk type='file' device='disk'>

      <driver name='qemu' type='raw' cache='writeback'/>

      <source file='/mnt/user/domains/Windows 10/vdisk1.img'/>

      <backingStore/>

      <target dev='hdc' bus='virtio'/>

      <boot order='1'/>

      <alias name='virtio-disk2'/>

      <address type='pci' domain='0x0000' bus='0x02' slot='0x03' function='0x0'/>

    </disk>

    <disk type='file' device='cdrom'>

      <driver name='qemu' type='raw'/>

      <source file='/mnt/user/ISOs/Win10_1511_2_SingleLang_English_x64.iso'/>

      <backingStore/>

      <target dev='hda' bus='sata'/>

      <readonly/>

      <boot order='2'/>

      <alias name='sata0-0-0'/>

      <address type='drive' controller='0' bus='0' target='0' unit='0'/>

    </disk>

    <disk type='file' device='cdrom'>

      <driver name='qemu' type='raw'/>

      <source file='/mnt/user/ISOs/virtio-win-0.1.118.iso'/>

      <backingStore/>

      <target dev='hdb' bus='sata'/>

      <readonly/>

      <alias name='sata0-0-1'/>

      <address type='drive' controller='0' bus='0' target='0' unit='1'/>

    </disk>

    <controller type='usb' index='0' model='nec-xhci'>

      <alias name='usb'/>

      <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x0'/>

    </controller>

    <controller type='sata' index='0'>

      <alias name='ide'/>

      <address type='pci' domain='0x0000' bus='0x00' slot='0x1f' function='0x2'/>

    </controller>

    <controller type='pci' index='0' model='pcie-root'>

      <alias name='pcie.0'/>

    </controller>

    <controller type='pci' index='1' model='dmi-to-pci-bridge'>

      <model name='i82801b11-bridge'/>

      <alias name='pci.1'/>

      <address type='pci' domain='0x0000' bus='0x00' slot='0x1e' function='0x0'/>

    </controller>

    <controller type='pci' index='2' model='pci-bridge'>

      <model name='pci-bridge'/>

      <target chassisNr='2'/>

      <alias name='pci.2'/>

      <address type='pci' domain='0x0000' bus='0x01' slot='0x01' function='0x0'/>

    </controller>

    <controller type='virtio-serial' index='0'>

      <alias name='virtio-serial0'/>

      <address type='pci' domain='0x0000' bus='0x02' slot='0x02' function='0x0'/>

    </controller>

    <interface type='bridge'>

      <mac address='52:54:00:ff:f2:55'/>

      <source bridge='br0'/>

      <target dev='vnet0'/>

      <model type='virtio'/>

      <alias name='net0'/>

      <address type='pci' domain='0x0000' bus='0x02' slot='0x01' function='0x0'/>

    </interface>

    <serial type='pty'>

      <source path='/dev/pts/0'/>

      <target port='0'/>

      <alias name='serial0'/>

    </serial>

    <console type='pty' tty='/dev/pts/0'>

      <source path='/dev/pts/0'/>

      <target type='serial' port='0'/>

      <alias name='serial0'/>

    </console>

    <channel type='unix'>

      <source mode='bind' path='/var/lib/libvirt/qemu/channel/target/domain-Windows 10/org.qemu.guest_agent.0'/>

      <target type='virtio' name='org.qemu.guest_agent.0' state='disconnected'/>

      <alias name='channel0'/>

      <address type='virtio-serial' controller='0' bus='0' port='1'/>

    </channel>

    <hostdev mode='subsystem' type='pci' managed='yes' xvga='yes'>

      <driver name='vfio'/>

      <source>

        <address domain='0x0000' bus='0x01' slot='0x00' function='0x0'/>

      </source>

      <alias name='hostdev0'/>

      <address type='pci' domain='0x0000' bus='0x02' slot='0x04' function='0x0'/>

    </hostdev>

    <hostdev mode='subsystem' type='usb' managed='no'>

      <source>

        <vendor id='0x046d'/>

        <product id='0xc521'/>

        <address bus='1' device='3'/>

      </source>

      <alias name='hostdev1'/>

    </hostdev>

    <hostdev mode='subsystem' type='usb' managed='no'>

      <source>

        <vendor id='0x04b3'/>

        <product id='0x3025'/>

        <address bus='1' device='4'/>

      </source>

      <alias name='hostdev2'/>

    </hostdev>

    <memballoon model='virtio'>

      <alias name='balloon0'/>

      <address type='pci' domain='0x0000' bus='0x02' slot='0x05' function='0x0'/>

    </memballoon>

  </devices>

</domain>

[saarg]

Set the onboard graphics to be default. That way unraid uses that GPU for the console and you are free to use the nvidia card.

[mafoster]

Thanks saarg. Do you mean set the onboard graphics to default on the BIOS settings of the motherboard or as the primary GPU and NVIDIA as secondary in the VM settings?





Sent from my iPhone using Tapatalk

[saarg]

Thanks saarg. Do you mean set the onboard graphics to default on the BIOS settings of the motherboard or as the primary GPU and NVIDIA as secondary in the VM settings?





Sent from my iPhone using Tapatalk

In the BIOS

[mafoster]

Thanks Saarg. You were right, that worked. I had to not only turn on the Intel Graphics but also set it to default vs 'auto' which seemed to make the PCIe card be the default.



I now have a who new set of problems but that's for another thread.



solved thanks.
