December 22, 20169 yr Hello Everybody, im new to this community and wants to start working with unraid but i can´t passthrough my Intel GPU to the VM. Every Time im trying zu start the vm this Error Message comes out. internal error: qemu unexpectedly closed the monitor: qemu-system-x86_64: hw/pci/pcie.c:686: pcie_add_capability: Assertion `prev >= PCI_CONFIG_SPACE_SIZE' failed. I have passthrough the cpu and display / sound from mainboard to the vm. Choosen Q35-2.7 as Maschine and selected SeaBios. (tried with i440fx-2.7 lets start the vm but no picture on the hdmi Signal, only unraid shell ) So i have read, that Q35-2.7 has to be choosen to get the screen on hdmi, but here i got the above error message I have the ASROCK j4205-ITX with Apollo Lake CPU. The Maschine would be used mainly for Kodi and by the way for smb ftp and other stuff.... My Bios is 1.10b ( got it from support for vt-d support enabled ) because the 1.10 don´t have this option. Here are my System Informations: Model: Custom M/B: ASRock - J4205-ITX CPU: Intel® Pentium® CPU J4205 @ 1.50GHz HVM: Enabled IOMMU: Enabled Cache: 224 kB, 2048 kB Memory: 16 GB (max. installable capacity 16 GB) Network: bond0: fault-tolerance (active-backup), mtu 1500 eth0: 1000 Mb/s, full duplex, mtu 1500 Kernel: Linux 4.8.12-unRAID x86_64 OpenSSL: 1.0.2j UNRAID VERSION: 6.3.0-rc6 i can´t load the LOG PAGE, it loads all the time and shows me only a blank screen. So i heard about unraid and wants to start with it. I hope anyone can help me to get working on this board and software. I like the feeling like VMware ESX and the possibility for a lot of things. And excuse my englisch, please. Not my Main Language at all Best Regards
January 17, 20179 yr I have the same board and about to try a NAS + Kodi VM build, did you test bios 1.20? Came out 6 days ago -> http://www.asrock.com/mb/Intel/J4205-ITX/index.us.asp?cat=Download&os=BIOS Alternatively you can try a device like this to get an HDMI output from the VGA: https://lime-technology.com/forum/index.php?topic=54124.msg517927
January 22, 20179 yr I have the same issue. Same board, same unraid version. MB bios is 1.20, which is the most recent officially released version.
January 23, 20179 yr I can confirm it happens to me as well, same board and bios 1.20, shame as it is an awesome board for the rest, I added a PCI-e x1 Marvell card for another 4 SATA ports, total of 8 SATA3, it's new hardware and doesn't boot on any kernel < 4.5 (incredibly slow and impossible to take boot on unRAID 6.2 as kernel is 4.4), I'm sure support will get better. Note: bios 1.20 has the option for VT-D so no need to use a special rom.
January 27, 20179 yr Does anyone from Limitech know if there are known issues with Apollo Lake SoC? This was originally open as a defect and I think it should have stayed as that. libvirtd.log 2017-01-27 15:52:53.170+0000: 21493: error : qemuMonitorIORead:586 : Unable to read from monitor: Connection reset by peer 2017-01-27 15:52:53.171+0000: 21493: error : qemuProcessReportLogError:1809 : internal error: qemu unexpectedly closed the monitor: qemu-system-x86_64: hw/pci/pcie.c:686: pcie_add_capability: Assertion `prev >= PCI_CONFIG_SPACE_SIZE' failed. 2017-01-27 15:52:53.372+0000: 21498: error : qemuProcessReportLogError:1809 : internal error: process exited while connecting to monitor: qemu-system-x86_64: hw/pci/pcie.c:686: pcie_add_capability: Assertion `prev >= PCI_CONFIG_SPACE_SIZE' failed. qemy LibreELEC.log 2017-01-27 15:52:51.612+0000: starting up libvirt version: 2.4.0, qemu version: 2.7.0, hostname: Mammuth LC_ALL=C PATH=/bin:/sbin:/usr/bin:/usr/sbin HOME=/ QEMU_AUDIO_DRV=none /usr/local/sbin/qemu -name guest=LibreELEC,debug-threads=on -S -object secret,id=masterKey0,format=raw,file=/var/lib/libvirt/qemu/domain-2-LibreELEC/master-key.aes -machine pc-q35-2.7,accel=kvm,usb=off,dump-guest-core=off,mem-merge=off -drive file=/usr/share/qemu/ovmf-x64/OVMF_CODE-pure-efi.fd,if=pflash,format=raw,unit=0,readonly=on -drive file=/etc/libvirt/qemu/nvram/27238c84-c8d3-39c1-a1c3-68f6677077ce_VARS-pure-efi.fd,if=pflash,format=raw,unit=1 -m 1024 -realtime mlock=off -smp 2,sockets=1,cores=2,threads=1 -uuid 27238c84-c8d3-39c1-a1c3-68f6677077ce -display none -no-user-config -nodefaults -chardev socket,id=charmonitor,path=/var/lib/libvirt/qemu/domain-2-LibreELEC/monitor.sock,server,nowait -mon chardev=charmonitor,id=monitor,mode=control -rtc base=utc,driftfix=slew -global kvm-pit.lost_tick_policy=discard -no-hpet -no-shutdown -boot strict=on -device i82801b11-bridge,id=pci.1,bus=pcie.0,addr=0x1e -device pci-bridge,chassis_nr=2,id=pci.2,bus=pci.1,addr=0x0 -device ich9-usb-ehci1,id=usb,bus=pcie.0,addr=0x7.0x7 -device ich9-usb-uhci1,masterbus=usb.0,firstport=0,bus=pcie.0,multifunction=on,addr=0x7 -device ich9-usb-uhci2,masterbus=usb.0,firstport=2,bus=pcie.0,addr=0x7.0x1 -device ich9-usb-uhci3,masterbus=usb.0,firstport=4,bus=pcie.0,addr=0x7.0x2 -device virtio-serial-pci,id=virtio-serial0,bus=pci.2,addr=0x3 -drive file=/mnt/user/domains/LibreELEC/LibreELEC-unRAID.x86_64-7.0.1_1.img,format=raw,if=none,id=drive-virtio-disk2,readonly=on,cache=writeback -device virtio-blk-pci,scsi=off,bus=pci.2,addr=0x4,drive=drive-virtio-disk2,id=virtio-disk2,bootindex=1 -fsdev local,security_model=passthrough,id=fsdev-fs0,path=/mnt/user/appdata/LibreELEC/ -device virtio-9p-pci,id=fs0,fsdev=fsdev-fs0,mount_tag=appconfig,bus=pci.2,addr=0x1 -netdev tap,fd=24,id=hostnet0,vhost=on,vhostfd=27 -device virtio-net-pci,netdev=hostnet0,id=net0,mac=52:54:00:ee:0d:53,bus=pci.2,addr=0x2 -chardev pty,id=charserial0 -device isa-serial,chardev=charserial0,id=serial0 -chardev socket,id=charchannel0,path=/var/lib/libvirt/qemu/channel/target/domain-2-LibreELEC/org.qemu.guest_agent.0,server,nowait -device virtserialport,bus=virtio-serial0.0,nr=1,chardev=charchannel0,id=channel0,name=org.qemu.guest_agent.0 -device vfio-pci,host=00:02.0,id=hostdev0,bus=pcie.0,addr=0x2 -device vfio-pci,host=00:0e.0,id=hostdev1,bus=pci.2,addr=0x5 -device virtio-balloon-pci,id=balloon0,bus=pci.2,addr=0x6 -msg timestamp=on Domain id=2 is tainted: high-privileges char device redirected to /dev/pts/1 (label charserial0) qemu-system-x86_64: hw/pci/pcie.c:686: pcie_add_capability: Assertion `prev >= PCI_CONFIG_SPACE_SIZE' failed. 2017-01-27 15:52:53.372+0000: shutting down, reason=failed
January 28, 20179 yr Just want to make sure each of you are familiar with IGD Device Assignment to VMs? This still feels somewhat experimental to me, with only limited eligible hardware choices yet. Probably best to post there about your successes and failures.
February 12, 20179 yr did someone tried the new 6.3.1 version? Version 6.3.1 2017-02-08 ------------------------ Base distro: - apcupsd: version 3.14.14 (rev2 -- added modbus usb support) - gd: version 2.2.4 (CVE-2016-9317, CVE-2016-6912) - libusb-compat: version 0.1.5 - qemu: version 2.7.1 - samba: version 4.5.5 Linux kernel: - version 4.9.8

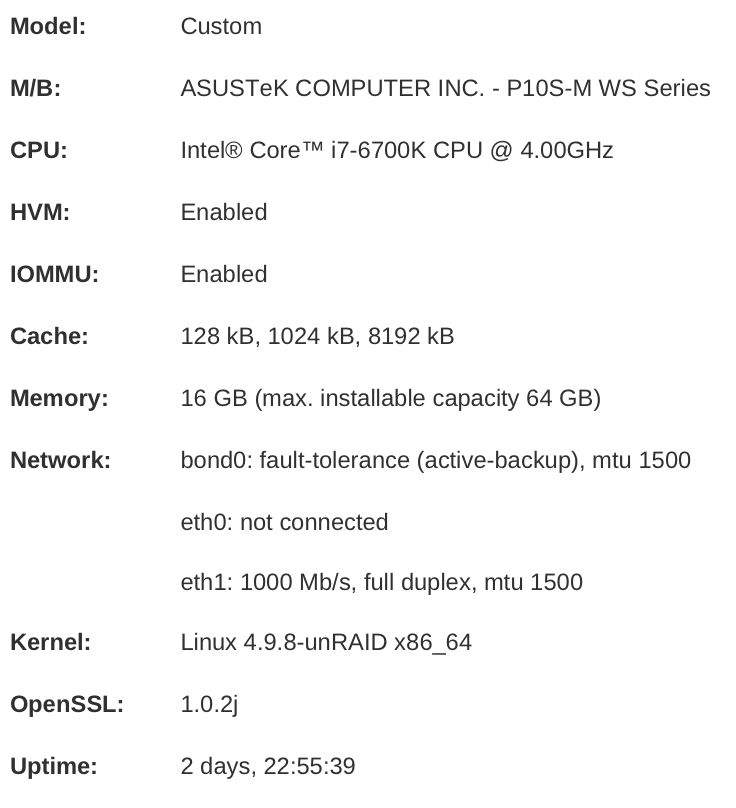

February 12, 20179 yr Just tried with 6.3.1 with SeaBIOS and i440fx Same error. Trying to setup a vanilla LibreELEC from the LT VM section... Specs on attachment.
February 28, 20179 yr I did get it to boot. Seems it was whenever I choose the integrated sound card ("Intel Sunrise Point-H HD Audio") it wouldn't boot. Choosing no sound card lets it boot fine. Maybe the integrated sound card and video are in the separate groups? Edited February 28, 20179 yr by drzaph
March 1, 20179 yr Ur trying libreELEC right? Just curios - so now its only working without sound? Even if i get it working - i would be able to use HDMI out for Video and Audio 5.1 sound system (via reciever) ? Cos my former plan was to have NAS,KODI,VM machine in 1 device
March 9, 20179 yr my system: ASRock - J4205-ITX + 16GB Ram unRAID 6.3.2 Tried OpenElec 6.0.3 but soon as i pick integrated GK (Intel Corporation Celeron N3350/Pentium N4200/Atom E3900 Series Integrated Graphics Controller (rev 0b)) instead of VNC - it freezes the whole NAS/OS and i have to reboot the whole system manually. Tried to: Create OpenElec 7.0.1 VM with GK - freezes right away (hard reset) switch " Enable PCIe ACS Override: " yes/no no difference --- LibreElec test was the same, soon aj i put IGK intead of VNC, it freezes and need to do hard reset Tried Machine: i440fx and Q35 2.7 as well BIOS: OVFM, SeaBios After the reboot it also disable whole VMs menu - so i need to enable it again When its gonna be fixed? I was planing to purchase it, but the 2nd main function - Media Center is not working Its been ongoing issue since november/december and not fixed yet! Aru you guys in Limetech doing something about it? Thanks
March 15, 20179 yr update: Now seems that im able to run LibreElec - but never goes into Kodi it self, just showing loadig , starting in text mode and then it loops in controller screen information each 30s OpenElec - shows just black screen unraidtower-diagnostics-20170315-2313.zip
March 16, 20179 yr 21 hours ago, killeriq said: update: Now seems that im able to run LibreElec - but never goes into Kodi it self, just showing loadig , starting in text mode and then it loops in controller screen information each 30s OpenElec - shows just black screen unraidtower-diagnostics-20170315-2313.zip In reviewing your diagnostics, there are a few events which jump out at me: Mar 15 23:10:40 unRAIDTower kernel: vfio_cap_init: 0000:00:0e.0 pci config conflict @0x80, was cap 0x9 now cap 0x10 Mar 15 23:10:40 unRAIDTower kernel: vfio_cap_init: 0000:00:0e.0 pci config conflict @0x81, was cap 0x9 now cap 0x10 Mar 15 23:10:40 unRAIDTower kernel: vfio_cap_init: 0000:00:0e.0 pci config conflict @0x82, was cap 0x9 now cap 0x10 Mar 15 23:10:40 unRAIDTower kernel: vfio_cap_init: 0000:00:0e.0 pci config conflict @0x83, was cap 0x9 now cap 0x10 Mar 15 23:11:18 unRAIDTower kernel: DMAR: DRHD: handling fault status reg 2 Mar 15 23:11:18 unRAIDTower kernel: DMAR: [DMA Write] Request device [00:02.0] fault addr 0 [fault reason 02] Present bit in context entry is clear These messages show up after starting your VM. I don't see these messages on my test system, though we don't have the same hardware as you. I think the issue here is that something is funky with that hardware platform that doesn't make it work correctly with IGD assignment. I'm curious if regular assignment of other PCI devices (such as a discrete GPU, USB controller, or otherwise) have the same issue on your system or if its only the IGD device exhibiting this abnormal behavior. I'm going to send the diagnostics you provided to a contact on the VFIO project (Alex Williamson) but chances are this either will require a BIOS update from the vendor or a code change in the software / kernel. This won't be a quick fix.
March 16, 20179 yr Thanks for update! Do u need to try and supply anything from my side? Or do i need to request some specific Bios update from ASrock? Thanks
March 20, 20179 yr To be perfectly honest, we have no idea. The issue is that there are very few users of that particular motherboard in combination with the features you want to leverage. I would doubt even ASRock had ever tested the use of IGD assignment with that motherboard. You could definitely contact ASRock and make mention of what you are trying to do and the problems you are facing, but I have a feeling they will push back and just blame the software (not unRAID OS specifically, but KVM/QEMU). The only thing I needed from you was your diagnostics which contains all the log events necessary.
March 21, 20179 yr hmm...great so i just got a new ITX useless piece of HW - which cant be used in the way i wanted. It can be only as NAS and VMs and Kodi only as VNC so no HDMI output or sound. What are my options? 1. wait for fix 2. get some additional graphic card - please suggest which one 3. get different ITX board - please suggest which one 4. get Qnap which just work - they use some Celeron j3060
March 22, 20179 yr 20 hours ago, killeriq said: hmm...great so i just got a new ITX useless piece of HW - which cant be used in the way i wanted. It can be only as NAS and VMs and Kodi only as VNC so no HDMI output or sound. What are my options? 1. wait for fix 2. get some additional graphic card - please suggest which one 3. get different ITX board - please suggest which one 4. get Qnap which just work - they use some Celeron j3060 We have a list of tested hardware here: http://lime-technology.com/wiki/index.php/UnRAID_6/Overview#Lime_Technology_Tested_Components You can also search the forums for other posts from folks using virtualization and GPU pass through for recommendations, but I think it'd be bad for us to make recommendations for hardware we haven't personally tested ourselves. There is also this community maintained spreadsheet of tested configurations that applies to QEMU/KVM/VFIO in general: https://docs.google.com/spreadsheets/d/1LnGpTrXalwGVNy0PWJDURhyxa3sgqkGXmvNCIvIMenk/edit#gid=0 In general, building a custom unRAID system can go one of two ways: you can go with recommendations from us and our community which are very likely to work or you can go off of hardware spec sheets and DIY the entire project. If you go with the latter, you always run the risk of being the first to jump in the water to test a new combination of hardware and software features, and thus be left out in the wind for a bit while issues get stamped out. In those scenarios, you have to do exactly what you did: create a post in the forum and include your diagnostics so we can get more information. From here, it's the waiting game. We rely on upstream projects like KVM/QEMU/VFIO to resolve these types of issues because the issues originate from their projects. If you were having a storage issue with your drives or controllers, we'd be able to do a lot more directly because we maintain that ourselves.
