January 17, 20188 yr Hi I found an original cable and connected "APC Back-UPS Pro 1200" to a free USB port. lsusb does not show anything What is wrong here? - cable? - UPS? - something I didn't connect properly? I tried few other ports.. Edited January 23, 20188 yr by michael123
January 17, 20188 yr Author I connected the cable to my windows laptop, and APC's original PowerChute does not see the UPS either Bad cable?
January 17, 20188 yr Author How can I be sure that the following model will work with unRaid? APC Smart-UPS 1500VA SMT1500I
January 18, 20188 yr 18 hours ago, michael123 said: How can I be sure that the following model will work with unRaid? APC Smart-UPS 1500VA SMT1500I That depends on what you mean with will work with unRAID. The Smart-UPS can communicate with unRaid allowing unRaid to know when it's good to turn off. The Smart in the name is because it got a smart interface to inform servers about the current state. It will be the size of your machine that decides if 1500VA is enough, but 1500VA is normally enough for a very powerful server.
January 18, 20188 yr Author Hi Sorry for the 'extra large' size, used my phone previously I want UPS to report about its runtime, battery level, so that, say, if it is running more than 20 minutes on the batteries, it will initiate a graceful shutdown of the array Better if it can run more than 20 minutes Sometimes during the day we have constriction works in the area and there are days with extreme electricity interruptions Regarding my current 'Back-UPS Pro' - I will check if the cable is to blame.. Given that it is get resolved How different is Back-UPS Pro from Smart-UPS in this regard?
January 18, 20188 yr 6 minutes ago, michael123 said: Better if it can run more than 20 minutes Sometimes during the day we have constriction works in the area and there are days with extreme electricity interruptions Ideally you don't want to regularly run lead acid batteries below 50% or so, the less you discharge the longer the life. The time to recharge after an outage can be 10X or much more of the outage time, so you really don't want to drain them far at all in case you have more outages in a short period. The last thing you want is to boot the server back up only to get another outage that completely drains the batteries before you can get it safely shut down. If you NEED 1/ 2 hour of power regularly, I'd spec a backup that will comfortably supply at LEAST 1 hour of power, preferably 2. Depending on load, that may be a very large unit, or one with stackable battery modules. Personally, if the power is out for more than 5 minutes, it's going to be out for hours, so all my equipment starts the shutdown cycle at the 3-5 minute mark, depending on if it's a desktop or a server. The infrastructure (modem, pfsense pc, switches, wifi, etc) are all on low current long life backups, so they stay up for more than an hour for phones, tablets and laptops.
May 17, 20215 yr @michael123 would you mind sharing your settings for how you got this setup? I've tried several with minimal luck. I was able to get charge and runtime left to display but nothing else. Thanks in advance for your help!
May 18, 20215 yr Author in my case, I just replaced the cable few times (previous, were also working with other devices for some reasons) this is what I have displayed now in the dashboard POWER UPS Load: 23.0 % - 165 Watts UPS status:Online Battery charge:100.0 Percent Runtime left:21.2 Minutes Nominal power:720 Watts

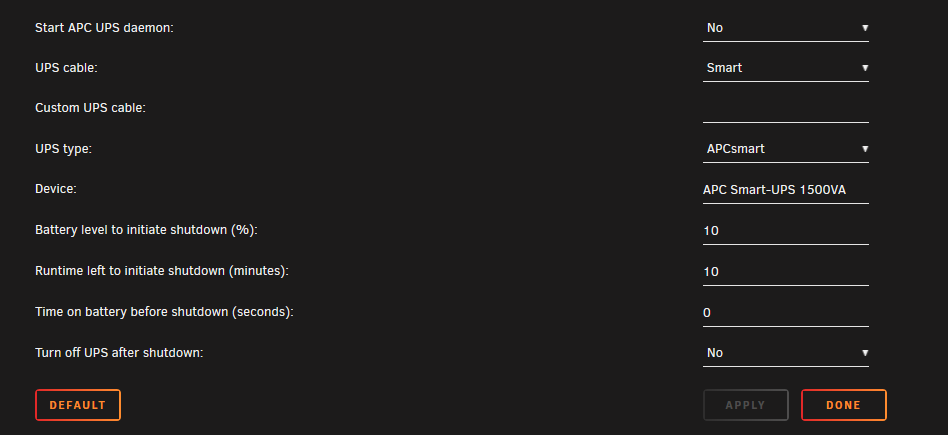

May 18, 20215 yr 11 hours ago, michael123 said: in my case, I just replaced the cable few times (previous, were also working with other devices for some reasons) this is what I have displayed now in the dashboard POWER UPS Load: 23.0 % - 165 Watts UPS status:Online Battery charge:100.0 Percent Runtime left:21.2 Minutes Nominal power:720 Watts Thanks for sharing! Would you mind sharing the settings you have for the UPS and did you make any changes to the UPS settings or keep them at default?
