Hello first of all thank you so much for making this great software so far i been loving it.  But im running into a major issue with getting lots of errors.  I have the server running off a HBA card to a disk shelf ds4243.  The only error i see is that drive 10 isn't spinning down properly.  I have replaced 90% of the hardware and the only things getting carried over is the sas cable, raid card and drives.  please please need some help!!!





tower-diagnostics-20180404-2228.zip

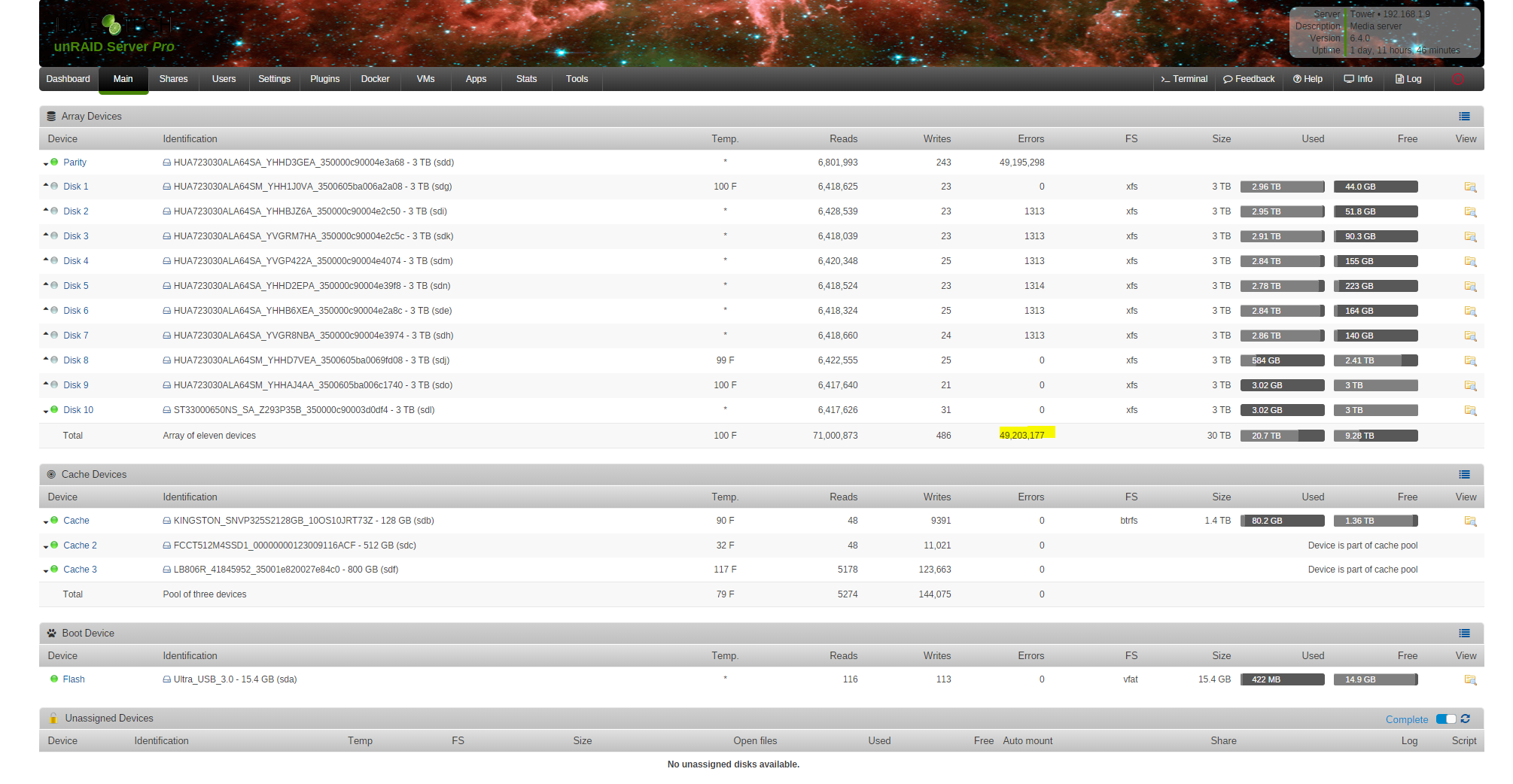

I see huge numbers of read errors caused by most of your disks dropping off line. Most of the SMART reports are missing so it isn't possible to know if there are disk problems. I guess the first thing to check is the cabling between the controller and the box of disks - one of the few things you say you haven't replaced.

thank you for the quick response.  I wonder if the transposers convert sata to sas is causing the smart to not be passed through.

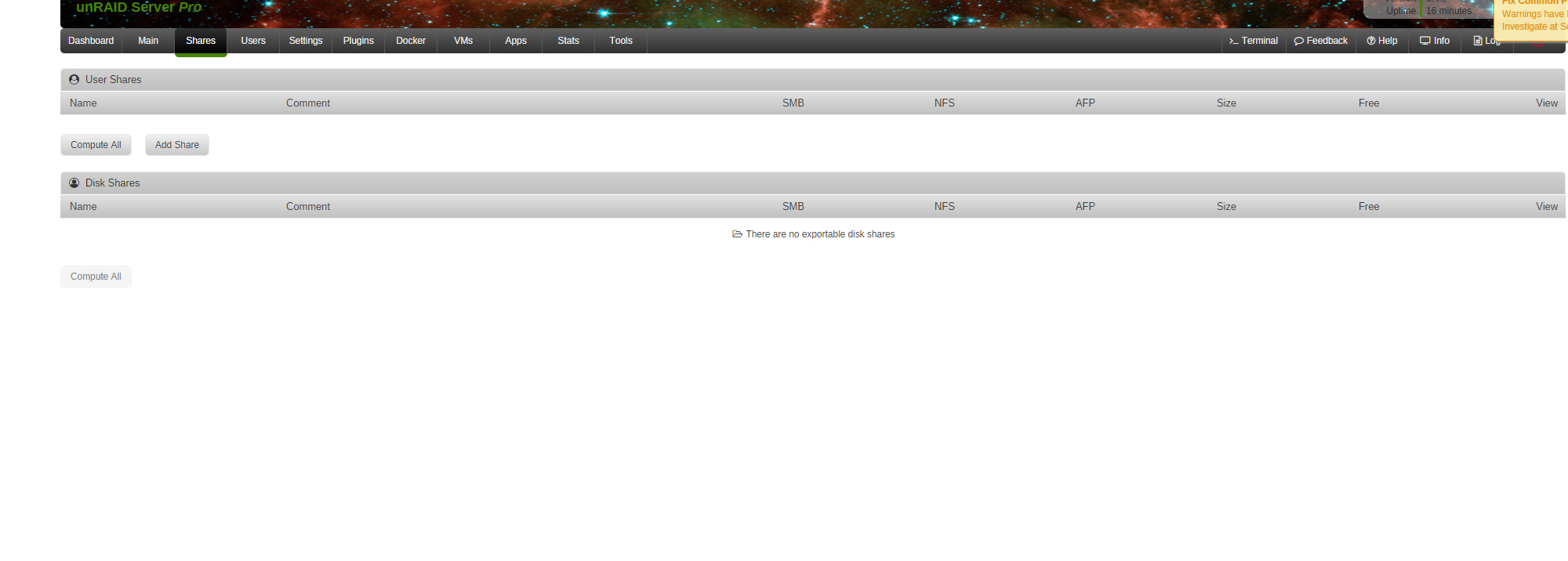

i replaced the qsfp sas cable now the parity check is going.  but i can't see any of the shares now.  Any way to recover them? thank you

You need to post new diagnostics. You said you've replaced most of the hardware - was that in order to upgrade or to try to fix this problem?

The one attached was after replacing most of the hardware to try and isolate the problem. Here is one after the cable replacement.

tower-diagnostics-20180405-2009.zip

replacing the cable didn't change i still get write errors....  Can i move the drives to a new pc will the shares move over?



here are some new errors im getting.

Apr 6 19:21:33 Tower kernel: print_req_error: I/O error, dev sdh, sector 4505524312
Apr 6 19:21:33 Tower kernel: md: disk3 read error, sector=4505524248
Apr 6 19:21:33 Tower kernel: md: disk4 read error, sector=4505524248
Apr 6 19:21:33 Tower kernel: md: disk5 read error, sector=4505524248
Apr 6 19:21:33 Tower kernel: md: disk6 read error, sector=4505524248
Apr 6 19:21:33 Tower kernel: md: disk7 read error, sector=4505524248
Apr 6 19:21:33 Tower kernel: md: disk0 read error, sector=4505524248
Apr 6 19:21:33 Tower kernel: XFS (md2): metadata I/O error: block 0x10c8cd818 ("xfs_trans_read_buf_map") error 5 numblks 8
Apr 6 19:21:38 Tower shfs: error: shfs_rmdir, 1537: Input/output error (5): lookup: Games/pc games/Wolfenstein II [FitGirl Repack]
Apr 6 19:21:40 Tower kernel: XFS (md5): metadata I/O error: block 0xc4a10 ("xfs_trans_read_buf_map") error 5 numblks 8
Apr 6 19:21:40 Tower kernel: XFS (md5): metadata I/O error: block 0x5837d9a0 ("xfs_trans_read_buf_map") error 5 numblks 8
Apr 6 19:21:40 Tower kernel: XFS (md5): metadata I/O error: block 0xaf912568 ("xfs_trans_read_buf_map") error 5 numblks 8
Apr 6 19:21:50 Tower kernel: XFS (md5): metadata I/O error: block 0xc4a10 ("xfs_trans_read_buf_map") error 5 numblks 8
Apr 6 19:21:50 Tower kernel: XFS (md5): metadata I/O error: block 0x5837d9a0 ("xfs_trans_read_buf_map") error 5 numblks 8
Apr 6 19:21:50 Tower kernel: XFS (md5): metadata I/O error: block 0xaf912568 ("xfs_trans_read_buf_map") error 5 numblks 8
Apr 6 19:22:00 Tower kernel: XFS (md5): metadata I/O error: block 0xc4a10 ("xfs_trans_read_buf_map") error 5 numblks 8
Apr 6 19:22:00 Tower kernel: XFS (md5): metadata I/O error: block 0x5837d9a0 ("xfs_trans_read_buf_map") error 5 numblks 8
Apr 6 19:22:00 Tower kernel: XFS (md5): metadata I/O error: block 0xaf912568 ("xfs_trans_read_buf_map") error 5 numblks 8
Apr 6 19:22:10 Tower kernel: XFS (md5): metadata I/O error: block 0xc4a10 ("xfs_trans_read_buf_map") error 5 numblks 8
Apr 6 19:22:10 Tower kernel: XFS (md5): metadata I/O error: block 0x5837d9a0 ("xfs_trans_read_buf_map") error 5 numblks 8
Apr 6 19:22:10 Tower kernel: XFS (md5): metadata I/O error: block 0xaf912568 ("xfs_trans_read_buf_map") error 5 numblks 8
Apr 6 19:22:20 Tower kernel: XFS (md5): metadata I/O error: block 0xc4a10 ("xfs_trans_read_buf_map") error 5 numblks 8
Apr 6 19:22:20 Tower kernel: XFS (md5): metadata I/O error: block 0x5837d9a0 ("xfs_trans_read_buf_map") error 5 numblks 8
Apr 6 19:22:20 Tower kernel: XFS (md5): metadata I/O error: block 0xaf912568 ("xfs_trans_read_buf_map") error 5 numblks 8
Apr 6 19:22:30 Tower kernel: XFS (md5): metadata I/O error: block 0xc4a10 ("xfs_trans_read_buf_map") error 5 numblks 8
Apr 6 19:22:30 Tower kernel: XFS (md5): metadata I/O error: block 0x5837d9a0 ("xfs_trans_read_buf_map") error 5 numblks 8
Apr 6 19:22:30 Tower kernel: XFS (md5): metadata I/O error: block 0xaf912568 ("xfs_trans_read_buf_map") error 5 numblks 8

tower-diagnostics-20180406-1924.zip

4 hours ago, akia said:

Can i move the drives to a new pc will the shares move over?

Yes.



There's some problem with the HBA, cables or the disk shelf itself since only those disks are affected, you need to try and start ruling things out.

ok so i have replaced every piece of hardware and stil getting errors.  could my xfs system be corrupted?



10 minutes ago, akia said:

ok so i have replaced every piece of hardware and stil getting errors.  could my xfs system be corrupted?



The errors you are getting are hardware errors, not filesystem errors. And your first screenshot had most of the errors on parity, which doesn't even have a filesystem. It is certainly possible that your hardware errors could cause corruption, but there is nothing to do about that until you fix the hardware problems.
