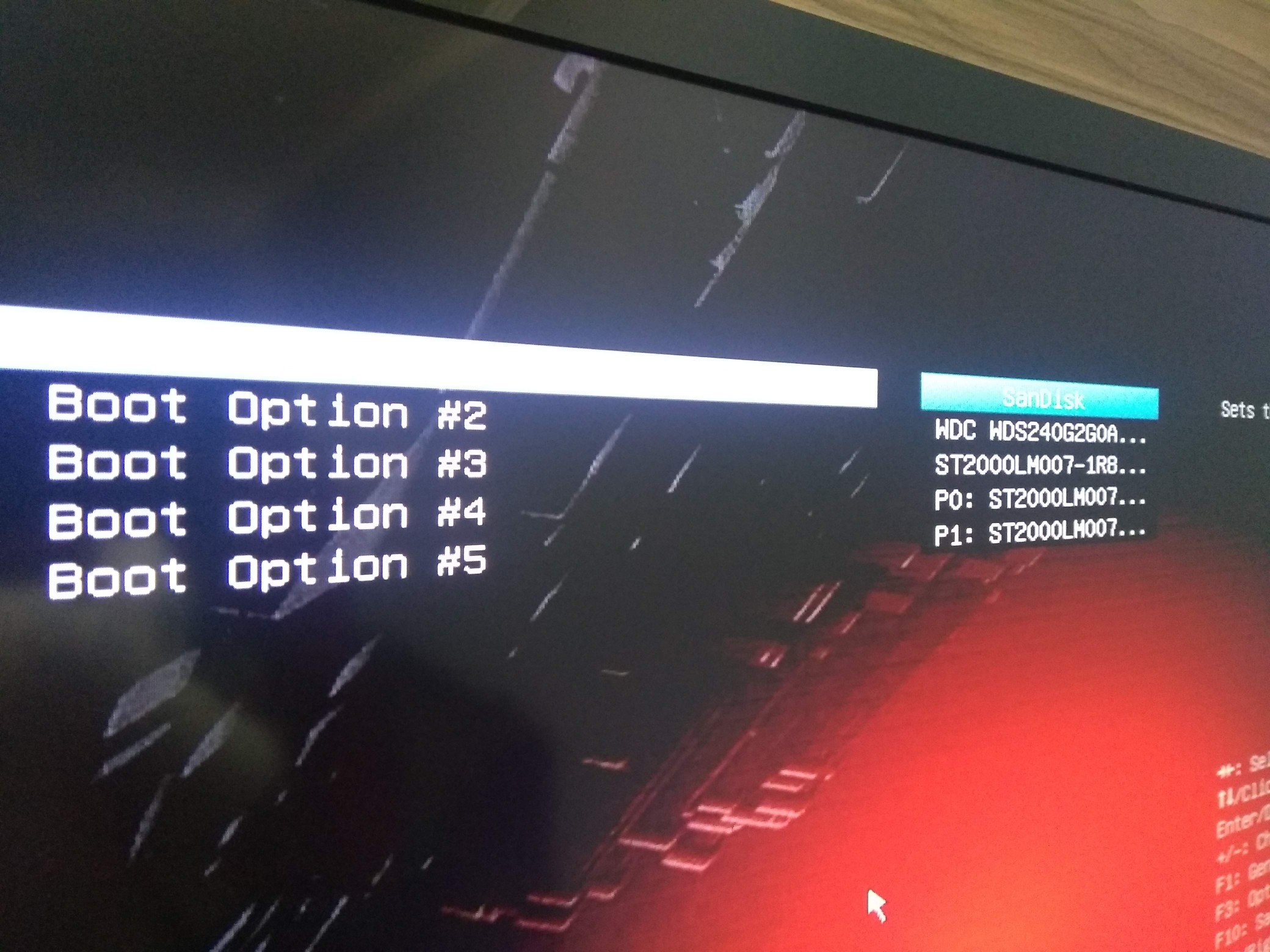

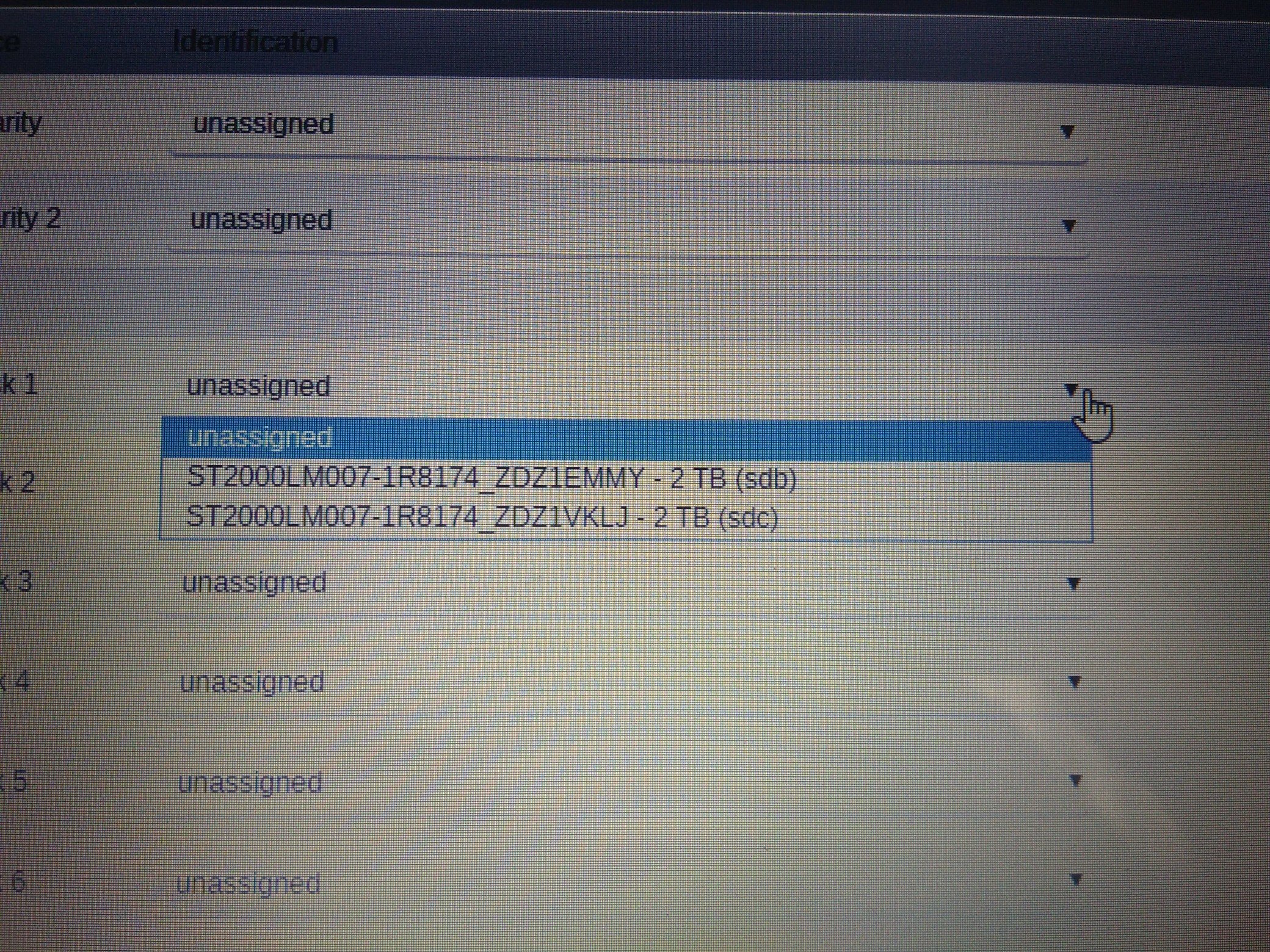

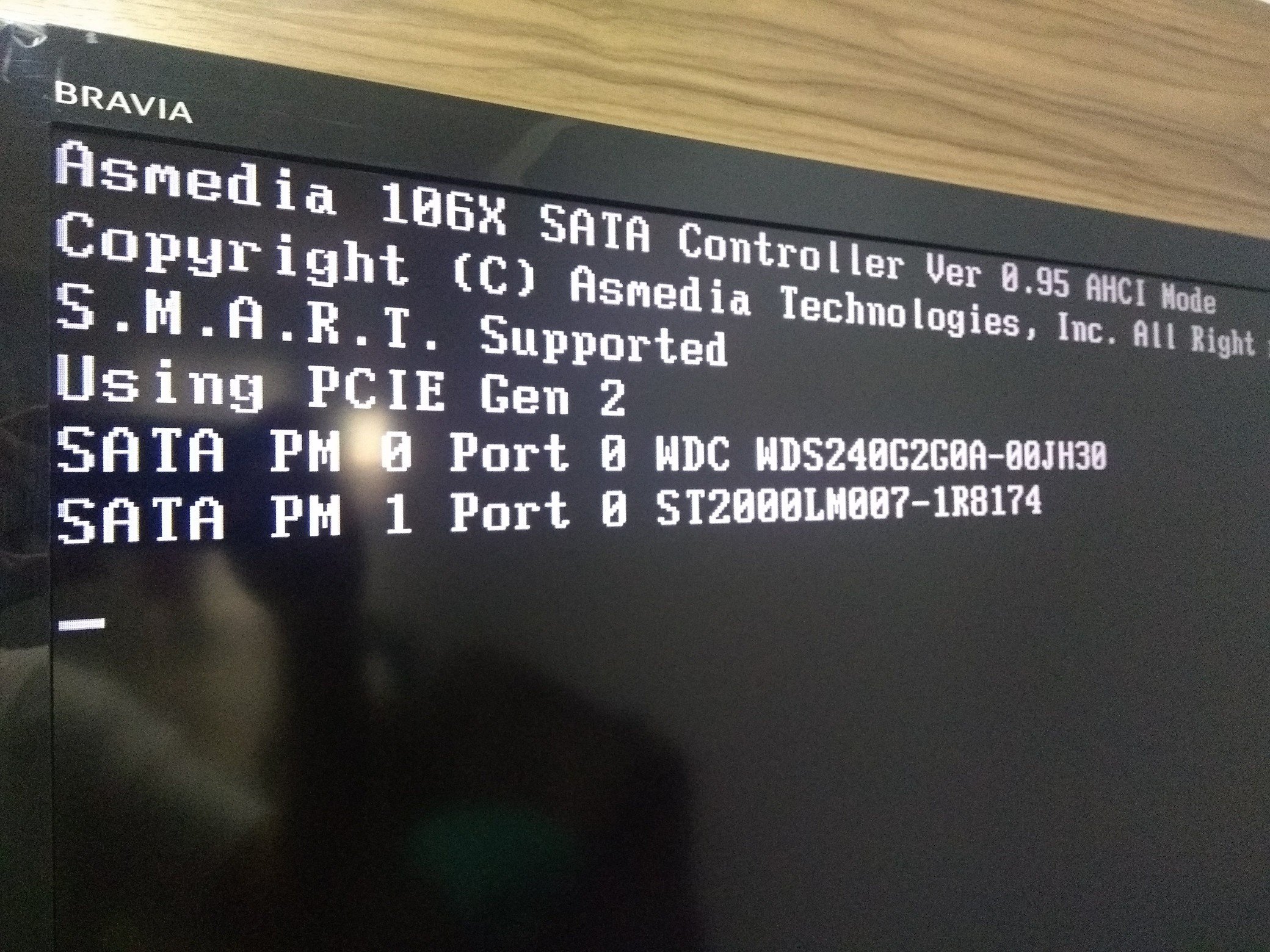

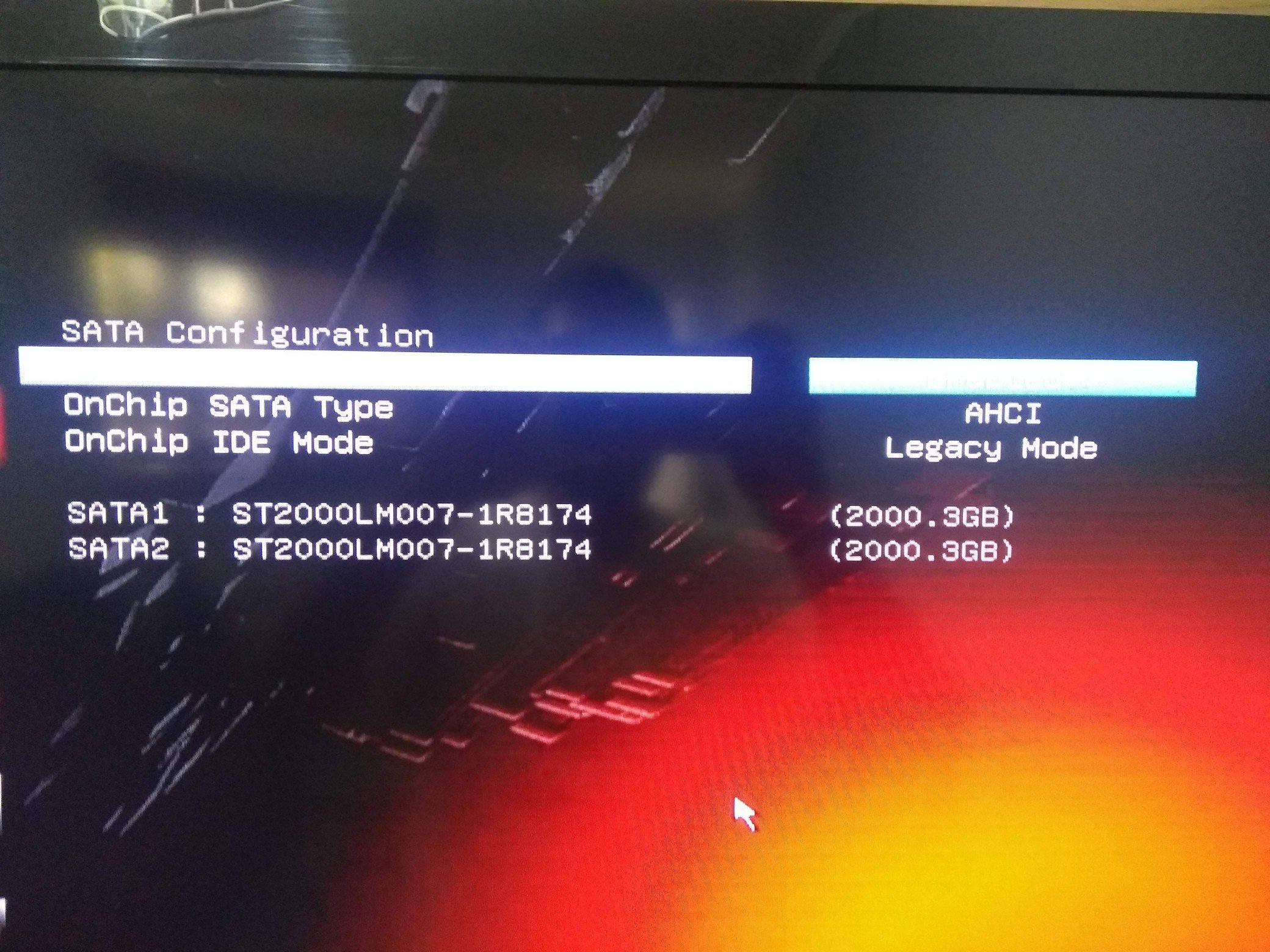

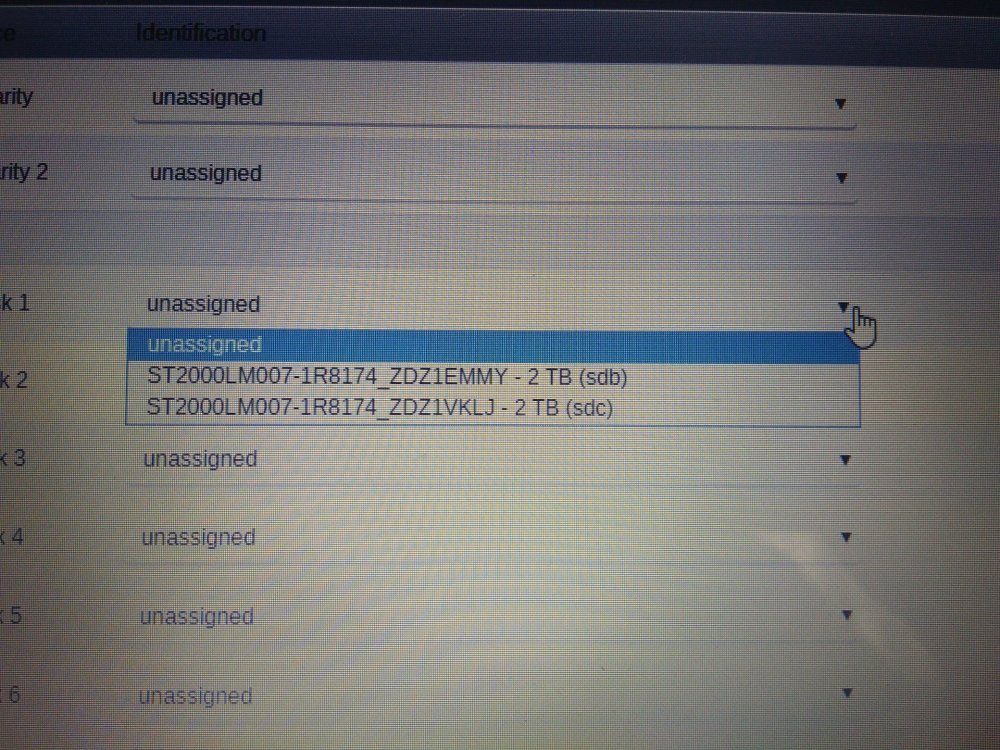

June 2, 20188 yr Hello. I'm not a unRAID specialist... this is my first time with, and I really need a help from the community to fix this issue. I checked the forum, only the following topic have something, but didn't help me: https://lime-technology.com/forums/topic/18959-script-to-enable-sata-controllers-without-kernel-modification/ The problem is: My mini ITX mobo I have, has 2 SATA 3.0, where I connected 2 HDD of 2Tb to be used as "disks" I'm using a PCI Express Expansion Board with 2 SATA 3.0 slots, where one is used to 1 HDD of 2TB "parity", and, one SSD of 240Gb as "cache" The PCI Express Expansion Board is based on ASMedia ASM1061. My mobo: http://www.biostar.com.tw/app/en/mb/introduction.php?S_ID=711 The problem is: I can't see the "parity" HDD and the "cache" SSD... Please help me to out the unRAID to work...
June 3, 20188 yr Author Hello johnnie.black, many, many thanks for the reply. Attached the file you requested Leo l3k-cloud-diagnostics-20180603-0451.zip
June 3, 20188 yr The Asmedia 106X is plug'n and play with unRAID, no modification necessary, your log shows problems identifying both disks on that controller: Jun 3 04:47:02 L3K-CLOUD kernel: ata3.00: device reported invalid CHS sector 0 ... Jun 3 04:47:02 L3K-CLOUD kernel: ata4.00: device reported invalid CHS sector 0 Either there's a problem with the controller or some other compatibly issue, since it's a mini ITX board there's no other slot you could try, so not much you can do, look for a bios update, if there isn't one or it doesn't help you'll need to try a different controller.
June 3, 20188 yr I forgot to mention, if you installed the AHCI script remove it as it can cause problems.
