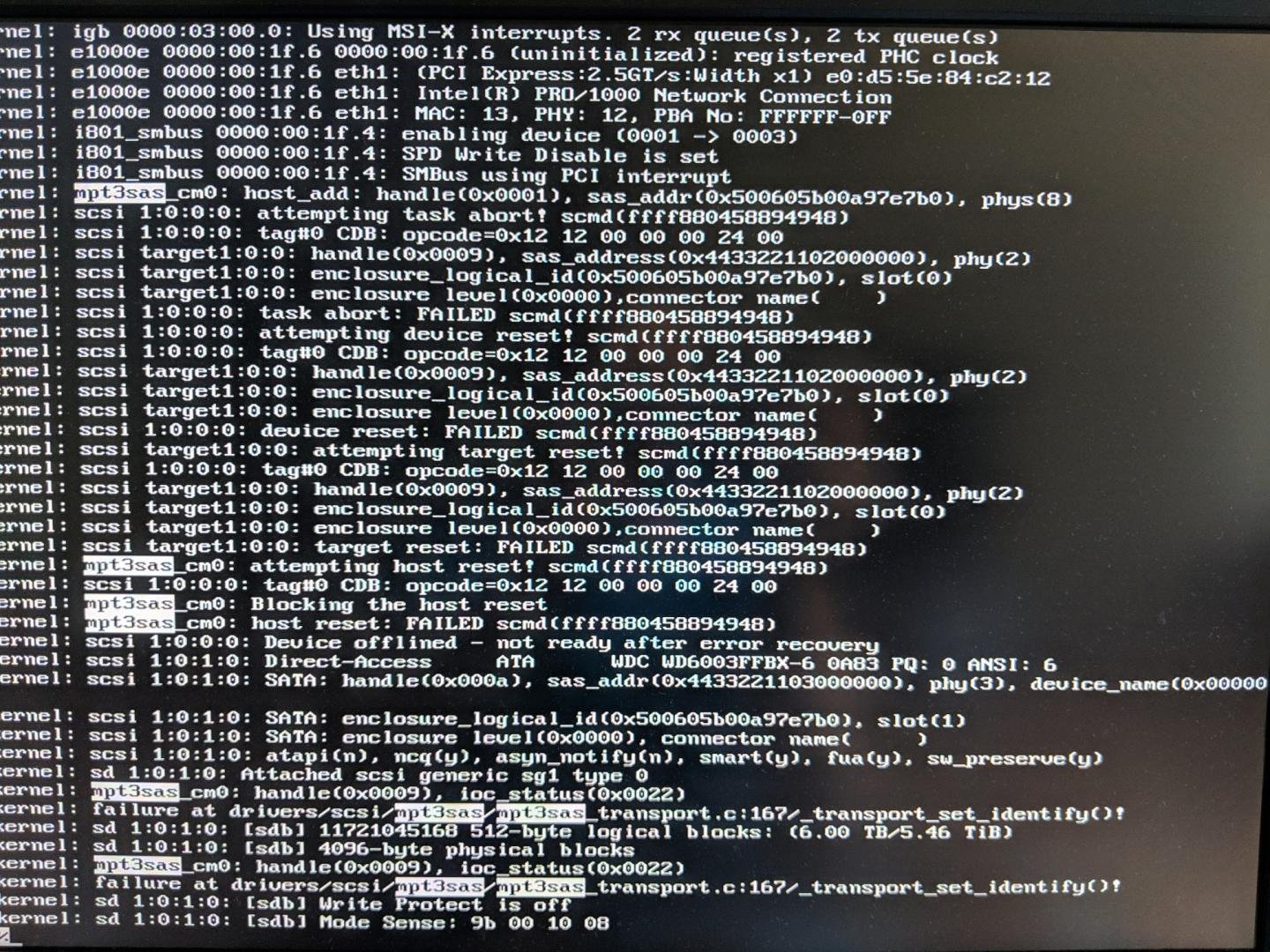

Pengy Posted June 17, 2018 Share Posted June 17, 2018 (edited) Hardware specs: https://www.amazon.com/gp/product/B07CL2STVS mini-SAS -> Sata cables Intel i3 8100 16gb DDR4 GIGABYTE H370N IBM Lenovo ServeRAID M1215 (equivalent to LSI SAS9340-8i) Disks: 3x 6TB WD Red Pro 3x 3TB WD Red Pro 512GB Samsung 970 PRO (NVME) 256GB Samsung 860 PRO (SATA) All in a SilverStone DS380B The first issue I ran into was a SMBUS issue where I had to tape off pins 5 and 6 in order for my system to even start POSTing. Without it, the fans would spin on full blast and there would be no display output. Once that was solved, I ran into another issue where my motherboard would hang on POST with the typical POST screen, but only displays "Press DEL to enter setup". If DEL is hit, "Entering Setup" appears, but nothing happens. I don't have any way to figure out the post code since theres no onboard LED display, but it only occurs when theres more than one drive attached to a single SFF-8643 port. I tried many different drives (combination of physical/ssd) and was unable to get it to boot. Actually while I was writing this message, it finally finished the POST, but only one disk is visible in the BIOS. It seems like its hitting a 5 minute timeout or something similar before it skips over the drive and moves onto the next? Previously I ran this backplane with a Supermicro AOC-SAS2LP-MV8 HBA, but its performance was horrendous during a parity check, so I don't believe its the backplane, but there could be a compatibility issue with the two. Update: Enabled Legacy Bios in the UEFI menu, then forced the Legacy BIOS under the CSM support settings, and I could get the card to boot in a reasonable time. Attached is a screenshot of the syslogs that appear when the drives are being detected. The logs are with two disks attached. Thanks for any information you can give. Edited June 18, 2018 by Pengy Adding logs Quote Link to comment
JorgeB Posted June 18, 2018 Share Posted June 18, 2018 Try connecting two or more disks directly bypassing the backplane to see if that's the problem. Quote Link to comment
Pengy Posted June 18, 2018 Author Share Posted June 18, 2018 I tried connecting it directly to the breakout cables and it still has the same issue. Quote Link to comment
JorgeB Posted June 18, 2018 Share Posted June 18, 2018 So likely a controller problem, though it could be some compatibility problem, if you can try it on a different computer. Quote Link to comment
