Hi folks -

I'm new to vlans / managed switches and learning unraid so bare with me.



Is there a version of this guide that deals with vlans with using multiple network cards?



I have a 4 port intel nic so currently unraid sees eth0 - eth4.   Here is what I'm wanting to do (or something similar)



1) leverage eth4 physical network

2) create a vlan off the eth4 interface

3) put external facing dockers on the vlan



I've tried various combinations of things on the router, managed switch and unraid.  So far the best i have gotten is eth4 was successful in getting a dhcp IP address defined for the vlan.  However doing so I can no longer reach unraid.

Admittedly; I'm likely doing some things wrong here either within unraid or my managed switch.  Any coaching or guides would be helpful so i can accomplish my goal here.  Thanks in advance!

















Edited January 11, 20197 yr by repomanz

First thing to remember is that isolation can be achieved with either a separate physical interface (eth) or a separate logical interface (vlan).



When you take eth4 out of the bonding group, it becomes available as a separate interface which can be configured under Network settings.

To make this an isolated interface only used for Docker, do the following:

1) Do NOT assign an IP address to eth4 (under network settings, choose "none")

2) Stop the docker service and under Docker settings assign the desired network and gateway and DHCP pool to eth4



After this start the docker service and each container can use eth4 as custom network, see container settings.



Is this what you want?



Ps. When you assign a new network to eth4, it must also be known on your router.

Edited January 10, 20197 yr by bonienl

Hi Bonienl - thanks for responding!

What about this?



- remove eth4 vlan settings within unraid

- bridge eth4 nic

- assign port on managed switch eth4 is connected to to vlan 5

- create vlan 5 interface on router

Would I be able to put dockers on the bridged eth4 NIC as it's operating within the vlan 5 network?

- Yes, you can remove the VLAN from eth4 in Unraid.

- Yes, configure eth4 as bridge. Do not assign IP address to the interface, instead make network assignment under Docker settings for 'br4'

- Yes, configure the port on the switch to VLAN 5 (untagged)

- Yes, create VLAN 5 on the interface to the router. Make sure the interface is set for 'tagged' frames (=vlan5 needs to be added to the frame)



The above creates an isolated connection between your router and Unraid

Edited January 10, 20197 yr by bonienl

Hi Bonienl - with your help I believe we have success.

I now have

- internal docker containers running on the trusted lan

- external docker containers running on eth4 / vlan 5



Confirmed routing on router also working lan to vlan, vlan to lan and vlan to inet.



Really appreciate you walking me through this.

Wanted to close this thread out / show my configuration in case someone runs across it

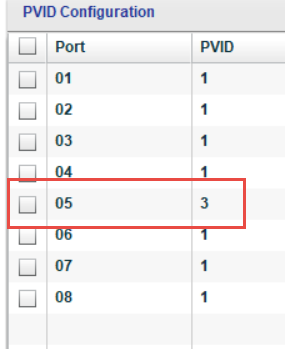

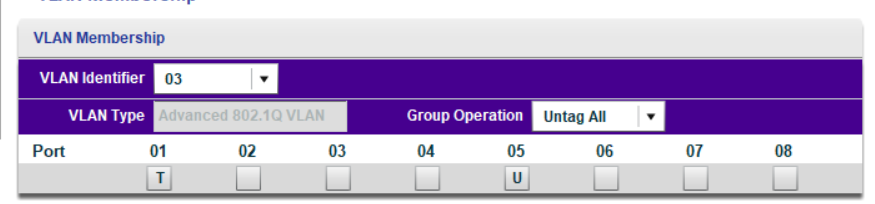

switch configuration,

- port 5 connected to eth4 on unraid nic

- port 1 connected to pfsense

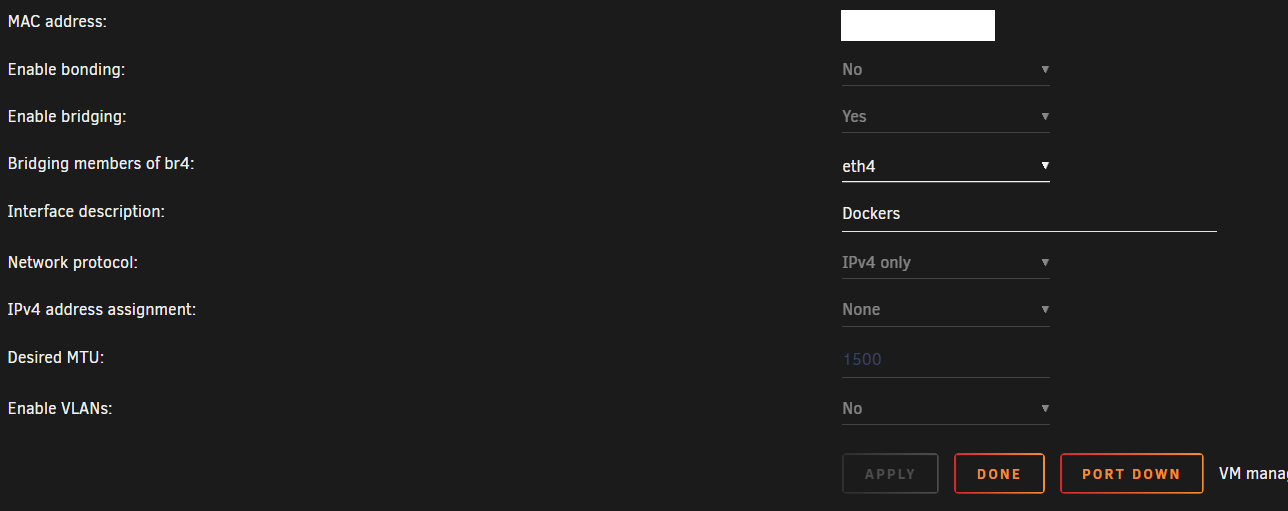

eth4 NIC configuration on Unraid OS

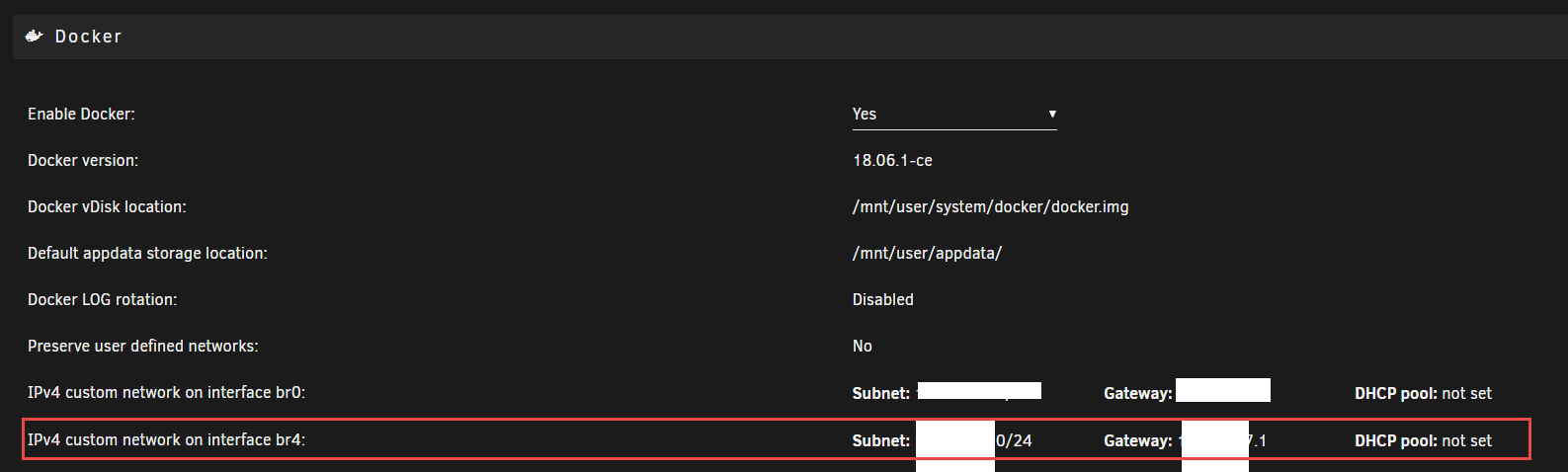

docker configuration within Unraid OS

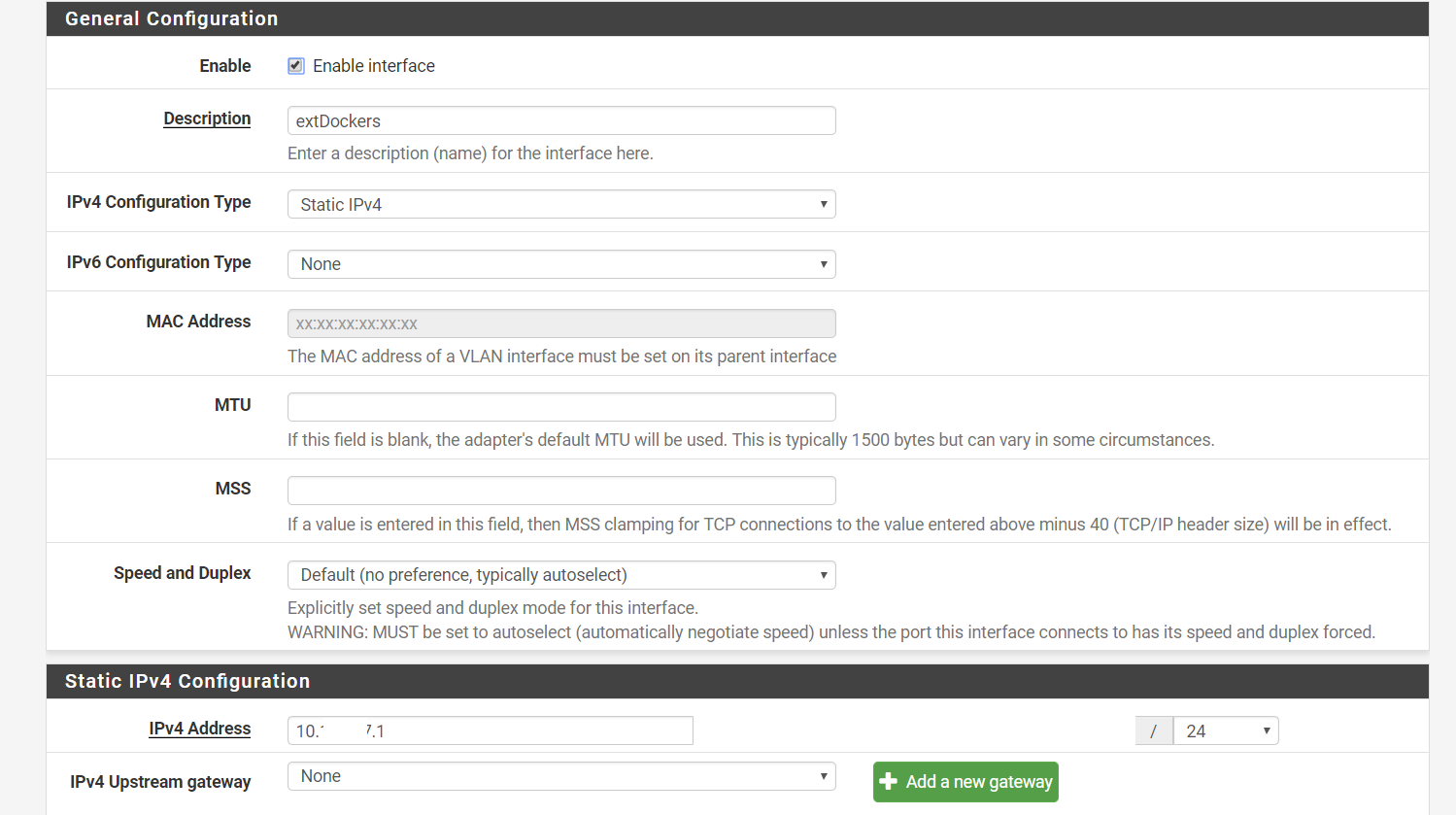

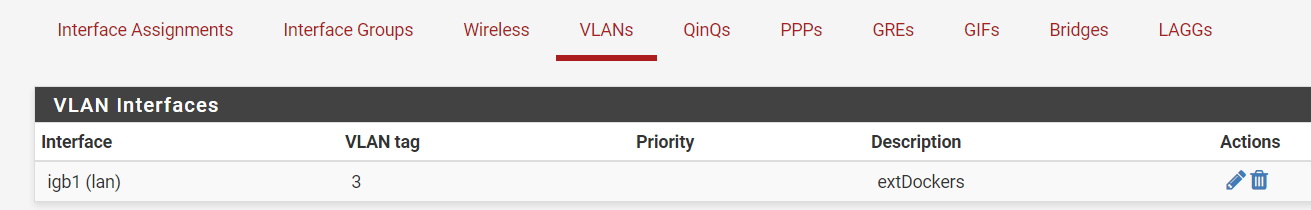

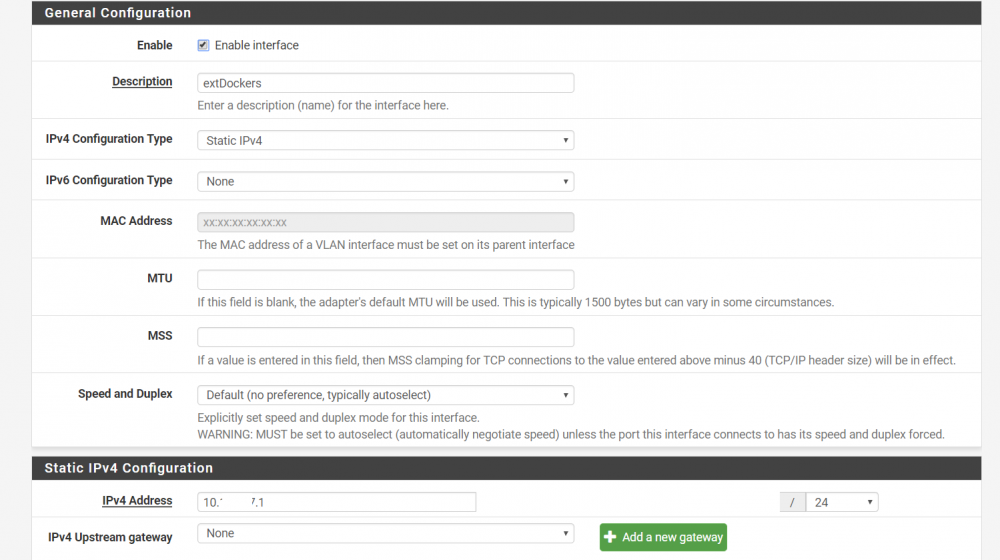

pfsense vlan interface







Hi,



Was also looking into this and get the dockers to a vlan assigned with physical nic eth1 on vlan 30 and no vlan on eth0

I can acces them as long as i am with my computer within the iprange of the vlan.



But i don't get lan to vlan and vlan to lan to work so i can acces my dockers on vlan while my computer is on the lan network.

Can you please share how you got that working with your config as you say it works.



On 1/11/2019 at 2:40 AM, repomanz said:

Hi Bonienl - with your help I believe we have success.

I now have

- internal docker containers running on the trusted lan

- external docker containers running on eth4 / vlan 5



Confirmed routing on router also working lan to vlan, vlan to lan and vlan to inet.



Really appreciate you walking me through this.



Thanxs in advance,

Nismanoku

I Tried a lot of googling sessions to get inter vlan routing to work, with many rules and nat outbound.

But my hairs on my head are slowly disappearing, so help needed and appreciated.



I have multiple nics on my unraid and want eth1 assigned to a vlan30, so i can guide my plex to an dedicated nic

But i need multiple computers to be able to connect to it from lan interface.



So maybe you can share your rules in pfsense so i can get it working



Thanxs in advance,

Nismanoku

Edited August 30, 20205 yr by Nismanoku
Added why
