February 18, 20197 yr So I'm trying to sort a networking issue that I am having. Basic working network setup Opnsense - main firewall (it is a fork of pfsense) 2 unifi switches set to pass along all VLAN tags on all ports. A couple of access points. LAN 1 VLAN for IOT devices. The issue I am running into is that I want one of my Ubuntu VM's on the IOT VLAN. Before I make any changes to interfaces file I have internet and can ping both LAN and VLAN as per my firewall rules. When I make my changes to interfaces file to change the IP address to the VLAN subnet reboot the VM.......and boom nothing no internet and can't ping anything. So I tried to change my subnet on a windows VM and had the same problem. So my question is this because this is a VM on unraid is there an additional step needed to change the subnet of VM's? Edited February 19, 20197 yr by swingline
February 18, 20197 yr When you create a VLAN, it basically is a different network and your router/firewall needs to be set up correctly to let this network talk to your original network and the Internet.
February 18, 20197 yr Author 6 hours ago, bonienl said: When you create a VLAN, it basically is a different network and your router/firewall needs to be set up correctly to let this network talk to your original network and the Internet. The VLAN is already existing on the firewall and has been working for about 2 years (should have mentioned that). The problem comes when I want to add VM's running on my unraid to the VLAN subnet.

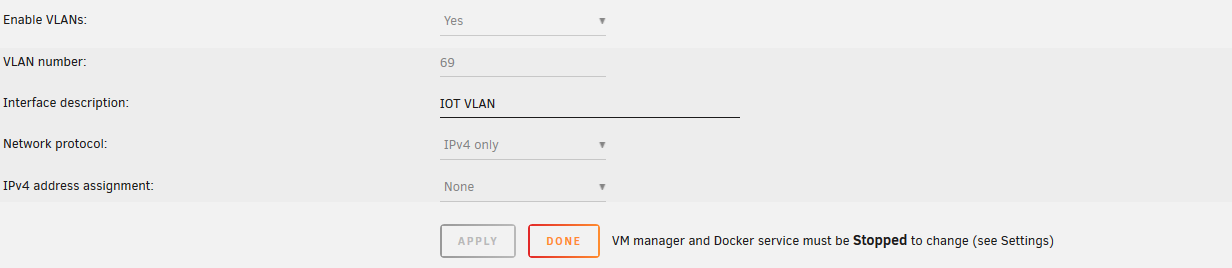

February 18, 20197 yr Did you create a VLAN interface in Unraid? Then assign the VLAN interface to your VM (Network Bridge option)?
February 19, 20197 yr Author 3 hours ago, ken-ji said: Did you create a VLAN interface in Unraid? Then assign the VLAN interface to your VM (Network Bridge option)? I guess I missed this option when I looked before posting. Everything is working now as it should be. Thanks for the help.
