IT WORKS !!!!!!!!!!!!!!!!!  Up and running with all data accessible



First backup the missing data.



I will upgrade to latest version after.



Disk 1 still disabled but I will pull it out and install the new one I bought 2 weeks ago. I'll try format this later on and see how it goes









Thanks for help! Without you guys I was lost BIG TIME.

True community who helps and don't give a fuck!







Thanks guys!





Edited June 6, 20197 yr by Nebula

2 minutes ago, Nebula said:

Disk 1 still disabled but I will pull it out and install the new one I bought 2 weeks ago. I'll try format this later

Try to copy the most important data on emulated disk1 first, don't forget parity might still be failing, so you're not completely out of the water, and since you mentioned "format", format is never part of a rebuild.

OK, I'll follow your guide lines.



 "and since you mentioned "format", format is never part of a rebuild" - your right about that.



When data is safe I will update to latest version.



I'll be back!

Edited June 6, 20197 yr by Nebula

All data safe.



Update installed and rebooting

Edited June 7, 20197 yr by Nebula

What to do next?

 ST4000DM004-2CV104_ZFN0AX8C-20190608-0156.txt



And this cant get any data out WDC_WD30EFRX-68EUZN0_WD-WCC4N4JSF25Z-20190608-1141.txt



Tried enable but still no data: smartctl -s on /dev/sdd

Edited June 8, 20197 yr by Nebula

7 minutes ago, Nebula said:

Tried enable but still no data: smartctl -s on /dev/sdd

It's sdc (at least it was)

20 hours ago, johnnie.black said:

It's sdc (at least it was)

OFC my bad   WDC_WD30EFRX-68EUZN0_WD-WCC4N4JSF25Z-20190608-1909.txt

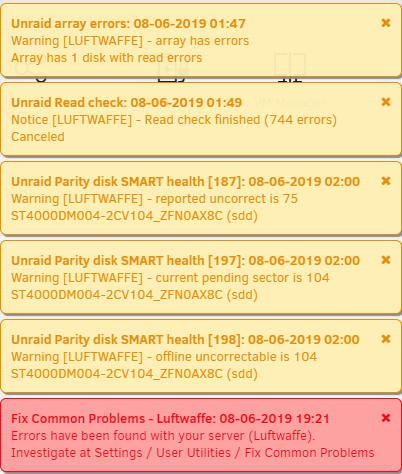

Dont know what to now with all these error







Array stopped again - rebooted and we are good to go again









What shoud I do next to solve things out?





Thanks!



Edited June 9, 20197 yr by Nebula

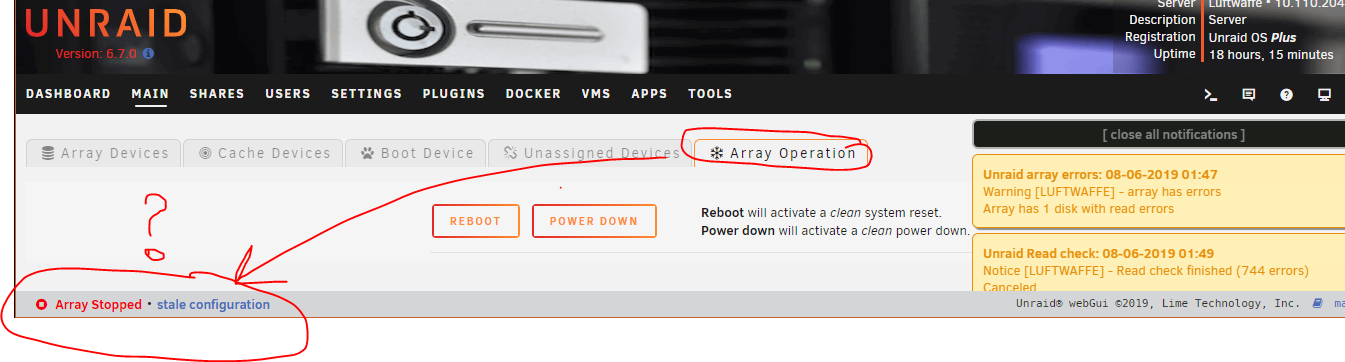

Disk looks fine, you can rebuild on top, as for the stale config error not sure what's causing that, rebuild the disk first the you can try redoing your flash drive.

Hello again.



I'm back after long traveling with my family.

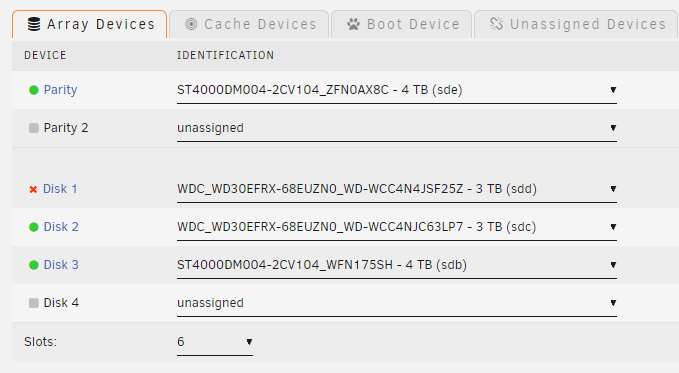

New disk (DISK 3) is installed and precleared and it took almost 6 hours.

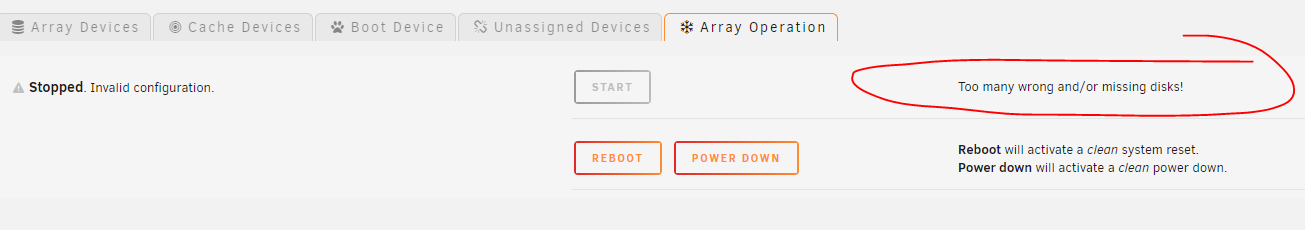

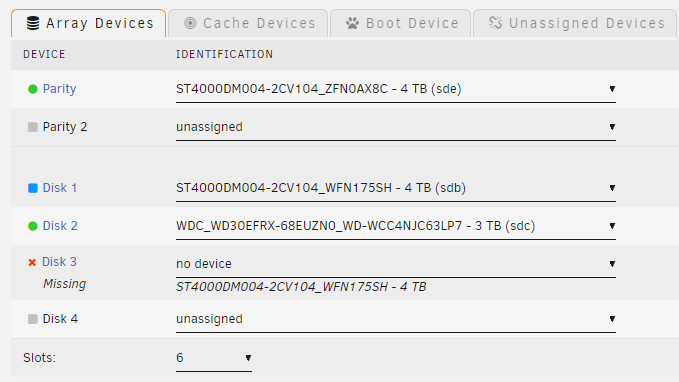

Now when I set Disk 1 to "no device" and chose new disk it's says DISK 3 missing and can't start up server due to wrong/missing disk









But if I go back to settings in first picture above its good to go but then I can't rebuild.

I did som research and maybe I did something wrong installing the new disk.





Is it because Disk 3 is now a part of the array and there for I cant change it with the dmg Disk1?
Should I have'd set Disk 1 to no device first and then change it with the new disk 3 (before preclear) followed up with preclearing, rebuild?







Edited July 27, 20196 yr by Nebula

You can't use disk3 to rebuild disk1, you'll need another one.

12 minutes ago, johnnie.black said:

You can't use disk3 to rebuild disk1, you'll need another one.

What do you mean by that? Pls explain

You can't use an existing array disk to replace another, I think that's pretty clear.

ofc I understand that but that leads me to my questions above or below:

Is it because Disk 3 is now a part of the array and there for I cant change it with the dmg Disk1?

I guess it is from your answer.



Should I have'd set Disk 1 to no device first and then change it with the new disk 3 (before preclear) followed up with preclearing, rebuild?



https://wiki.unraid.net/Replacing_a_Data_Drive

1: Stop the array

2: Unassign the old drive if still assigned (to unassign, set it to No Device)

3: Power down

4: [ Optional ] Pull the old drive (you may want to leave it installed for Preclearing or testing)

5: Install the new drive  (from a noob view it does only tell you to install new drive and not it has too be the same disk slot you want to replace before preclear, rebuild)



And thats why I ended up with one extra added disk to my array instead. Now its pretty clear ofc but I thought I might delete data or something.
If I want to remove disk 3 and start over I follow this ? https://wiki.unraid.net/Shrink_array



or should I just buy a new hard drive. I might need the data storage anyway.



Edited July 27, 20196 yr by Nebula

To replace an array device you assign it to the slot of the disk you are replacing and start the array to begin rebuilding, pre-clear is optional and if you want to do that it's done with the disk outside the array.

You can remove the disk from the array using the shrink array options, but the first option can only be used if there's already no important data on the disable disk, second option can still be used, but it will be slow.

Okay. There is no data/shares on it. It just been added to the array by a mistake obviously and gives some workarounds but I'm gonna learn alot from it all. I guess that's the positive site of it.



I'll try removing the disk using first option: The "Remove Drives Then Rebuild Parity" Method

Just now, Nebula said:

There is no data/shares on it.

That's not the important part, there must be no data on the disabled (emulated) disk if you're going to rebuild parity.

On disk 3?

I have not done anything with this new added drive. Just added to slot 3 (disk 3) and then precleared. Disk 1 contains data ofc





Disk1 is the disable/emulated disk, and that's where any data will be lost if a new config is done.

Okay..  My important data on disk 1 is secured on other drives but I'm gonna buy new drive, I'll need the storage anyway. I will then replace/rebuilding disk 1 the right way this time.



Thanks for help. Will update this thread later next week

Edited July 27, 20196 yr by Nebula
