Greetings all,



I currently have the problem that some of my HDDs get dropped from the array and are listed in unassigend devices.

I thought it might be a SATA-cable problem at first and changed the cables of these HDDs, but the got dropped again.



I attached the diagnostics and hope that you guys can shed some light on this. I'm rather  scared that my server is dying on me😰





UPDATE:

So I just checked my array devices list and the devices are still listed there but also in unassigned list?

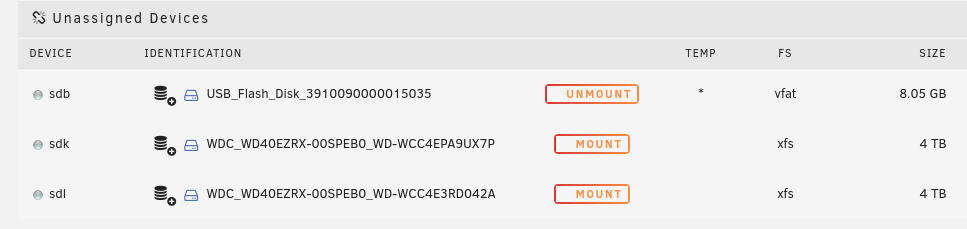

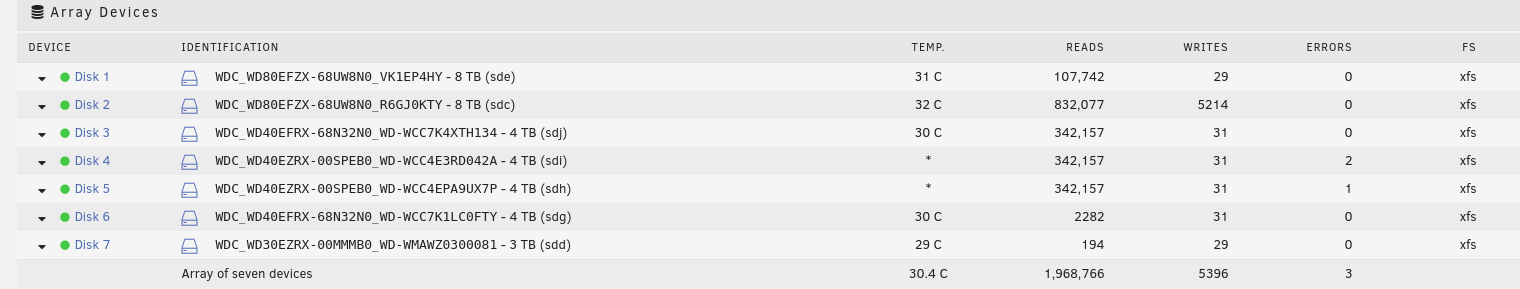

I attached two screenshots, in those the dropped disks are listed in the array devices list but also in the unassigned devices list with different device identifications (sdX).

sirbear-diagnostics-20190912-0821.zip

Edited September 12, 20196 yr by Dr_Cox1911
Update about HDDs still in array?

Looks like a problem with the Marvell controller, don't use those 2 ports.

So should I do any preparations before pluggin in the HDDs in a different controller? Or should I just shutdown the server and plug them in another SATA slot (coming from the board controller, not the Marvell controller of course)?

22 minutes ago, Dr_Cox1911 said:

Or should I just shutdown the server and plug them in another SATA slot

this

Thank you @johnnie.black for your fast response! Just plugged the HDDs in the onboard controller and see how it goes from now on.

Guess sooner or later I will have to invest in a proper HBA controller.

Edited September 12, 20196 yr by Dr_Cox1911

Sorry for reanimating this old thread of mine, but my Server is doing it again.

The same to disks got dropped from the array and Unraid states, that the WD-WCC4E3RD042A has read errors.



So I guess the mainboard is finally dying?

Do you guys suggest just buying an HBA (like the Adaptec RAID 8405 4 Port PCIe 3.0 x8) or should I completely scrap the board and buy a whole new system?



Or are acutally the drives the issue here?

Edited November 5, 20196 yr by Dr_Cox1911

Please post diags.

Here are the current diags.

sirbear-diagnostics-20191105-1759.zip

Diags are after rebooting so can't see the problem, disk looks fine, you can run an extended SMART test to confirm.

Yes, sorry, I immediately shut the server down to not loose any data.

The extended SMART test is running right now, will report back once it's done (will be tomorrow I guess)

Ok, so looks like I borked the extended SMART test.

I did start it approx. 24 hours ago and waited till it said 10% completed. I then closed my Browser and shut down my PC (not the Unraid Server) and as I logged back in today and looked on the specific drive there are no self-tests logged on the drive. I set the spindown to never so that the test won't get interrupted by it.



I attached the diags from just now, but I couldn't find anything in the system log itself that hints to the disapperence of the test.

sirbear-diagnostics-20191106-2035.zip

10 hours ago, Dr_Cox1911 said:

I set the spindown to never so that the test won't get interrupted by it.

That's done automatically if the test is run from the GUI.

So did I do anything else wrong or why is there no test result?

Looks like the test didn't even start, if it did it would show "aborted by host", try again, if the same happens run manually (and in that case you do need to disable spin down)

I did try it again and Unraid states that the test is ongoing, the first 10% are done extremely fast in 2min, but then it kinda halts there. I again logged out and went to bed and logged back in today and Unraid says again that there are no tests done.

On 11/7/2019 at 12:43 PM, johnnie.black said:

if the same happens run manually
