circa1665 Posted January 24, 2020 Share Posted January 24, 2020 (edited) Hi I'm a newbie, well, I've been using Unraid for a couple of years without issue. Unraid v6.8.1 is crashing 0-3% into Parity check. I don't know what's causing the issue, can anyone help? Diagnostics attached. Thanks! unraid-diagnostics-20200124-0241.zip System info: ASRock B365M Phantom Gaming 4 Version - s/n: M80-C1009500474 BIOS: American Megatrends Inc. Version P4.20. Dated: 05/15/2019 CPU: Intel® Core™ i7-8700 CPU @ 3.20GHz HVM: Enabled IOMMU: Enabled Cache: 0 KiB, 0 KiB, 0 KiB Memory: 32 GiB DDR4 (max. installable capacity 64 GiB) Network: eth0: 1000 Mbps, full duplex, mtu 1500 Kernel: Linux 4.19.94-Unraid x86_64 Edited January 24, 2020 by circa1665 Added system info Quote Link to comment
JorgeB Posted January 24, 2020 Share Posted January 24, 2020 Diags are just after rebooting, see here to try and catch the problem. Quote Link to comment

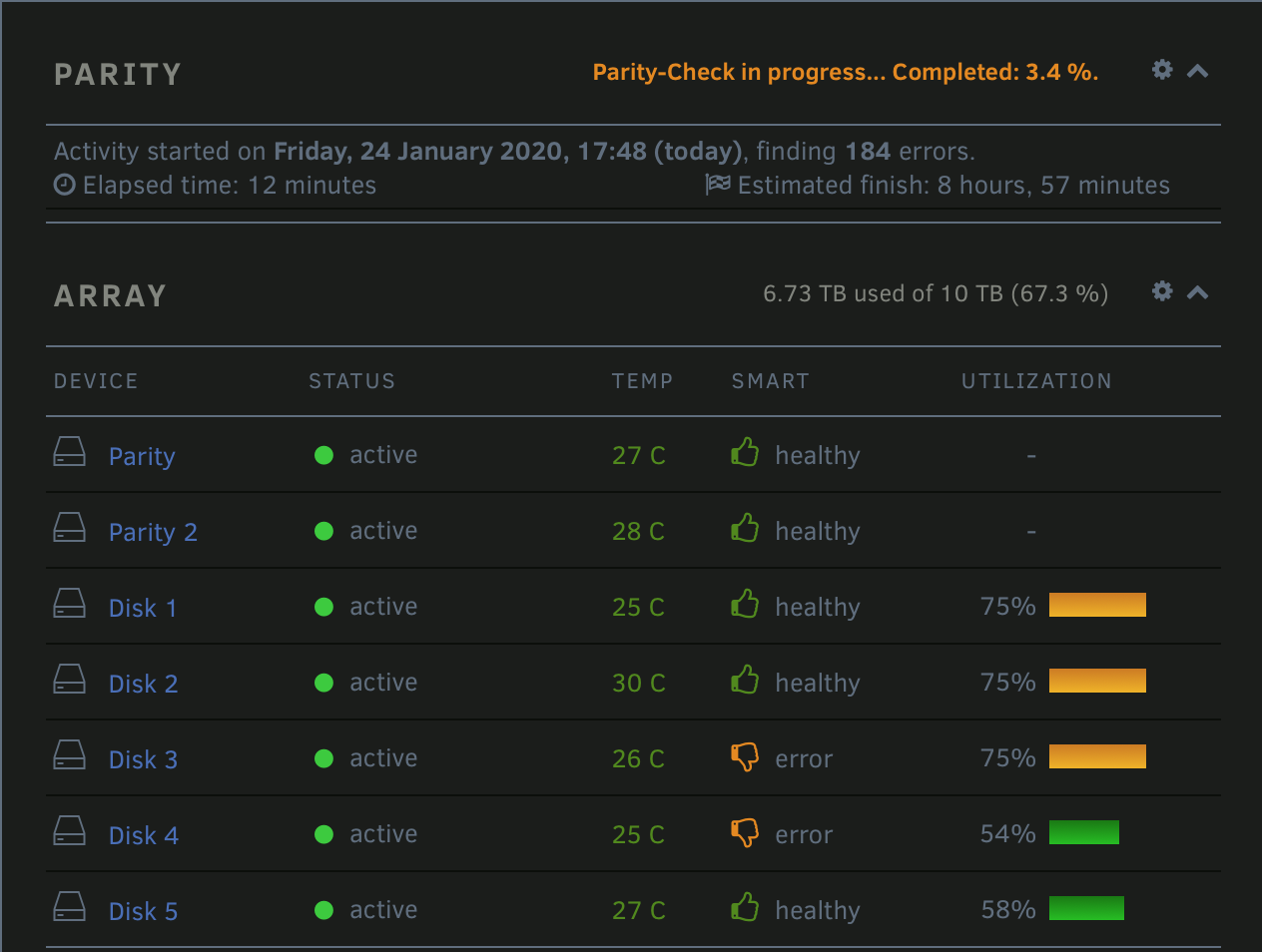

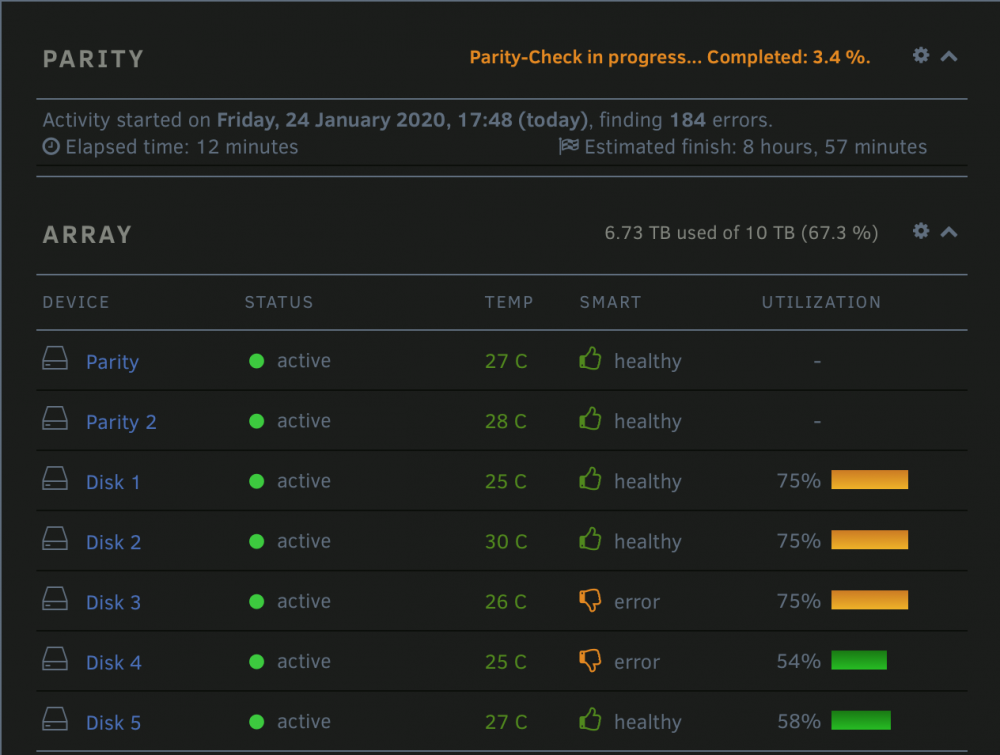

circa1665 Posted January 24, 2020 Author Share Posted January 24, 2020 Apologies, please find logs attached. syslog-192.168.232.133.log I recently had to replace x2 drives as they failed. I have dual parity drives and the data rebuilt no problem. There was a period a couple of days ago when the Ethernet switch my Unraid server is connected to stopped working (have since replaced it) - the server did not have network access for about 12 hours - don't know if that could be related... Now I'm noticing that both drives I replaced are throwing UDMA CRC errors, every time Parity check fails and it crashes the error count goes up (see screenshot). Both drives were pre-cleared without issue and had been working fine up until now. Quote Link to comment
JorgeB Posted January 24, 2020 Share Posted January 24, 2020 3 disks (including disks 3 and 4) are connected using a SATA port multiplier (can't say if it's embedded on the Asmedia controller or external), those are not recommended and can cause several issues, first thing would be to try without it. Quote Link to comment
circa1665 Posted January 24, 2020 Author Share Posted January 24, 2020 I have x6 SATA ports on my motherboard and a x4 ports on a PCI-E card (AC1539). I don't have enough ports on the motherboard for all my drives, should I be using a different type of card? Am happy to to try - but like I said in my original post have had this current server for 2 years without issue and a the same drives in a previous self build for 3 (using the same PCI-E expansion card) <<< obviously not the two drives (3 and 4) which I recently replaced. Quote Link to comment
JorgeB Posted January 24, 2020 Share Posted January 24, 2020 5 minutes ago, circa1665 said: should I be using a different type of card? Yes, that's a 2 port Amsedia controller with a port multiplier, if you need just 2 ports a regular 2 port Asmedia is fine, if you need 4/5 ports there's this one, or get an 8 port LSI, they can be bough used for $40/50. Quote Link to comment
JorgeB Posted January 24, 2020 Share Posted January 24, 2020 Note that I'm not saying it's that controller crashing your server, since the log posted doesn't show the crash, but they are a known source of problems, possibly including the crashes. Quote Link to comment
circa1665 Posted January 24, 2020 Author Share Posted January 24, 2020 Would this be suitable? https://www.ebay.co.uk/itm/LSI-Logic-MegaRaid-SAS-8708EM2-SAS-SATA-RAID-Controller/372924841101 Quote Link to comment
JorgeB Posted January 24, 2020 Share Posted January 24, 2020 Nope, that's a SAS1 model limited to 2TB disks, you want any LSI with a SAS2008/2308/3008/3408 chipset in IT mode, e.g., 9201-8i, 9211-8i, 9207-8i, 9300-8i, 9400-8i, etc and clones, like the Dell H200/H310 and IBM M1015, these latter ones need to be crossflashed. Quote Link to comment
circa1665 Posted January 24, 2020 Author Share Posted January 24, 2020 Cool, thank you for your help 👍 will look into it, will replace with this: https://www.amazon.co.uk/gp/product/B07X21J35K/ref=ppx_yo_dt_b_asin_title_o00_s00?ie=UTF8&psc=1 Quote Link to comment
circa1665 Posted January 26, 2020 Author Share Posted January 26, 2020 Hi, so replaced the SATA card with the one above. Now Parity check doesn't cause Unraid to crash, but the Parity check aborted around the 7-8% mark. unraid-diagnostics-20200126-1237.zip Quote Link to comment
JorgeB Posted January 26, 2020 Share Posted January 26, 2020 The diags posted don't have any parity check starting or aborting. Quote Link to comment
circa1665 Posted January 26, 2020 Author Share Posted January 26, 2020 Hmmm, sorry about that. Running parity check again. Will post again when it either fails or completes. Quote Link to comment

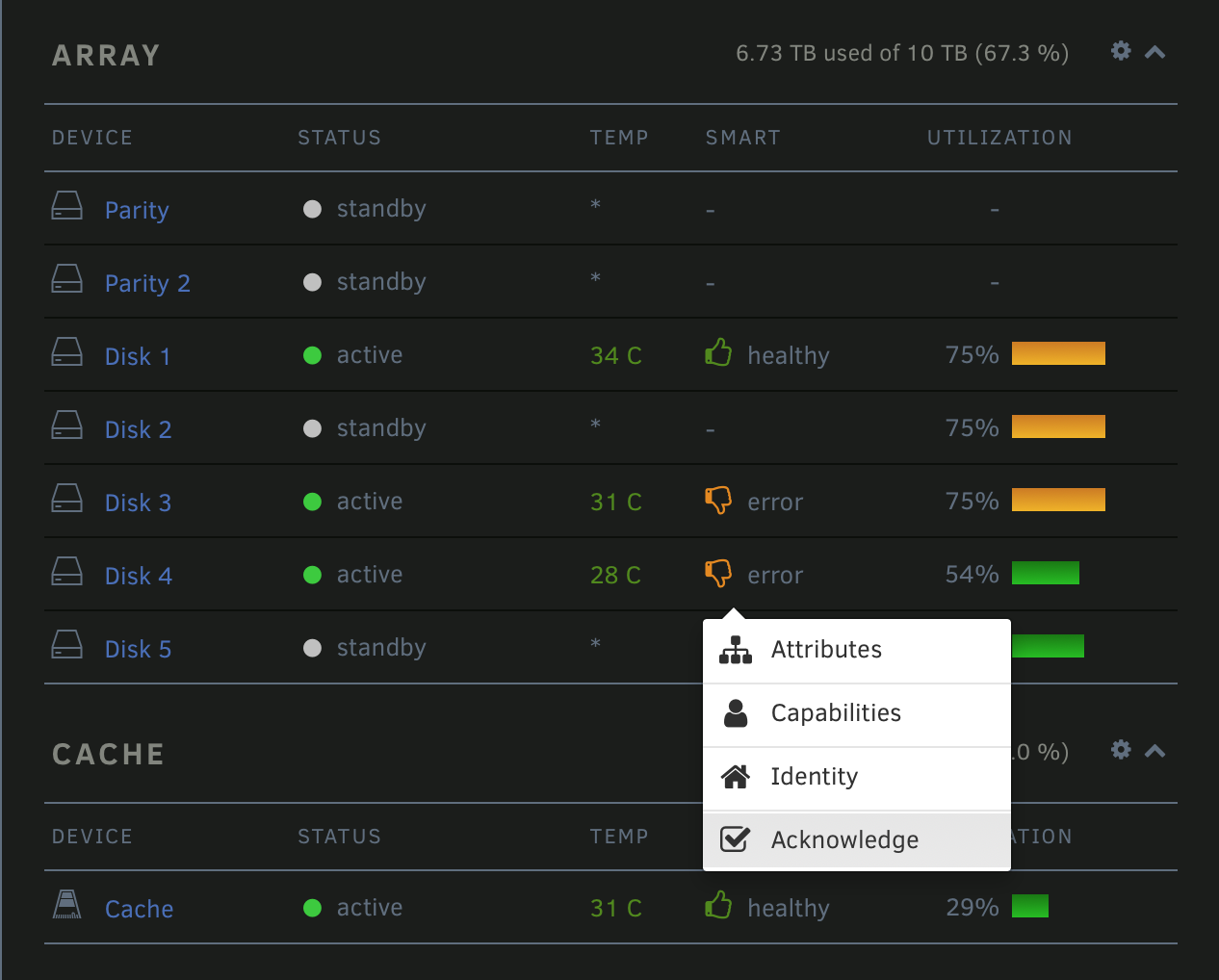

circa1665 Posted January 26, 2020 Author Share Posted January 26, 2020 Parity check completed successfully! So i guess that you were right - it must have been the SATA card, Thank you. I've attached the logs - hopefully all good now? Am I fine to acknowledge the UDMA CRC errors on Drives 3 and 4? Thanks again for you help, much appreciated 👍 syslog-192.168.232.133.log Quote Link to comment
JorgeB Posted January 27, 2020 Share Posted January 27, 2020 12 hours ago, circa1665 said: Am I fine to acknowledge the UDMA CRC errors on Drives 3 and 4? Yep. Quote Link to comment
