TarrifMan Posted March 9, 2020 Share Posted March 9, 2020 One of my drives were suddenly disabled. I don't remember what the warning/error was that unraid gave me and am not sure where to check. Appreciate it if someone could help me out. titan-diagnostics-20200309-1446.zip Quote Link to comment
Dissones4U Posted March 9, 2020 Share Posted March 9, 2020 Quote Disabled Disk serial #JEKTYN9Z 1 Raw_Read_Error_Rate PO-R-- 100 100 016 - 0 <---- DOESN'T NECESSARILY MEAN ANYTHING BUT # SHOULDN'T BE GOING UP EITHER 2 Throughput_Performance --S--- 131 131 054 - 104 3 Spin_Up_Time POS--- 149 149 024 - 442 (Average 441) 4 Start_Stop_Count -O--C- 100 100 000 - 47 5 Reallocated_Sector_Ct PO--CK 100 100 005 - 0 7 Seek_Error_Rate -O-R-- 100 100 067 - 0 8 Seek_Time_Performance --S--- 128 128 020 - 18 9 Power_On_Hours -O--C- 100 100 000 - 5076 10 Spin_Retry_Count -O--C- 100 100 060 - 0 12 Power_Cycle_Count -O--CK 100 100 000 - 35 22 Helium_Level PO---K 100 100 025 - 100 192 Power-Off_Retract_Count -O--CK 095 095 000 - 6359 193 Load_Cycle_Count -O--C- 095 095 000 - 6359 194 Temperature_Celsius -O---- 185 185 000 - 35 (Min/Max 21/41) 196 Reallocated_Event_Count -O--CK 100 100 000 - 0 197 Current_Pending_Sector -O---K 100 100 000 - 0 198 Offline_Uncorrectable ---R-- 100 100 000 - 0 199 UDMA_CRC_Error_Count -O-R-- 200 200 000 - 0 Looking at the smart data for the disabled disk above, it looks fine BUT the disk was disabled for a reason, if you overwrite the existing disk (re-enable) then you'll have limited recovery options. Best practice dictates that you rebuild to a new disk, read here. I don't think you have FS corruption on the disabled disk as I'd expect to see an error like: "XFS (md3) Metadata corruption detected" or something similar. even so, do not proceed with any type of rebuild, format etc until you understand the potential for data loss. Quote Mar 9 02:10:37 Titan kernel: usb 3-4: new full-speed USB device number 2 using xhci_hcd Mar 9 02:10:37 Titan kernel: usb 1-4: new high-speed USB device number 2 using xhci_hcd Mar 9 02:10:37 Titan kernel: hid-generic 0003:0764:0601.0001: hiddev96,hidraw0: USB HID v1.10 Device [CPS CP1500PFCLCDa] on usb-0000:0c:00.3-4/input0 Mar 9 02:10:37 Titan kernel: usb-storage 1-4:1.0: USB Mass Storage device detected Mar 9 02:10:37 Titan kernel: scsi host0: usb-storage 1-4:1.0 Mar 9 02:10:37 Titan kernel: scsi 0:0:0:0: Direct-Access Kingston DataTraveler 2.0 PMAP PQ: 0 ANSI: 6 I can't tell for sure if it is or not but make sure your flash is on USB 2 not USB 3, otherwise it won't work and could cause various errors including disabling disk due to dropped connectivity. Quote Mar 9 14:43:45 Titan unassigned.devices: Mounting 'Auto Mount' Remote Shares... Mar 9 14:44:00 Titan ool www[29017]: /usr/local/emhttp/plugins/dynamix/scripts/xfs_check 'start' '/dev/md3' 'WDC_WD100EMAZ-00WJTA0_JEKTYN9Z' '-n' Is the disabled disk on USB 3 as an unassigned device? USB 3 may affect that too but someone else will need to confirm... Quote Issues found in Fix Common Problems Mar 9 14:40:40 Titan root: Fix Common Problems: Error: Unable to communicate with GitHub.com Mar 9 14:40:40 Titan root: Fix Common Problems: Error: disk3 (WDC_WD100EMAZ-00WJTA0_JEKTYN9Z) is disabled Mar 9 14:40:40 Titan root: Fix Common Problems: Warning: Docker Application tautulli has an update available for it Mar 9 14:40:40 Titan root: Fix Common Problems: Error: Docker application jackett has volumes being passed that are mounted by Unassigned Devices, but they are not mounted with the slave option Mar 9 14:40:40 Titan root: Fix Common Problems: Error: Docker application openvpn-as has volumes being passed that are mounted by Unassigned Devices, but they are not mounted with the slave option Mar 9 14:40:40 Titan root: Fix Common Problems: Other Warning: Could not check for blacklisted plugins Mar 9 14:40:40 Titan root: Fix Common Problems: Other Warning: Could not perform unknown plugins installed checks Mar 9 14:40:41 Titan root: Fix Common Problems: Other Warning: Could not perform docker application port tests Some of these may indicate a network issue but I think they are irrelevant to your disabled disk. Squid's Fix Common Problems is really good about telling you what's wrong, if you can't figure these errors out then consider posting in the CA thread for support. Quote Link to comment
JorgeB Posted March 10, 2020 Share Posted March 10, 2020 Disk was already disabled at boot so we can't see what happened, best to replace/swap cables to rule them out them rebuild. Quote Link to comment
TarrifMan Posted March 15, 2020 Author Share Posted March 15, 2020 (edited) On 3/9/2020 at 6:38 PM, Dissones4U said: Looking at the smart data for the disabled disk above, it looks fine BUT the disk was disabled for a reason, if you overwrite the existing disk (re-enable) then you'll have limited recovery options. Best practice dictates that you rebuild to a new disk, read here. I don't think you have FS corruption on the disabled disk as I'd expect to see an error like: "XFS (md3) Metadata corruption detected" or something similar. even so, do not proceed with any type of rebuild, format etc until you understand the potential for data loss. I can't tell for sure if it is or not but make sure your flash is on USB 2 not USB 3, otherwise it won't work and could cause various errors including disabling disk due to dropped connectivity. Is the disabled disk on USB 3 as an unassigned device? USB 3 may affect that too but someone else will need to confirm... Some of these may indicate a network issue but I think they are irrelevant to your disabled disk. Squid's Fix Common Problems is really good about telling you what's wrong, if you can't figure these errors out then consider posting in the CA thread for support. On 3/10/2020 at 2:42 AM, johnnie.black said: Disk was already disabled at boot so we can't see what happened, best to replace/swap cables to rule them out them rebuild. I did a rebuild on the disk and now my dockers versions say "not available" but the dockers are running and the webiu is accessible. I've restarted docker service, restarted the system, and checked for updates. However, when I checked for updates, it just stalls and never finishes. edit: 1 hour later, the Shinobi and radarr containers changed to "not available" Edited March 15, 2020 by TarrifMan update Quote Link to comment

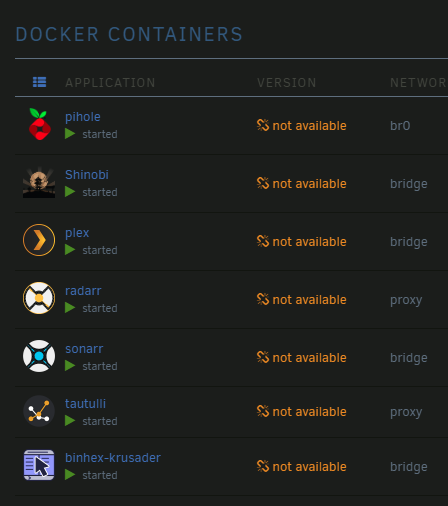

Dissones4U Posted March 16, 2020 Share Posted March 16, 2020 6 hours ago, TarrifMan said: I did a rebuild on the disk I assume the original "disk disabled" problem is resolved and now your only issue is docker connectivity? 6 hours ago, TarrifMan said: my dockers versions say "not available" but the dockers are running and the webiu is accessible. So is this just cosmetic? On 3/9/2020 at 7:38 PM, Dissones4U said: Issues found in Fix Common Problems Mar 9 14:40:40 Titan root: Fix Common Problems: Error: Unable to communicate with GitHub.com Mar 9 14:40:40 Titan root: Fix Common Problems: Error: disk3 (WDC_WD100EMAZ-00WJTA0_JEKTYN9Z) is disabled Mar 9 14:40:40 Titan root: Fix Common Problems: Warning: Docker Application tautulli has an update available for it Mar 9 14:40:40 Titan root: Fix Common Problems: Error: Docker application jackett has volumes being passed that are mounted by Unassigned Devices, but they are not mounted with the slave option Mar 9 14:40:40 Titan root: Fix Common Problems: Error: Docker application openvpn-as has volumes being passed that are mounted by Unassigned Devices, but they are not mounted with the slave option Mar 9 14:40:40 Titan root: Fix Common Problems: Other Warning: Could not check for blacklisted plugins Mar 9 14:40:40 Titan root: Fix Common Problems: Other Warning: Could not perform unknown plugins installed checks Mar 9 14:40:41 Titan root: Fix Common Problems: Other Warning: Could not perform docker application port tests My guess is that the above errors are generated due to a lack of internet access and are directly related to the docker updates showing as not available. With that in mind, I'd start with some basic network troubleshooting. Try to rule out one hardware component at a time such as the ethernet cable, NIC, (maybe SSD that houses Docker but I doubt it). Then move to software settings such as unRaid network settings, docker configuration, CA auto update applications settings etc. If you haven't already, you should enable syslog server just in case and always include your latest diagnostics... On a final note, if your original issue of 'disk disabled' is resolved you may want to either change the title to better reflect the current problem or start a new thread. A disabled disk is pretty basic whereas docker connectivity is a whole different specialty. Quote Link to comment
TarrifMan Posted March 17, 2020 Author Share Posted March 17, 2020 On 3/15/2020 at 11:51 PM, Dissones4U said: I assume the original "disk disabled" problem is resolved and now your only issue is docker connectivity? So is this just cosmetic? My guess is that the above errors are generated due to a lack of internet access and are directly related to the docker updates showing as not available. With that in mind, I'd start with some basic network troubleshooting. Try to rule out one hardware component at a time such as the ethernet cable, NIC, (maybe SSD that houses Docker but I doubt it). Then move to software settings such as unRaid network settings, docker configuration, CA auto update applications settings etc. If you haven't already, you should enable syslog server just in case and always include your latest diagnostics... On a final note, if your original issue of 'disk disabled' is resolved you may want to either change the title to better reflect the current problem or start a new thread. A disabled disk is pretty basic whereas docker connectivity is a whole different specialty. yeah, I redid all the network paths and everything was back. Not sure how it broke in the first place tho! thanks for the help Quote Link to comment
