Best Practice for Reverse Proxy?


TexasDave

Recommended Posts

I am in the process of trying to allow friends to monitor the status of Plex and Ombi. This will avoid texts coming to me asking "Is Plex up"? 🙂



I am looking at Monitorr and OrganizrV2. I have been checking out a set of blog posts from @GilbN (which are awesome). His one areticle discussed how he got an A+ score on both https://securityheaders.com/ and https://www.ssllabs.com/


Blog Post: https://technicalramblings.com/blog/how-to-setup-organizr-with-letsencrypt-on-unraid/ (it is a bit old but I still think there is good stuff in this)

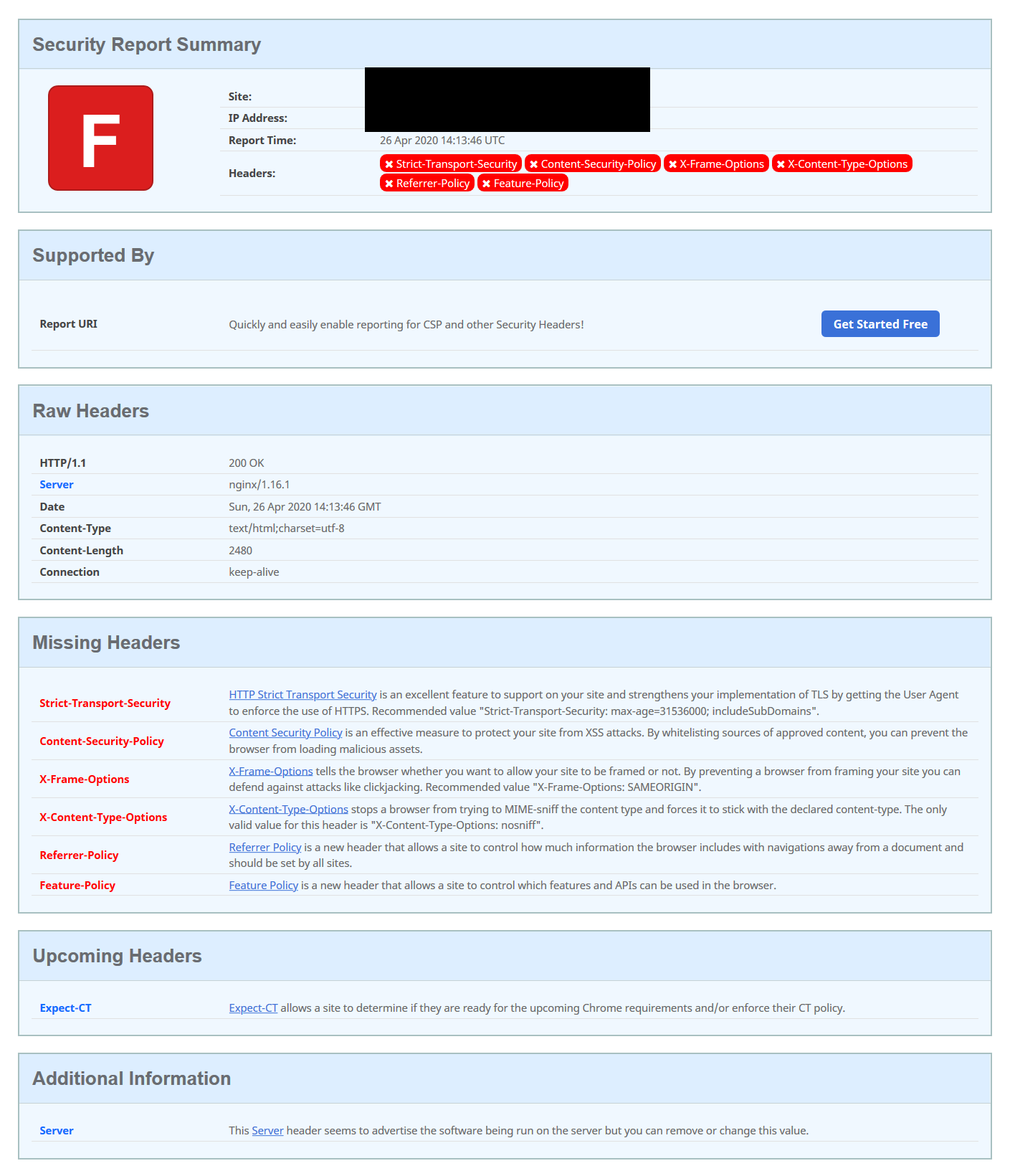

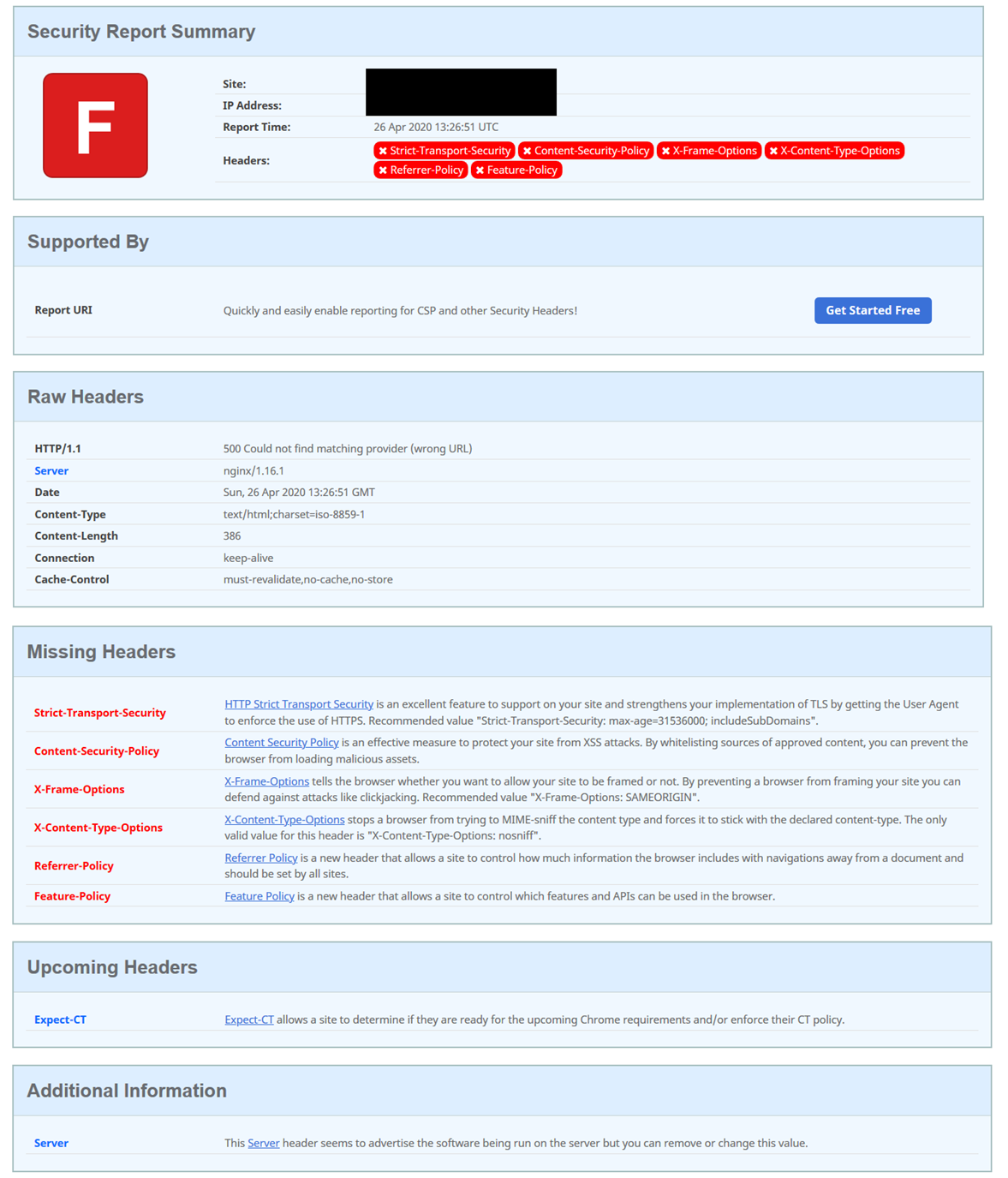

Right now, I am exposing Ombi and Ubooquity. When I type in URLS for these - I get an F. Probably not good?

I am wondering:



  1. Does the above matter? That is, my services geting an F?
  2. Is there a way to configure Ombi and Ubooquity so I can get better scores? Any pointers?



Thanks s always....

PS: will be posting some actual questions on using Monitorr and OrganizrV2 in a seperate thread.

Link to comment

Atached. I use the indivdua conf files rather than the master. No real reason - I think because that is how SpaceInvader One's videos did it?



Thanks for any suggestions and thanks for your articles. I may be posting for some help on what lead me to your original blog post.



Having some issues with OrganizrV2 and Monitorr...Is there a good place to post those questions?


Link to comment



proxy-confs/ubooquity.subdomain.conf



# make sure that your dns has a cname set for ubooquity and that your ubooquity container is not using a base url

server {
    listen 443 ssl;
    listen [::]:443 ssl;

    server_name dz-comics.*;

    include /config/nginx/ssl.conf;

    client_max_body_size 0;

    # enable for ldap auth, fill in ldap details in ldap.conf
    #include /config/nginx/ldap.conf;

    location / {
        # enable the next two lines for http auth
        #auth_basic "Restricted";
        #auth_basic_user_file /config/nginx/.htpasswd;

        # enable the next two lines for ldap auth
        #auth_request /auth;
        #error_page 401 =200 /login;

        include /config/nginx/proxy.conf;
        resolver 127.0.0.11 valid=30s;
        set $upstream_ubooquity ubooquity;
        proxy_pass http://$upstream_ubooquity:2202;
    }

    location ~ (/ubooquity)?/api {
        include /config/nginx/proxy.conf;
        resolver 127.0.0.11 valid=30s;
        set $upstream_ubooquity ubooquity;
        proxy_pass http://$upstream_ubooquity:2202;
    }
}



site-confs/default


## Version 2019/08/01 - Changelog: https://github.com/linuxserver/docker-letsencrypt/commits/master/root/defaults/default

# redirect all traffic to https
server {
	listen 80 default_server;
	listen [::]:80 default_server;
	server_name _;
	return 301 https://$host$request_uri;
}

# main server block
server {
	listen 443 ssl http2 default_server;
	listen [::]:443 ssl http2 default_server;

	root /config/www;
	index index.html index.htm index.php;

	server_name _;

	# enable subfolder method reverse proxy confs
	include /config/nginx/proxy-confs/*.subfolder.conf;

	# all ssl related config moved to ssl.conf
	include /config/nginx/ssl.conf;

	# enable for ldap auth
	#include /config/nginx/ldap.conf;

	client_max_body_size 0;

	location / {
		try_files $uri $uri/ /index.html /index.php?$args =404;
	}

	location ~ \.php$ {
		fastcgi_split_path_info ^(.+\.php)(/.+)$;
		fastcgi_pass 127.0.0.1:9000;
		fastcgi_index index.php;
		include /etc/nginx/fastcgi_params;
	}

# sample reverse proxy config for password protected couchpotato running at IP 192.168.1.50 port 5050 with base url "cp"
# notice this is within the same server block as the base
# don't forget to generate the .htpasswd file as described on docker hub
#	location ^~ /cp {
#		auth_basic "Restricted";
#		auth_basic_user_file /config/nginx/.htpasswd;
#		include /config/nginx/proxy.conf;
#		proxy_pass http://192.168.1.50:5050/cp;
#	}

}

# sample reverse proxy config without url base, but as a subdomain "cp", ip and port same as above
# notice this is a new server block, you need a new server block for each subdomain
#server {
#	listen 443 ssl http2;
#	listen [::]:443 ssl http2;
#
#	root /config/www;
#	index index.html index.htm index.php;
#
#	server_name cp.*;
#
#	include /config/nginx/ssl.conf;
#
#	client_max_body_size 0;
#
#	location / {
#		auth_basic "Restricted";
#		auth_basic_user_file /config/nginx/.htpasswd;
#		include /config/nginx/proxy.conf;
#		proxy_pass http://192.168.1.50:5050;
#	}
#}

# sample reverse proxy config for "heimdall" via subdomain, with ldap authentication
# ldap-auth container has to be running and the /config/nginx/ldap.conf file should be filled with ldap info
# notice this is a new server block, you need a new server block for each subdomain
#server {
#	listen 443 ssl http2;
#	listen [::]:443 ssl http2;
#
#	root /config/www;
#	index index.html index.htm index.php;
#
#	server_name heimdall.*;
#
#	include /config/nginx/ssl.conf;
#
#	include /config/nginx/ldap.conf;
#
#	client_max_body_size 0;
#
#	location / {
#		# the next two lines will enable ldap auth along with the included ldap.conf in the server block
#		auth_request /auth;
#		error_page 401 =200 /login;
#
#		include /config/nginx/proxy.conf;
#		resolver 127.0.0.11 valid=30s;
#		set $upstream_heimdall heimdall;
#		proxy_pass https://$upstream_heimdall:443;
#	}
#}

# enable subdomain method reverse proxy confs
include /config/nginx/proxy-confs/*.subdomain.conf;
# enable proxy cache for auth
proxy_cache_path cache/ keys_zone=auth_cache:10m;



I am using the individual conf files instead of a site one. Thanks!!

Link to comment

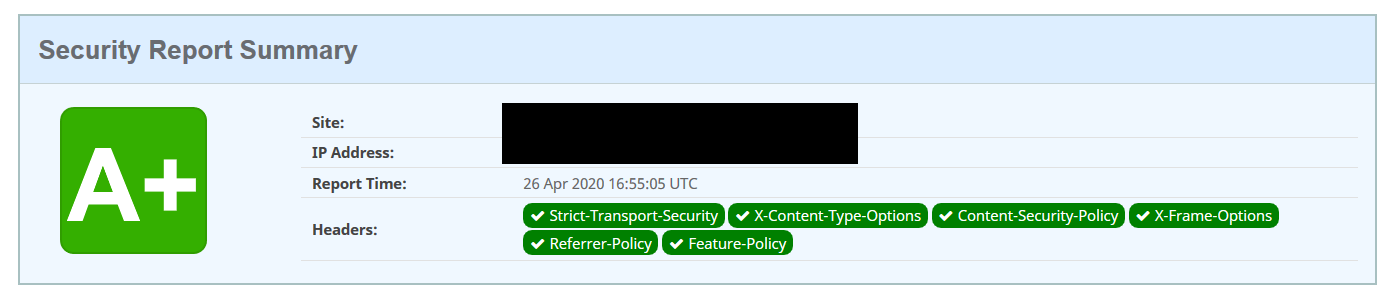

@GilbN - Boom! You nailed it - Thanks!! See attached . 😀

I made the change in both the indivdual conf files and the single one. Was not sure which ones to change.



Question: Is this more of a housekeeping / nice to have thing? Or does it help secure the services I expose? Or just give others confidence that these are legit sites. Just curious.

Now to get back to why I was originaly reading your blog - to pimp a page I want to share with friends so they can see Plex Ststus. Thanks so much for your help and blog posts!


Link to comment
  • 6 months later...

I just recently switched swag and a validation by DNS vs http and I now get an F from https://securityheaders.com/ .... previously I used http and letsencrypt.  Even when I switch the old docker container on, it still fails the security test.  Any thoughts?  I am using the strong-ssl.conf that you recommended and worked previously.



Thanks in advance.

Link to comment

@GilbN Also when looking at the strong-ssl.conf, when would I also need to use the sub-strong-ssl.conf?



And for:

add_header Content-Security-Policy "frame-ancestors https://*.DOMAIN.COM https://DOMAIN.COM https://$server_name"; #Add your domains you want to enable iframing on
add_header X-Frame-Options "allow-from https://DOMAIN.COM https://$server_name"; #Add your domains you want to enable iframing on. https://$server_name = sub.domain.com in this server block

do I actual put in my domain?  For example ... would it be mysubdomain.mydomain.com.



Link to comment
21 hours ago, Biff Bojangles said:

@GilbN Also when looking at the strong-ssl.conf, when would I also need to use the sub-strong-ssl.conf?



And for:


add_header Content-Security-Policy "frame-ancestors https://*.DOMAIN.COM https://DOMAIN.COM https://$server_name"; #Add your domains you want to enable iframing on
add_header X-Frame-Options "allow-from https://DOMAIN.COM https://$server_name"; #Add your domains you want to enable iframing on. https://$server_name = sub.domain.com in this server block

do I actual put in my domain?  For example ... would it be mysubdomain.mydomain.com.



yup
