mcdonagg Posted January 2, 2011 Share Posted January 2, 2011 I just moved into my new house (moved from Alaska to Michigan and my server survived the flight) I just hooked everything up and it is running great, well the server part is. I can access all my files and see all the interface pages. The only problem is no internet connection. I have SABnzbd + Sickbeard running and neither of them can connect. I know they programs are running because I can interact with them, I just cant get SABnzbd to download (No connections) and I cant get Sickbeard to search. I am a real noob and I dont know what kind of logs/screen shots or other facts you need. Any help would be appreciated. Than you Link to comment
BRiT Posted January 2, 2011 Share Posted January 2, 2011 The output of the following commands from the unRAID command line or root prompt could be useful: route ethtool eth0 ethtool -i eth0 Chances are it doesn't have a default gateway setup or the one setup isn't your Internet Router and thus it can't communicate outside your LAN. How is your network and internet setup? You do have a Router connected to your Cable Modem or DSL Modem, right? Also, please post a syslog. Instructions should be included in one of the links in my signature. Link to comment
mcdonagg Posted January 2, 2011 Author Share Posted January 2, 2011 root@Tower:~# route Kernel IP routing table Destination Gateway Genmask Flags Metric Ref Use Iface 192.168.1.0 * 255.255.255.0 U 0 0 0 eth0 loopback * 255.0.0.0 U 0 0 0 lo root@Tower:~# ethtool eth0 Settings for eth0: Supported ports: [ TP MII ] Supported link modes: 10baseT/Half 10baseT/Full 100baseT/Half 100baseT/Full 1000baseT/Half 1000baseT/Full Supports auto-negotiation: Yes Advertised link modes: 10baseT/Half 10baseT/Full 100baseT/Half 100baseT/Full 1000baseT/Half 1000baseT/Full Advertised auto-negotiation: Yes Speed: 100Mb/s Duplex: Full Port: MII PHYAD: 0 Transceiver: internal Auto-negotiation: on Supports Wake-on: pumbg Wake-on: g Current message level: 0x00000033 (51) Link detected: yes root@Tower:~# ethtool -i eth0 driver: r8169 version: 2.3LK-NAPI firmware-version: bus-info: 0000:03:00.0 I have a wireless router with a Cable Modem connected to the WAN and the UnRaid connected to LAN, I am currently using the wireless to connect to the internet, so I know that part is working. syslog.zip Link to comment
BRiT Posted January 2, 2011 Share Posted January 2, 2011 Do you have your unRAID server using DHCP or do you have the IP address hardwired? If it is, have you tried using DHCP? That should auto-detect the needed settings. The following file contents are of interest: /boot/config/network cat /boot/config/network If you are running things hard-wired, there is a way of adding the default gateway using the unRAID Management Console. However I am running the 5.0 beta 2 series and I do not remember how to set it up in the 4.x series. It should be as simple as finding the proper IP address and entering it into that field. I'm not certain if the server needs a reboot after that setting is modified. The following information might help you with determining what your router information is for the wired ports. I think it's as I suspected, for some reason it doesn't look like you have a default route setup. For reference, here's how my route table looks. The "10.0.0.128" is my internet router. You can ignore the difference in IP blocks used (192.168.1.x for you, 10.0.0.x for me). Though notice that it's setup as my default route for unknown locations, such as the IPs on the internet. Kernel IP routing table Destination Gateway Genmask Flags Metric Ref Use Iface 10.0.0.0 0.0.0.0 255.255.255.0 U 202 0 0 eth0 127.0.0.0 0.0.0.0 255.0.0.0 U 0 0 0 lo 0.0.0.0 10.0.0.128 0.0.0.0 UG 202 0 0 eth0 Do you happen to know the Wired IP address of your router? That needs to be added to your server's routing table as the default gateway. If you're using a WinOS on your client PC, you might be able to determine what it is by doing the following from a DOS command prompt. This is assuming you can plug in a network cable to the PC and it finds the wired router information in addition to the wireless information. route PRINT It's output looks something like this: =========================================================================== Interface List 13...00 01 2e 2f 14 56 ......Intel(R) 82578DM Gigabit Network Connection 11...1c 4b d6 c3 00 c3 ......802.11n Wireless LAN Card 1...........................Software Loopback Interface 1 =========================================================================== IPv4 Route Table =========================================================================== Active Routes: Network Destination Netmask Gateway Interface Metric 0.0.0.0 0.0.0.0 10.0.0.128 10.0.0.19 10 10.0.0.0 255.255.255.0 On-link 10.0.0.19 266 10.0.0.19 255.255.255.255 On-link 10.0.0.19 266 10.0.0.255 255.255.255.255 On-link 10.0.0.19 266 127.0.0.0 255.0.0.0 On-link 127.0.0.1 306 127.0.0.1 255.255.255.255 On-link 127.0.0.1 306 127.255.255.255 255.255.255.255 On-link 127.0.0.1 306 224.0.0.0 240.0.0.0 On-link 127.0.0.1 306 224.0.0.0 240.0.0.0 On-link 10.0.0.19 266 255.255.255.255 255.255.255.255 On-link 127.0.0.1 306 255.255.255.255 255.255.255.255 On-link 10.0.0.19 266 =========================================================================== To add the default gateway the command is as follows, of course replace the 192.168.1.254 with your actual Wired Router IP address. route add default gw 192.168.1.254 eth0 Another general purpose command that sometimes provides useful information is ifconfig, which will include the current IP address, the netmask, and the broadcast Mask as well as any errors with packets. ifconfig eth0 Link to comment
mcdonagg Posted January 2, 2011 Author Share Posted January 2, 2011 Microsoft Windows [Version 6.0.6002] Copyright (c) 2006 Microsoft Corporation. All rights reserved. C:\Users\Mandy>route PRINT =========================================================================== Interface List 11 ...00 1d 72 53 5c 56 ...... NVIDIA nForce Networking Controller 10 ...00 21 00 0e 14 22 ...... Broadcom 802.11b/g WLAN 1 ........................... Software Loopback Interface 1 13 ...02 00 54 55 4e 01 ...... Teredo Tunneling Pseudo-Interface 15 ...00 00 00 00 00 00 00 e0 isatap.{F067A2EF-D69E-4110-B9E0-A95D45201D09} 14 ...00 00 00 00 00 00 00 e0 isatap.{5F158BCA-E693-4911-92D6-777315B6B351} =========================================================================== IPv4 Route Table =========================================================================== Active Routes: Network Destination Netmask Gateway Interface Metric 0.0.0.0 0.0.0.0 192.168.1.1 192.168.1.3 25 127.0.0.0 255.0.0.0 On-link 127.0.0.1 306 127.0.0.1 255.255.255.255 On-link 127.0.0.1 306 127.255.255.255 255.255.255.255 On-link 127.0.0.1 306 192.168.1.0 255.255.255.0 On-link 192.168.1.3 281 192.168.1.3 255.255.255.255 On-link 192.168.1.3 281 192.168.1.255 255.255.255.255 On-link 192.168.1.3 281 224.0.0.0 240.0.0.0 On-link 127.0.0.1 306 224.0.0.0 240.0.0.0 On-link 192.168.1.3 281 255.255.255.255 255.255.255.255 On-link 127.0.0.1 306 255.255.255.255 255.255.255.255 On-link 192.168.1.3 281 =========================================================================== Persistent Routes: None IPv6 Route Table =========================================================================== Active Routes: If Metric Network Destination Gateway 13 18 ::/0 On-link 1 306 ::1/128 On-link 13 18 2001::/32 On-link 13 266 2001:0:4137:9e76:cbe:3deb:3f57:fefc/128 On-link 10 281 fe80::/64 On-link 13 266 fe80::/64 On-link 13 266 fe80::cbe:3deb:3f57:fefc/128 On-link 10 281 fe80::d5b5:c2f2:2b09:fb1d/128 On-link 1 306 ff00::/8 On-link 13 266 ff00::/8 On-link 10 281 ff00::/8 On-link =========================================================================== Persistent Routes: None I have the Tower set to a static IP 192.168.1.169, I kind of want it to stay static for the SABnzbd and Sickbeard. Link to comment

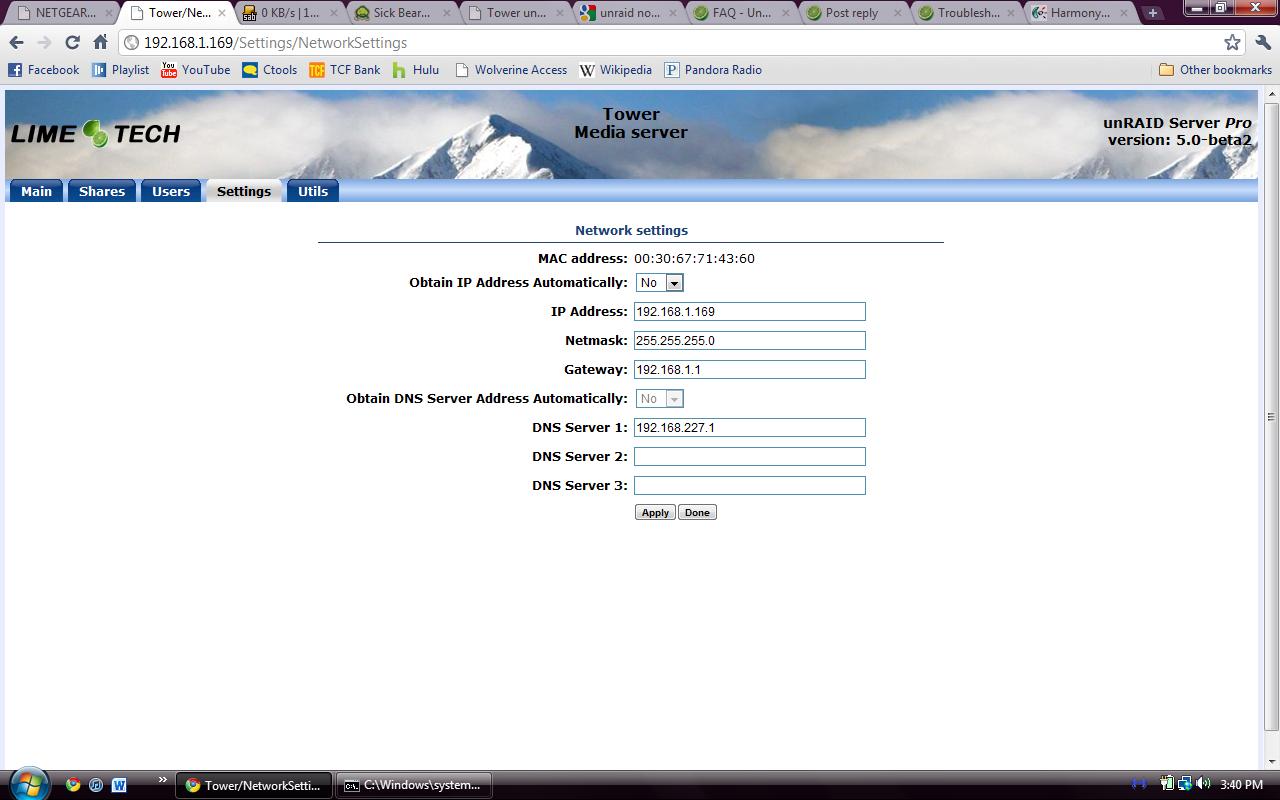

jeff.lebowski Posted January 21, 2011 Share Posted January 21, 2011 I wonder if your DNS server address is wrong. In my settings page, DNS matches the Gateway. I am also using a static IP. Link to comment
sacretagent Posted January 21, 2011 Share Posted January 21, 2011 yep seems DNS is wrong... should be same as your router or the dns servers ip that your ISP gave you poor unraid can not resolve the ip addresses he need to access the web Link to comment
