Help to passthrough additional NIC to a VM

[Addy]

Hey guys



I'm working on setting up my own pfsense router since I finally got gigabit internet in Australia, but my current router isn't cutting it.



The NIC's show in system devices, but I seem to be failing to stop unraid for using them

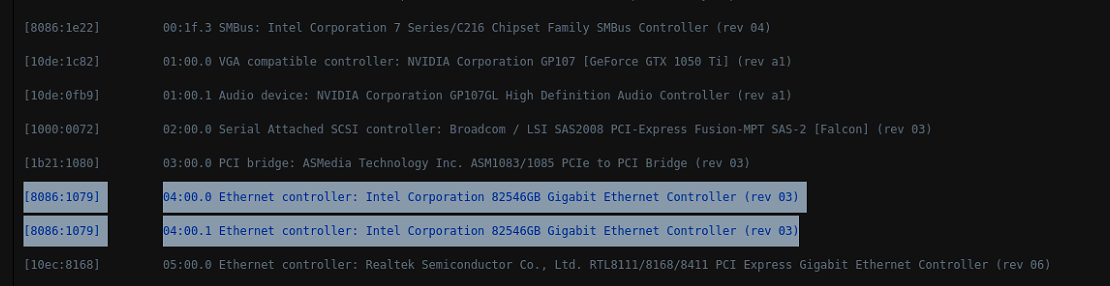

Above are the devices

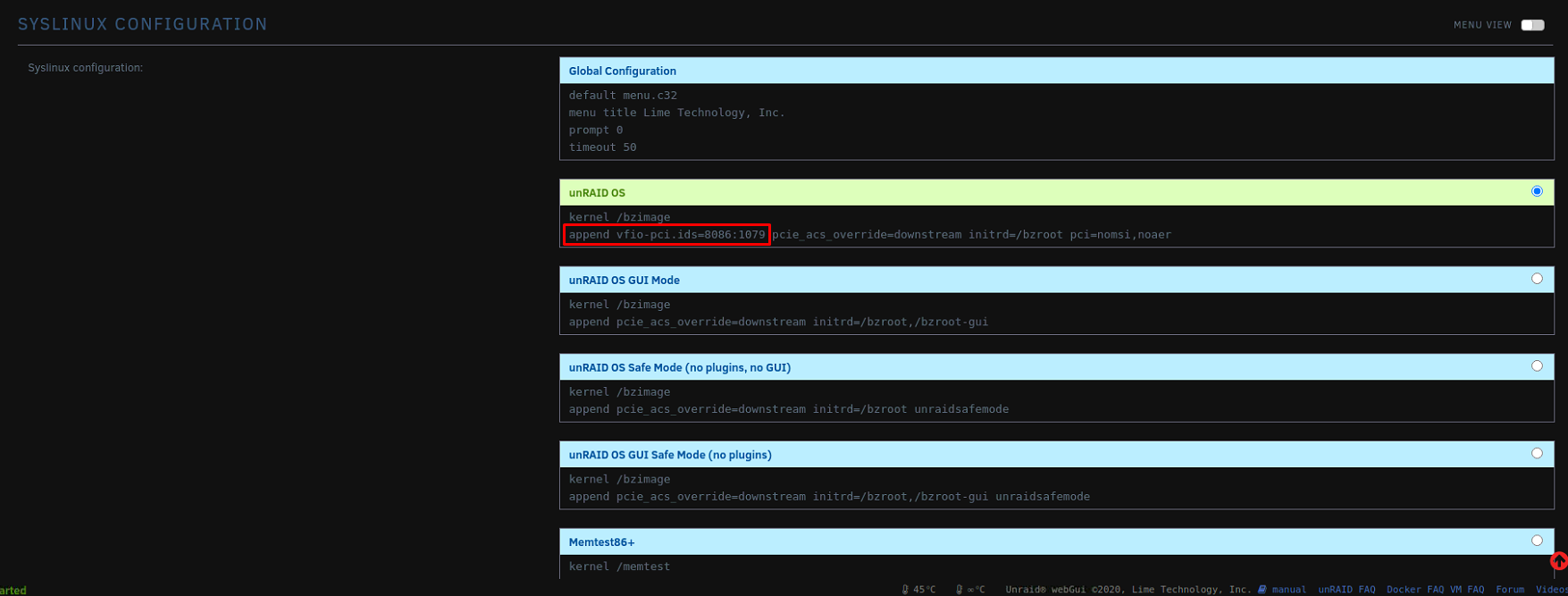

Here is my syslinux config



With append vfio-pci.ids=8086:1079

I can still see the network adapters listed in NetworkSettings, so it seemed to have 0 change



I then also tried append pci-stub.ids=8086:1079

With this the network adapters no longer show in NetworkSettings but I also can't see it as an option to passthrough to a VM



I am running unraid 6.8.3

unraid-diagnostics-20200710-1317.zip

Above is attached diagnostic download of my tower. in case at all relevant.

Should be noted I also have PCIe ACS Override setting enabled.



Any help would be appreciated as always!



Edited July 10, 2020 by Addy
grammer

[Addy]

sad bump

[Golfonauta]

You can install VFIO-PCI CFG pluggin from APPS to help you see the IOMMU groups and edit the configuration automaticly.

I recommend trying to leave the adapter without network config first.



I have done it twice, the interfaces disappear from unraid, but if you find out you have a weird network setup shown in unraid you can delete config and get to defaults.



To restore default network configuration delete these two files and reboot:



  /boot/config/network.cfg (i.e. the file network.cfg in the config folder of your flash device)

  /boot/config/network-rules.cfg (i.e. the file network-rules.cfg in the same folder)



You can also edit them if you know what you do.



Good luck
