Execution Error qemu unexpectedly closed the monitor

[Cor4eyh]

Hello,



Been unraiding for a couple years now. Recently decided i wanted to use this unraid server as a second windows machine. After following the wiki page to install i got the windows vm installed but i cant seem to run it. This is the error message i get when i start the VM



Execution error

internal error: qemu unexpectedly closed the monitor: 2020-07-19T20:42:49.502359Z qemu-system-x86_64: -device vfio-pci,host=0000:00:1f.3,id=hostdev1,bus=pci.0,addr=0x6: vfio 0000:00:1f.3: group 13 is not viable Please ensure all devices within the iommu_group are bound to their vfio bus driver.





Here is my LOG

ErrorWarningSystemArrayLogin

-smp 4,sockets=1,cores=4,threads=1 \
-uuid 2cc054ae-d2da-8075-b6fa-18046a049ad9 \
-display none \
-no-user-config \
-nodefaults \
-chardev socket,id=charmonitor,fd=33,server,nowait \
-mon chardev=charmonitor,id=monitor,mode=control \
-rtc base=localtime \
-no-hpet \
-no-shutdown \
-boot strict=on \
-device nec-usb-xhci,p2=15,p3=15,id=usb,bus=pci.0,addr=0x7 \
-device virtio-serial-pci,id=virtio-serial0,bus=pci.0,addr=0x3 \
-blockdev '{"driver":"file","filename":"/mnt/disks/SanDisk_SSD_PLUS_240GB_193412801927/Windows 10/vdisk1.img","node-name":"libvirt-3-storage","cache":{"direct":false,"no-flush":false},"auto-read-only":true,"discard":"unmap"}' \
-blockdev '{"node-name":"libvirt-3-format","read-only":false,"cache":{"direct":false,"no-flush":false},"driver":"raw","file":"libvirt-3-storage"}' \
-device virtio-blk-pci,scsi=off,bus=pci.0,addr=0x4,drive=libvirt-3-format,id=virtio-disk2,bootindex=1,write-cache=on \
-blockdev '{"driver":"file","filename":"/mnt/user/isos/virtio-win-0.1.173-2.iso","node-name":"libvirt-2-storage","auto-read-only":true,"discard":"unmap"}' \
-blockdev '{"node-name":"libvirt-2-format","read-only":true,"driver":"raw","file":"libvirt-2-storage"}' \
-device ide-cd,bus=ide.0,unit=0,drive=libvirt-2-format,id=ide0-0-0,bootindex=2 \
-blockdev '{"driver":"file","filename":"/mnt/user/isos/virtio-win-0.1.173-2.iso","node-name":"libvirt-1-storage","auto-read-only":true,"discard":"unmap"}' \
-blockdev '{"node-name":"libvirt-1-format","read-only":true,"driver":"raw","file":"libvirt-1-storage"}' \
-device ide-cd,bus=ide.0,unit=1,drive=libvirt-1-format,id=ide0-0-1 \
-netdev tap,fd=35,id=hostnet0,vhost=on,vhostfd=36 \
-device virtio-net-pci,netdev=hostnet0,id=net0,mac=52:54:00:0c:19:3e,bus=pci.0,addr=0x2 \
-chardev pty,id=charserial0 \
-device isa-serial,chardev=charserial0,id=serial0 \
-chardev socket,id=charchannel0,fd=37,server,nowait \
-device virtserialport,bus=virtio-serial0.0,nr=1,chardev=charchannel0,id=channel0,name=org.qemu.guest_agent.0 \
-device vfio-pci,host=0000:02:00.0,id=hostdev0,bus=pci.0,addr=0x5 \
-device vfio-pci,host=0000:00:1f.3,id=hostdev1,bus=pci.0,addr=0x6 \
-device usb-host,hostbus=1,hostaddr=4,id=hostdev2,bus=usb.0,port=1 \
-device usb-host,hostbus=1,hostaddr=5,id=hostdev3,bus=usb.0,port=2 \
-sandbox on,obsolete=deny,elevateprivileges=deny,spawn=deny,resourcecontrol=deny \
-msg timestamp=on
2020-07-19 20:42:48.394+0000: Domain id=2 is tainted: high-privileges
2020-07-19 20:42:48.394+0000: Domain id=2 is tainted: host-cpu
char device redirected to /dev/pts/0 (label charserial0)
2020-07-19T20:42:49.502359Z qemu-system-x86_64: -device vfio-pci,host=0000:00:1f.3,id=hostdev1,bus=pci.0,addr=0x6: vfio 0000:00:1f.3: group 13 is not viable
Please ensure all devices within the iommu_group are bound to their vfio bus driver.
2020-07-19 20:42:49.532+0000: shutting down, reason=failed



SysLinux.config

default menu.c32
menu title Lime Technology, Inc.
prompt 0
timeout 50
label Unraid OS
  menu default
  kernel /bzimage
  append pcie_acs_override=downstream initrd=/bzroot
label Unraid OS GUI Mode
  kernel /bzimage
  append pcie_acs_override=downstream initrd=/bzroot,/bzroot-gui
label Unraid OS Safe Mode (no plugins, no GUI)
  kernel /bzimage
  append initrd=/bzroot unraidsafemode
label Unraid OS GUI Safe Mode (no plugins)
  kernel /bzimage
  append initrd=/bzroot,/bzroot-gui unraidsafemode
label Memtest86+
  kernel /memtest





Any help would be appreciated!

[Cor4eyh]

[rachid596]

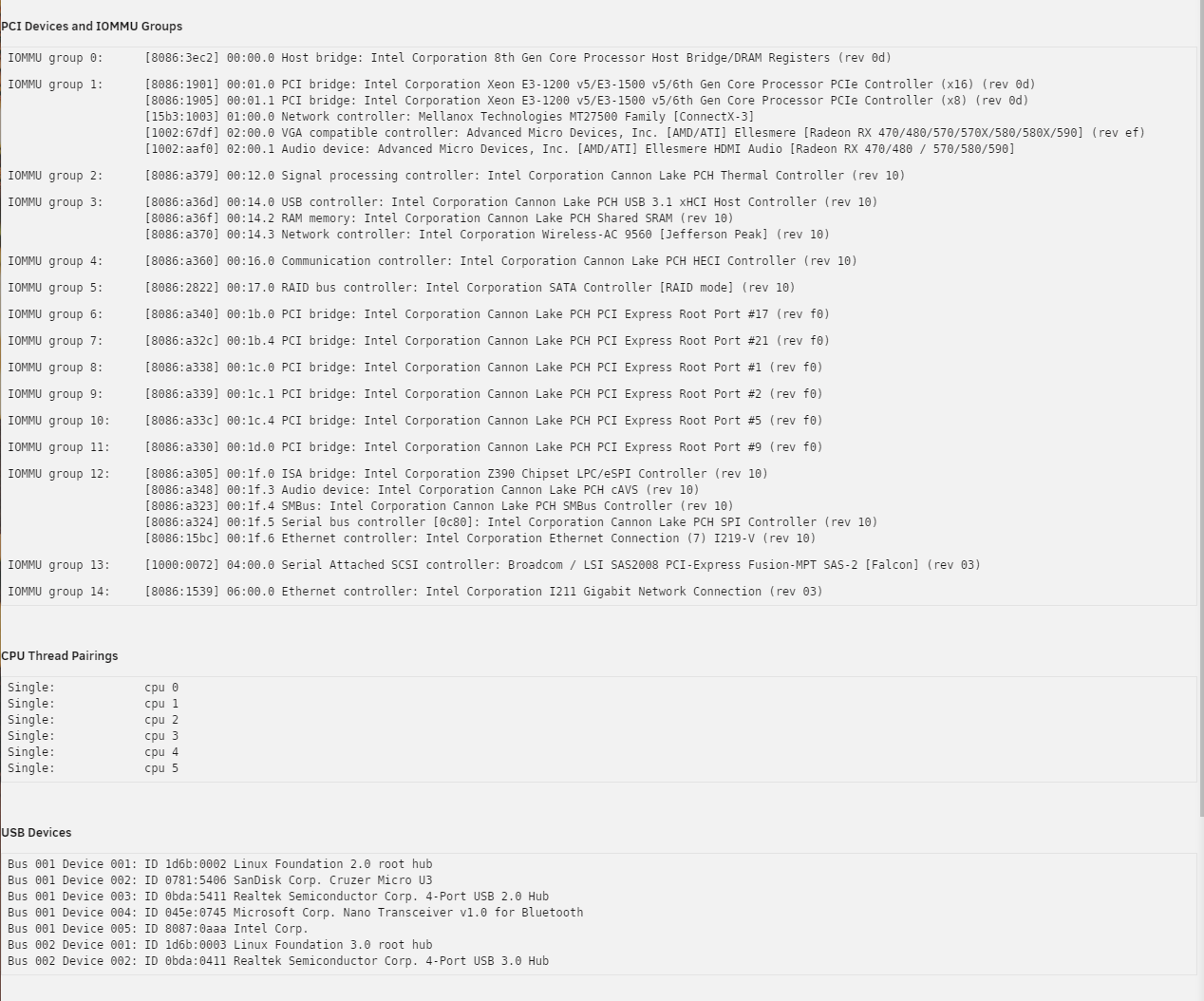

Try to enable pci acs patch. Your iommu is not great

Envoyé de mon HD1913 en utilisant Tapatalk

[Cor4eyh]

-smp 1,sockets=1,cores=1,threads=1 \
-uuid 911857f3-f381-08cd-c6f5-a9fd5f549abd \
-display none \
-no-user-config \
-nodefaults \
-chardev socket,id=charmonitor,fd=33,server,nowait \
-mon chardev=charmonitor,id=monitor,mode=control \
-rtc base=localtime \
-no-hpet \
-no-shutdown \
-boot strict=on \
-device ich9-usb-ehci1,id=usb,bus=pci.0,addr=0x7.0x7 \
-device ich9-usb-uhci1,masterbus=usb.0,firstport=0,bus=pci.0,multifunction=on,addr=0x7 \
-device ich9-usb-uhci2,masterbus=usb.0,firstport=2,bus=pci.0,addr=0x7.0x1 \
-device ich9-usb-uhci3,masterbus=usb.0,firstport=4,bus=pci.0,addr=0x7.0x2 \
-device ahci,id=sata0,bus=pci.0,addr=0x3 \
-device virtio-serial-pci,id=virtio-serial0,bus=pci.0,addr=0x4 \
-blockdev '{"driver":"file","filename":"/mnt/user/isos/Windows.iso","node-name":"libvirt-3-storage","auto-read-only":true,"discard":"unmap"}' \
-blockdev '{"node-name":"libvirt-3-format","read-only":true,"driver":"raw","file":"libvirt-3-storage"}' \
-device ide-cd,bus=sata0.0,drive=libvirt-3-format,id=sata0-0-0,bootindex=2 \
-blockdev '{"driver":"file","filename":"/mnt/user/isos/virtio-win-0.1.173-2.iso","node-name":"libvirt-2-storage","auto-read-only":true,"discard":"unmap"}' \
-blockdev '{"node-name":"libvirt-2-format","read-only":true,"driver":"raw","file":"libvirt-2-storage"}' \
-device ide-cd,bus=sata0.1,drive=libvirt-2-format,id=sata0-0-1 \
-blockdev '{"driver":"file","filename":"/mnt/disks/SanDisk_SSD_PLUS_240GB_193412801927/Windows 10/vdisk1.img","node-name":"libvirt-1-storage","cache":{"direct":false,"no-flush":false},"auto-read-only":true,"discard":"unmap"}' \
-blockdev '{"node-name":"libvirt-1-format","read-only":false,"cache":{"direct":false,"no-flush":false},"driver":"raw","file":"libvirt-1-storage"}' \
-device ide-hd,bus=sata0.2,drive=libvirt-1-format,id=sata0-0-2,bootindex=1,write-cache=on \
-netdev tap,fd=35,id=hostnet0,vhost=on,vhostfd=36 \
-device virtio-net-pci,netdev=hostnet0,id=net0,mac=52:54:00:5b:da:39,bus=pci.0,addr=0x2 \
-chardev pty,id=charserial0 \
-device isa-serial,chardev=charserial0,id=serial0 \
-chardev socket,id=charchannel0,fd=37,server,nowait \
-device virtserialport,bus=virtio-serial0.0,nr=1,chardev=charchannel0,id=channel0,name=org.qemu.guest_agent.0 \
-device usb-tablet,id=input0,bus=usb.0,port=2 \
-device vfio-pci,host=0000:02:00.0,id=hostdev0,bus=pci.0,addr=0x5 \
-device usb-host,hostbus=1,hostaddr=4,id=hostdev1,bus=usb.0,port=1 \
-sandbox on,obsolete=deny,elevateprivileges=deny,spawn=deny,resourcecontrol=deny \
-msg timestamp=on
2020-07-20 07:08:01.991+0000: Domain id=1 is tainted: high-privileges
2020-07-20 07:08:01.991+0000: Domain id=1 is tainted: host-cpu
char device redirected to /dev/pts/0 (label charserial0)

[Cor4eyh]

7 hours ago, rachid596 said:

Try to enable pci acs patch. Your iommu is not great

Envoyé de mon HD1913 en utilisant Tapatalk



I got it to boot after resetting unraid again. I first got it to boot with the video card working. then it stopped working and wont finish booting from the video card. If i use the onboard graphics it works if i use vnc it works but not the rx580
