Hello there,

I'm fairly new UNRAID. I've setup my server 3 days ago with a windows 10 VM (GPU and CPU passthrough).

I'm having issue to passed the built in audio controller provided by my motherboard (motherboard: asus z170 pro g => audio controller: Intel 100 Series/C230 Series Chipset Family HD Audio Controller (00:1f.3)). I'm using the GPU's audio controller (NVIDIA GTX1070) and my internal display audio output to plug my speakers.

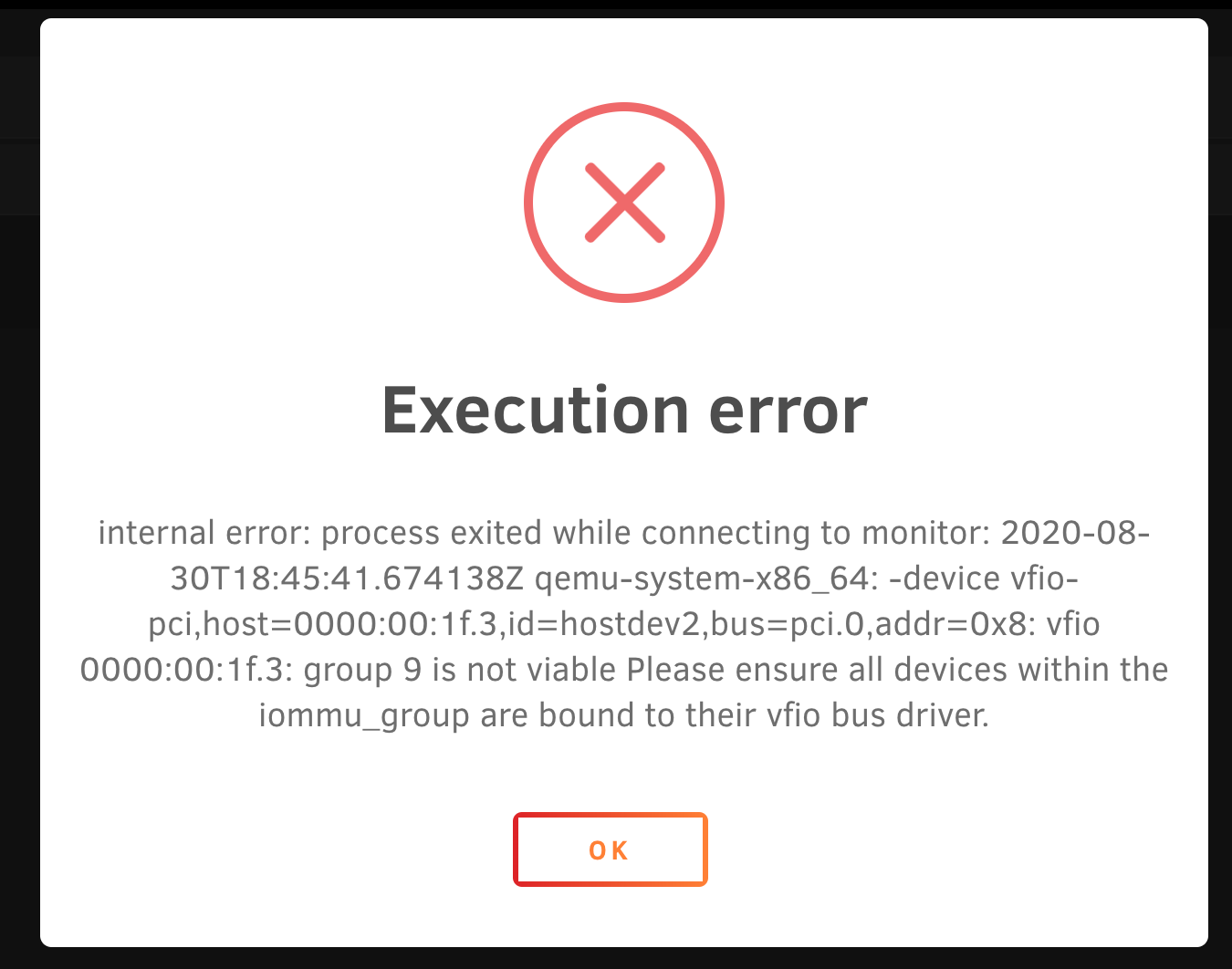

Problem is, after some time or something describe in this thread: UNRAID post . So I've tried another time to add my intel audio controller to my VM. When I tried to start it, I get the error message (attached image). There's no system error

Here's the only log happening when trying to launch my VM with the additional Intel audio controller

Aug 30 20:48:49 cronos kernel: vfio-pci 0000:01:00.0: vgaarb: changed VGA decodes: olddecodes=io+mem,decodes=io+mem:owns=none
Aug 30 20:48:49 cronos kernel: br0: port 2(vnet0) entered blocking state
Aug 30 20:48:49 cronos kernel: br0: port 2(vnet0) entered disabled state
Aug 30 20:48:49 cronos kernel: device vnet0 entered promiscuous mode
Aug 30 20:48:49 cronos kernel: br0: port 2(vnet0) entered blocking state
Aug 30 20:48:49 cronos kernel: br0: port 2(vnet0) entered forwarding state
Aug 30 20:48:50 cronos kernel: vfio_ecap_init: 0000:01:00.0 hiding ecap 0x19@0x900
Aug 30 20:48:50 cronos kernel: br0: port 2(vnet0) entered disabled state
Aug 30 20:48:50 cronos kernel: device vnet0 left promiscuous mode
Aug 30 20:48:50 cronos kernel: br0: port 2(vnet0) entered disabled state
Aug 30 20:48:51 cronos kernel: vfio-pci 0000:01:00.0: vgaarb: changed VGA decodes: olddecodes=io+mem,decodes=io+mem:owns=none

I've tried to find an answer on unraid forums and google it but I didn't find out any solution .

Does anyone has encountered this issue ?



Thanks

P.S : I've attached my vm's XML below.

win10vm.xml

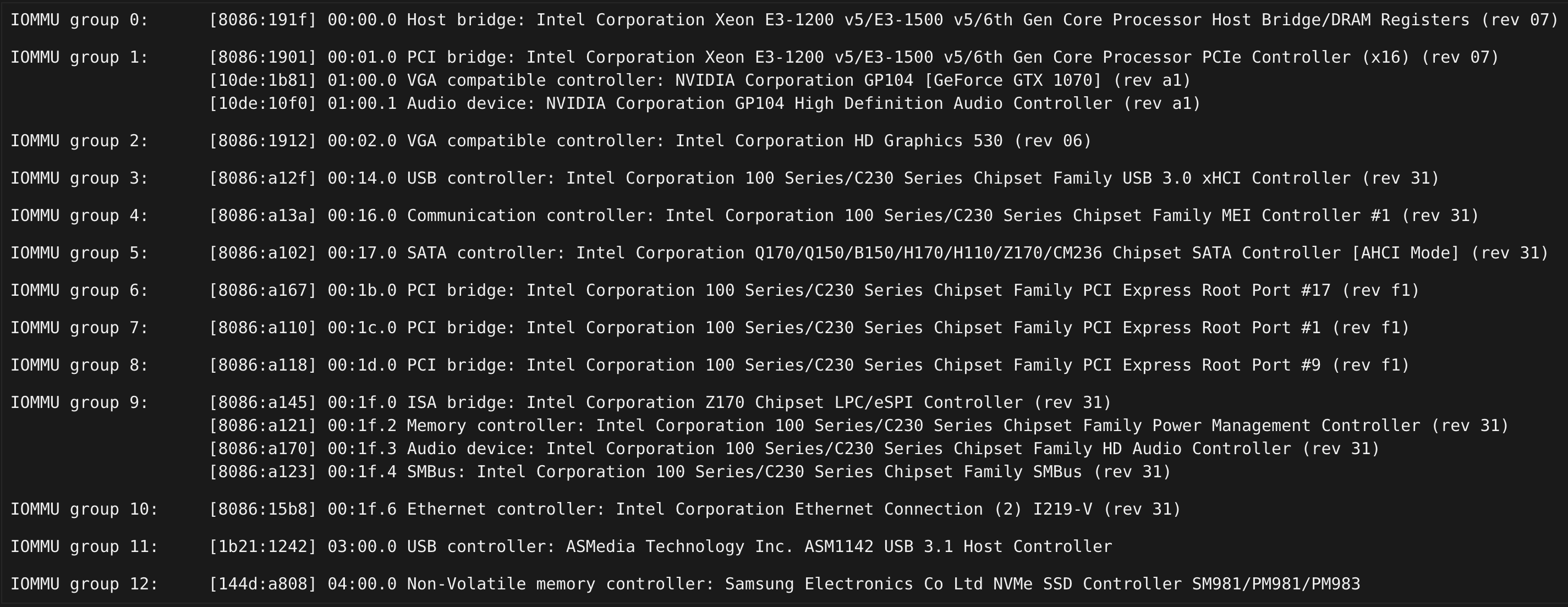

The SMBus most likely is the culprit and has a driver assigned, preventing you from passing through the audio controller (both in the IOMMU group 9).



To get around this, you'll need to prevent Unraid from assigning the SMBus driver upon boot by adding "modprobe.blacklist=i2c_i801,i2c_smbus" to your Syslinux configuration append line.



Just navigate to this page:
https://cronos/Main/Flash?name=flash



And modify the green block's append line:



Then hit Apply and reboot the Unraid server.  Your Windows VM should be able to start after that.

Thank you so much !  That's exactly what was wrong apparently. It even fixed another problem that I was trying to fix (my vms with my nvidia gpu gave me black screen w/ a weird manipulation at the boot of unraid).

Thank you !

I'm also having issues getting my IOMMU group to appear in windows. Headphones plugged into my line out port aren't discovered.



On 8/30/2020 at 9:33 PM, eschultz said:

modprobe.blacklist=i2c_i801,i2c_smbus







Would those parameters be different with more recent versions of unraid? I tried blacklisting the same thing, and then clearing the power from my system so unraid would let go of my audio device. No luck so far.

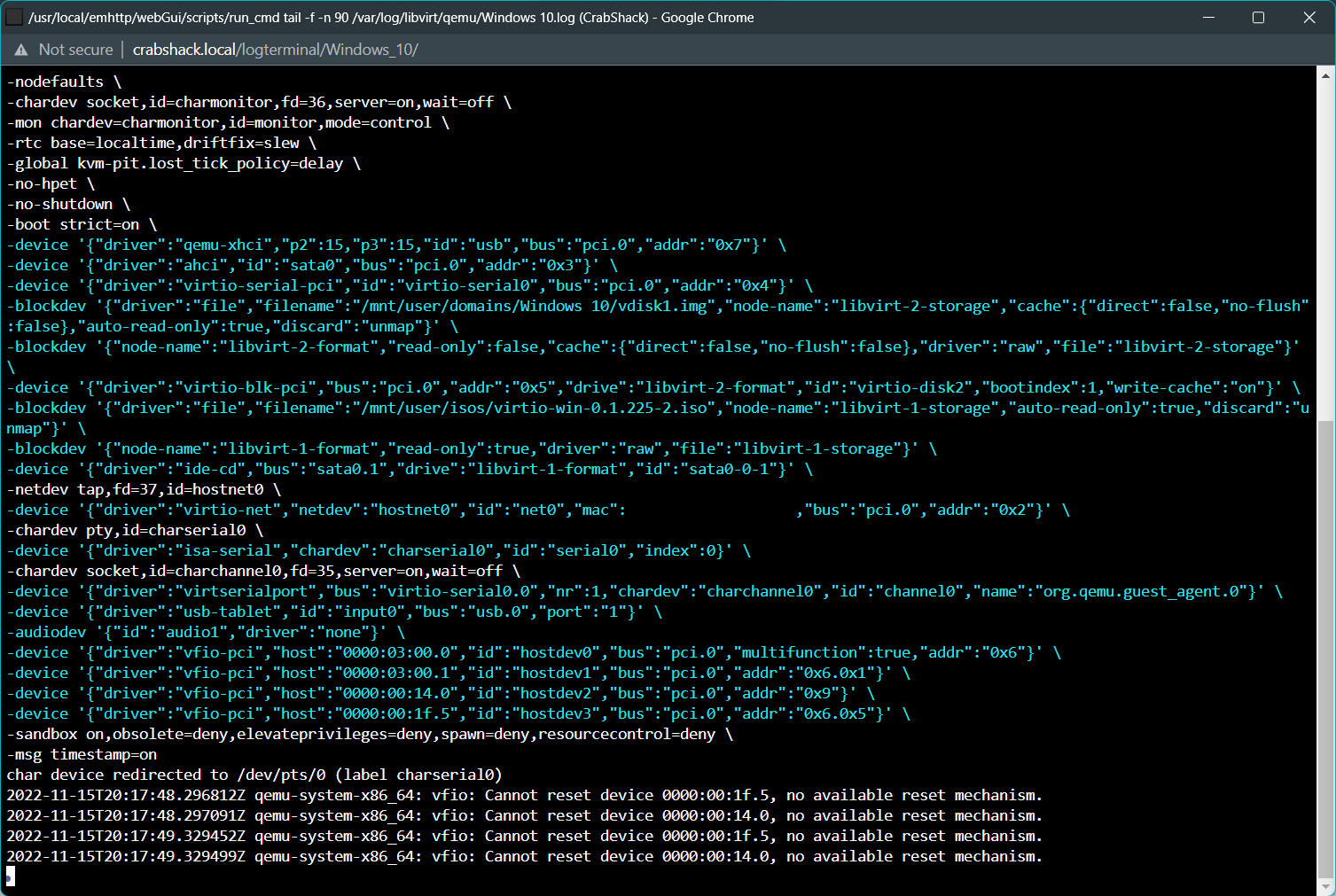

I do have a few log errors, which I'd be happy to make a separate post about, just figured I'd ping this thread solution for an update!



TIA!
