Zudnic

Thank you for the information. I set up wired backhaul using MoCA and I'm getting much better transfer rates.

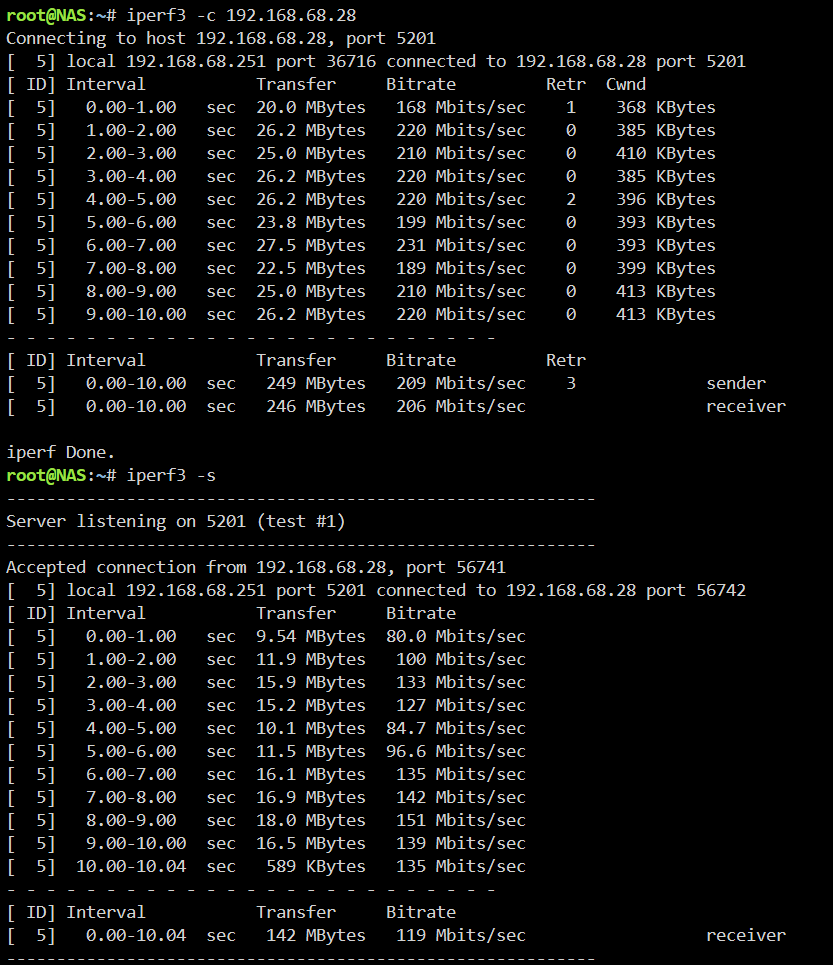

Hi, I'm getting very slow transfer speeds (20mb/sec over SMB) and I'm wondering if I'm doing something wrong on the network side. I have a TP-Link Deco XE75 system with three nodes. It is about a year old and supports Wifi 6E. I have my Unraid connected to the base node using a new Cat-6 cable. From a laptop, I am getting about 20mb/sec. I've attached iperf3 results in both directions from a laptop on wifi to the server. The laptop is connected to the base node of the mesh network via Wifi 5. Also, attached diagnostics are taken during a transfer of a ~2.5gb file from the same Windows laptop to the SMB share. The SMB is cache-first. I routinely see people posting speeds of 100gb+ here, and even complaining that's too slow. I'm wondering if I am doing anything wrong. Unraid running on an older Dell chassis, Intel Xeon CPU E5-2420 0 @ 1.90GHz, 20gb RAM, NIC capable of 1gb/sec. Thanks in advance. nas-diagnostics-20241201-2202.zip

This is over a home wifi mesh network, a relatively new Deco system. Laptops are on wifi (one on wifi 6). Unraid is Cat6 cabled to the base station. I can confirm it is a network issue. I set my Windows laptop as an iperf3 server, and pinged it from my other laptop. Speeds were comparable to speeds between the computers and Unraid. Thank you - I'll take this up with TP-Link management, as they say.

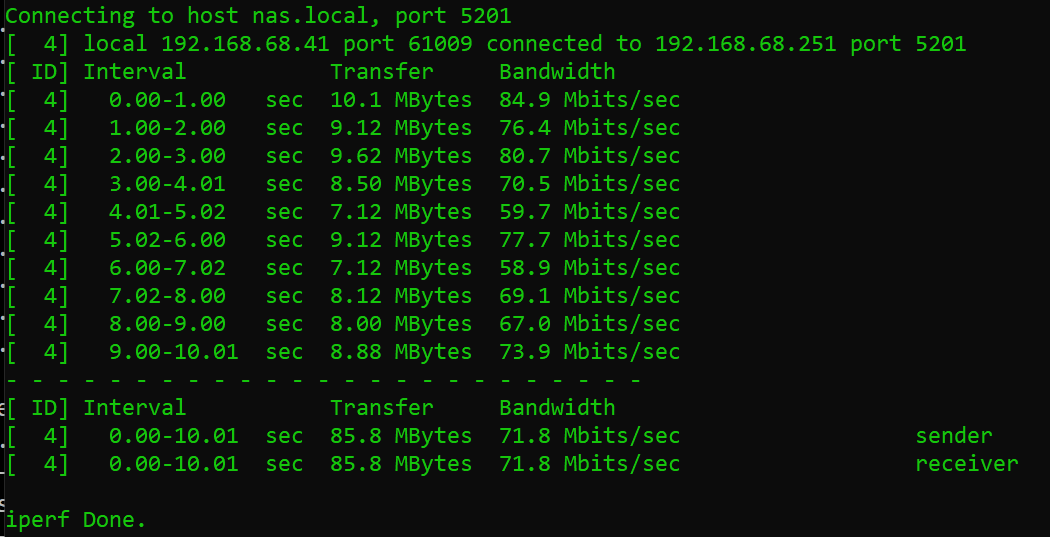

I've read up on all the threads regarding slow transfer speeds, but I can't seem to improve it. SMB transfers hover around 10-20mb/s, occasionally spike to 100mb/s and occasionally crater to 3-4mb/s. For the most part 20gb will take about 20-30 minutes. I've observed this from both a new M3 MacBook Pro and and older Dell XPS. Both have SSDs as source drives. My hardware is old, Intel Xeon CPU E5-2420 0 @ 1.90GHz, 20gb RAM. I have an Ubuntu VM running at the moment. Windows reports local network operating in the 800mb/sec range. Parity is paused. Turbo Mode enabled. Transferring to cache-first share. iperf results are slow (see screenshot) Since I'm observing this from 2 computers, and iPerf is not awesome, I'm assuming this has to do with Unraid or the hardware. Could this be a result of old hardware? Attached diagnostics taken during a 20gb transfer of images. Thank you! nas-diagnostics-20241127-1211.zip

So this is resolved. I found that the PCI ribbon had another connector intended for an optical drive, so I hooked that up and the system recognized both drives. I added both to the cache and now I have a pool. Unfortunately we never did get to the root cause, so apologies to those of you who find this in the future. @JorgeB -- Thank you again for your help.

So I disconnected the parity drive and added the new drive in its PCI slot. Unraid recognized the new drive as part of the pool, and I can now read the contents of the original disk. Thank you! It seems that the drive itself remembers if it has been in a pool, because the current pool is new and only ever contained the old drive. The drive must have somehow retained something about being part of a cache when it was in the old cache with the new drive. I can see the new disk filling, presumably it's mirroring the old drive. Last question - can I simply remove the old drive once the clone is complete? Thanks again!

Correct, I want to fix this one first since I need its data.

I don't intend to run the cache off USB, I'm going to replace the 500gb drive in sdg. I had the new one in USB to see if I could try to format it. I've removed it and re-ran the commands: root@NAS:~# blkid /dev/sdg1 /dev/sdg1: UUID="3e4c1317-5258-403f-be33-554ba20fbd00" UUID_SUB="58a6c765-6cc6-4d17-ac9b-4ae31f85a31d" BLOCK_SIZE="4096" TYPE="btrfs" root@NAS:~# fdisk -l /dev/sdg Disk /dev/sdg: 465.76 GiB, 500107862016 bytes, 976773168 sectors Disk model: Samsung SSD 860 Units: sectors of 1 * 512 = 512 bytes Sector size (logical/physical): 512 bytes / 512 bytes I/O size (minimum/optimal): 512 bytes / 512 bytes Disklabel type: dos Disk identifier: 0x00000000 Device Boot Start End Sectors Size Id Type /dev/sdg1 64 976773167 976773104 465.8G 83 Linux root@NAS:~# btrfs fi show Label: none uuid: faa9618e-5b63-48f8-bcd6-c35221312204 Total devices 1 FS bytes used 412.00KiB devid 1 size 1.00GiB used 126.38MiB path /dev/loop2 Label: none uuid: 3e4c1317-5258-403f-be33-554ba20fbd00 Total devices 2 FS bytes used 424.97GiB devid 1 size 465.76GiB used 465.76GiB path /dev/sdg1 *** Some devices missing

Thank you - that's a good question. The first thing I did was connect the new drive via PCI, expand the cache to 2 devices, and add the new one alongside the old one. (In doing so, I disconnected the parity drive because I needed the PCI slot.) The system recognized the new drive in the pool, but did not format it, and nothing was written to it. So I removed the new drive, reconnected the parity drive, and shrunk the cache back to 1. This resulted in the old cache giving the "Unmountable: Unsupported or no file system" error as shown in my screenshot. Trying to get the system to mount the cache drive, I created a new pool with the old drive only (with a new name, "newcache") and removed the original cache pool. Currently, the new drive is attached via USB and shows in historical unassigned devices.

root@NAS:~# btrfs fi show Label: none uuid: faa9618e-5b63-48f8-bcd6-c35221312204 Total devices 1 FS bytes used 412.00KiB devid 1 size 1.00GiB used 126.38MiB path /dev/loop2 Label: none uuid: 3e4c1317-5258-403f-be33-554ba20fbd00 Total devices 2 FS bytes used 424.97GiB devid 1 size 465.76GiB used 465.76GiB path /dev/sdg1 *** Some devices missing

Thank you.. I rebooted, the drive in question is sdg now. root@NAS:~# blkid /dev/sdg1 /dev/sdg1: UUID="3e4c1317-5258-403f-be33-554ba20fbd00" UUID_SUB="58a6c765-6cc6-4d17-ac9b-4ae31f85a31d" BLOCK_SIZE="4096" TYPE="btrfs" root@NAS:~# fdisk -l /dev/sdg Disk /dev/sdg: 465.76 GiB, 500107862016 bytes, 976773168 sectors Disk model: Samsung SSD 860 Units: sectors of 1 * 512 = 512 bytes Sector size (logical/physical): 512 bytes / 512 bytes I/O size (minimum/optimal): 512 bytes / 512 bytes Disklabel type: dos Disk identifier: 0x00000000 Device Boot Start End Sectors Size Id Type /dev/sdg1 64 976773167 976773104 465.8G 83 Linux

I can't believe I forgot to do that. [Diagnostics removed for privacy purposes]

Lots of content out there on this message, but I have what I believe to be a somewhat unique circumstance. I am trying to replace my cache drive (btrfs). My chassis is somewhat dated and all my PCI slots are taken. Giving this a shot, I disconnected the parity drive and connected the new cache drive, which was not yet formatted. I added the new drive to the cache pool, but I did not see a way to format it. So I shut down the machine, removed the new cache drive and reconnected the parity drive. Changed the cache pool size back to 1. Started the array, and parity re-ran automatically. However the cache drive now shows "Unmountable: Unsupported or no file system" The cache drive contains a few VMs which are not mirrored to the array, so I want to be careful that I don't lose its contents.

I have an Ubuntu VM running on Unraid v6.9.1, version 22.04.3 LTS. For a long time I have saved torrents via qBittorrent to a mounted disk. Within Ubuntu, on boot, I'd use this command: sudo mount -t 9p -o trans=virtio ubuntudata /mnt/ubuntudata This works fine in the Ubuntu UI - I can see it in the file browser and interact with it normally. ubuntudata is a share on my unraid server. However, lately, qBittorrent does not play nice when saving to this drive. It will start the download, then after about 60-90 seconds, it will pop up that it had a file I/O error and the torrent will show status : "Errored: Invalid argument" This is the same folder I have been using for a long time so I am confident that the problem is not permissions. Thanks in advance for any help. zudnic-diagnostics-20231012-1244.zip

Thank you! That did the trick. Appreciate the quick response and idiot-proof instructions.
