maverhick

- I created a new USB bootable drive using the creator and I used the latest backup image which I downloaded from unraid dated 31st October 2025 to create a new bootable drive. - Had to run the make bootable bat file to make the USB bootable - It worked, unraid loaded, but then the real bad news a) All my shares are gone. TBs of data are missing :( , can't locate them in /mnt/ or any other location. b) None of my dockers. or plugins were there c) I saw that all the drives were properly listed, configured and the array was OK. I decided to stop the array and also shut down the machine The array did come up with the proper drive mounting and with zero errors though.

I was able to check the contents of the current USB drive - a config directory - which contains the directories of plugins and ssl along with 5 other files - a .bmp file in the root - there is no EFI folder at all on this USB drive :/ and this worked for 5 years or so What do you folks suggest next?

@JorgeB I am unclear on next steps. Should I dig into the bios, keep CSM on and Secure Boot on and enable UEFI bootup and then remove the - from the EFI folder in the flash drive?

I re-enabled CSM and then found this error. Also USB bootup is setup to Legacy and not UEFI. Let me know what I need to do. i.e CSM ON, UEFI boot on and then check if Flash drive EFI folder has a trailing - ? and remove it if it exists? What if its legacy in the BIOS and not UEFI, does anything change? Should I consider disabling CSM again and turning UEFI boot on and then removing the trailing - ?

There seems to be a cascading issue :) .. All the parity was rebuilt and so was Disk 3 and the machine was working for a day before it hung. I attached a screen and realized the following 1) It was a BIOS bootloop. The machine kept entering the BIOS setup on its own on every reboot and not moving ahead a) To fix this, I tried two things - disable CSM and also disable Secure mode b) This moved things along to the next point where I saw the error "Failed to load ldlinux.c32" This got me worried .. I figured it might be due to the above CSM / Secure mode settings. But now the machine refused to boot up into the Bios itself. Just the fan roaring at startup and not moving ahead Now, I removed the power cable, discharged the machine and then removed the CMOS battery and then replaced it with a new one. The BIOS worked again and I went and re-enabled CSM and Secure mode Now, the machine again boots to the error message "Failed to load ldlinux.c32" I want to be very cautious here and not lose any config or bungle up this very long weekend - Please suggest next steps Edited to Add - I had upgraded to 7.2 without an issue and it ran for a while before the BIOS bootloop

It was the cable. Thank you. A follow on question. I use a Lsi card with 2x cables that have 4 sata connectors each and it was the first time one of those 4 cables have errored out. I took a new cable and connected the drive to the mother board directly at this point. I have ordered a new cable - but I am also curious to know if at any time the LSi card errors out on one of its ports? i.e not a cable mistake and a card issue/error? Thanks

Hi, I had a rather old drive that had multiple SMART errors and also had aged. I replaced it with a new 8TB drive (BST0) and since then, I am facing random server halts, sometimes the error count on the drive goes up. I have to hit a hard shutdown and boot, which wakens up parity and then a day goes by in building it. SMART checks on the 8TB drive don't show anything amiss. I've also ensured the cables are swapped, just in case. Can anyone look at the diagnostics and figure out what ails this machine or HDD. Is there something I am not seeing? Any help would be appreciated. Right now the disk is being emulated and parity check is running again. I've paused it and gotten the array down. Suggest me next steps. Should I re-add the drive (like I have before and it works well for a week) and then starts throwing errors again. baloo-diagnostics-20251028-1751.zip

Thank you so much for your help. The array is back on and chugging as usual. My heartfelt appreciation for the work you do

Updated Diagnostics diagnostics-20240403-2125.zip

I resettled the cables and now both drives are showing up as unassigned, both seem to have smart errors as well. Now the Array error is " Array has 1 SMART error." which is showing up on the parity drive

Yes, one of the unassigned drives, the 4TB ones is the missing drive.

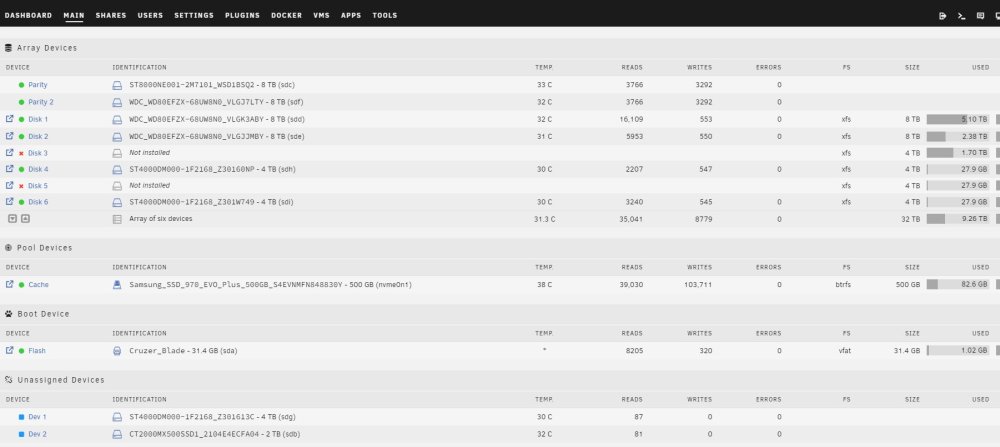

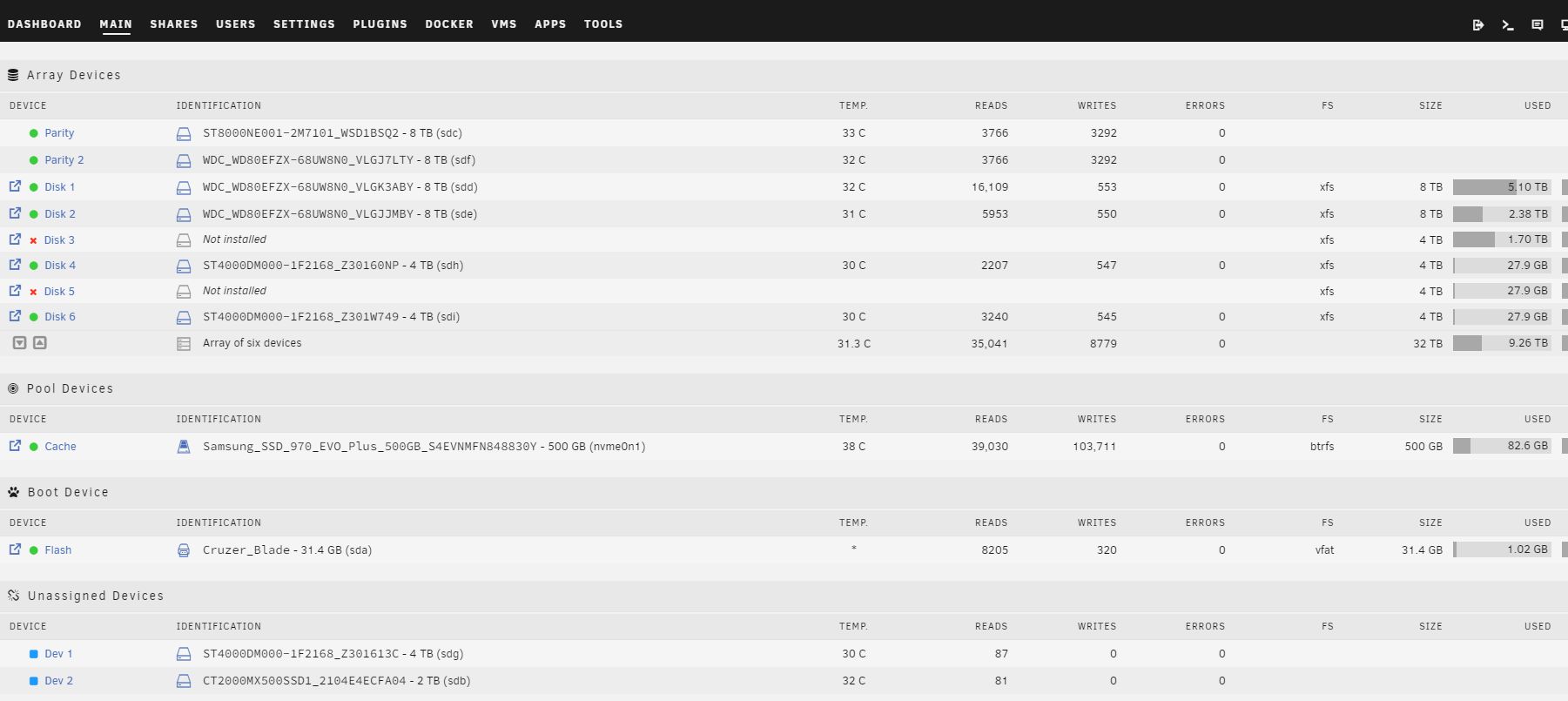

In my machine, 2 of my 4TB drives decided to play truant together and are now showing up as not installed. I also found a 4TB listed under Unassigned devices. There is no 2TB unassigned device that I am aware of or is connected to the machine. I need help with next steps. How do I diagnose these 2 drives and what next steps could I take to get them to be detected back into the array? Else is my option finding a 8TB drive and plugging it in and rebuilding the array. Looking to hear suggestions on getting this out of the way. I am so thankful that I have a 2 drive parity, else I would have pulled my hair out diagnostics-20240403-0022.zip diagnostics-20240403-2125.zip

Post installing tailscale on unraid and a windows machine where I had setup my unraid shares as drives, the drives aren't accessible. Just wanted to check if others have faced this issue?

Is it possible to install autogpt without it being in the apps section? Can anyone share how to accomplish that?

Hi, here are pics showing the plugin version and the error
