kamikazedan

Guest agent is installed now, I had not installed it before as it was never an issue. So it appears I was totally wrong about just the VMs crashing, the whole OS is crashing. So either something is totally broken in UNRAID or there's a hardware issue. unraidrouter-diagnostics-20230910-1632.zip

Latest random crash after a couple of days of uptime. This time rather than rebooting, the VM just paused.

It's a home lab and I've been running the firewall in a VM for years across different types of hardware as many people do. This is an UNRAID box purely for virtualisation of the firewall and DNS, no important data is stored on it. I was clear that it was running in a VM. Is your comment supposed to help in any way or is this a telling off for doing something wrong? If you have any suggestions that could help, it would be appreciated.

Hey, I've been running an N6005 NUC with the 4 x 226v 2.5G network ports as an UNRAID device that hosts my home assistant, pihole, and mainly my firewall since the start of the year, with no issues. After 6.12.* my UNRAID is crashing weekly, recently it is every couple of days. I've noticed in the system log I have some errors. ACPI is disabled in the BIOS. Sep 4 22:13:31 UnraidRouter kernel: x86/split lock detection: #AC: crashing the kernel on kernel split_locks and warning on user-space split_locks Sep 4 22:13:31 UnraidRouter kernel: ACPI: Early table checksum verification disabled Sep 4 22:13:31 UnraidRouter kernel: ACPI BIOS Error (bug): Could not resolve symbol [\_SB.UBTC.RUCC], AE_NOT_FOUND (20220331/psargs-330) Sep 4 22:13:31 UnraidRouter kernel: ACPI Error: Aborting method \_SB.PC00.XHCI.RHUB.HS03._PLD due to previous error (AE_NOT_FOUND) (20220331/psparse-529) Sep 4 22:13:31 UnraidRouter kernel: ACPI BIOS Error (bug): Could not resolve symbol [\_SB.UBTC.RUCC], AE_NOT_FOUND (20220331/psargs-330) Sep 4 22:13:31 UnraidRouter kernel: ACPI Error: Aborting method \_SB.PC00.XHCI.RHUB.HS04._PLD due to previous error (AE_NOT_FOUND) (20220331/psparse-529) Sep 4 22:13:31 UnraidRouter kernel: ACPI BIOS Error (bug): Could not resolve symbol [\_SB.UBTC.RUCC], AE_NOT_FOUND (20220331/psargs-330) Sep 4 22:13:31 UnraidRouter kernel: ACPI Error: Aborting method \_SB.PC00.XHCI.RHUB.SS01._PLD due to previous error (AE_NOT_FOUND) (20220331/psparse-529) Sep 4 22:13:31 UnraidRouter kernel: ACPI BIOS Error (bug): Could not resolve symbol [\_SB.UBTC.RUCC], AE_NOT_FOUND (20220331/psargs-330) Sep 4 22:13:31 UnraidRouter kernel: ACPI Error: Aborting method \_SB.PC00.XHCI.RHUB.SS02._PLD due to previous error (AE_NOT_FOUND) (20220331/psparse-529) Sep 4 22:13:31 UnraidRouter kernel: xor: measuring software checksum speed Sep 4 22:13:31 UnraidRouter kernel: ACPI BIOS Error (bug): Could not resolve symbol [\_SB.UBTC.RUCC], AE_NOT_FOUND (20220331/psargs-330) Sep 4 22:13:31 UnraidRouter kernel: ACPI Error: Aborting method \_SB.PC00.XHCI.RHUB.HS03._PLD due to previous error (AE_NOT_FOUND) (20220331/psparse-529) Sep 4 22:13:31 UnraidRouter kernel: ACPI BIOS Error (bug): Could not resolve symbol [\_SB.UBTC.RUCC], AE_NOT_FOUND (20220331/psargs-330) Sep 4 22:13:31 UnraidRouter kernel: ACPI Error: Aborting method \_SB.PC00.XHCI.RHUB.HS03._PLD due to previous error (AE_NOT_FOUND) (20220331/psparse-529) Sep 4 22:13:31 UnraidRouter kernel: ACPI BIOS Error (bug): Could not resolve symbol [\_SB.UBTC.RUCC], AE_NOT_FOUND (20220331/psargs-330) Sep 4 22:13:31 UnraidRouter kernel: ACPI Error: Aborting method \_SB.PC00.XHCI.RHUB.HS04._PLD due to previous error (AE_NOT_FOUND) (20220331/psparse-529) Sep 4 22:13:31 UnraidRouter kernel: ACPI BIOS Error (bug): Could not resolve symbol [\_SB.UBTC.RUCC], AE_NOT_FOUND (20220331/psargs-330) Sep 4 22:13:31 UnraidRouter kernel: ACPI Error: Aborting method \_SB.PC00.XHCI.RHUB.HS04._PLD due to previous error (AE_NOT_FOUND) (20220331/psparse-529) Sep 4 22:13:31 UnraidRouter kernel: ACPI BIOS Error (bug): Could not resolve symbol [\_SB.UBTC.RUCC], AE_NOT_FOUND (20220331/psargs-330) Sep 4 22:13:31 UnraidRouter kernel: ACPI Error: Aborting method \_SB.PC00.XHCI.RHUB.SS01._PLD due to previous error (AE_NOT_FOUND) (20220331/psparse-529) Sep 4 22:13:31 UnraidRouter kernel: ACPI BIOS Error (bug): Could not resolve symbol [\_SB.UBTC.RUCC], AE_NOT_FOUND (20220331/psargs-330) Sep 4 22:13:31 UnraidRouter kernel: ACPI Error: Aborting method \_SB.PC00.XHCI.RHUB.SS01._PLD due to previous error (AE_NOT_FOUND) (20220331/psparse-529) Sep 4 22:13:31 UnraidRouter kernel: ACPI BIOS Error (bug): Could not resolve symbol [\_SB.UBTC.RUCC], AE_NOT_FOUND (20220331/psargs-330) Sep 4 22:13:31 UnraidRouter kernel: ACPI Error: Aborting method \_SB.PC00.XHCI.RHUB.SS02._PLD due to previous error (AE_NOT_FOUND) (20220331/psparse-529) Sep 4 22:13:31 UnraidRouter kernel: ACPI BIOS Error (bug): Could not resolve symbol [\_SB.UBTC.RUCC], AE_NOT_FOUND (20220331/psargs-330) Sep 4 22:13:31 UnraidRouter kernel: ACPI Error: Aborting method \_SB.PC00.XHCI.RHUB.SS02._PLD due to previous error (AE_NOT_FOUND) (20220331/psparse-529) Sep 4 22:13:31 UnraidRouter kernel: ACPI BIOS Error (bug): Could not resolve symbol [\_SB.UBTC.RUCC], AE_NOT_FOUND (20220331/psargs-330) Sep 4 22:13:31 UnraidRouter kernel: ACPI Error: Aborting method \_SB.PC00.XHCI.RHUB.HS03._PLD due to previous error (AE_NOT_FOUND) (20220331/psparse-529) Sep 4 22:13:31 UnraidRouter kernel: ACPI BIOS Error (bug): Could not resolve symbol [\_SB.UBTC.RUCC], AE_NOT_FOUND (20220331/psargs-330) Sep 4 22:13:31 UnraidRouter kernel: ACPI Error: Aborting method \_SB.PC00.XHCI.RHUB.HS03._PLD due to previous error (AE_NOT_FOUND) (20220331/psparse-529) Sep 4 22:13:31 UnraidRouter kernel: floppy0: no floppy controllers found Sep 4 22:13:31 UnraidRouter kernel: tpm_crb: probe of MSFT0101:00 failed with error 378 Sep 4 22:14:35 UnraidRouter mcelog: failed to prefill DIMM database from DMI data Sep 4 22:15:21 UnraidRouter kernel: BTRFS info (device loop2): using crc32c (crc32c-intel) checksum algorithm Sep 4 22:15:25 UnraidRouter kernel: BTRFS info (device loop3): using crc32c (crc32c-intel) checksum algorithm These are the random Kernel panics I was getting from within the VMs: [fib_algo] inet.0 (bsearch4#28) rebuild_fd_flm: switching algo to radix4_lockless kernel trap 1 with interrupts disabled Fatal trap 1: privileged instruction fault while in kernel mode cpuid = 1; apic id = 01 instruction pointer = 0x20:0xffffffff81224720 stack pointer = 0x28:0xfffffe001079d458 frame pointer = 0x28:0xfffffe001079d540 code segment = base 0x0, limit 0xfffff, type 0x1b = DPL 0, pres 1, long 1, def32 0, gran 1 processor eflags = resume, IOPL = 0 current process = 0 (if_io_tqg_1) trap number = 1 panic: privileged instruction fault cpuid = 1 time = 1692981925 KDB: stack backtrace: db_trace_self_wrapper() at db_trace_self_wrapper+0x2b/frame 0xfffffe001079d270 vpanic() at vpanic+0x151/frame 0xfffffe001079d2c0 panic() at panic+0x43/frame 0xfffffe001079d320 trap_fatal() at trap_fatal+0x387/frame 0xfffffe001079d380 calltrap() at calltrap+0x8/frame 0xfffffe001079d380 --- trap 0x1, rip = 0xffffffff81224720, rsp = 0xfffffe001079d458, rbp = 0xfffffe001079d540 --- lapic_handle_intr() at lapic_handle_intr/frame 0xfffffe001079d540 ng_pppoe_rcvdata() at ng_pppoe_rcvdata+0x339/frame 0xfffffe001079d5d0 ng_apply_item() at ng_apply_item+0x2bf/frame 0xfffffe001079d660 ng_snd_item() at ng_snd_item+0x28e/frame 0xfffffe001079d6a0 ng_apply_item() at ng_apply_item+0x2bf/frame 0xfffffe001079d730 ng_snd_item() at ng_snd_item+0x28e/frame 0xfffffe001079d770 ng_ppp_link_xmit() at ng_ppp_link_xmit+0x124/frame 0xfffffe001079d7c0 ng_apply_item() at ng_apply_item+0x2bf/frame 0xfffffe001079d850 ng_snd_item() at ng_snd_item+0x28e/frame 0xfffffe001079d890 ng_apply_item() at ng_apply_item+0x2bf/frame 0xfffffe001079d920 ng_snd_item() at ng_snd_item+0x28e/frame 0xfffffe001079d960 ng_iface_send() at ng_iface_send+0xdf/frame 0xfffffe001079d9e0 ng_iface_output() at ng_iface_output+0xe3/frame 0xfffffe001079da20 ip_tryforward() at ip_tryforward+0x4f7/frame 0xfffffe001079dae0 ip_input() at ip_input+0x724/frame 0xfffffe001079db70 netisr_dispatch_src() at netisr_dispatch_src+0xb9/frame 0xfffffe001079dbc0 ether_demux() at ether_demux+0x159/frame 0xfffffe001079dbf0 ether_nh_input() at ether_nh_input+0x36b/frame 0xfffffe001079dc50 netisr_dispatch_src() at netisr_dispatch_src+0xb9/frame 0xfffffe001079dca0 ether_input() at ether_input+0x69/frame 0xfffffe001079dd00 iflib_rxeof() at iflib_rxeof+0xbcb/frame 0xfffffe001079de00 _task_fn_rx() at _task_fn_rx+0x72/frame 0xfffffe001079de40 gtaskqueue_run_locked() at gtaskqueue_run_locked+0x15d/frame 0xfffffe001079dec0 gtaskqueue_thread_loop() at gtaskqueue_thread_loop+0xc3/frame 0xfffffe001079def0 fork_exit() at fork_exit+0x7e/frame 0xfffffe001079df30 fork_trampoline() at fork_trampoline+0xe/frame 0xfffffe001079df30 --- trap 0, rip = 0, rsp = 0, rbp = 0 --- KDB: enter: panic panic.txt0600003414472155245 7146 ustarrootwheelprivileged instruction faultversion.txt0600007414472155245 7545 ustarrootwheelFreeBSD 13.2-RELEASE-p2 stable/23.7-n254761-4b4f06e3731 SMP Fatal double fault rip 0xffffffff81115a76 rsp 0xfffffe00107a9dd0 rbp 0xfffffe00107a9dd0 rax 0x1063525043c96 rdx 0x1063500000000 rbx 0xfffff80001a60000 rcx 0 rsi 0 rdi 0xfffffe00107a9e88 r8 0xfad9c0 r9 0x80000000 r10 0xffffffff r11 0x1 r12 0xfffff80001a60028 r13 0 r14 0x1063525043c96 r15 0x2f rflags 0x10246 cs 0x20 ss 0x28 ds 0x3b es 0x3b fs 0x13 gs 0x1b fsbase 0x35ad7a465120 gsbase 0xffffffff82c11000 kgsbase 0 cpuid = 1; apic id = 01 timeout stopping cpus panic: double fault cpuid = 1 time = 1693126628 KDB: stack backtrace: db_trace_self_wrapper() at db_trace_self_wrapper+0x2b/frame 0xfffffe0011e4edb0 vpanic() at vpanic+0x151/frame 0xfffffe0011e4ee00 panic() at panic+0x43/frame 0xfffffe0011e4ee60 dblfault_handler() at dblfault_handler+0x1ce/frame 0xfffffe0011e4ef20 Xdblfault() at Xdblfault+0xd7/frame 0xfffffe0011e4ef20 --- trap 0x17, rip = 0xffffffff81115a76, rsp = 0xfffffe00107a9dd0, rbp = 0xfffffe00107a9dd0 --- acpi_cpu_c1() at acpi_cpu_c1+0x6/frame 0xfffffe00107a9dd0 acpi_cpu_idle() at acpi_cpu_idle+0x2ef/frame 0xfffffe00107a9e10 cpu_idle_acpi() at cpu_idle_acpi+0x48/frame 0xfffffe00107a9e30 cpu_idle() at cpu_idle+0x9f/frame 0xfffffe00107a9e50 sched_idletd() at sched_idletd+0x4e1/frame 0xfffffe00107a9ef0 fork_exit() at fork_exit+0x7e/frame 0xfffffe00107a9f30 fork_trampoline() at fork_trampoline+0xe/frame 0xfffffe00107a9f30 --- trap 0, rip = 0, rsp = 0, rbp = 0 --- KDB: enter: panic panic.txt0600001414472607744 7152 ustarrootwheeldouble faultversion.txt0600007414472607744 7553 ustarrootwheelFreeBSD 13.2-RELEASE-p2 stable/23.7-n254761-4b4f06e3731 SMP Fatal trap 12: page fault while in kernel mode cpuid = 1; apic id = 01 fault virtual address = 0x0 fault code = supervisor read data, page not present instruction pointer = 0x20:0xffffffff8122470c stack pointer = 0x28:0xfffffe001079d420 frame pointer = 0x28:0xfffffe001079d600 code segment = base 0x0, limit 0xfffff, type 0x1b = DPL 0, pres 1, long 1, def32 0, gran 1 processor eflags = resume, IOPL = 0 current process = 0 (if_io_tqg_1) trap number = 12 panic: page fault cpuid = 1 time = 1693246635 KDB: stack backtrace: db_trace_self_wrapper() at db_trace_self_wrapper+0x2b/frame 0xfffffe001079d1e0 vpanic() at vpanic+0x151/frame 0xfffffe001079d230 panic() at panic+0x43/frame 0xfffffe001079d290 trap_fatal() at trap_fatal+0x387/frame 0xfffffe001079d2f0 trap_pfault() at trap_pfault+0x4f/frame 0xfffffe001079d350 calltrap() at calltrap+0x8/frame 0xfffffe001079d350 --- trap 0xc, rip = 0xffffffff8122470c, rsp = 0xfffffe001079d420, rbp = 0xfffffe001079d600 --- native_lapic_set_lvt_triggermode() at native_lapic_set_lvt_triggermode+0xdc/frame 0xfffffe001079d600 calltrap() at calltrap+0x8/frame 0xfffffe001079d600 --- trap 0x1, rip = 0xffffffff81224720, rsp = 0xfffffe001079d6d8, rbp = 0xfffffe001079d7e0 --- lapic_handle_intr() at lapic_handle_intr/frame 0xfffffe001079d7e0 pf_test_state_udp() at pf_test_state_udp+0x130/frame 0xfffffe001079d850 pf_test() at pf_test+0xc57/frame 0xfffffe001079d9c0 pf_check_in() at pf_check_in+0x25/frame 0xfffffe001079d9e0 pfil_run_hooks() at pfil_run_hooks+0x97/frame 0xfffffe001079da20 ip_tryforward() at ip_tryforward+0x181/frame 0xfffffe001079dae0 ip_input() at ip_input+0x724/frame 0xfffffe001079db70 netisr_dispatch_src() at netisr_dispatch_src+0xb9/frame 0xfffffe001079dbc0 ether_demux() at ether_demux+0x159/frame 0xfffffe001079dbf0 ether_nh_input() at ether_nh_input+0x36b/frame 0xfffffe001079dc50 netisr_dispatch_src() at netisr_dispatch_src+0xb9/frame 0xfffffe001079dca0 ether_input() at ether_input+0x69/frame 0xfffffe001079dd00 iflib_rxeof() at iflib_rxeof+0xbcb/frame 0xfffffe001079de00 _task_fn_rx() at _task_fn_rx+0x72/frame 0xfffffe001079de40 gtaskqueue_run_locked() at gtaskqueue_run_locked+0x15d/frame 0xfffffe001079dec0 gtaskqueue_thread_loop() at gtaskqueue_thread_loop+0xc3/frame 0xfffffe001079def0 fork_exit() at fork_exit+0x7e/frame 0xfffffe001079df30 fork_trampoline() at fork_trampoline+0xe/frame 0xfffffe001079df30 --- trap 0, rip = 0, rsp = 0, rbp = 0 --- KDB: enter: panic panic.txt0600001214473162253 7140 ustarrootwheelpage faultversion.txt0600007414473162253 7543 ustarrootwheelFreeBSD 13.2-RELEASE-p2 stable/23.7-n254761-4b4f06e3731 SMP Does this look like a hardware issue or is this some random bug that has appeared since the updates? Many thanks! unraidrouter-diagnostics-20230905-1655.zip

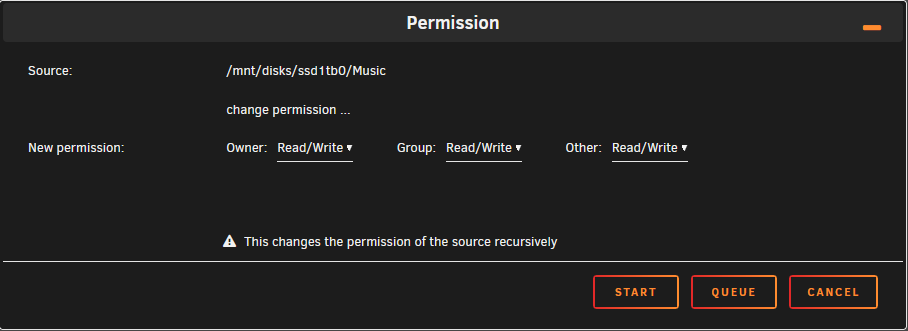

I installed the Dynamix File Manager and set the permissions for group and other to read/write, this appears to be how the other UD folders are cofigured - it's weird that UD did not use the same permissions it had configured on the other drives, the issue is now resolved.

I've changed the UD SMB setting but how would I reset the permission on the drive? Thank you.

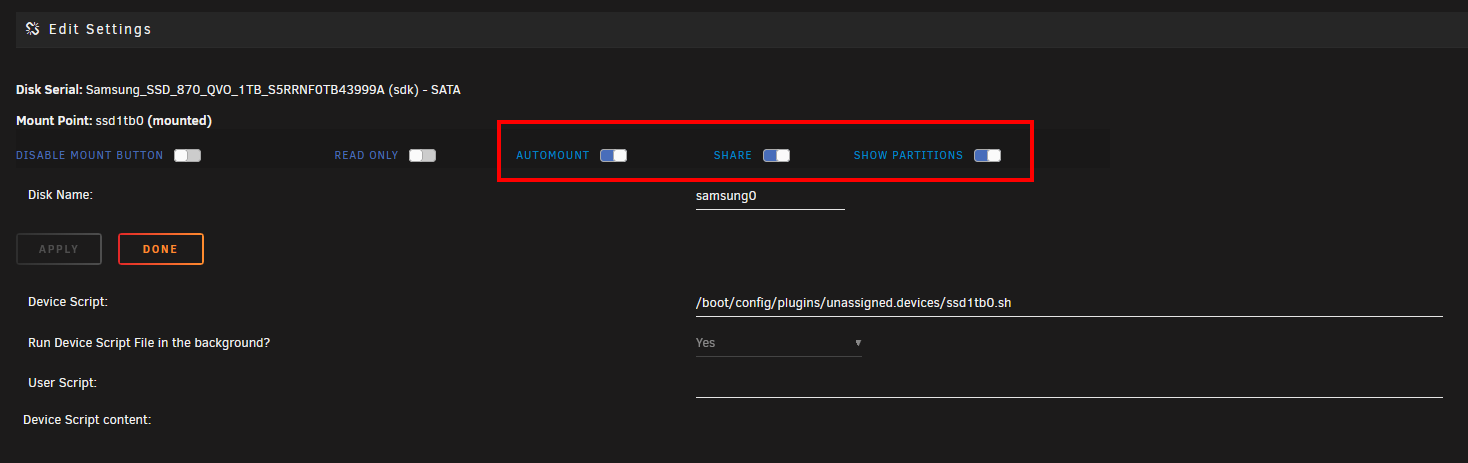

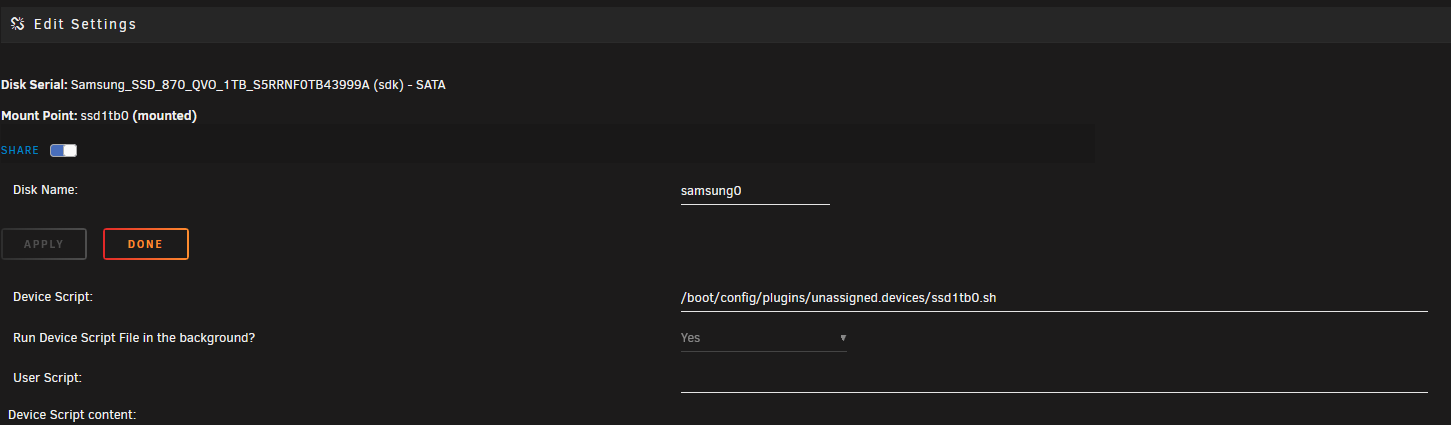

Hey, many thanks for the help, the read only switch is not set. Diagnostics attached. dansunraidnas-diagnostics-20230903-1602.zip

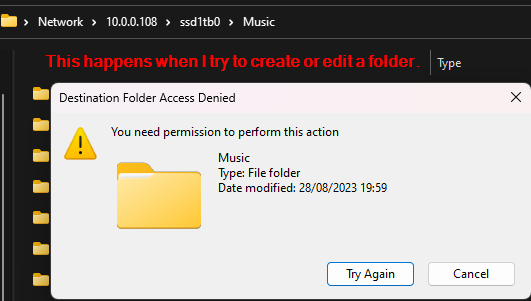

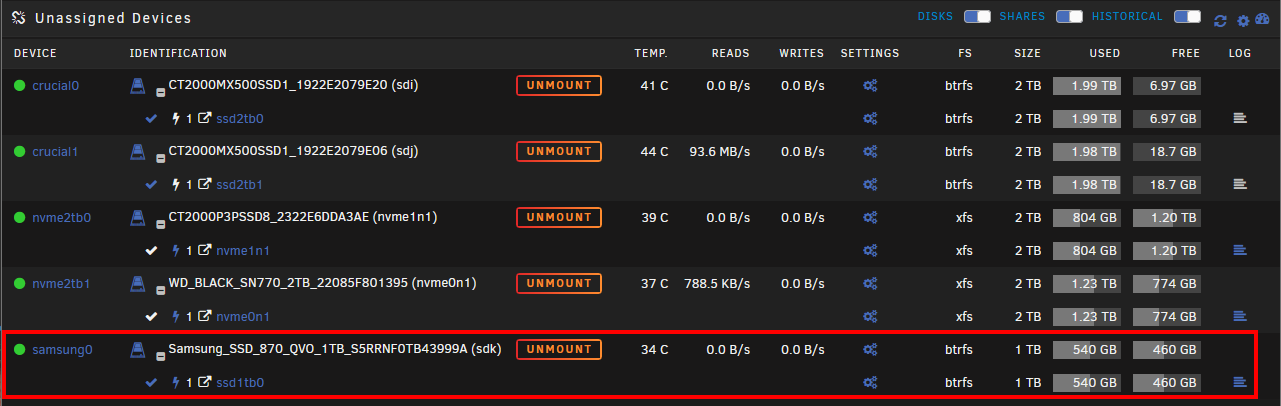

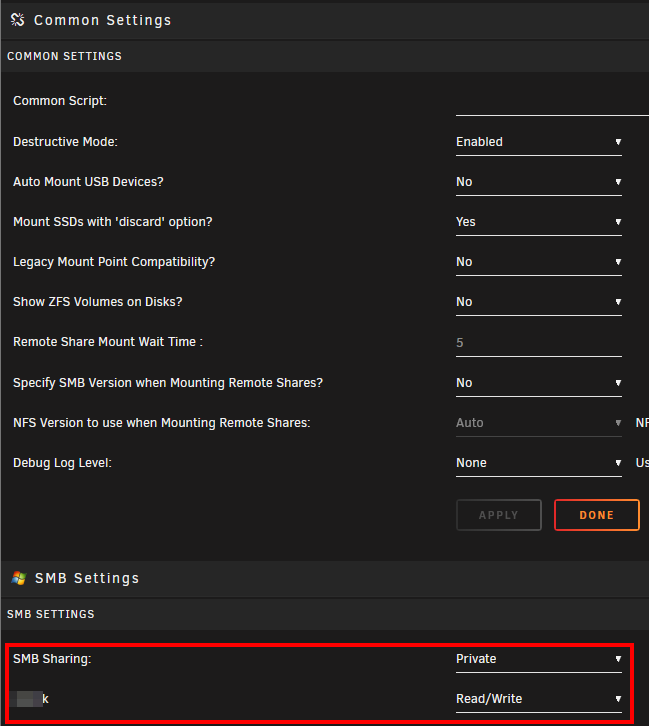

Hey, I just added a new SSD to unassigned devices. I formatted it btrfs and mounted and shared it without issues. I have set up unassigned devices to share via SMB with read/write permissions for specific users. I have 4 SSDs that I access via SMB (shared by UA) with the configured permissions without any issues. For some reason on this new SSD, my user doesn't have write permissions despite it being configured in the UA SMB settings. It's working fine on all my other drives. Any idea why UA hasn't applied the correct permissions to this new device? I moved files to the mounted drive via the terminal without issues, I just can't add files via SMB as apparently I don't have permission. I can read without issues. I've tried to remove and reapply the SMB permissions, and unmount / mount the drive. Not sure how to fix this, any advice would be appreciated.

Did you force secure connections? Make sure you are using https in the URL, by default the docker WebUI link will go to http.

Hey, Thank you for the work on this docker! How often does this docker get updated? I'm getting notifications in discord from the bot that there is a new version as of two weeks ago.
