sdesbure

What I'll do : * replace controller card from broadcom to LSI * upgrade disk4 (I was planning to upgrade disk3 as it's the smallest / nearly full but let's do that ) I'll keep you posted. Do you prefer that I mark your proposal as "solution" or do we wait for the hardware?

So I first did it with docker / vms enabled: Linux 5.15.43-Unraid (nas) 05/31/2022 _x86_64_ (4 CPU) 11:38:38 AM DEV tps rkB/s wkB/s areq-sz aqu-sz await svctm %util 11:38:43 AM loop0 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 11:38:43 AM loop1 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 11:38:43 AM loop2 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 11:38:43 AM loop3 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 11:38:43 AM sda 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 11:38:43 AM sdc 11.20 1792.00 0.00 160.00 0.05 4.32 2.55 2.86 11:38:43 AM sdb 19.60 2234.40 0.00 114.00 0.18 9.21 6.06 11.88 11:38:43 AM sdd 21.60 1872.00 69.60 89.89 0.13 5.78 2.38 5.14 11:38:43 AM sde 13.40 1827.20 0.00 136.36 0.04 2.84 2.72 3.64 11:38:43 AM sdf 31.60 2077.60 68.80 67.92 6.10 186.13 27.04 85.46 11:38:43 AM sdg 0.20 0.00 8.80 44.00 0.00 0.00 1.00 0.02 11:38:43 AM sdh 11.60 1792.80 0.80 154.62 0.04 3.16 2.53 2.94 11:38:43 AM DEV tps rkB/s wkB/s areq-sz aqu-sz await svctm %util 11:38:48 AM loop0 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 11:38:48 AM loop1 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 11:38:48 AM loop2 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 11:38:48 AM loop3 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 11:38:48 AM sda 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 11:38:48 AM sdc 20.00 1760.00 0.00 88.00 0.04 1.83 2.75 5.50 11:38:48 AM sdb 55.40 2312.80 0.00 41.75 0.72 12.98 9.03 50.02 11:38:48 AM sdd 43.60 1989.60 247.20 51.30 0.28 5.11 2.71 11.82 11:38:48 AM sde 25.20 1823.20 0.00 72.35 0.09 3.76 3.55 8.94 11:38:48 AM sdf 58.80 2248.00 212.00 41.84 5.92 93.95 16.08 94.54 11:38:48 AM sdg 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 11:38:48 AM sdh 20.40 1761.60 0.00 86.35 0.03 1.38 1.81 3.70 11:38:48 AM DEV tps rkB/s wkB/s areq-sz aqu-sz await svctm %util 11:38:53 AM loop0 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 11:38:53 AM loop1 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 11:38:53 AM loop2 3.40 8.00 22.40 8.94 0.00 0.59 0.41 0.14 11:38:53 AM loop3 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 11:38:53 AM sda 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 11:38:53 AM sdc 28.40 2008.80 0.00 70.73 0.06 1.99 2.15 6.12 11:38:53 AM sdb 82.60 2552.80 0.00 30.91 1.47 17.76 10.31 85.14 11:38:53 AM sdd 101.40 2341.60 523.20 28.25 11.64 113.16 3.55 35.98 11:38:53 AM sde 33.40 1680.80 0.00 50.32 0.12 3.46 3.51 11.74 11:38:53 AM sdf 102.60 2134.40 558.40 26.25 28.23 272.41 7.57 77.64 11:38:53 AM sdg 22.20 24.00 201.60 10.16 0.01 0.21 0.25 0.56 11:38:53 AM sdh 25.80 1558.40 0.00 60.40 0.02 0.88 1.59 4.10 ^C Average: DEV tps rkB/s wkB/s areq-sz aqu-sz await svctm %util Average: loop0 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 Average: loop1 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 Average: loop2 1.13 2.67 7.47 8.94 0.00 0.59 0.41 0.05 Average: loop3 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 Average: sda 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 Average: sdc 19.87 1853.60 0.00 93.30 0.05 2.38 2.43 4.83 Average: sdb 52.53 2366.67 0.00 45.05 0.79 15.02 9.33 49.01 Average: sdd 55.53 2067.73 280.00 42.28 4.01 70.96 3.18 17.65 Average: sde 24.00 1777.07 0.00 74.04 0.08 3.45 3.38 8.11 Average: sdf 64.33 2153.33 279.73 37.82 13.42 203.91 13.35 85.88 Average: sdg 7.47 8.00 70.13 10.46 0.00 0.21 0.26 0.19 Average: sdh 19.27 1704.27 0.27 88.47 0.03 1.51 1.86 3.58 (I stopped before the end, maybe I shouldn't have...) then I stopped, waited for load to cool down (from ~11 to ~2): Linux 5.15.43-Unraid (nas) 05/31/2022 _x86_64_ (4 CPU) 11:50:26 AM DEV tps rkB/s wkB/s areq-sz aqu-sz await svctm %util 11:50:31 AM loop0 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 11:50:31 AM loop1 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 11:50:31 AM loop2 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 11:50:31 AM loop3 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 11:50:31 AM sda 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 11:50:31 AM sdc 399.00 134265.60 0.00 336.51 0.60 1.51 1.47 58.76 11:50:31 AM sdb 200.00 134400.00 0.00 672.00 6.87 34.34 5.00 99.92 11:50:31 AM sdd 399.60 134265.60 0.00 336.00 0.60 1.49 1.46 58.48 11:50:31 AM sde 399.80 134400.00 0.00 336.17 1.33 3.32 2.45 97.94 11:50:31 AM sdf 397.00 134400.00 0.00 338.54 1.87 4.71 2.51 99.80 11:50:31 AM sdg 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 11:50:31 AM sdh 397.20 134400.00 0.00 338.37 1.84 4.64 2.51 99.80 11:50:31 AM DEV tps rkB/s wkB/s areq-sz aqu-sz await svctm %util 11:50:36 AM loop0 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 11:50:36 AM loop1 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 11:50:36 AM loop2 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 11:50:36 AM loop3 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 11:50:36 AM sda 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 11:50:36 AM sdc 389.00 132115.20 0.00 339.63 0.65 1.66 1.51 58.86 11:50:36 AM sdb 196.60 132115.20 0.00 672.00 6.85 34.85 5.07 99.70 11:50:36 AM sdd 393.40 132115.20 0.00 335.83 0.58 1.47 1.45 57.22 11:50:36 AM sde 393.20 132115.20 0.00 336.00 1.30 3.30 2.44 95.86 11:50:36 AM sdf 390.60 132115.20 0.00 338.24 1.83 4.69 2.54 99.28 11:50:36 AM sdg 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 11:50:36 AM sdh 387.00 131968.00 0.00 341.00 1.85 4.78 2.56 98.94 11:50:36 AM DEV tps rkB/s wkB/s areq-sz aqu-sz await svctm %util 11:50:41 AM loop0 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 11:50:41 AM loop1 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 11:50:41 AM loop2 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 11:50:41 AM loop3 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 11:50:41 AM sda 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 11:50:41 AM sdc 397.40 135072.00 0.00 339.89 0.63 1.59 1.49 59.08 11:50:41 AM sdb 200.80 134937.60 0.00 672.00 6.84 34.05 4.96 99.54 11:50:41 AM sdd 402.00 135072.00 0.00 336.00 0.59 1.46 1.44 58.04 11:50:41 AM sde 401.40 135072.00 0.00 336.50 1.32 3.28 2.41 96.86 11:50:41 AM sdf 390.40 134937.60 0.00 345.64 1.89 4.83 2.52 98.36 11:50:41 AM sdg 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 11:50:41 AM sdh 394.60 135084.80 0.00 342.33 1.85 4.69 2.51 99.04 11:50:41 AM DEV tps rkB/s wkB/s areq-sz aqu-sz await svctm %util 11:50:46 AM loop0 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 11:50:46 AM loop1 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 11:50:46 AM loop2 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 11:50:46 AM loop3 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 11:50:46 AM sda 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 11:50:46 AM sdc 400.00 134400.00 0.00 336.00 0.60 1.50 1.47 58.82 11:50:46 AM sdb 200.00 134400.00 0.00 672.00 6.87 34.33 5.00 100.02 11:50:46 AM sdd 400.00 134400.00 0.00 336.00 0.60 1.50 1.46 58.46 11:50:46 AM sde 399.60 134265.60 0.00 336.00 1.33 3.33 2.46 98.18 11:50:46 AM sdf 399.20 134400.00 0.00 336.67 1.87 4.68 2.50 99.88 11:50:46 AM sdg 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 11:50:46 AM sdh 399.40 134400.00 0.00 336.50 1.84 4.61 2.50 99.90 11:50:46 AM DEV tps rkB/s wkB/s areq-sz aqu-sz await svctm %util 11:50:51 AM loop0 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 11:50:51 AM loop1 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 11:50:51 AM loop2 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 11:50:51 AM loop3 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 11:50:51 AM sda 0.60 0.00 0.30 0.50 0.00 3.00 3.33 0.20 11:50:51 AM sdc 380.00 129293.60 0.00 340.25 0.94 2.49 1.58 60.00 11:50:51 AM sdb 192.60 129293.60 0.00 671.31 6.49 33.71 4.91 94.64 11:50:51 AM sdd 384.20 129293.60 0.00 336.53 0.59 1.54 1.44 55.20 11:50:51 AM sde 383.00 129293.60 0.00 337.58 1.26 3.29 2.39 91.58 11:50:51 AM sdf 365.80 129297.60 0.00 353.47 2.05 5.59 2.58 94.38 11:50:51 AM sdg 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 11:50:51 AM sdh 366.80 129300.00 0.00 352.51 1.83 5.00 2.57 94.20 Average: DEV tps rkB/s wkB/s areq-sz aqu-sz await svctm %util Average: loop0 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 Average: loop1 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 Average: loop2 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 Average: loop3 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 Average: sda 0.12 0.00 0.06 0.50 0.00 3.00 3.33 0.04 Average: sdc 393.08 133029.28 0.00 338.43 0.68 1.74 1.50 59.10 Average: sdb 198.00 133029.28 0.00 671.87 6.78 34.26 4.99 98.76 Average: sdd 395.84 133029.28 0.00 336.07 0.59 1.49 1.45 57.48 Average: sde 395.40 133029.28 0.00 336.44 1.31 3.30 2.43 96.08 Average: sdf 388.60 133030.08 0.00 342.33 1.90 4.89 2.53 98.34 Average: sdg 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 Average: sdh 389.00 133030.56 0.00 341.98 1.84 4.74 2.53 98.38 sdg is cache and sda is flash

yep, that's what I was planning to use (an HBA working out of the box) thanks!

And thanks for both of you for helping me!

I've just stopped all dockers and the VM (jeedom) and launched a diagnostic FYI, instead of ~15Mb/s, I now have ~33Mb/s (less than 6.9.x with all dockers and VM started) nas-diagnostics-20220531-1100.zip

Yes of course sorry, Here it is (from yesterday, but nothing has changed since) nas-diagnostics-20220530-2000.zip

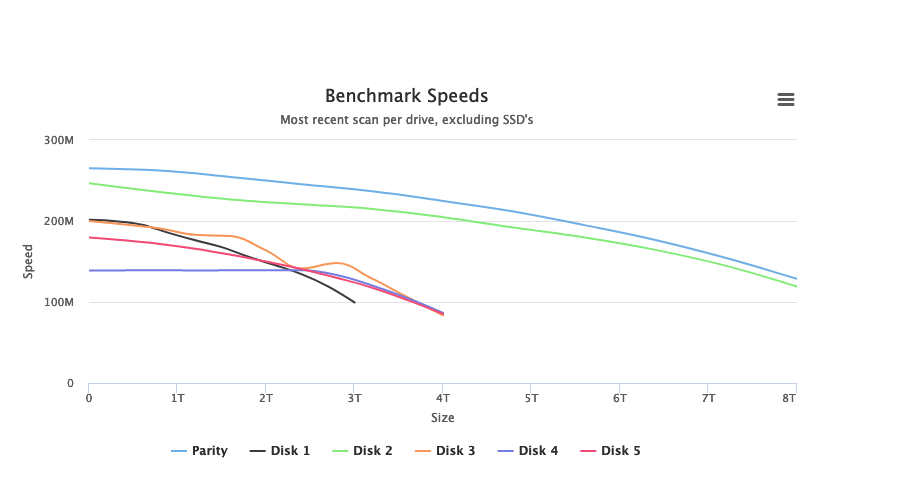

Hello, since I've upgraded to 6.10.1 (and then 6.10.2), parity check seems to be very slow (move from ~1.5 day at 59.8 MB/s to 6 days at 15.3 MB/s)... I've looked at logs and I can see that one of the drive negotiate at low sata speed (this is the purple one in the sceenshot). it's still "quite" fast (and not too low compared to other), so I was wondering if something else can the cause ?

Hello, I'm using an 88SE9215 marvel controller for 4 of 7 disks. It seems to work OK (the drives are the bottom except "purple" one + cache) but we can see that the speed is lower. I was thinking to move the drive to an LSI controller. Can I do it by just swapping the cards (and changing the cables)?

Just woke up. Gimme an hour or two. Added. You should add the <Date> entry to the template so that it shows up in the new / updated list. If you're running CA using Kode's feed, then the app should be available within two hours. If you're not using Kode's feed with CA, the App is available immediately. (Working on an update to alleviate this to a certain extent) Hi and thanks! I'll test in the next 2 hours!

Hello, not sure it's the right place but can you add my repository to the list? (this one https://github.com/sdesbure/docker-containers) thanks!
