Wireguard: No access to server itself or the LAN

[Deep Insights]

• Installed Dynamix WireGuard container &  created a tunnel & peer definition.
• Configured my firewall to port forward the default 51820 port to the unraid server

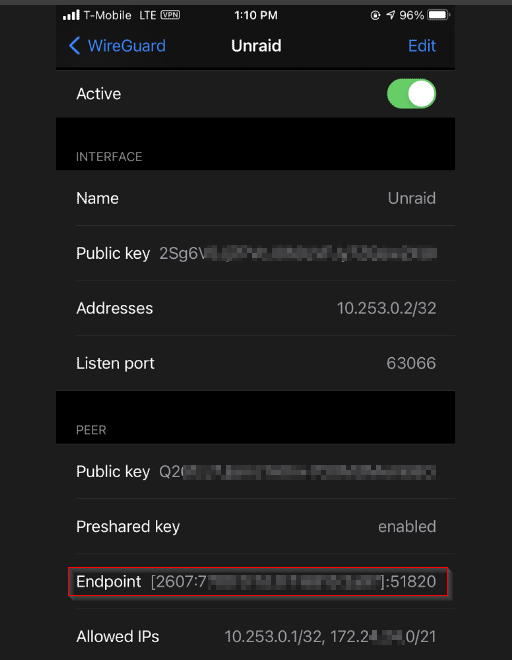

• Added WireGuard peer connection on my iPhone via the QR code & then clicked on the slider to activate the connection.  The iOS/client status shows as Active; however, on the unraid/server side,  under the peer, I see "Last handshake: not received".  Note, that on WireGuard client shows IPv6 address connection to the server even though, the Unraid/WireGuard is setup for only IPv4.  Strange.
• My firewall shows no inbound connection
• On the phone, I am unable to access the server via the IP or the hostname.



So, it seems like the iOS client shows that the connection is active; yet my server shows no inbound connectivity.





Unraid/WireGuard/Peer Status:

[ljm42]

"active" doesn't mean "connected", it just means that you've started the tunnel on one end.



WireGuard works out of the box for a lot of people but depending on your particular setup it can be more complicated. Troubleshooting is tough because it fails silently, there aren't logs or anything to check.



I've tried to consolidate all of the information into this guide:


You'll want to go through the first two posts in particular.
