Cache Pool (encrypted btrfs) - unmountable: No file system


Recommended Posts

Hey,

I noticed yesterday some issues with my docker container that they suddenly stopped because of "server error". I rebooted unraid and it looked fine.

Now I couldn't connect to my docker again and realized my whole server was not reachable via ping. Also a connected monitor couldn't show me anything.
So I had to switch it off and turned it on again.
After that I was able to start unraid but my cache pool (2x 1TB SSD as raid 1 btrfs encrypted) showed up as "unmountable: no file system".

So I searched through the forum and found some topics which looked helpful.

I started with this:


I just tried the first and second step.
Then I stopped the array and removed one cache drive from the pool and startet the array again and tried to mount the disk via unassigned devices and the tips mentioned in the link above (step 1 and 2 only).

But this also didn't help.

Now I restarted again and I am not able to add the second cache drive back to the pool ... obviously.
But the second cache drive doesn't show the encrypted logo nor the filesystem in unassigned devices.

Now I am a bit nervous, because there are many files I need and I thought I would be safe with a raid 1.
The drives are sdb and sdc.



I really hope you can help me to access the data.

diagnostics-20210304-0208.zip

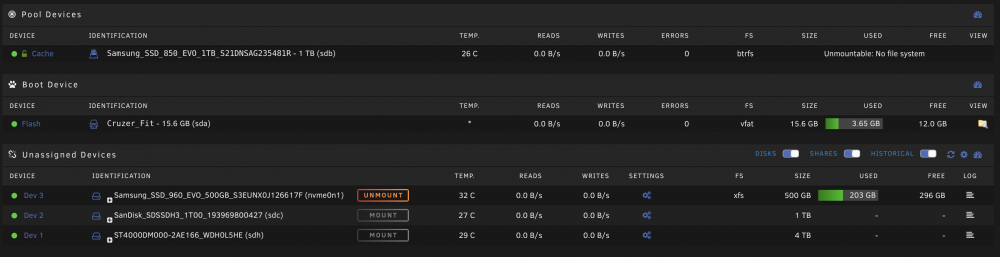

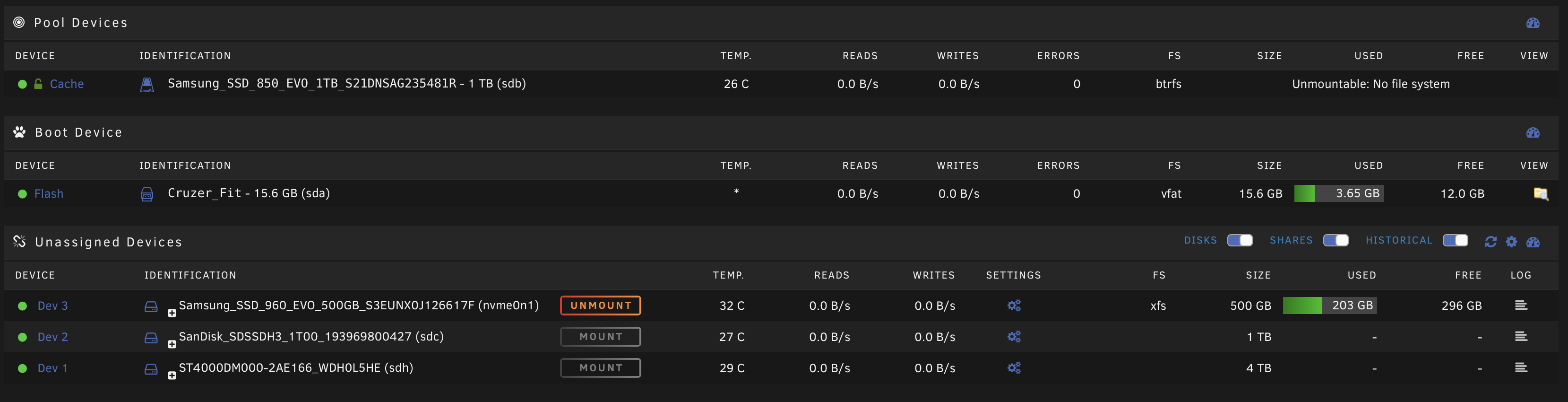

Bildschirmfoto 2021-03-04 um 02.47.40.png

Edited by Harlequin42
spelling correction
Link to comment

The root of your problem is here

Quote

Mar  4 01:47:07 SN-HOME01 kernel: BTRFS critical (device dm-5): corrupt leaf: root=5 block=373812412416 slot=170 ino=1297036692682703108, invalid previous key objectid, have 260 expect 1297036692682703108
Mar  4 01:47:07 SN-HOME01 kernel: BTRFS error (device dm-5): block=373812412416 read time tree block corruption detected
Mar  4 01:47:07 SN-HOME01 root: mount: /mnt/cache: can't read superblock on /dev/mapper/sdb1.

So as JorgeB said, your filesystem is corrupt.



You can try to repair the BTFRS superblock but I'm not exactly sure what you'd want to do to try..  if you google " can't read superblock on /dev/mapper" or "btrfs repair superblock" or similar terms like that you may find some help.

Link to comment

Sounds bad.

I thought I would be safe with raid 1, but obviously not in this case...



Because I moved, my backup is not up to date.

I would be able to restore 90-95% of the data from separate sources, but this will take much more time than trying to fix the filesystem, but I don’t know how.

The other benefit of fixing the filesystem is that I exactly have the lost data where it was and don’t have to guess what I am missing in total.



My plan is now to add a complete new cache drive and try to restore the data from different locations, meanwhile I will try to fix the filesystem of the old cache drives with the tips you mentioned.

Is it possible to fix a broken filesystem on an encrypted drive?



What are your suggestions for the future?

i read that btrfs is not the best for this.


i also have not found the optimal backup strategy.

maybe there are also some suggestions.

Link to comment

I tried the repair but it didn't help.

First I tried "btrfs check --repair /dev/sdb1" but then I got the message:


Quote

enabling repair mode
WARNING:

        Do not use --repair unless you are advised to do so by a developer
        or an experienced user, and then only after having accepted that no
        fsck can successfully repair all types of filesystem corruption. Eg.
        some software or hardware bugs can fatally damage a volume.
        The operation will start in 10 seconds.
        Use Ctrl-C to stop it.
10 9 8 7 6 5 4 3 2 1
Starting repair.
Opening filesystem to check...
No valid Btrfs found on /dev/sdc1
ERROR: cannot open file system



Then I tried "btrfs check --repair /dev/mapper/sdb1" and it started, but it seems not working well:


Quote

enabling repair mode
WARNING:

        Do not use --repair unless you are advised to do so by a developer
        or an experienced user, and then only after having accepted that no
        fsck can successfully repair all types of filesystem corruption. Eg.
        some software or hardware bugs can fatally damage a volume.
        The operation will start in 10 seconds.
        Use Ctrl-C to stop it.
10 9 8 7 6 5 4 3 2 1
Starting repair.
Opening filesystem to check...
warning, device 2 is missing
Checking filesystem on /dev/mapper/sdb1
UUID: c2dbd0b4-de7c-4663-a6c2-b97dbd2ea2b3
[1/7] checking root items
Fixed 0 roots.
[2/7] checking extents
bad key ordering 170 171
bad key ordering 170 171
bad key ordering 170 171
Unable to find block group for 0
Unable to find block group for 0
Unable to find block group for 0
Unable to find block group for 0
Unable to find block group for 0
Unable to find block group for 0
bad block 373812412416
ERROR: errors found in extent allocation tree or chunk allocation
[3/7] checking free space tree
cache and super generation don't match, space cache will be invalidated
[4/7] checking fs roots
bad key ordering 170 171
ERROR: commit_root already set when starting transaction
ERROR: errors found in fs roots
found 849140412416 bytes used, error(s) found
total csum bytes: 0
total tree bytes: 66895872
total fs tree bytes: 9961472
total extent tree bytes: 56295424
btree space waste bytes: 18634369
file data blocks allocated: 235431047168
 referenced 36227096576
ERROR: attempt to start transaction over already running one
