Renetarderet Posted March 26, 2021 Share Posted March 26, 2021 Hi everyone. New unraider here. Ive recently setup my Supermicro server based on x10srh-cln4f Ive added a secondary intel quad nic to play with PFSense. However i keep getting the error that the intel quad nic is in use by unraid. I have 1 ethernet cable plugged in the ipmi port and 1 in the onboard network card. The ports are "shutdown" in the network options (new card) but it still in use, no matter what i do. Little help? tower-diagnostics-20210326-2247.zip Quote Link to comment
Hoopster Posted March 26, 2021 Share Posted March 26, 2021 (edited) 1 hour ago, Renetarderet said: However i keep getting the error that the intel quad nic is in use by unraid. You have four NICs in a bond. eth0/br0 is the interface that unRAID will always use. Since you have eth0 eth1 eth2 and eth3 in a bond (looks like Active Backup mode) for use by unRAID, they can not be used in pfSense. # Generated settings: IFNAME[0]="br0" BONDNAME[0]="bond0" BONDING_MIIMON[0]="100" BRNAME[0]="br0" BRSTP[0]="no" BRFD[0]="0" BONDING_MODE[0]="1" BONDNICS[0]="eth0 eth1 eth2 eth3" BRNICS[0]="bond0" PROTOCOL[0]="ipv4" You need to go to Settings --> Network Settings and remove the NICs you do not want in the bond if any of them are on the quad NIC card. EDIT: If you need to identify which physical NIC has been assigned to eth0, eth1, eth2....etc. you can use this command: ethtool -p ethX (where X is replaced by the NIC #) This will cause the lights on the physical NIC to flash identifying it as ethX. If you want it to flash only for a certain amount of time put a number in seconds on the end of the command. ethtool -p eth2 10 will cause the NIC assigned to eth2 to flash for 10 seconds If you don't specify a time, it will flash until you do a CTRL-C from the terminal. Edited March 26, 2021 by Hoopster Quote Link to comment

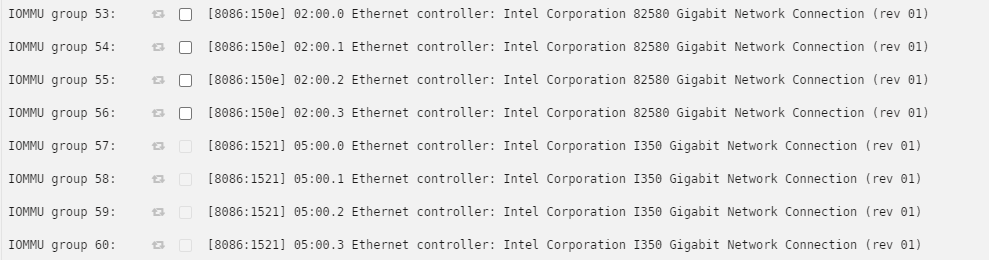

Renetarderet Posted March 27, 2021 Author Share Posted March 27, 2021 Thank you for the reply. The onboard NICS consists of eth0-3 and is "member of bond0" The Extra intel card consists of eth4-7 and is "shutdown (inactive)" when i look into the settings. If i understand your comment, it shuld be the nic with eth0-3 that should be reserved. but it is actually the extra nic with eth 4-7. The onboard one is not reserved at all.. Quote Link to comment
Renetarderet Posted April 5, 2021 Author Share Posted April 5, 2021 (edited) Disabling bonding/bridging seems to have solved the issue for me. Edited April 5, 2021 by Renetarderet Quote Link to comment
