Issue when booting UNRAID (but only into GUI mode)

Recommended Posts

Hi all,

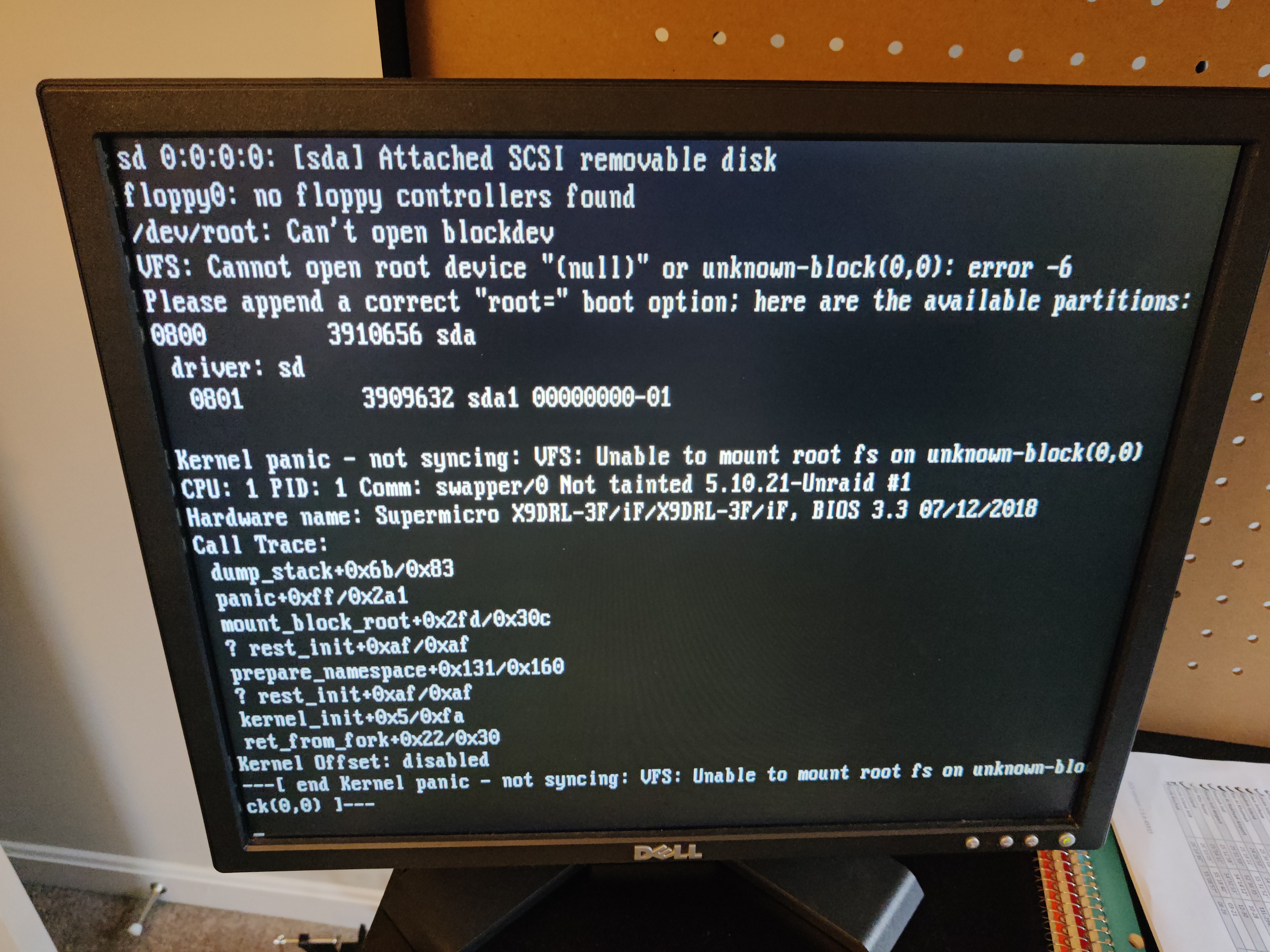

I wonder if anyone can help me, I'm having an issue when booting into my version of UNRAID but only when booting into the GUI mode. I get a kernel panic (see screenshot included please), I was running the latest version of Unraid, but have just rolled back to the previous version and still the same issue.

The only default option I have changed is that I made unraid boot into the gui version by default, by adjusting the line in the "menu default" to it in the sys linux.

I have to mention that this has all been working perfectly up until I restarted my unraid server today for a fortnightly restart.

I am also not a linux guru so any help is much appreciated.






Link to comment

Here is my syslinux config:


default menu.c32
menu title Lime Technology, Inc.
prompt 0
timeout 50
label Unraid OS
  kernel /bzimage
  append vfio-pci.ids=8086:10c9 vfio_iommu_type1.allow_unsafe_interrupts=1 initrd=/bzroot
label Unraid OS GUI Mode
  menu default
  kernel /bzimage
  append vfio_iommu_type1.allow_unsafe_interrupts=1 initrd=/bzroot,/bzroot-gui
label Unraid OS Safe Mode (no plugins, no GUI)
  kernel /bzimage
  append initrd=/bzroot unraidsafemode
label Unraid OS GUI Safe Mode (no plugins)
  kernel /bzimage
  append initrd=/bzroot,/bzroot-gui unraidsafemode
label Memtest86+
  kernel /memtest


i'm aware im probably doing something stupid.

Link to comment
  • 2 weeks later...


Can you please repost your your syslinux config file after the problem got fixed. I am having the same problem and I would like to see how your syslinux config file is configured. Also is your monitor connected to an Nvidia GPU card? Is it a passthrough setup?  I am passing through an Nvidia GT1030 and my monitor remains black eventhough I have my UnRaid OS set to GUI boot mode.
