Help, Server is rebooting every few minutes!

[Mantene]

I don't know what is going on. All of the sudden my server is rebooting what seems like every few minutes. I have been running 6.9.2 since it first came out, so it isn't like I am running a beta release. And I haven't made any configuration changes to the server. In fact, I was simply using the Windows 10 VM when it started this behavior.

I am attaching the diagnostic data from Safe Mode with the array started.  Yes, it seems to work in safe mode. I know that some plugins got updated today but I honestly don't know which ones - unassigned devices? But that shouldn't cause this, right? Please help!

eeyore-diagnostics-20210504-1719.zip

[Squid]

Have you read this post yet?



https://forums.unraid.net/topic/46802-faq-for-unraid-v6/page/2/?tab=comments#comment-819173



[Mantene]

Yes, I read that a while back. And I do not overclock my RAM (or my CPU), I am using approved RAM and all the same RAM in all the slots. Also, my power settings are correct so the c-state should not be an issue. And again, I haven't made any changes to any of that recently and I have been running Unraid for quite some time now.



Also, here is a diagnostics from a regular boot - it crashed about 20 seconds after I got this!

eeyore-diagnostics-20210504-1730.zip

[Mantene]

Oh, it even does it in safe mode.

I am ready to throw the box out the window

[John_M]

Why are you loading the Intel integrated graphics driver?

# Load the i915 driver
modprobe i915



This should really be posted in the General Support section. It isn't an Unraid bug and it isn't Urgent.



Have you done a memory test? Have you tried enabling syslog mirroring to flash to see if it catches the problem?

[ChatNoir]

"Every few" minutes seems excessive, even for the regular Ryzen issues.

Are you sure you don't have a cooling or PSU issue ?

[Mantene]

Thank you, @JorgeB for moving the thread to the correct forum. Apologies to @Squid for posting in the wrong place. I was in somewhat of a panic when I created the original thread.

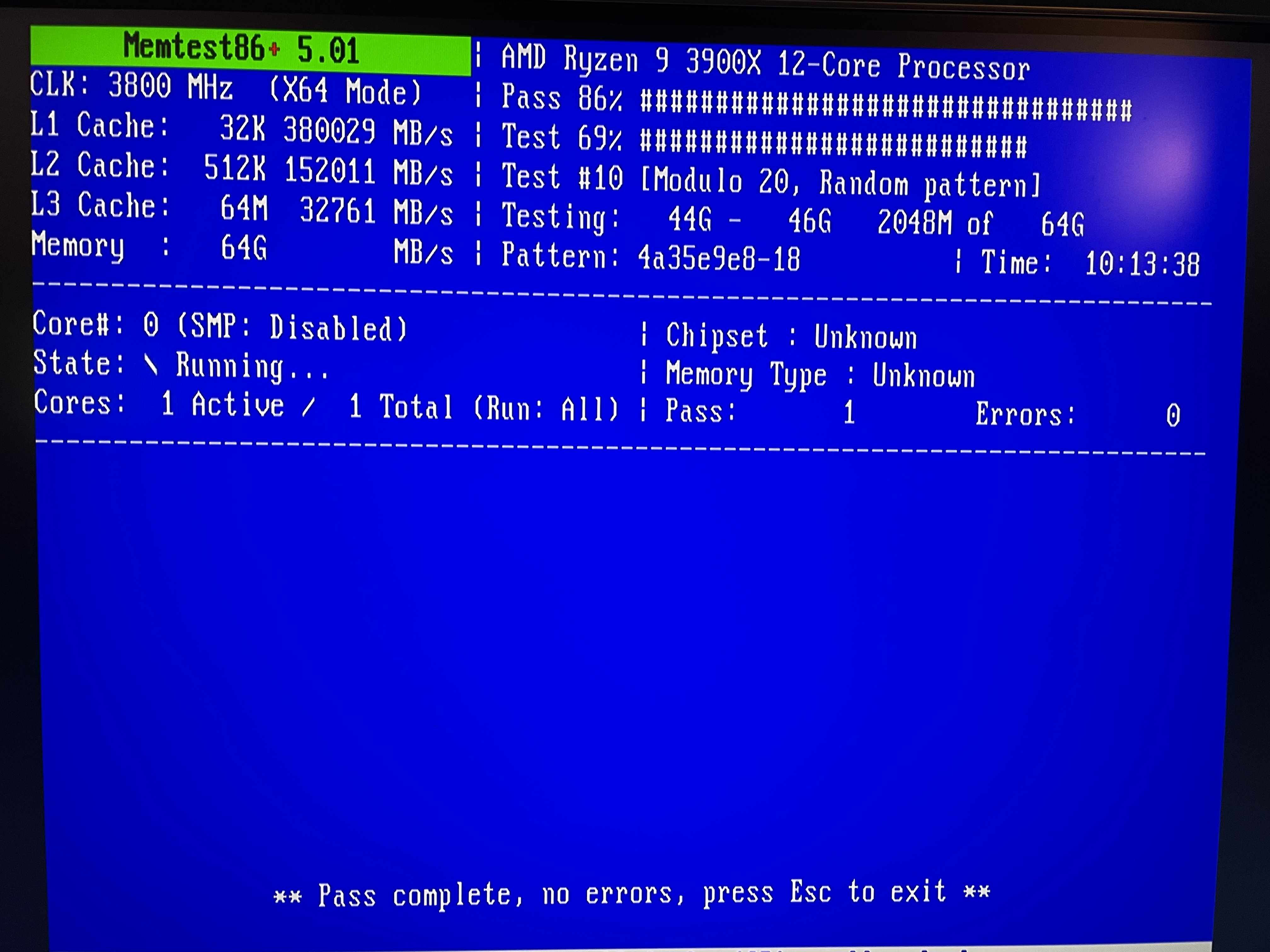

So, to address the comments of @John_M - I let MemTest run overnight and there were no errors in the morning - also the system did not reboot at all. I am now mirroring syslog to flash. I will attach a new diags bundle. Also, I have removed the modprobe i915 now - this used to be on an intel system, and that is a remnant.



@ChatNoir PSU seems to be okay, but that is one of the more difficult pieces of hardware to know for sure. Cooling also seems okay - the cpu and mb temps hover around 45, one occasionally hits 60 but only ever for a few seconds and it has always been so. These were my first thoughts too.



I have seen some errors relating to L2 or L3 cache in the syslog. Could that be the issue? Is there a way to test the CPU for faults? I am at a loss here. The system stays up if I boot into safe mode and don't mount the array. Once I mount the array it just takes minutes until an unexcepted reboot.

@JorgeB - as to the memory overcocking - you are right! I had the XMP turned on for my ram. I turned it off this AM and the current speed should be 2133.



I deeply appreciate all the help you are all providing.  Any ideas what my next steps should be?

eeyore-diagnostics-20210505-1013.zip

Edited May 5, 2021 by Mantene

[JorgeB]

Does is still reboot frequently with the RAM running @ 2133 MT/s? If yes one thing you can try it to boot the server in safe mode with all docker/VMs disable, let it run as a basic NAS for a while, if it still crashes it's likely a hardware problem, if it doesn't start turning on the other services one by one.

[Mantene]

8 minutes ago, JorgeB said:

Does is still reboot frequently with the RAM running @ 2133 MT/s? If yes one thing you can try it to boot the server in safe mode with all docker/VMs disable, let it run as a basic NAS for a while, if it still crashes it's likely a hardware problem, if it doesn't start turning on the other services one by one.

Yep, it still does it with the Ram at 2133. I did safemode with docker and vms disabled. it stays up for longer, but it still seems to reboot randomly. So yes, I am also of the opinion that it is hardware. I just wish I knew which component. MB, CPU, or PSU are the main suspects.

[Mantene]

May  5 08:58:30 Eeyore kernel: RSP: 0018:ffffc900007b78a0 EFLAGS: 00010202
May  5 08:58:30 Eeyore kernel: RAX: ffffea0005e41d80 RBX: ffffc900007b7940 RCX: 0000000000000006
May  5 08:58:30 Eeyore kernel: RDX: 0000000000000101 RSI: 17fec0817ed02b28 RDI: ffffc900007b78e8
May  5 08:58:30 Eeyore kernel: RBP: ffffc900007b7930 R08: 000000000000007f R09: ffffea0005e41d80
May  5 08:58:30 Eeyore kernel: R10: 0000000000000000 R11: ffff888103891500 R12: 000000000000000d
May  5 08:58:30 Eeyore kernel: R13: ffff888103891500 R14: ffff8881026826c0 R15: 17fec0817ed02b08
May  5 08:58:30 Eeyore kernel: FS:  0000000000000000(0000) GS:ffff888ffea40000(0000) knlGS:0000000000000000
May  5 08:58:30 Eeyore kernel: CS:  0010 DS: 0000 ES: 0000 CR0: 0000000080050033
May  5 08:58:30 Eeyore kernel: CR2: 00001510c418d4e8 CR3: 000000000200a000 CR4: 0000000000350ee0
May  5 08:59:20 Eeyore kernel: mce: [Hardware Error]: Machine check events logged
May  5 08:59:20 Eeyore kernel: [Hardware Error]: Corrected error, no action required.
May  5 08:59:20 Eeyore kernel: [Hardware Error]: CPU:9 (17:71:0) MC2_STATUS[-|CE|MiscV|AddrV|-|-|SyndV|CECC|-|-|-]: 0x9c20400000020136
May  5 08:59:20 Eeyore kernel: [Hardware Error]: Error Addr: 0x00000001790531e0
May  5 08:59:20 Eeyore kernel: [Hardware Error]: IPID: 0x000200b000000000, Syndrome: 0x000171f21a4418f5
May  5 08:59:20 Eeyore kernel: [Hardware Error]: L2 Cache Ext. Error Code: 2, L2M Data Array ECC Error.
May  5 08:59:20 Eeyore kernel: [Hardware Error]: cache level: L2, tx: DATA, mem-tx: DRD
May  5 08:59:20 Eeyore kernel: mce: [Hardware Error]: Machine check events logged
May  5 08:59:20 Eeyore kernel: [Hardware Error]: Corrected error, no action required.
May  5 08:59:20 Eeyore kernel: [Hardware Error]: CPU:1 (17:71:0) MC14_STATUS[Over|CE|MiscV|AddrV|-|SyndV|CECC|-|-|-]: 0xdc2040000004010b
May  5 08:59:20 Eeyore kernel: [Hardware Error]: Error Addr: 0x00000001790531e0
May  5 08:59:20 Eeyore kernel: [Hardware Error]: IPID: 0x000700b020f50300, Syndrome: 0x000171f21a47010a
May  5 08:59:20 Eeyore kernel: [Hardware Error]: L3 Cache Ext. Error Code: 4, L3M Data ECC Error.
May  5 08:59:20 Eeyore kernel: [Hardware Error]: cache level: L3/GEN, tx: GEN, mem-tx: GEN



[JorgeB]

26 minutes ago, Mantene said:

I just wish I knew which component. MB, CPU, or PSU are the main suspects.

It's difficult to say, if you have any spares of that, like a different PSU start with what you can test and rule out, you can also try with just two DIMMs at one time, to completely rule out the RAM.

[Mantene]

7 minutes ago, JorgeB said:

It's difficult to say, if you have any spares of that, like a different PSU start with what you can test and rule out, you can also try with just two DIMMs at one time, to completely rule out the RAM.

I can probably do all of those things. I am fairly sure I have a spare, though lower wattage, PSU. And just using two DIMMs is easy enough to try. However, I just started Prime95 cpu test so I will let that run for a few hours (if the PC stays up that long)! Thank you for the suggestions, I will report back when I have added information.

[John_M]

It looks like a faulty CPU to me, if the error reports are accurate. You'll be covered by the warranty, assuming you bought it through official channels.

[rasmus]

@Mantene Did you ever solve this?
Wondering as I am having the exact same error in my logs now and server starts crashing now and then... My CPU has been overclocked, so I am expecting that it could be degredation...

[Mantene]

On 5/23/2022 at 12:09 PM, rasmus said:

@Mantene Did you ever solve this?
Wondering as I am having the exact same error in my logs now and server starts crashing now and then... My CPU has been overclocked, so I am expecting that it could be degredation...

Sorry to tell you, but my problem turned out to be a bad CPU. I replaced it and all went back to working well.
