July 6, 20214 yr Hi there! I recently switched out my CPU from a Ryzen 2600 to a 3900X. After this swap unRAID is using all available USB-controllers. This was not an issue before, I had plenty of ports I could passthough to a VM, but not anymore. All ports WORK, but are already in use. Im using 6.9.2 with an ASUS PRIME X470-PRO with BIOS 5843. Before the swap I used 4207. root@Tower:~# lspci | grep USB 02:00.0 USB controller: Advanced Micro Devices, Inc. [AMD] Device 43d0 (rev 01) 05:00.0 USB controller: ASMedia Technology Inc. ASM1142 USB 3.1 Host Controller 0d:00.3 USB controller: Advanced Micro Devices, Inc. [AMD] Matisse USB 3.0 Host Controller root@Tower:~# lsusb Bus 006 Device 001: ID 1d6b:0003 Linux Foundation 3.0 root hub Bus 005 Device 005: ID 0781:5571 SanDisk Corp. Cruzer Fit Bus 005 Device 007: ID 046d:c539 Logitech, Inc. USB Receiver Bus 005 Device 006: ID 046d:c52b Logitech, Inc. Unifying Receiver Bus 005 Device 004: ID 2109:2811 VIA Labs, Inc. Hub Bus 005 Device 002: ID 046d:0819 Logitech, Inc. Webcam C210 Bus 005 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub Bus 004 Device 001: ID 1d6b:0003 Linux Foundation 3.0 root hub Bus 003 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub Bus 002 Device 001: ID 1d6b:0003 Linux Foundation 3.0 root hub Bus 001 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub This is a screenshot from System Devices with a USB-controller that should be unused but the checkbox is greyed out and displays this message: Syslog: tower-syslog-20210630-1810.zip Thanks in advance for any help!
July 6, 20214 yr Instead of syslog, you should post Diagnostics, which contains syslog, easier to use summaries of your hardware, and many other things to give a more complete idea of your configuration and situation. Go to Tools - Diagnostics and attach the complete Diagnostics ZIP file to your NEXT post in this thread.
July 6, 20214 yr Author Thanks for the quick response, here is the Diagnostic: tower-diagnostics-20210706-1814.zip
July 7, 20214 yr Author 23 hours ago, trurl said: Instead of syslog, you should post Diagnostics, which contains syslog, easier to use summaries of your hardware, and many other things to give a more complete idea of your configuration and situation. Go to Tools - Diagnostics and attach the complete Diagnostics ZIP file to your NEXT post in this thread. Any clue?

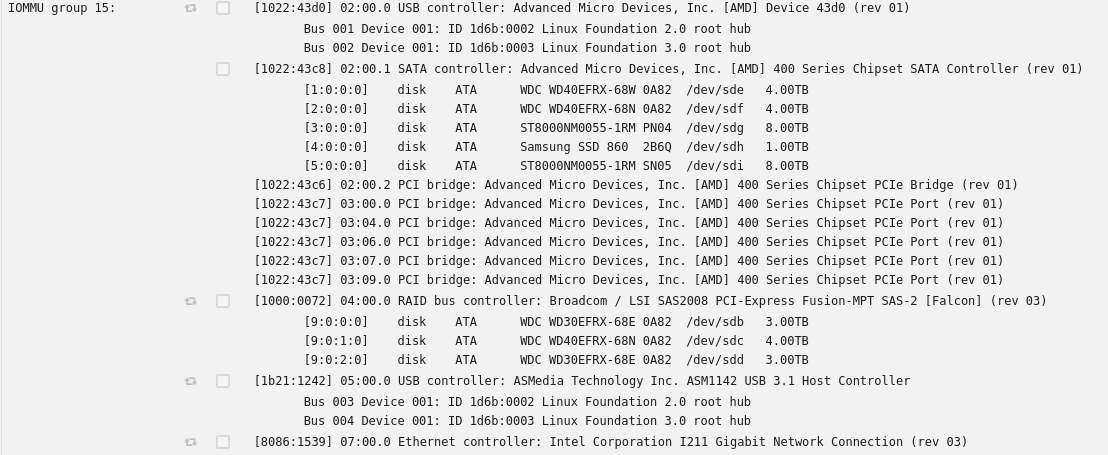

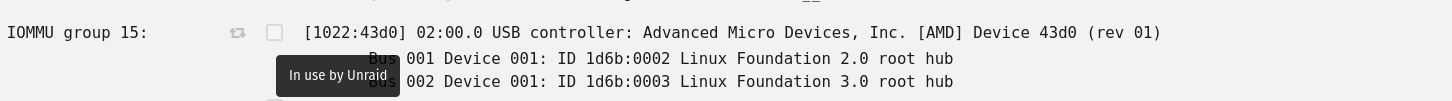

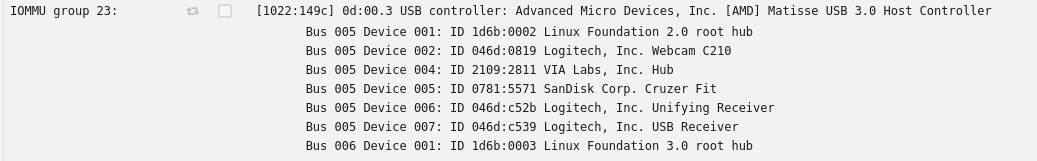

July 7, 20214 yr Group 15 is being used by Unraid. Group 23 is the controller that shouldn't be used at the moment.
July 7, 20214 yr Author 5 minutes ago, Squid said: Group 15 is being used by Unraid. Group 23 is the controller that shouldn't be used at the moment. This group is also in use by unraid, probably because the unraid USB-key is located here. Before the CPU-swap, parts of group 15 was the one I passed through. Before the swap I could pass through just the USB-controllers in this group.
July 7, 20214 yr Are you using acs override? group 15 contains a lot of things, you need to split this group.
July 7, 20214 yr Author 7 minutes ago, ghost82 said: Are you using acs override? group 15 contains a lot of things, you need to split this group. ACS Override has indeed been switched back off. Turned it on again and everything is back to normal, thank you!
