Tim Long Posted September 2, 2021 Share Posted September 2, 2021 I have a Startech 4-port USB-to-Serial adapter abd I would like to pass the 4 serial ports through to a Windows 10 VM. The 4 ports show up in the list of USB devices in the VM settings anbd I can select them. Then when I try to start the vm, I get: Quote Execution error. Operation Failed. Multiple USB devices for 14b0:3410, use to select one A slightly confusing error message. I would appreciate any guidance on wht this means and how I can achieve my goal of passing through the 4 serial ports. Best regards, Tim Long Quote Link to comment
SimonF Posted September 2, 2021 Share Posted September 2, 2021 5 hours ago, Tim Long said: I have a Startech 4-port USB-to-Serial adapter abd I would like to pass the 4 serial ports through to a Windows 10 VM. The 4 ports show up in the list of USB devices in the VM settings anbd I can select them. Then when I try to start the vm, I get: A slightly confusing error message. I would appreciate any guidance on wht this means and how I can achieve my goal of passing through the 4 serial ports. Best regards, Tim Long Within the VM template it connects via vendor and product and doesnt support multiple of the same vendor product. My usb manager plugin supports multiple devices of same vendor product. search usb in CA 1 Quote Link to comment
ghost82 Posted September 3, 2021 Share Posted September 3, 2021 (edited) I'm not sure it's not possible; it should be possible if we specify in the source the address bus and device. Never tried, but something like this: https://access.redhat.com/solutions/479683 host# lsusb Bus 002 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub Bus 002 Device 002: ID 8087:0024 Intel Corp. Integrated Rate Matching Hub Bus 002 Device 004: ID 0781:5530 SanDisk Corp. Cruzer ## this is the device to pass through <hostdev mode='subsystem' type='usb' managed='yes'> <source> <vendor id='0x0781'/> <product id='0x5530'/> <address bus='2' device='4'/> </source> <address type='usb' bus='1' port='2'/> </hostdev> so if we have two devices with same product/vendor id, let's say both at bus 2, device 3 and 4, I would try this to have them in the same guest both at bus 1, port 2 and 3: <hostdev mode='subsystem' type='usb' managed='yes'> <source> <vendor id='0x0781'/> <product id='0x5530'/> <address bus='2' device='3'/> </source> <address type='usb' bus='1' port='2'/> </hostdev> <hostdev mode='subsystem' type='usb' managed='yes'> <source> <vendor id='0x0781'/> <product id='0x5530'/> <address bus='2' device='4'/> </source> <address type='usb' bus='1' port='3'/> </hostdev> Edited September 3, 2021 by ghost82 Quote Link to comment
SimonF Posted September 6, 2021 Share Posted September 6, 2021 On 9/3/2021 at 5:34 PM, ghost82 said: <address bus='2' device='4'/> Thing to be carefull of with this will be that if host detects a disconnect/error for some reason it may re-number the dev. if you unplug and replug in a device it will be allocated a new dev on the bus. 1 Quote Link to comment
ghost82 Posted September 6, 2021 Share Posted September 6, 2021 1 hour ago, SimonF said: if you unplug and replug in a device it will be allocated a new dev on the bus. Good to know, thank you! Without knowing this I have my mice passed through with that additional line and I remember I detached and reattached several times to the same usb port and never had an issue. Maybe I was only lucky, anyway if one day will stop to work I will know where to check Quote Link to comment
SimonF Posted September 6, 2021 Share Posted September 6, 2021 4 minutes ago, ghost82 said: Good to know, thank you! Without knowing this I have my mice passed through with that additional line and I remember I detached and reattached several times to the same usb port and never had an issue. Maybe I was only lucky, anyway if one day will stop to work I will know where to check Do you use more than one of same vendor and product? Quote Link to comment
ghost82 Posted September 6, 2021 Share Posted September 6, 2021 20 minutes ago, SimonF said: Do you use more than one of same vendor and product? No, only one, in fact I hoped the op would have test it, I wasn't/am not sure it worked or not. Quote Link to comment

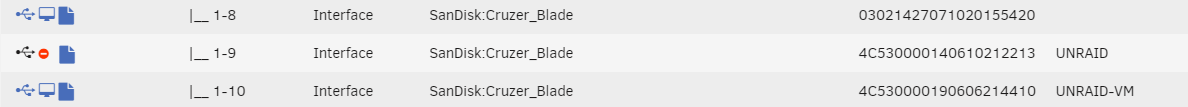

SimonF Posted September 6, 2021 Share Posted September 6, 2021 15 minutes ago, ghost82 said: No, only one, in fact I hoped the op would have test it, I wasn't/am not sure it worked or not. I can try it out for you over the next weekend. I have 3 Cruzers if I unplug one ending in 4410 its initially on 001:007 but then changes to 001:009 If you are using Vendor/Prod in the XML it will still be unique and use it for the mapping, I think it will ignore bus and hub. I use BUS and DEV in my code. function virsh_device_by_bus($action, $vmname, $usbbus, $usbdev) { $usbstr = ''; if (!empty($usbbus)) { $usbbus=ltrim($usbbus, "0"); $usbdev=ltrim($usbdev, "0") ; $usbstr .= "<hostdev mode='subsystem' type='usb'> <source> <address bus='${usbbus}' device='${usbdev}' /> </source> </hostdev>"; } $filename = '/tmp/libvirthotplugusbbybus'.$vmname.'.xml'; file_put_contents($filename,$usbstr); $cmdreturn=shell_exec("/usr/sbin/virsh $action-device '$vmname' '".$filename."' 2>&1"); usb_manager_log("usb_manager virsh called ".$vmname." ".$usbbus." ".$usbdev." ".$cmdreturn); unlink($filename) ; return $cmdreturn ; #return shell_exec("/usr/sbin/virsh $action-device '$vmname' '".$filename."' 2>&1"); #echo "Running virsh ${COMMAND} ${DOMAIN} for USB bus=${BUSNUM} device=${DEVNUM}:" >&2 #virsh "${COMMAND}" "${DOMAIN}" /dev/stdin <<END #<hostdev mode='subsystem' type='usb'> # <source> # <address bus='${BUSNUM}' device='${DEVNUM}' /> # </source> #</hostdev> #END } root@computenode:~# lsusb Bus 004 Device 001: ID 1d6b:0003 Linux Foundation 3.0 root hub Bus 003 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub Bus 002 Device 002: ID 1c04:0015 QNAP System Inc. QNAP QNA-UC5G1T USB to 5GbE Adapter Bus 002 Device 001: ID 1d6b:0003 Linux Foundation 3.0 root hub Bus 001 Device 006: ID 0781:5567 SanDisk Corp. Cruzer Blade Bus 001 Device 004: ID 0781:5567 SanDisk Corp. Cruzer Blade Bus 001 Device 005: ID 1c4f:0016 SiGma Micro USB Keyboard Bus 001 Device 003: ID 05e3:0606 Genesys Logic, Inc. USB 2.0 Hub / D-Link DUB-H4 USB 2.0 Hub Bus 001 Device 008: ID 05e3:0608 Genesys Logic, Inc. Hub Bus 001 Device 007: ID 0781:5567 SanDisk Corp. Cruzer Blade Bus 001 Device 002: ID 048d:04d2 Integrated Technology Express, Inc. UDisk Bus 001 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub root@computenode:~# lsusb -vs 001:007 | grep 4C530000190606214410 iSerial 3 4C530000190606214410 root@computenode:~# lsusb Bus 004 Device 001: ID 1d6b:0003 Linux Foundation 3.0 root hub Bus 003 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub Bus 002 Device 002: ID 1c04:0015 QNAP System Inc. QNAP QNA-UC5G1T USB to 5GbE Adapter Bus 002 Device 001: ID 1d6b:0003 Linux Foundation 3.0 root hub Bus 001 Device 006: ID 0781:5567 SanDisk Corp. Cruzer Blade Bus 001 Device 004: ID 0781:5567 SanDisk Corp. Cruzer Blade Bus 001 Device 005: ID 1c4f:0016 SiGma Micro USB Keyboard Bus 001 Device 003: ID 05e3:0606 Genesys Logic, Inc. USB 2.0 Hub / D-Link DUB-H4 USB 2.0 Hub Bus 001 Device 008: ID 05e3:0608 Genesys Logic, Inc. Hub Bus 001 Device 009: ID 0781:5567 SanDisk Corp. Cruzer Blade Bus 001 Device 002: ID 048d:04d2 Integrated Technology Express, Inc. UDisk Bus 001 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub root@computenode:~# lsusb -vs 001:009 | grep 4C530000190606214410 iSerial 3 4C530000190606214410 root@computenode:~# 1 Quote Link to comment

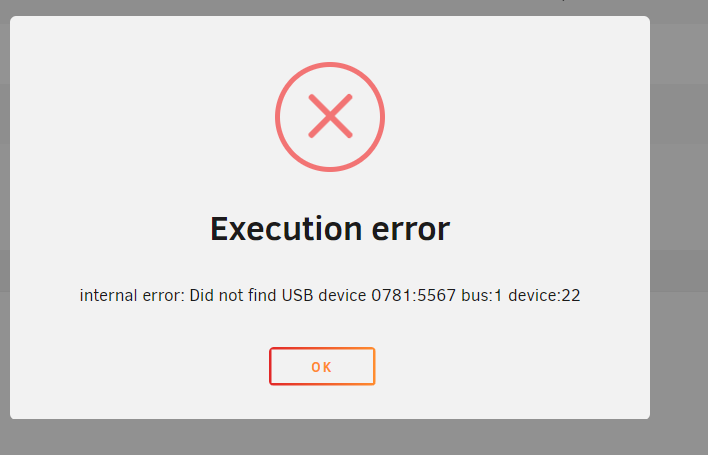

SimonF Posted September 8, 2021 Share Posted September 8, 2021 On 9/3/2021 at 5:34 PM, ghost82 said: so if we have two devices with same product/vendor id, let's say both at bus 2, device 3 and 4, I would try this to have them in the same guest both at bus 1, port 2 and 3: I can confirm this works, but if I unplug the device it will change the Device number and the VM wont find the device. Also after a reboot device may be renumbered. <hostdev mode='subsystem' type='usb' managed='no'> <source> <vendor id='0x0781'/> <product id='0x5567'/> <address bus='1' device='22'/> </source> <alias name='hostdev0'/> <address type='usb' bus='0' port='2'/> </hostdev> <hostdev mode='subsystem' type='usb' managed='no'> <source> <vendor id='0x0781'/> <product id='0x5567'/> <address bus='1' device='21'/> </source> root@computenode:~# lsusb Bus 004 Device 001: ID 1d6b:0003 Linux Foundation 3.0 root hub Bus 003 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub Bus 002 Device 002: ID 1c04:0015 QNAP System Inc. QNAP QNA-UC5G1T USB to 5GbE Adapter Bus 002 Device 001: ID 1d6b:0003 Linux Foundation 3.0 root hub Bus 001 Device 006: ID 0781:5567 SanDisk Corp. Cruzer Blade Bus 001 Device 004: ID 0781:5567 SanDisk Corp. Cruzer Blade Bus 001 Device 024: ID 0781:5567 SanDisk Corp. Cruzer Blade Bus 001 Device 023: ID 0781:5567 SanDisk Corp. Cruzer Blade Bus 001 Device 022: ID 0781:5567 SanDisk Corp. Cruzer Blade Bus 001 Device 021: ID 0781:5567 SanDisk Corp. Cruzer Blade Bus 001 Device 020: ID 05e3:0606 Genesys Logic, Inc. USB 2.0 Hub / D-Link DUB-H4 USB 2.0 Hub Bus 001 Device 008: ID 05e3:0608 Genesys Logic, Inc. Hub Bus 001 Device 010: ID 0781:5567 SanDisk Corp. Cruzer Blade Bus 001 Device 002: ID 048d:04d2 Integrated Technology Express, Inc. UDisk Bus 001 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub root@computenode:~# Unplugin hub with four usb devices 20 thru 24 Spoiler root@computenode:~# lsusb Bus 004 Device 001: ID 1d6b:0003 Linux Foundation 3.0 root hub Bus 003 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub Bus 002 Device 002: ID 1c04:0015 QNAP System Inc. QNAP QNA-UC5G1T USB to 5GbE Adapter Bus 002 Device 001: ID 1d6b:0003 Linux Foundation 3.0 root hub Bus 001 Device 006: ID 0781:5567 SanDisk Corp. Cruzer Blade Bus 001 Device 004: ID 0781:5567 SanDisk Corp. Cruzer Blade Bus 001 Device 029: ID 0781:5567 SanDisk Corp. Cruzer Blade Bus 001 Device 028: ID 0781:5567 SanDisk Corp. Cruzer Blade Bus 001 Device 027: ID 0781:5567 SanDisk Corp. Cruzer Blade Bus 001 Device 026: ID 0781:5567 SanDisk Corp. Cruzer Blade Bus 001 Device 025: ID 05e3:0606 Genesys Logic, Inc. USB 2.0 Hub / D-Link DUB-H4 USB 2.0 Hub Bus 001 Device 008: ID 05e3:0608 Genesys Logic, Inc. Hub Bus 001 Device 010: ID 0781:5567 SanDisk Corp. Cruzer Blade Bus 001 Device 002: ID 048d:04d2 Integrated Technology Express, Inc. UDisk Bus 001 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub 1 Quote Link to comment
Tim Long Posted September 10, 2021 Author Share Posted September 10, 2021 On 9/6/2021 at 8:37 PM, ghost82 said: No, only one, in fact I hoped the op would have test it, I wasn't/am not sure it worked or not. Haven't had a chance to test yet, my server is at a remote site and currently no remote access (another problem to work on!). Will be trying it soon though. 1 Quote Link to comment
