Problems After Performing Parity Swap

[patric110]

Hello,



I performed a Parity Swap operation following the steps in the manual. I removed a 6TB drive and replaced it with a 16TB parity drive. Clicked the copy button and waited for the operation to complete.

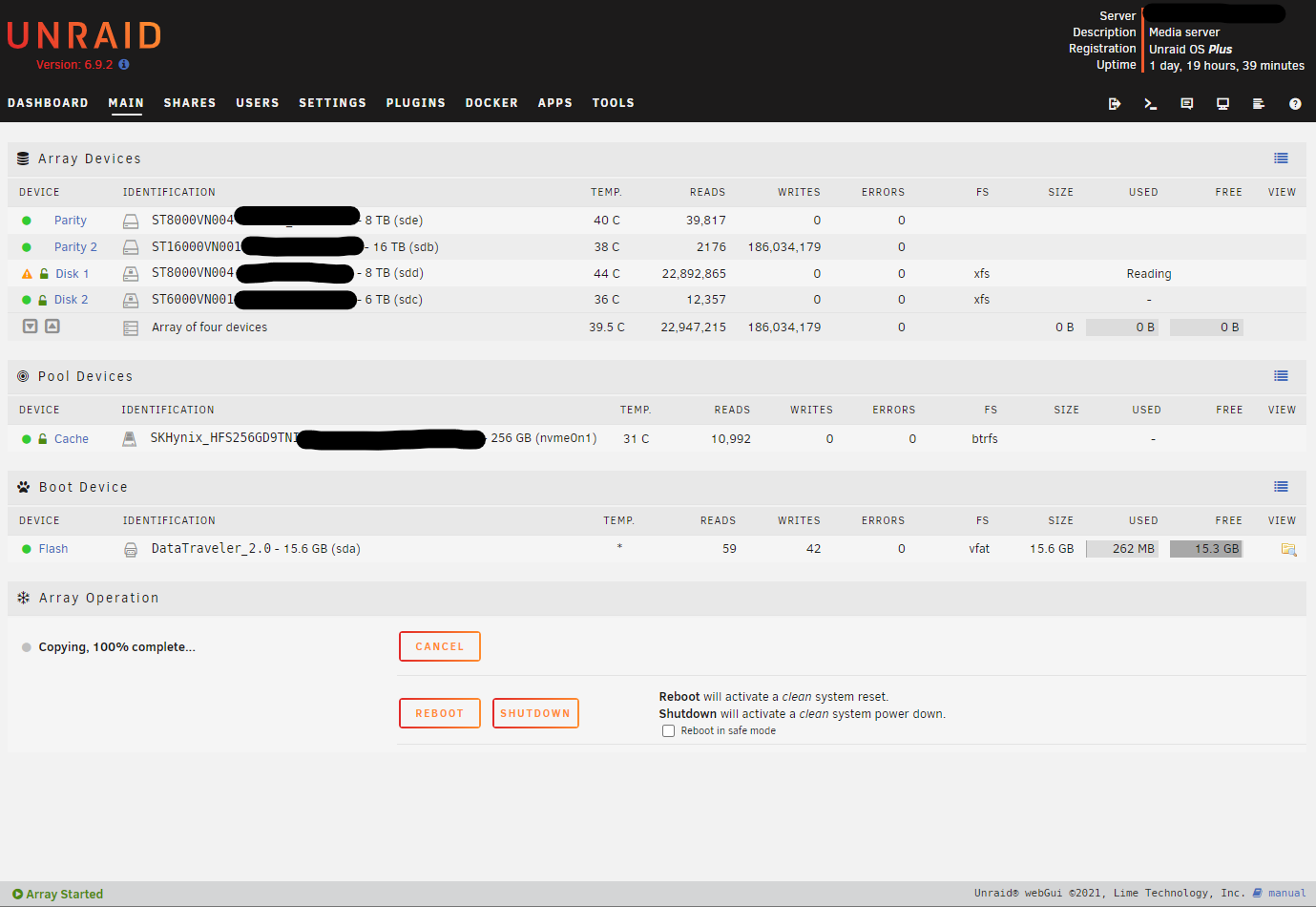

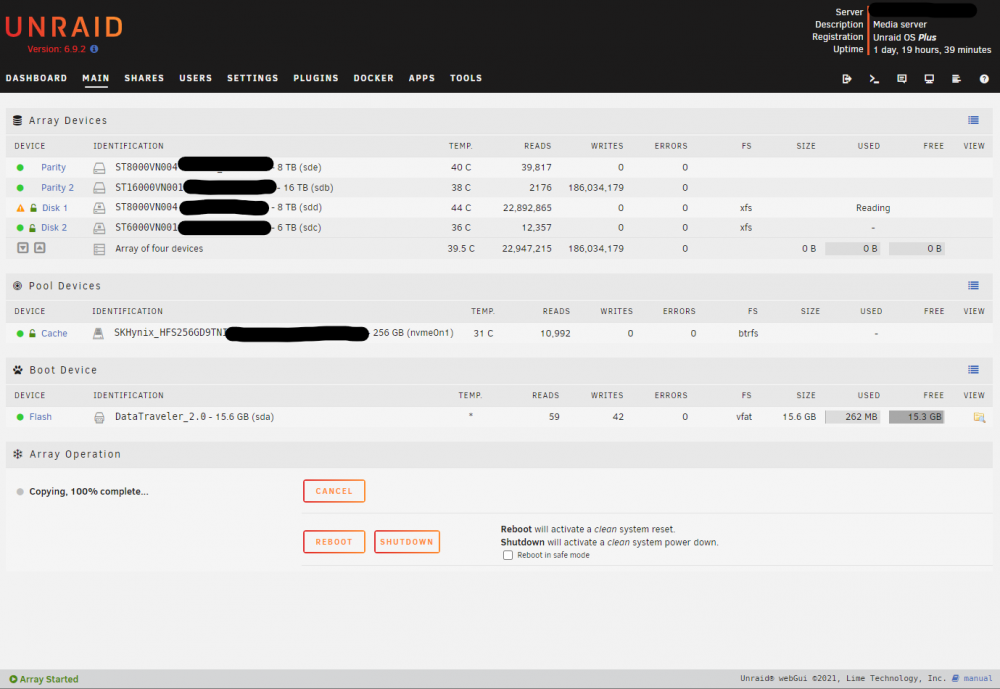

After 24 hours, the webUI reports copying 100% complete. But instead of seeing a button to now Start the array, the copy button remains. The interface says the array is started in the bottom left and the 8tb drive is being emulated. An important note, I never was prompted to enter the array passphrase at any point of this operation.



I was expecting to click Start so the 8tb Data Drive could be repopulated per the instructions-per the manual.



Unraid Version: 6.9.2

XFS Encrypted



Old Array:

6TB Data Drive 1

6TB Data Drive 2

8 TB Parity Drive 1

8 TB Parity Drive 2



Attempted Operation:

6TB Data Drive 1

16TB Parity Drive 2 <- Replaced

8 TB Parity Drive 1

8 TB Data Drive 2 <- To become Data Drive.





Does anyone have any pointers?



Much appreciated!

syslog.txt

Edited February 1, 2022 by patric110
Unresolved, reproduced bug three more times.

[JorgeB]

There was a kernel crash in the middle of the copy operation, but according to the syslog it completed, not sure if the crash is related or not, try refreshing the GUI, if the rebuild option still doesn't appear I would reboot and start over.

[patric110]

Hi, thanks!



I saw the crash, too. Which happened after the copy completed.



How is this operation performed now? It seems like the steps are in a very specific order to introduce a new drive to the array and perform the Parity Swap. Now that the unraid has seen the new drive and one of the drives has been removed. I don't want to risk a data loss.

[JorgeB]

3 minutes ago, patric110 said:

Which happened after the copy completed.



No, it happened before:


Jan 22 11:34:40 Tower emhttpd: copy: disk1 to disk29 running
...
Jan 22 22:09:12 Tower kernel: kernel BUG at fs/buffer.c:3351!
...
Jan 23 10:23:58 Tower emhttpd: copy: disk1 to disk29 completed



If you reboot you'll just need to start over with the copy, and see if there's no crash this time.



[patric110]

Hi Jorge,



After I followed your instruction and repeated the operation, the parity swap operation completed successfully with no kernel panic.



I am attempting a second parity swap procedure with the second parity drive. Three times in arrow the same kernel panic happens.



kernel: kernel BUG at fs/buffer.c:3351!
kernel: invalid opcode: 0000 [#1] SMP NOPTI





[JorgeB]

49 minutes ago, patric110 said:

Three times in arrow the same kernel panic happens.

I have no idea what that crash is about, strange that it only happens during parity copy, and if that's the case unlikely to be hardware related, you could try doing it manually.
