SanDisk USB not recognised by USB Flash Creator

[gertab]

I have this new SanDisk 3.0 USB 32GB pendive which is being flagged as incompatible (see image attached).

Considering that it is new, is it possible to use it to host Unraid?

Thanks

[Squid]

Try the manual method https://wiki.unraid.net/Articles/Getting_Started#Manual_Install_Method  The USB creator tool has some known issues and is currently being revamped





[ConnerVT]

AliExpress.  Won't be surprised there is no valid GUID.





Edited April 6, 2022 by ConnerVT
link

[RT87]

is there any progress to this? I am still experiencing this very issue with v2.1 XP.

[Trunkton]

Tried latest unRAID USB Flash Creator on Windows 11 and when attaching a SanDisk Cruzer Glide 3.0 64GB I see the 'incompatible' error. I then moved that USB drive to macOS and it sees the GUID allowing me to create the unRAID USB Flash drive without issue. Just sharing my experience with SanDisk.

UPDATE: I re-installed with W10 with all latest updates and same issue, just macOS seems to be able to work.

Edited June 14, 2023 by Trunkton

[ambreswe]

Hello, Havin the same issue. Just got a new USB stick because unraid have crashed twice but can not use the usb tool... Please advise.
Windows 10 and latest USB tool.

[wgstarks]

2 minutes ago, ambreswe said:

Hello, Havin the same issue. Just got a new USB stick because unraid have crashed twice but can not use the usb tool... Please advise.
Windows 10 and latest USB tool.

Use the manual method.

[ambreswe]

On 11/3/2023 at 2:17 PM, wgstarks said:

Use the manual method.

Yup, tried that, booted but all config was gone and it complained about not being able to find an UID on the USB, so that didn't work.
I've managed to fix the old USB in windows with chkdsk.
I also have an older Sandisk USB now which is my backup USB, which works with the tool.

[wgstarks]

8 minutes ago, ambreswe said:

Yup, tried that, booted but all config was gone and it complained about not being able to find an UID on the USB, so that didn't work.
I've managed to fix the old USB in windows with chkdsk.
I also have an older Sandisk USB now which is my backup USB, which works with the tool.

Yeah, flash drives without a unique UID won’t work.

[rutherford]

I have a couple of questions:

1. enable UEFI boot method, how do I know if I need to do this?

2. the "manual method" referenced above has us download the original unraid boot files from the website: what about all our settings, disk allocations, all that stuff? I thought even the manual method would involve a backup Flash from the existing server.



derp, this is probably that step:

https://docs.unraid.net/unraid-os/manual/changing-the-flash-device/#manual-method

"Before removing the flash from the PC, copy the boot/config folder from the backup you made, into the flash drive, overwriting existing files."

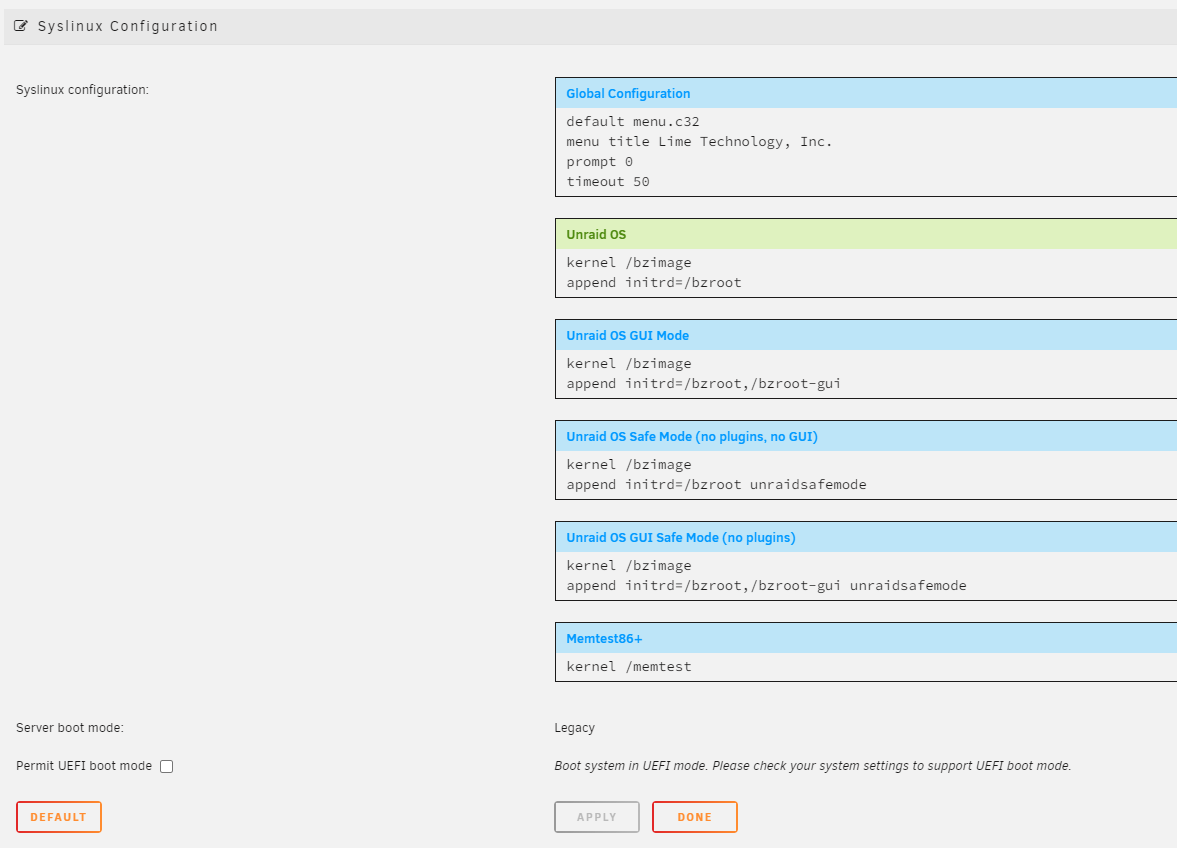

to possibly answer my #1 question, I can look and see how I'm currently booting under Main > Flash, go to bottom for this.

Server boot mode: Legacy

Permit UEFI boot mode <checkbox> mine is unchecked.



Edited December 30, 2023 by rutherford

[trurl]

1 minute ago, rutherford said:

what about all our settings, disk allocations, all that stuff?

You need to copy the config folder from your flash backup.
